high efficient wood thin cutting frame saw machine
- Category: >>>
- Supplier: Guangzhou Wellmax Technology Co. Ltd.
Share on (1600345817314):
Product Overview
Description

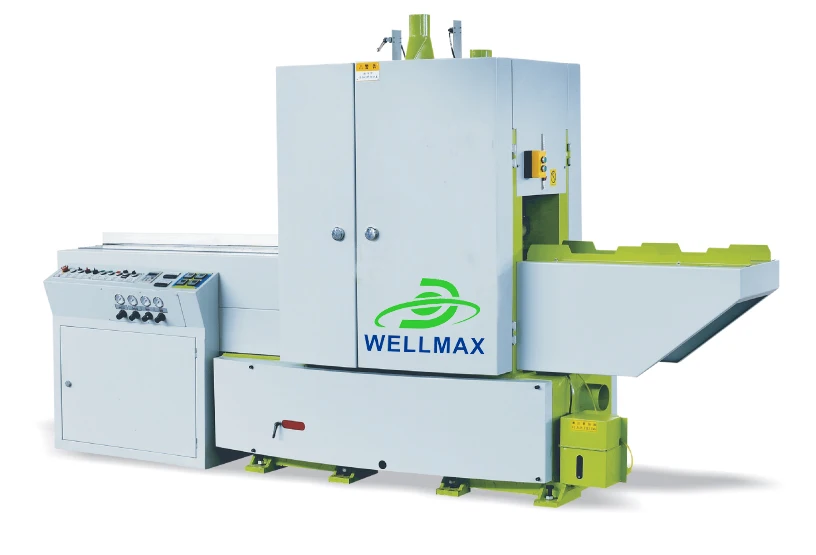

high efficient wood thin cutting frame saw machine
Introduction:

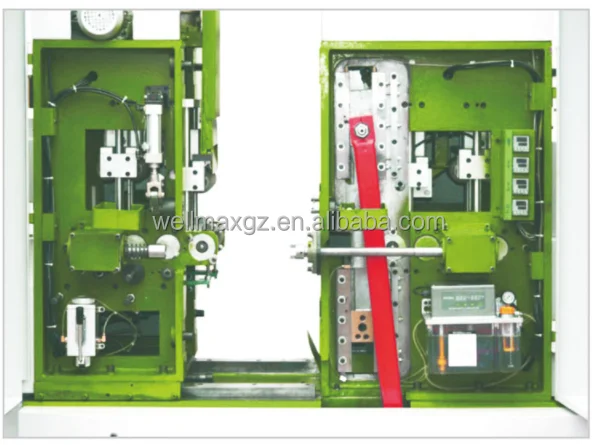

This machine can disassemble the saw frame, and the front and rear panels can be separated, which is more convenient and simple to operate.mainly used on the log to cut multi-blade, produce all kinds of size of wood line , and is widely used furniture , blackboard and flooring core
1.Symmetric fram saw
2. precise feed servo control
3. high quality cutting
4. prevent avulsion .
5. precise feed at time .
6. automatic lubrication
7 high speed perfunctory
8 .air cooling
9. automatic ration lubricat
10. spray
11. simply operation use easy
12. cutting wet wood
Technical Parameters:
| Model | SM-25-25 | SM-30-30 |
| Connection voltage | 380v | 380v |
| Total motor power | 19kw | 28kw |
| Feed speed | 0.1-1.5m/min | 0.1-1.5m/min |
| Stoke of frame | 210MM | 240MM |
| Number of strokes | 480Number/min | 450Number/min |
| Cutting height(flexible adjustalk) | 60-200mm/250mm | 60-200mm/250mm |
| Cutting width side guide | 60-200mm | 160-300mm |
| Cutting width center guide | 2x30-90mm | 2x30-90mm |
| Number of channels with7.5mm guidance | maximum width of 2 channels is 95mm maximum width of 4 channels is 24mm | maximum width of 2 channels is 150mm |
| Block length | ≥300mm | ≥300mm |
| Block height difference/center guide | 0.2mm | 0.2mm |
| Min.product thickness | 2mm | 2mm |
| Cutting precision up to 120mm cutting height | ±0.1mm | ±0.1mm |
| Number of saw blades | 24 | 24 |
| Suction tubes | 3x100mm | 3x100mm |
| Suction performance per conmection | 1300m³/H | 1300m³/H |
| Compressed air | ≥6ba | ≥6ba |
| Dimensions(Length X width X height) | 3600x930x2500mm | 3600x930x2500mm |
| Weight | 2700kg | 3200kg |

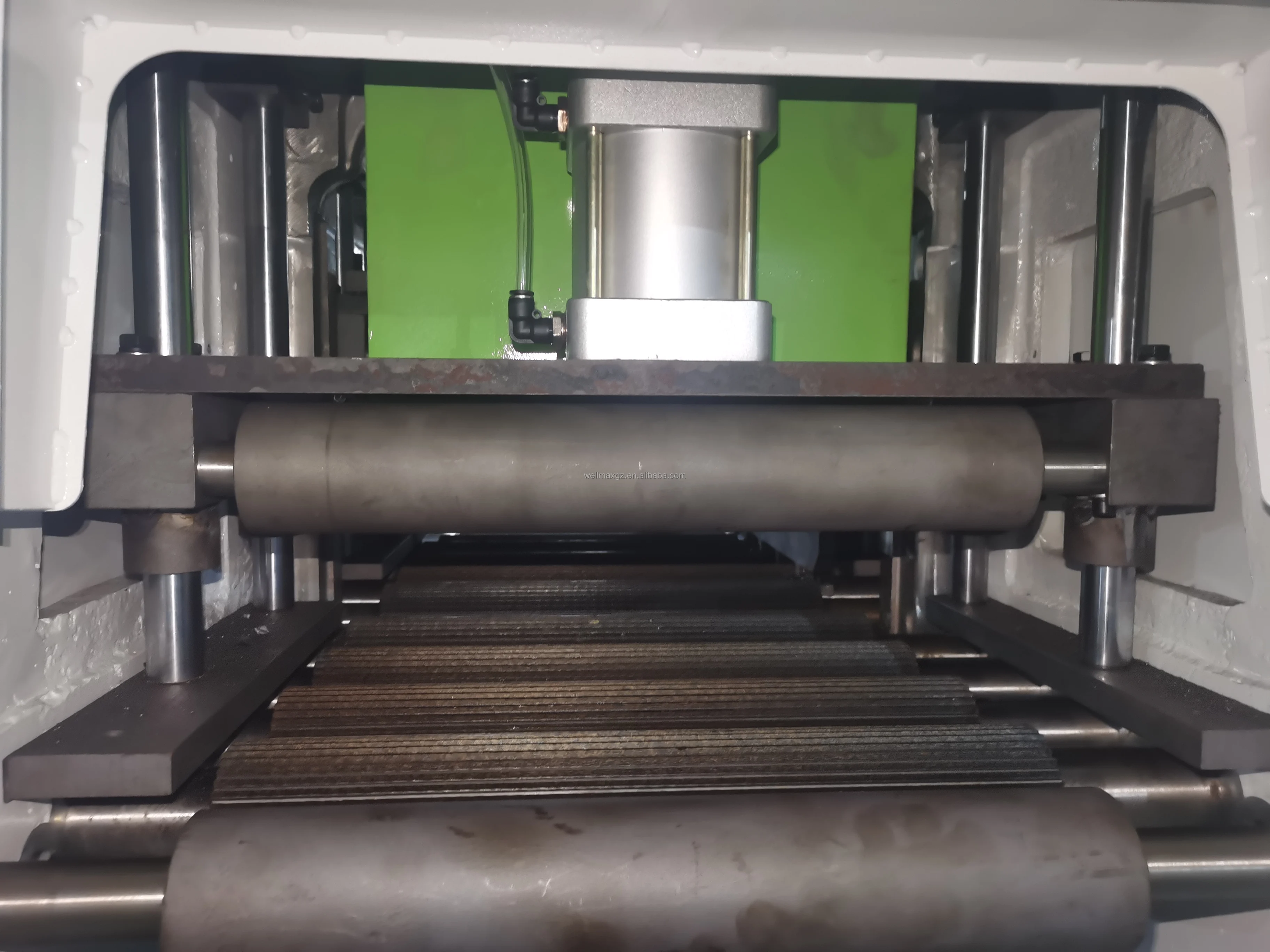

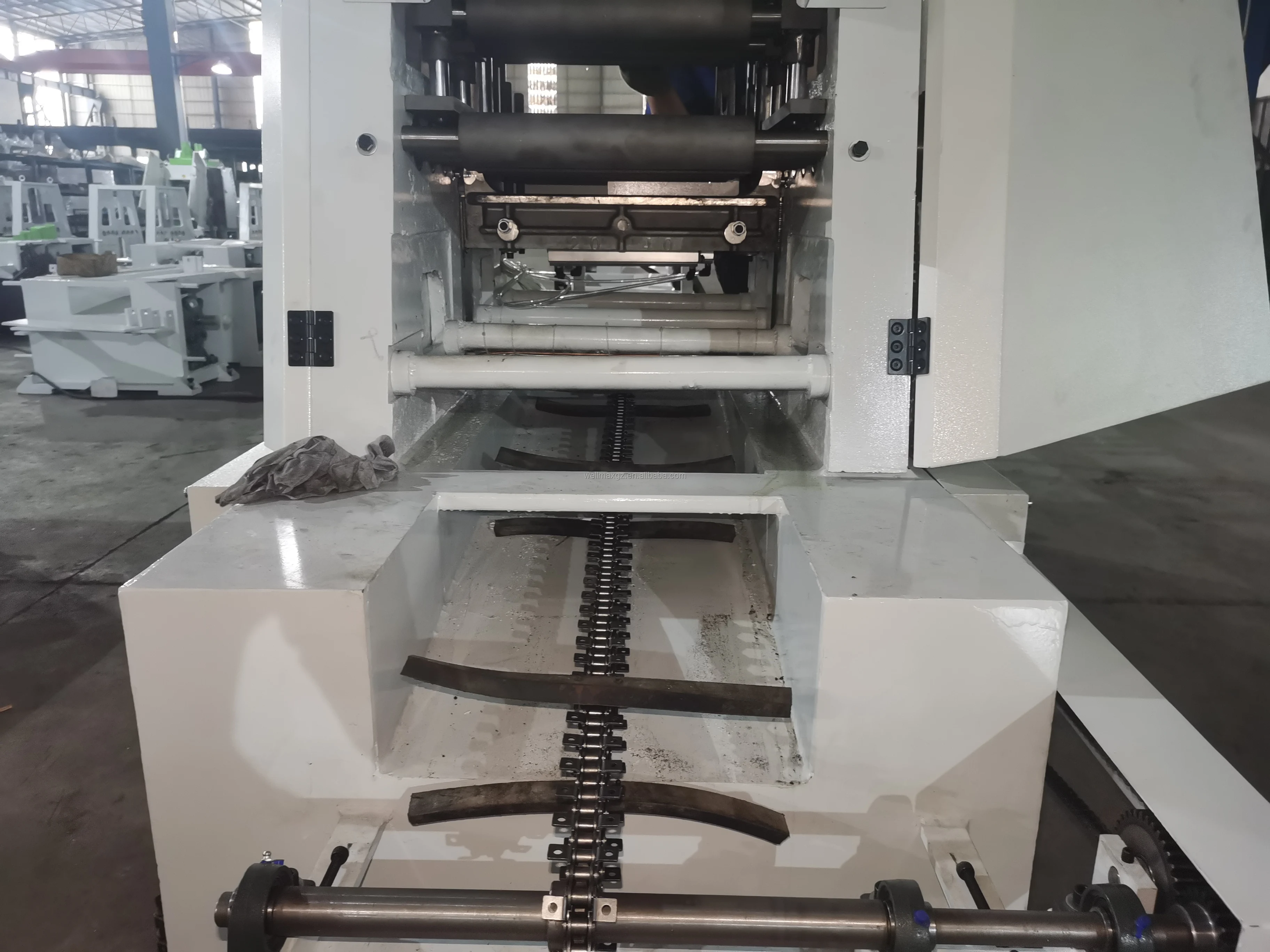

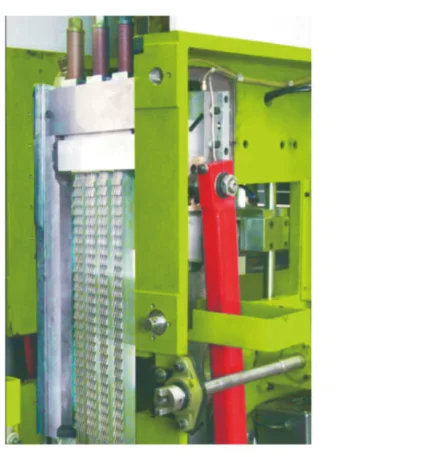

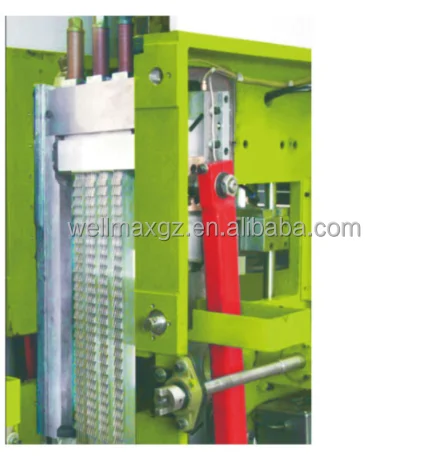

Wood mizer fram saw machine details pictures :
Packing:
Our Service
FAQ
1. Can I visit your company?
Warmly welcome to visit our factory, please contact us to make an appointment before coming.
2. How many days the machine can be delivered?
If machine in stock we can deliver it within 3 days,if no stock available the standard delivery time is 15 days.
3. What is your price term and payment term?
Price term: EXW,FOB,CIF ect.
Payment term: T/T, ect.
4. Whats the shipping cost?
This is decided by your import port and machine quantity,different size,different quantity,different port the shipping cost will be different.
5. Whats your company warranty policy?
The machine have standard one year warranty,during warranty period if machine meet quality issue we will send spare parts to replace or sending engineer to fix it.
6.How to install and operate the machine?
We will provide installation and operating manual book,you can follow the manual book to install and operate,also we can provide video for you to follow with.
