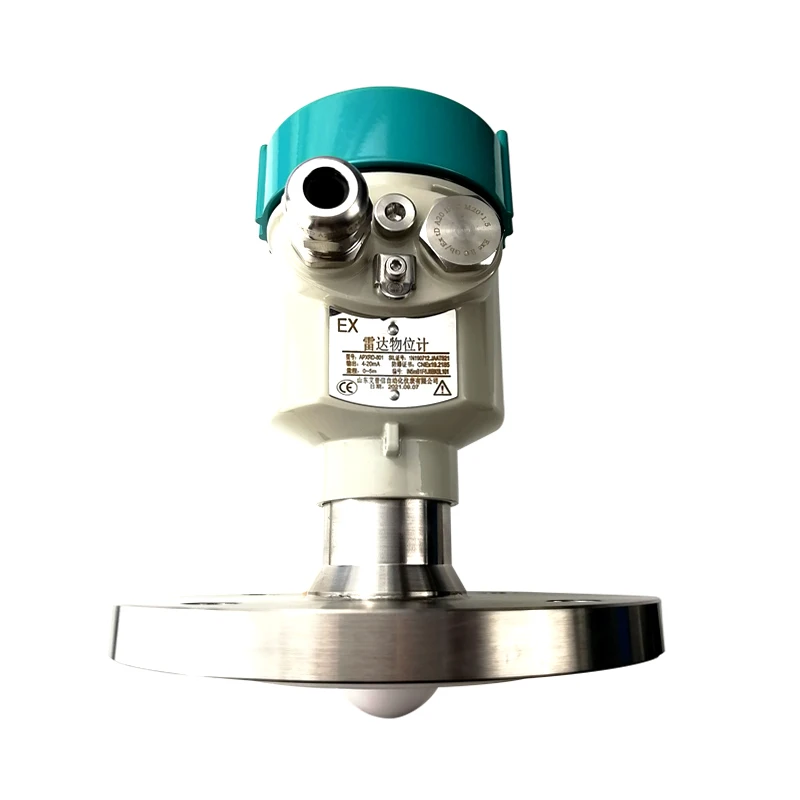

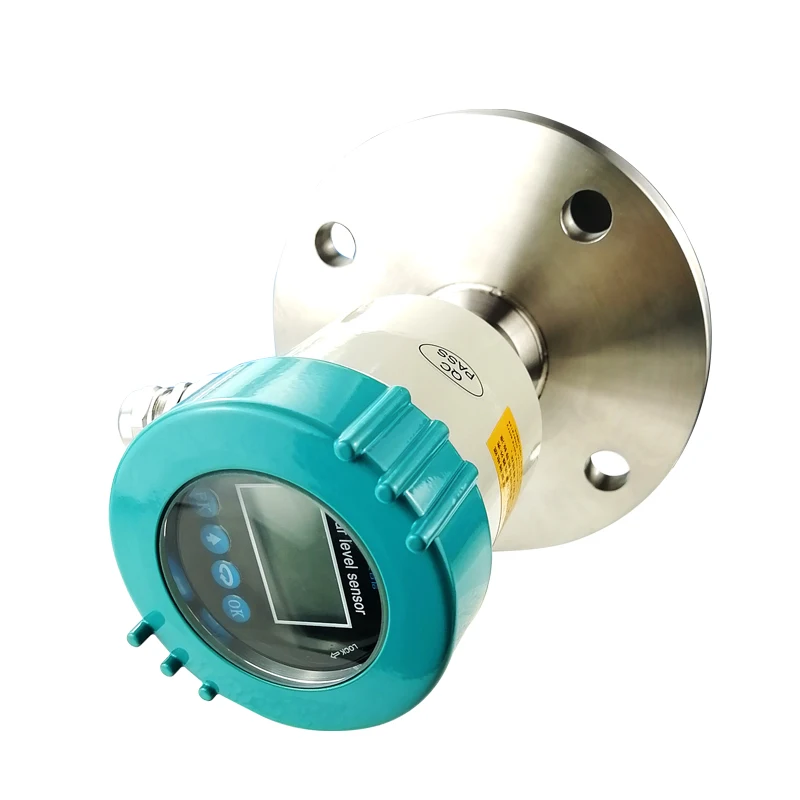

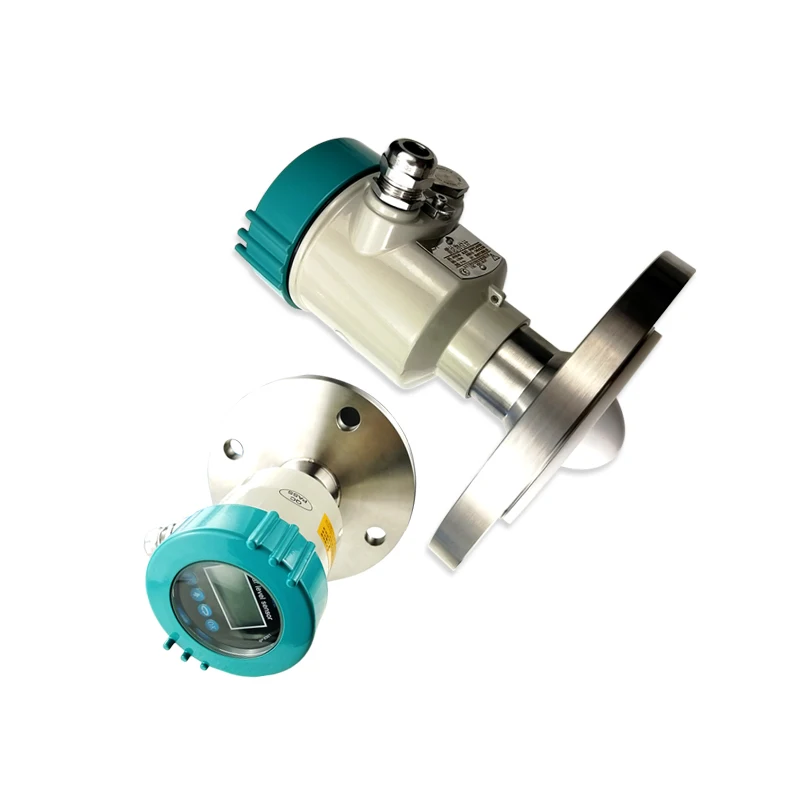

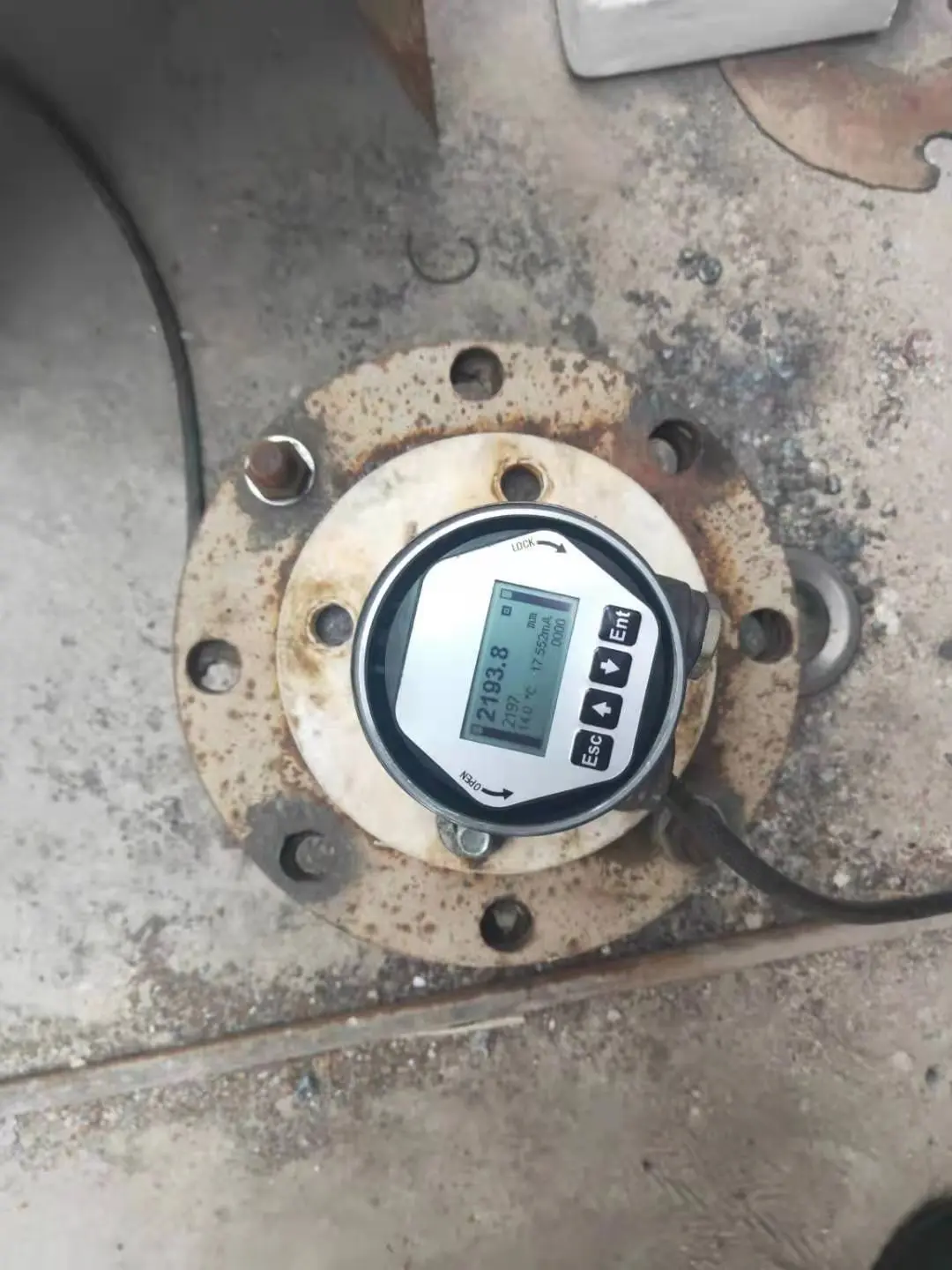

80G small blind zone lime powder ore slurry level measurement storage tank silo radar level transmitter RS485

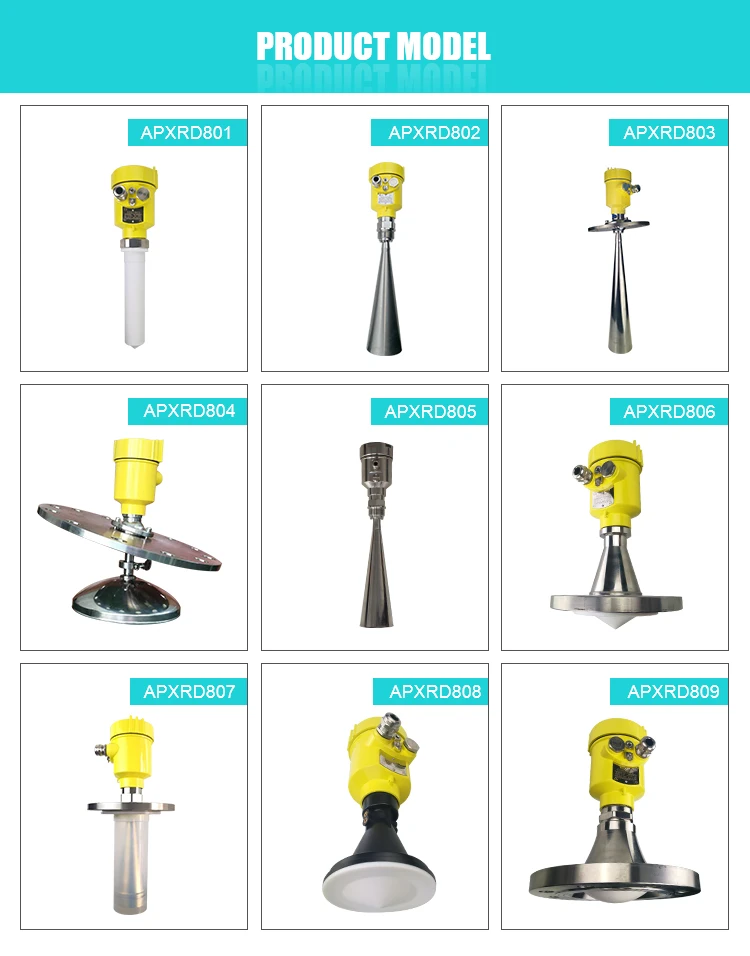

Product Overview

Description

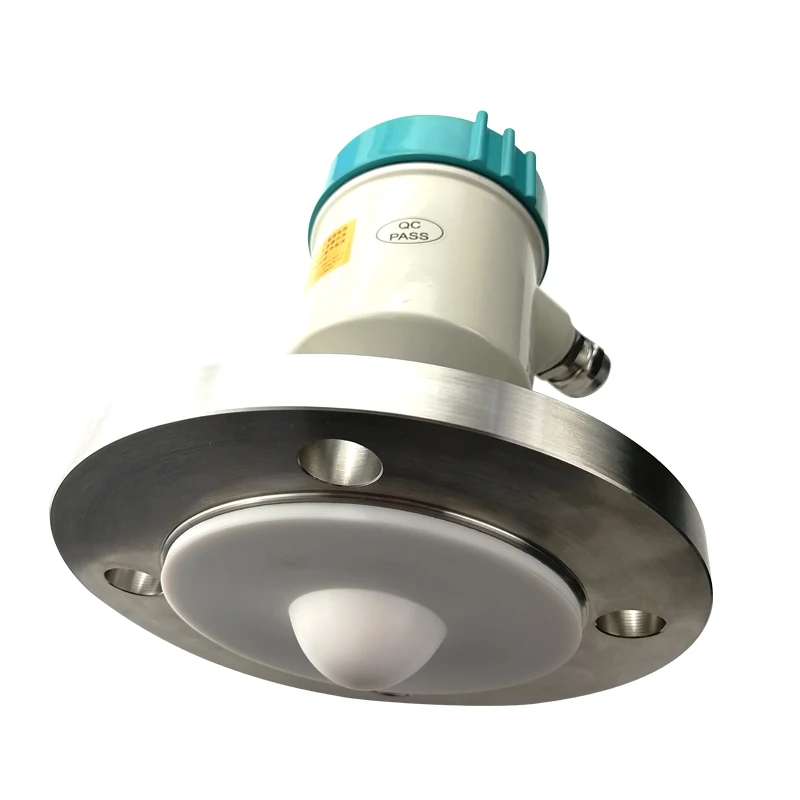

80G small blind zone lime powder ore slurry level measurement storage tank silo radar level transmitter RS485

76-81GHz frequency modulated continuous wave (FMCW) radar products, supporting four-wire and two-wire applications. With multiple models, the maximum range of the product can reach 120m, and the blind zone can reach 8 cm. Because of its higher working frequency and shorter wavelength, it is especially suitable for solid applications. The working method of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and bad temperature environments (+200℃). The instrument provides a flange or threaded fixing method, which makes the installation convenient and simple.



Based on self-developed CMOS millimeter wave radio frequency chip, it realizes a more compact radio frequency architecture, a higher signal-to-noise ratio, and a smaller blind area.

The 5 GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy.

The narrowest antenna beam angle is 3°, the interference in the installation environment has less impact on the instrument, and the installation is more convenient.

The wavelength is shorter, and it has better reflection characteristics on solid surfaces, so no special universal flange is needed for aiming.



Transmit frequency	76GHz~81GHz
Measuring range	0.3 m~ 60m   0 .08 m ~30m                     0.6 m~ 120m 0 .08 m ~ 10m
measurement accuracy	±1mm
Measurement interval	Fastest 100ms
Beam angle	3°/8°/20°
Use dielectric constant range	>=2
Power supply range	12~28.0VDC ,
communication method	MODBUS bus            HART
Signal output	4~20mA OR RS-485
Fault output	3.8mA ,4mA ,20mA ,21mA ,Keep
On-site operation/programming	128×64 dot matrix display/4 buttons Configurable upper computer setting software
Industrial temperature/humidity	T0:-40~85℃/≤95%RH;T1:- 40~200℃;T2:-40~500℃;T3:- 40~1000℃
shell material	Aluminum alloy, stainless steel
Process connection type	Pipe thread/universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange
Process pressure	-0.1~2MPa
Product Size	Ø100*270mm
Cable entry	M 20*1.5
Recommended cable	AWG18 or 0.75mm²
Protection level	IP67
Explosion-proof grade	ExdiaIICT6
Installation method	Thread or flange
Net weight/Gross weight	2.480Kg/2.995Kg
Packing box size	370*270*180mm



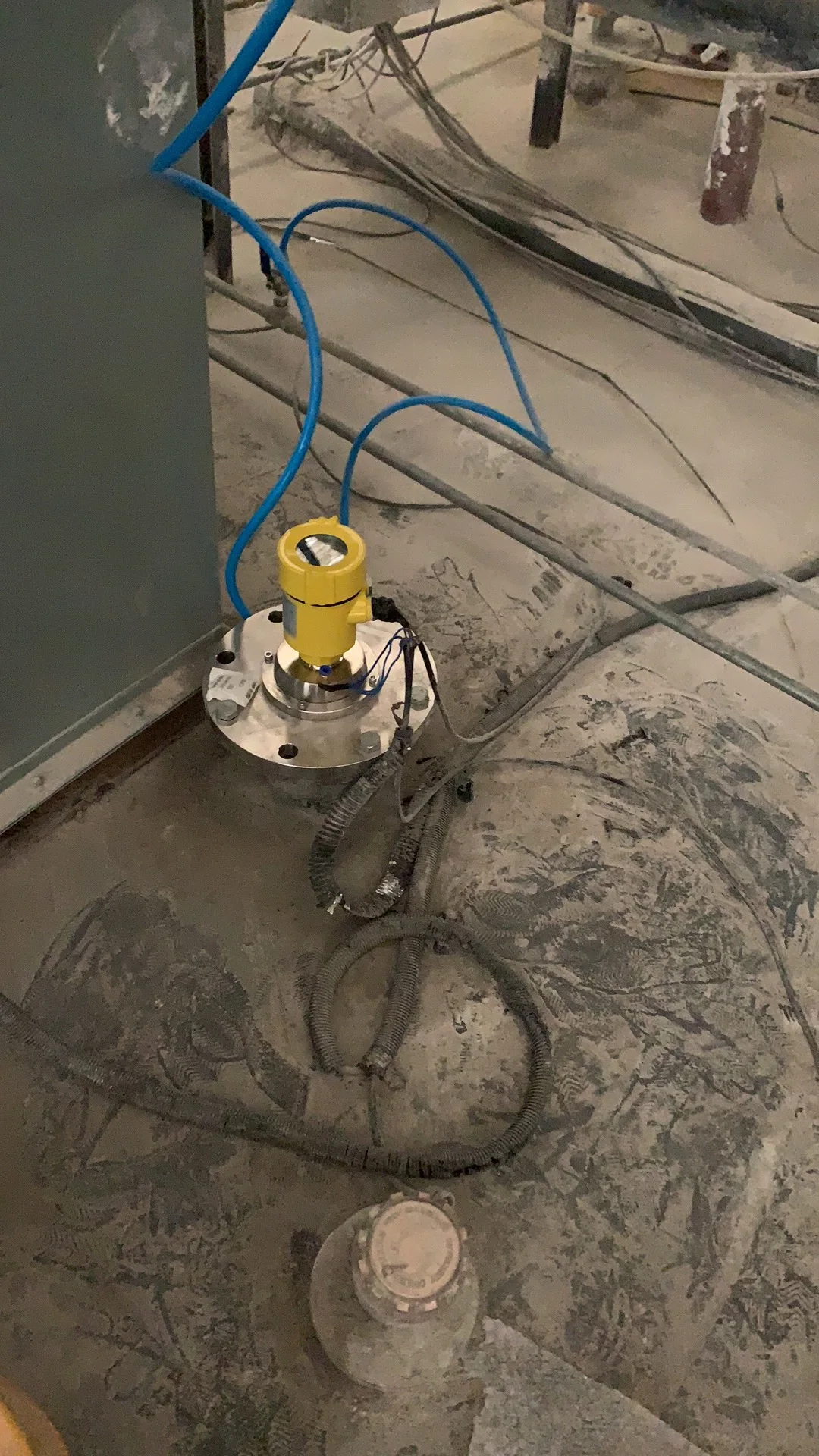

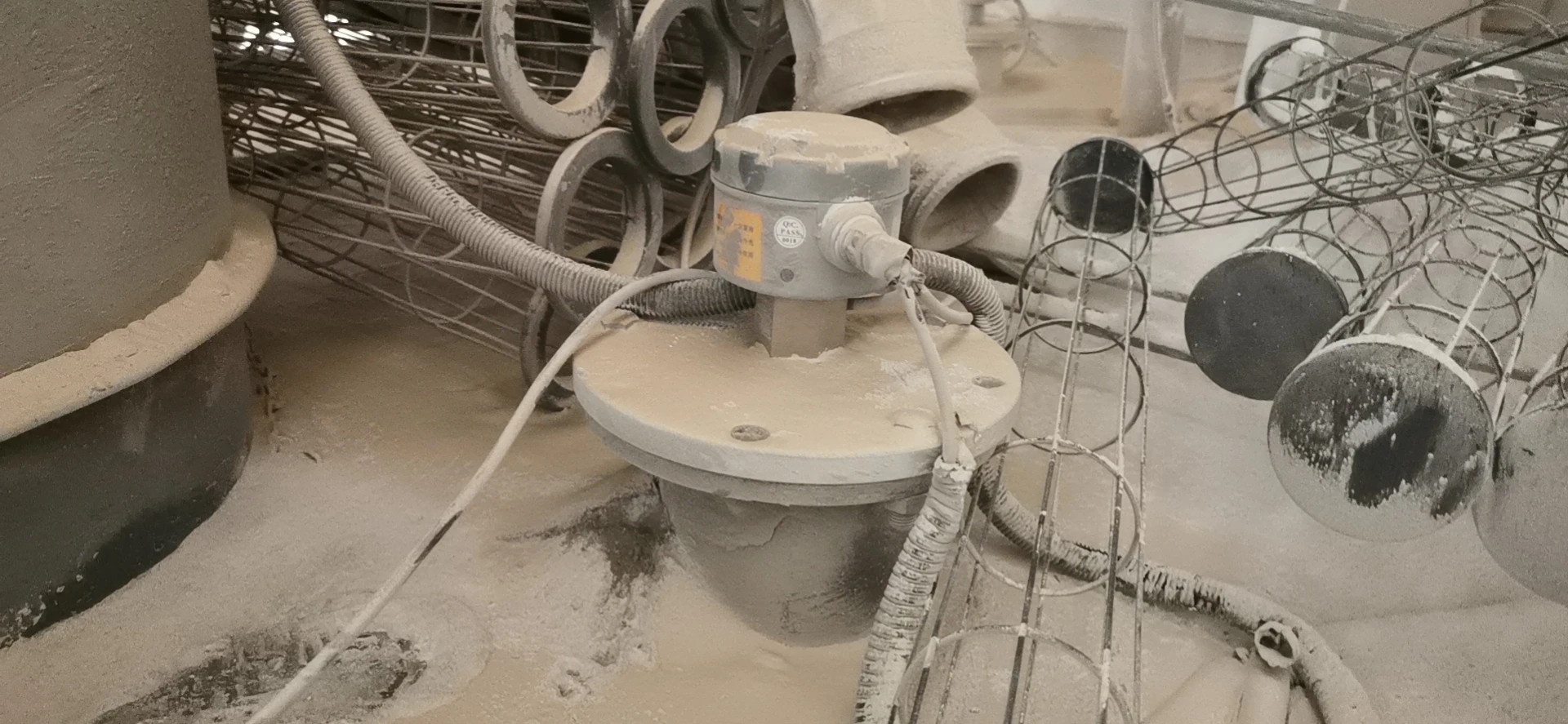

Application occasions:

1. Calcium carbide slag warehouse
2. Micronized slag powder silo of iron and steel plant
3. With stirring steam and beating tank
4. Mineral slurry
5. Gas tank
6. Spray paint, magnesium oxide

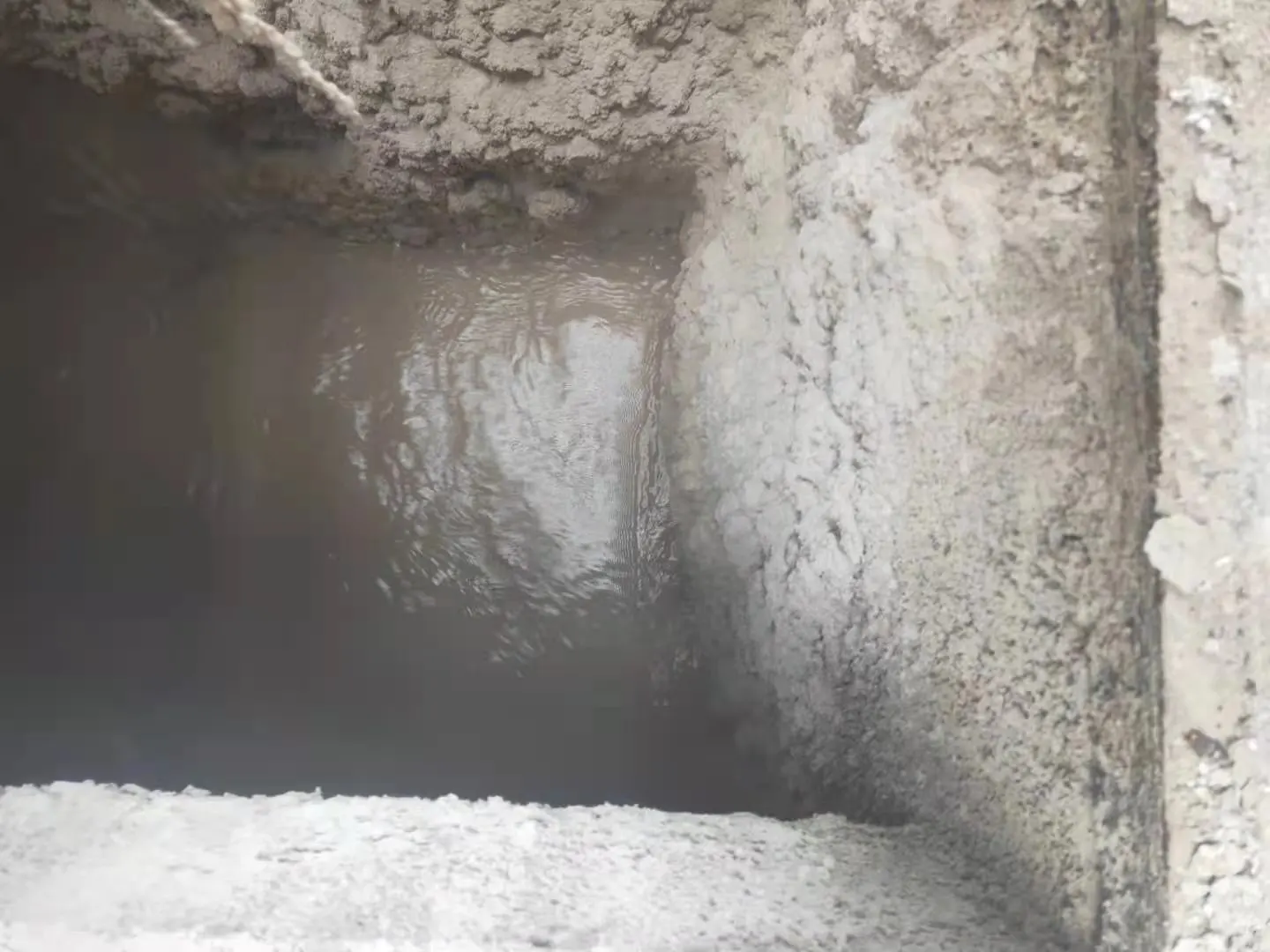

7. Lime slurry
8. Cement powder
9. Salt chemical industry small cone-shaped silo
10. Alumina powder
11. Steam reactor hydrolysis
12. Steam stirred reactor

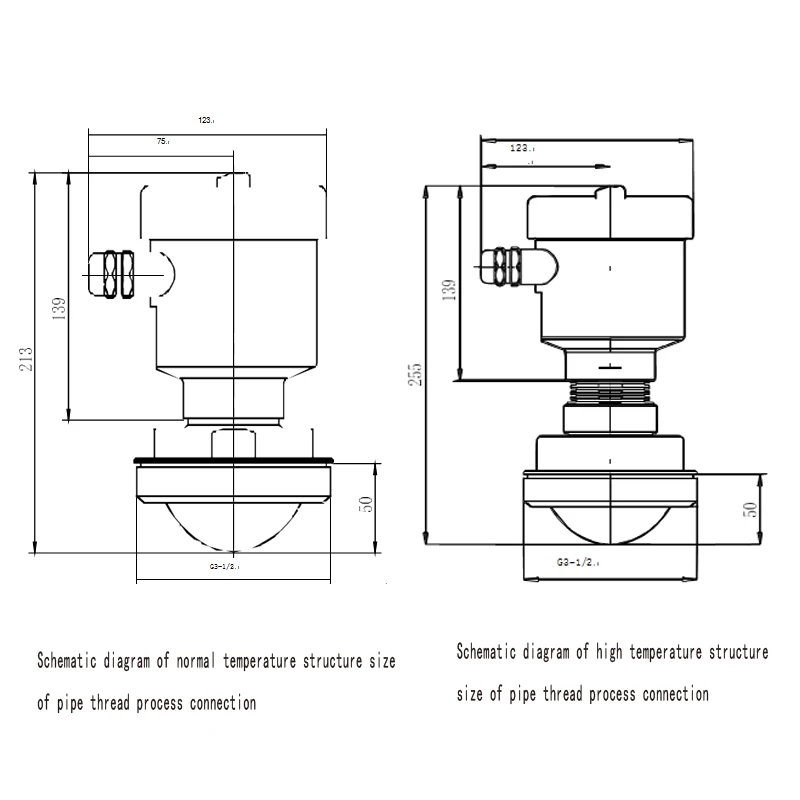

Schematic diagram of normal temperature structure size of pipe thread process connection

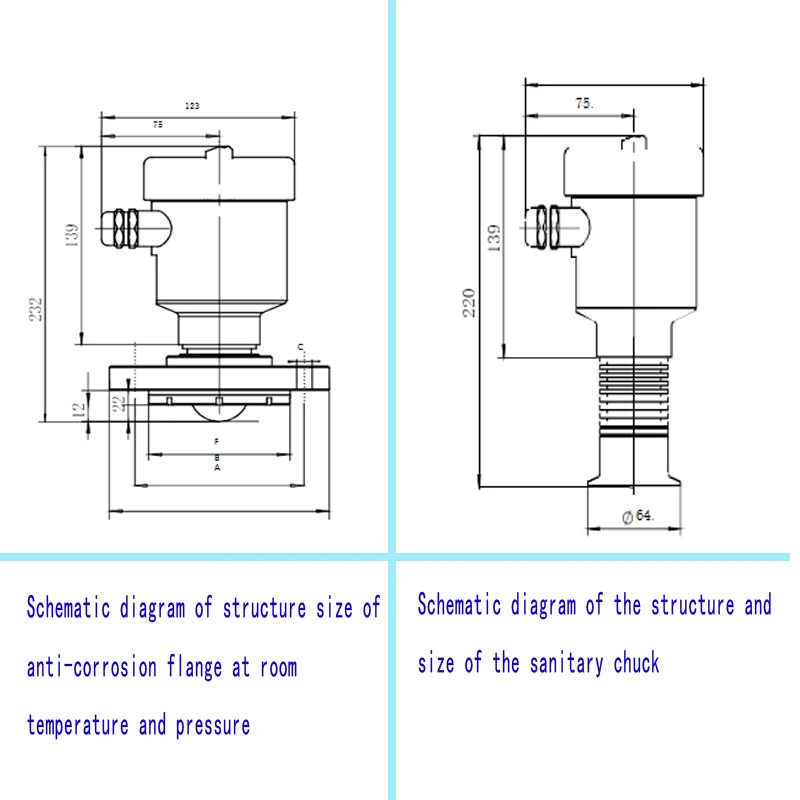

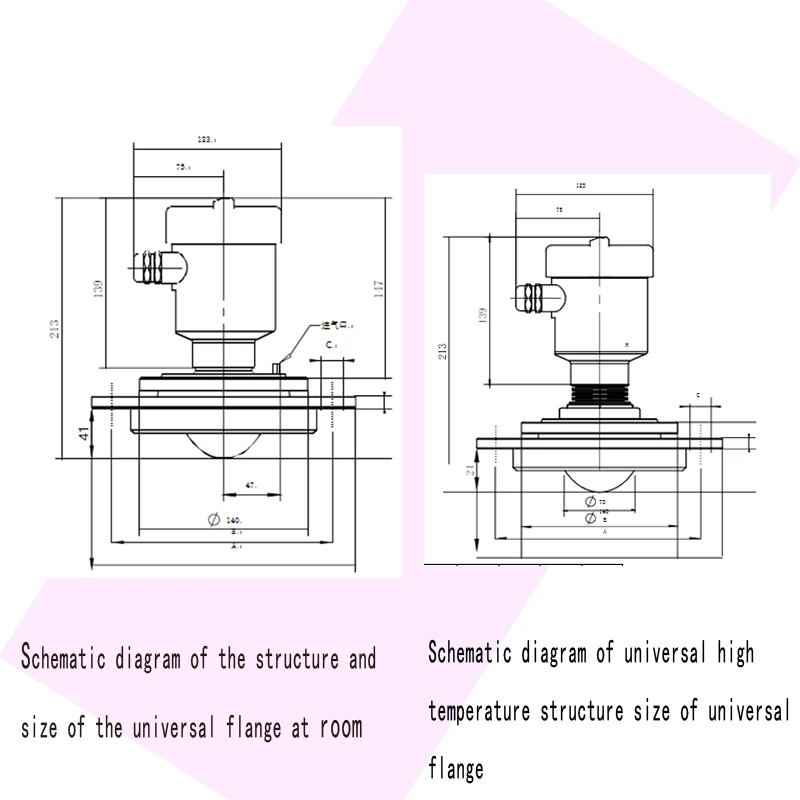

Schematic diagram of the structure and size of the universal flange at room temperature



Schematic diagram of the structure and size of the sanitary chuck

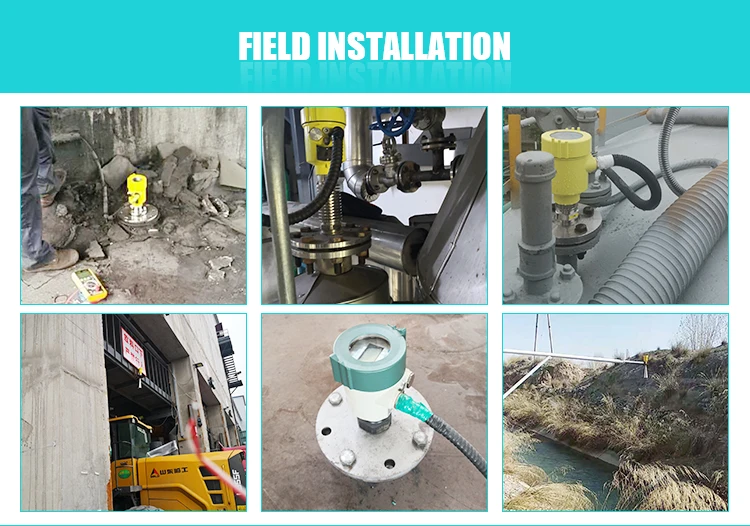

Two points to pay attention to during installation: (1) Align the target material level and try to ensure the vertical incident material level; (2) Avoid false echoes. See the following points for typical working conditions.

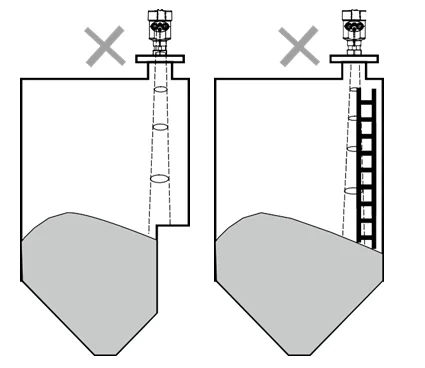

Ensure that there are no interfering objects, such as human ladders and steps, within the beam range.

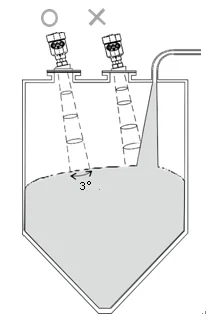

The installation of the instrument should ensure that the antenna beam avoids the feed inlet

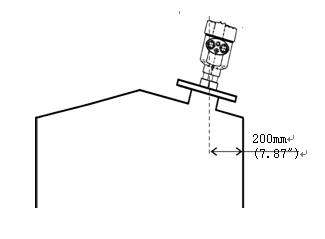

The instrument is installed at least 20cm away from the container wall, otherwise it is likely to produce false readings

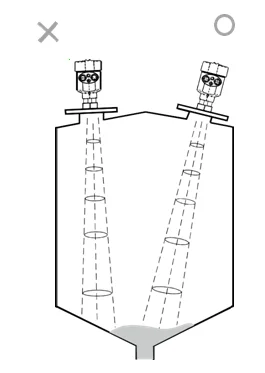

The cone-shaped container should try to ensure that the beam is directed at the bottom of the tank, otherwise the measurement results at the bottom of the tank may be inaccurate

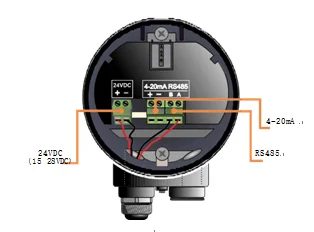

Four-wire product wiring diagram

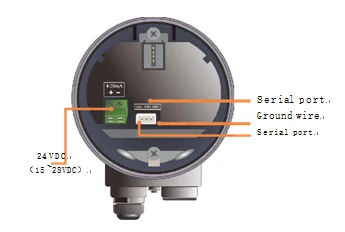

Two-wire product wiring diagram

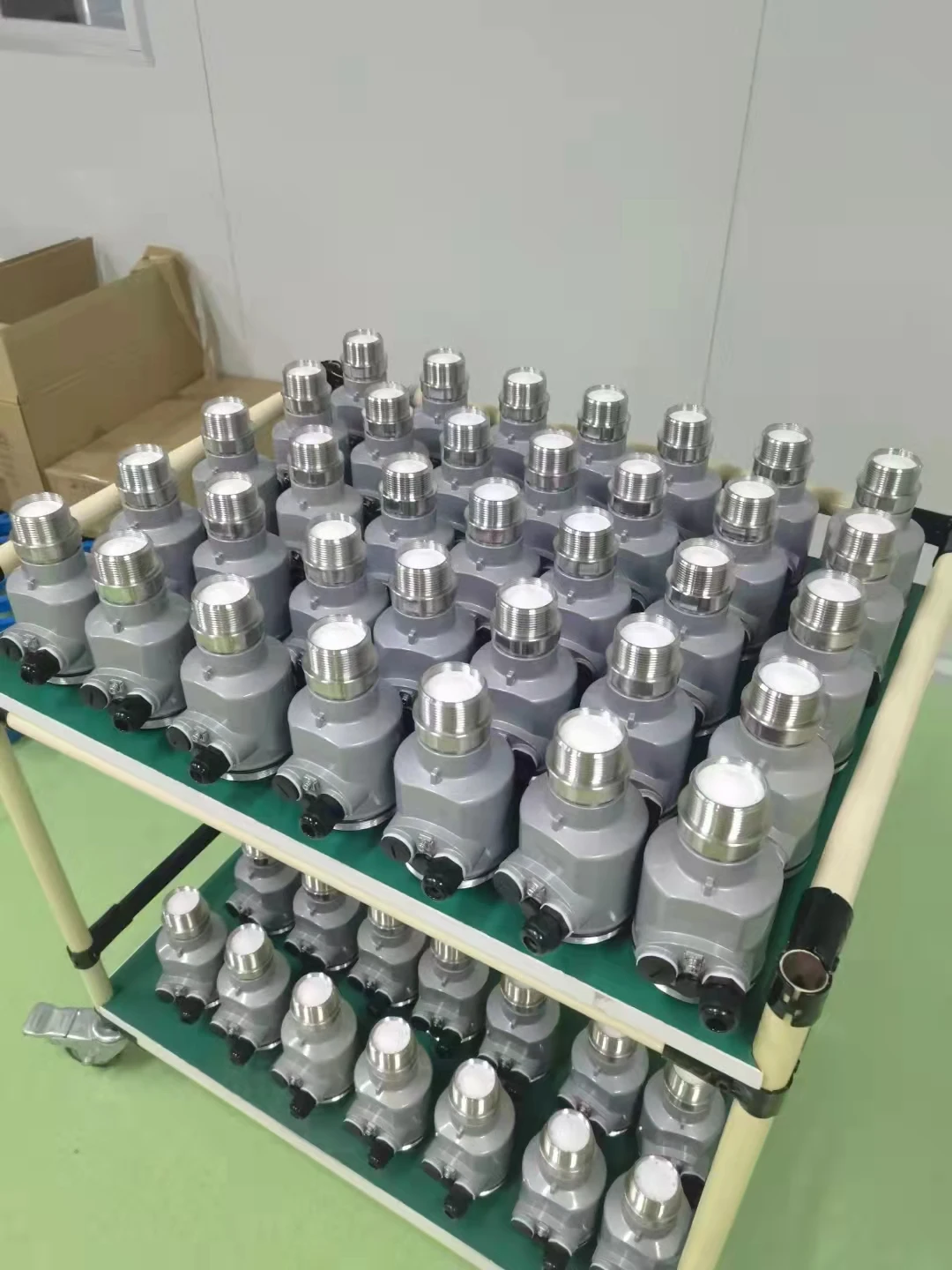

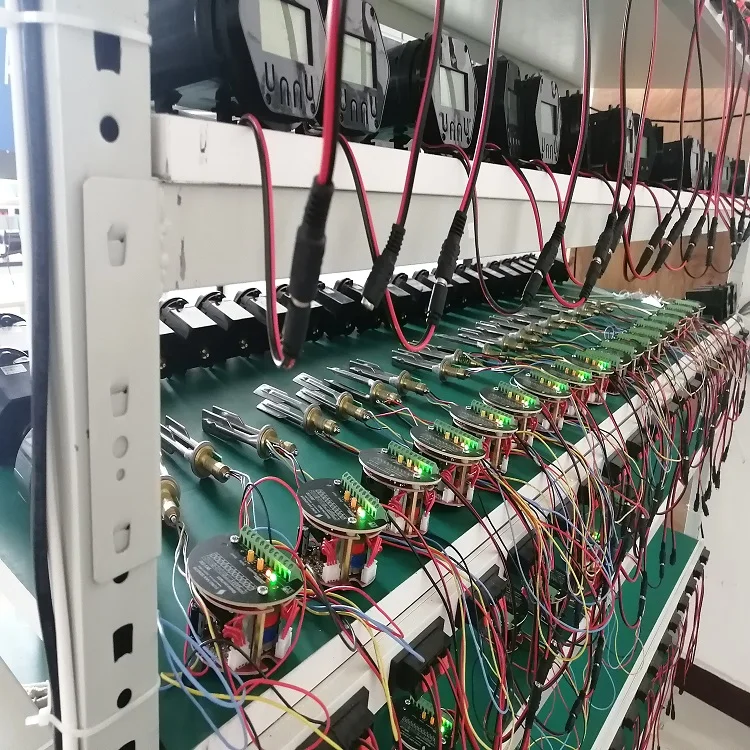

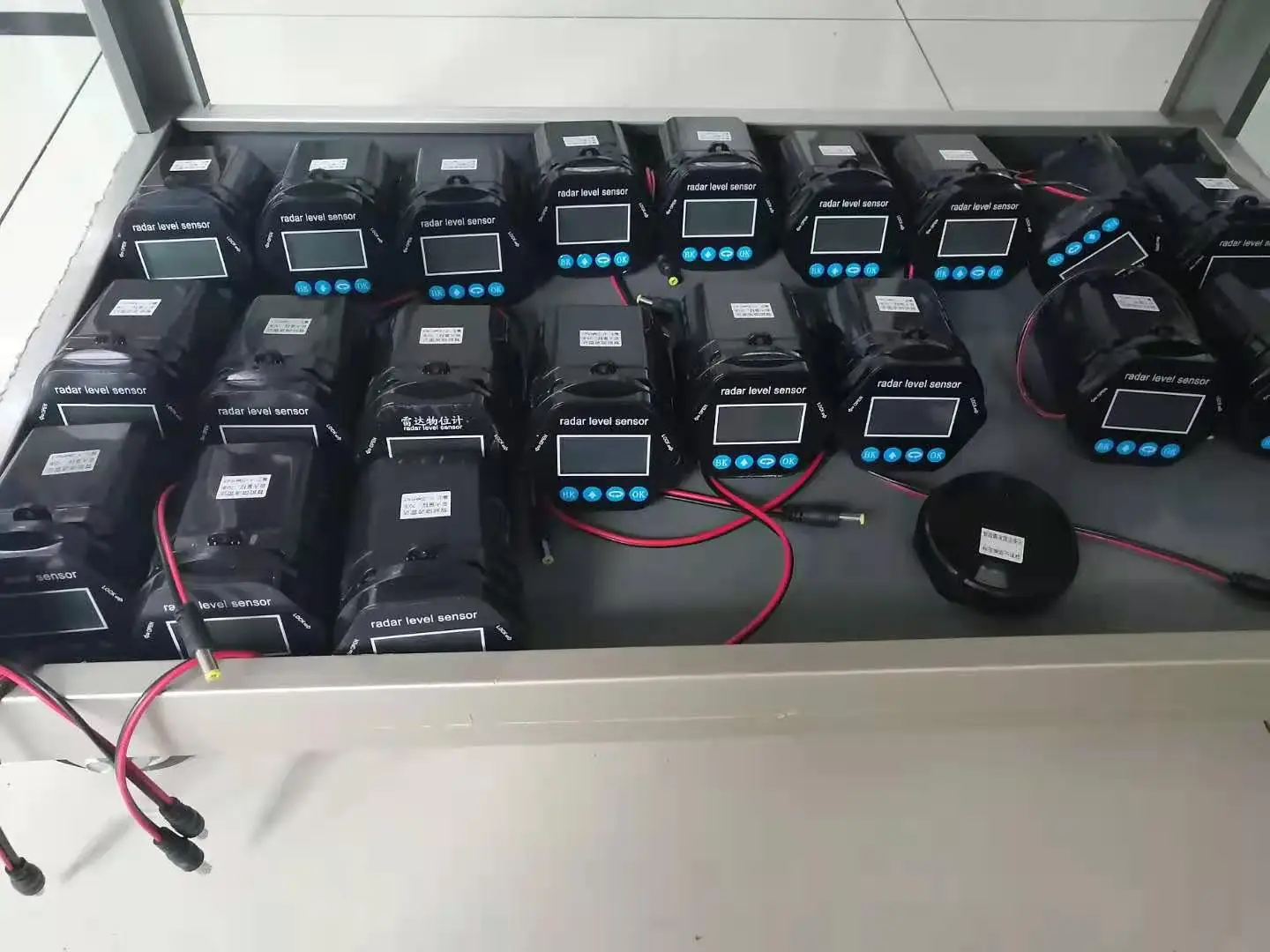

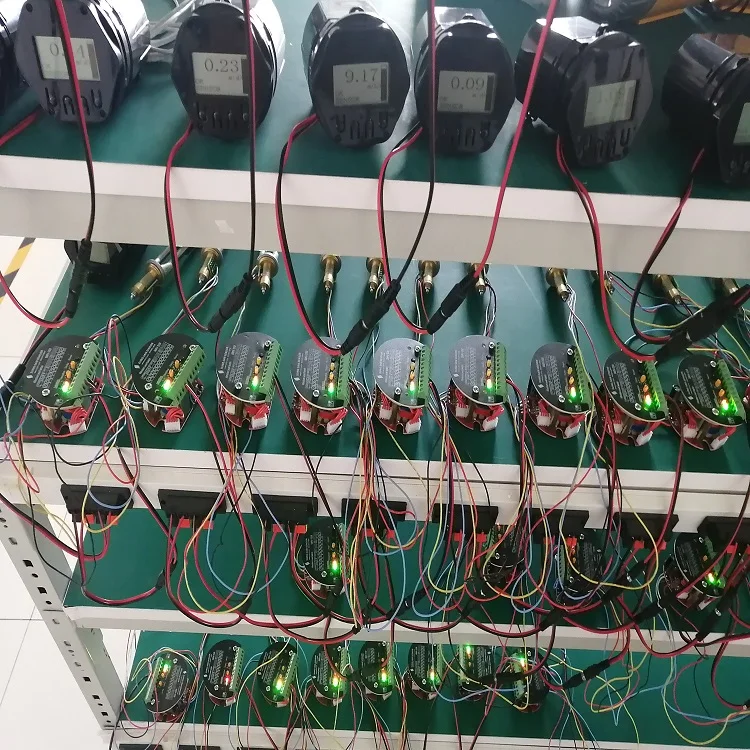

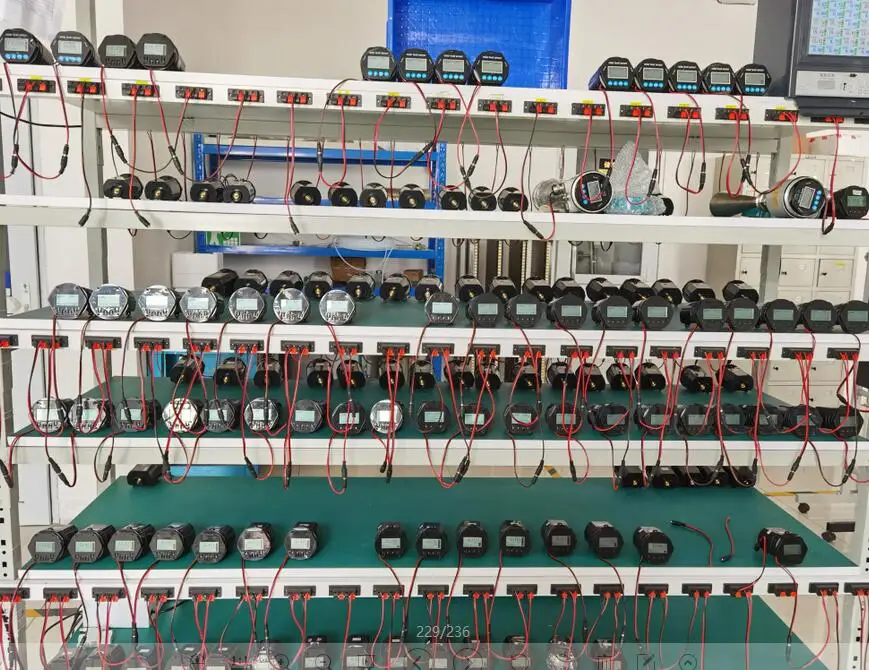

The products are arranged to be shipped after aging
