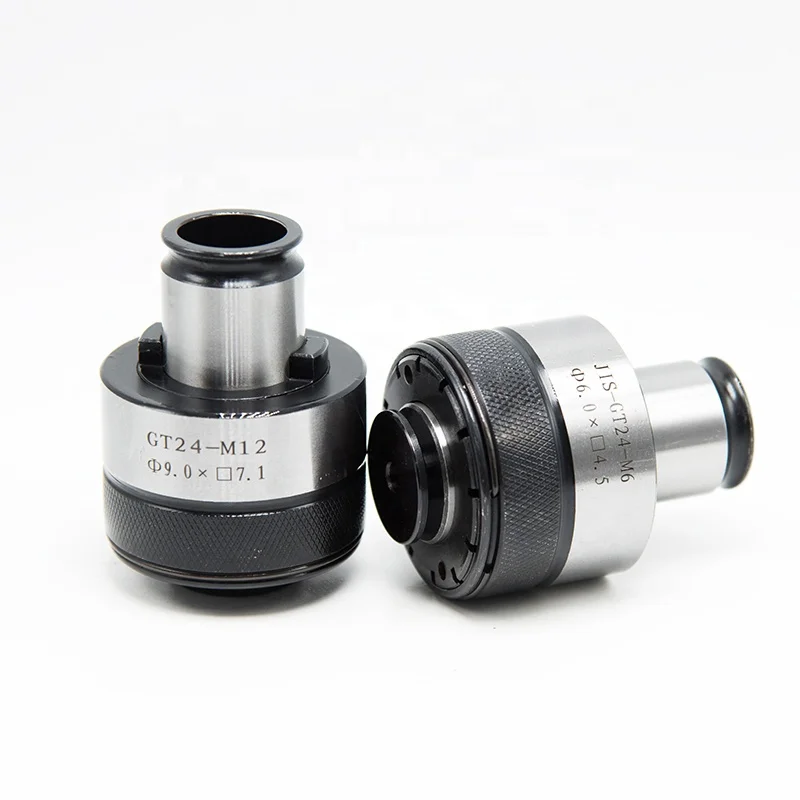

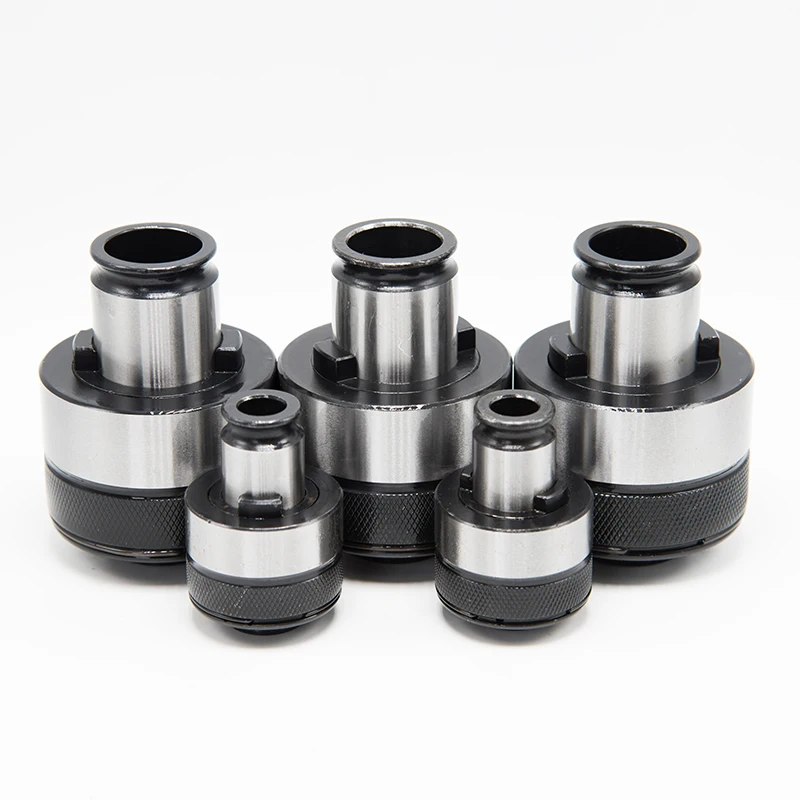

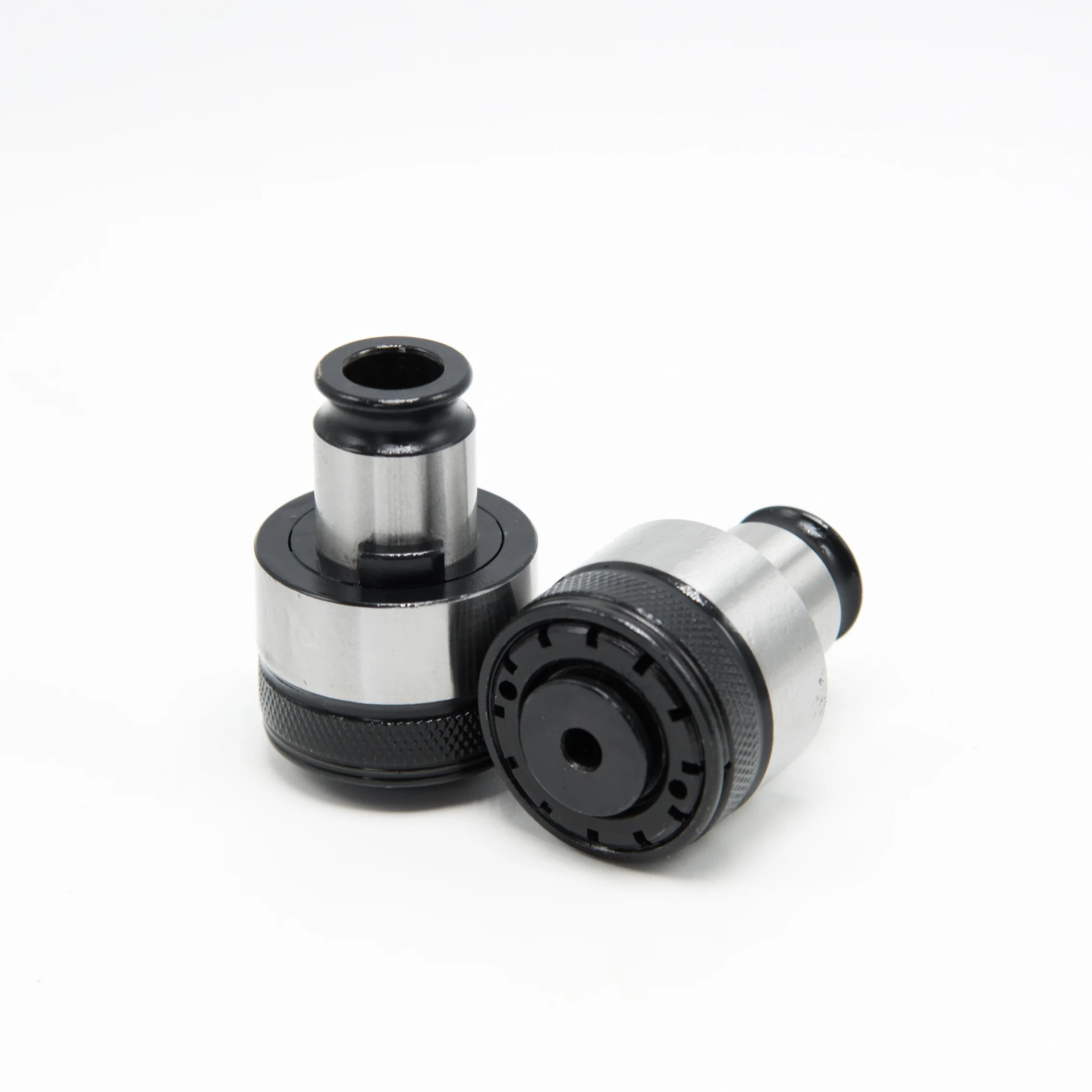

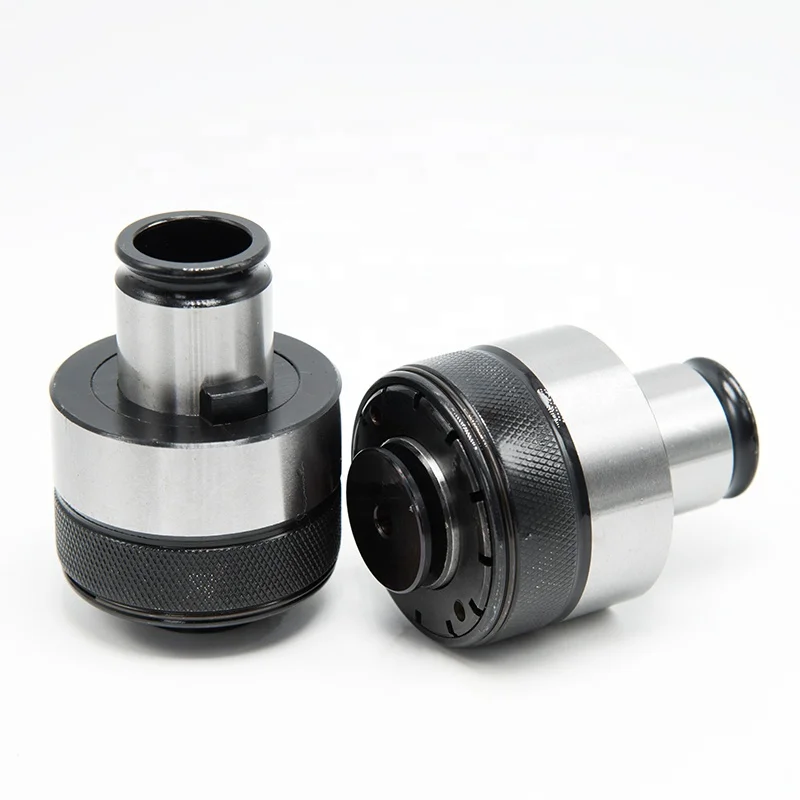

Quick GT24 GT12 tapping collet chuck ISO JIS DIN
- Category: Chuck >>>
- Supplier: Sishui Zhuo ao Precision Machinery Factory
Share on (1600345979453):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS

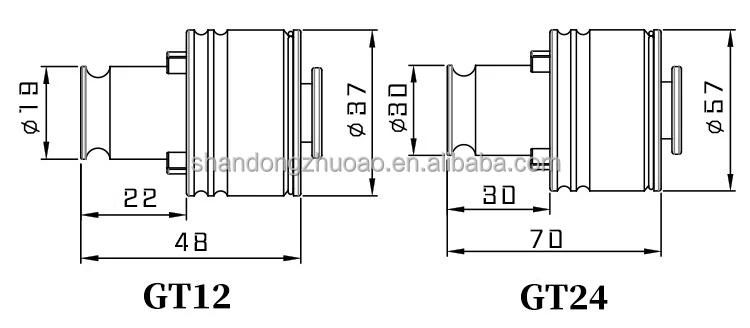

GT12 | ||||||||

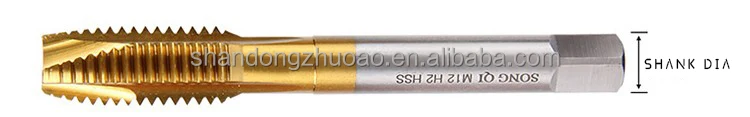

ISO | Tap shank diameter × Square Drive | JIS | Tap shank diameter × Square Drive | DIN | Tap shank diameter × Square Drive |
ISO529 | / | M2 | 3×2.5 | DIN371 | / |
M1-M2 | 2.5×2 | M3 | 4×3.2 | M1-M2 | 2.5×2.1 |
M2.2-M2.5 | 2.8×2.24 | M4 | 5×4 | M2-M2.5 | 2.8×2.1 |
M3 | 3.15×25 | M5 | 5.5×4.5 | M3 | 3.5×2.7 |
M4 | 4×3.15 | M6 | 6×4.5 | M4 | 4.5×3.4 |
M5 | 5×4 | M8 | 6.2×5 | M5 | 6×4.9 |
M6 | 6.3×5 | M10 | 7×5.5 | M6 | 6×4.9 |
M8 | 8×6.3 | M12 | 8.5×6.5 | M8 | 8×6.2 |
M10 | 10×8 | M14 | 10.5×8 | M10 | 10×8 |

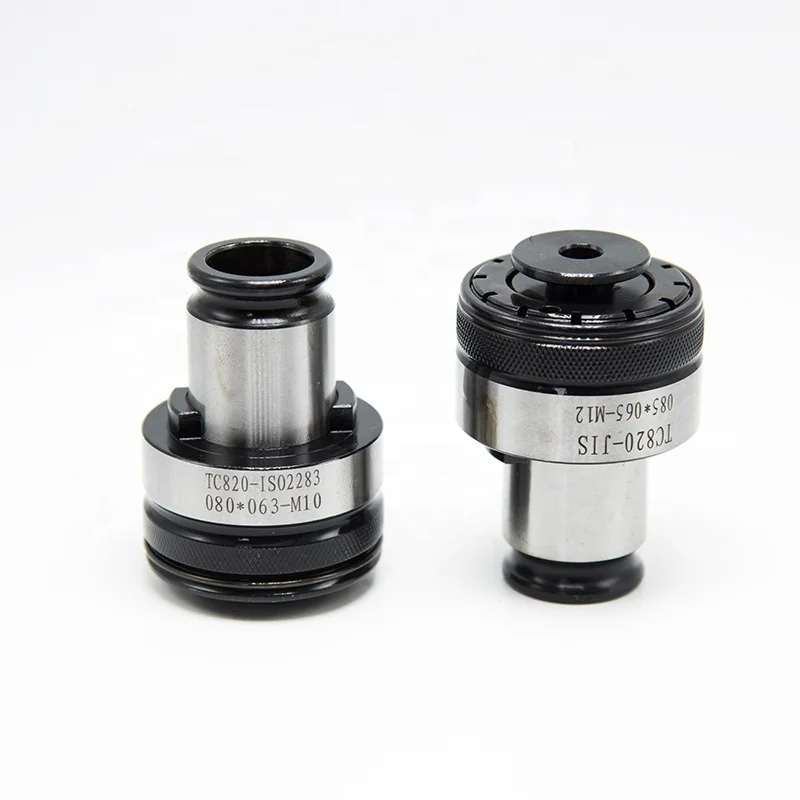

ISO529/2283 | / | M16 | 12.5×10 | DIN376 | / |
M3 | 2.24×1.8 | / | / | M4 | 2.8×2.1 |
M4 | 3.15×2.5 | M5 | 3.5×2.7 | ||
M5 | 4×3.15 | M6 | 4.5×3.4 | ||
M6 | 4.5×3.55 | M8 | 6×4.9 | ||
M8 | 6.3×5 | M10 | 7×5.5 | ||
M10 | 8×6.3 | M12 | 9×7 | ||
M12 | 9×7.1 | M14 | 11×9 | ||
M14 | 11.2×9 | M16 | 12×9 | ||
M16 | 12.5×10 | / | / |
GT24 | ||||||||
ISO | Tap shank diameter × Square Drive | JIS | Tap shank diameter × Square Drive | DIN | Tap shank diameter × Square Drive |
M5 | 5×4 | M5 | 5.5×4.5 | DIN371 | / |
M6 | 6.3×5 | M6 | 6×4.5 | M5 | 6×4.9 |
M8 | 6.3×5 | M8 | 6.2×5 | M6 | 6×4.9 |
M10 | 8×6.3 | M10 | 7×5.5 | M8 | 8×6.2 |
M12 | 9×7.1 | M12 | 8.5×6.5 | M10 | 10×8 |
M14 | 11.2×9 | M14 | 10.5×10 | DIN376 | / |
M16 | 12.5×10 | M16 | 12.5×10 | M8 | 6×4.9 |
M18 | 14×11.2 | M18 | 14×11 | M10 | 7×5.5 |
M20 | 14×11.2 | M20 | 15×12 | M12 | 9×7 |
M22 | 16×12.5 | M22 | 17×13 | M14 | 11×9 |
M24 | 18×14 | M24 | 19×15 | M16 | 12×9 |
M27 | 20×16 | M27 | 20×15 | M18 | 14×11 |
M30 | 20×16 | M30 | 23×17 | M20 | 16×12 |
/ | / | / | / | M22 | 18×14.5 |
M24 | 18×14.5 | ||||
M27 | 20×16 | ||||
M30 | 22×18 |

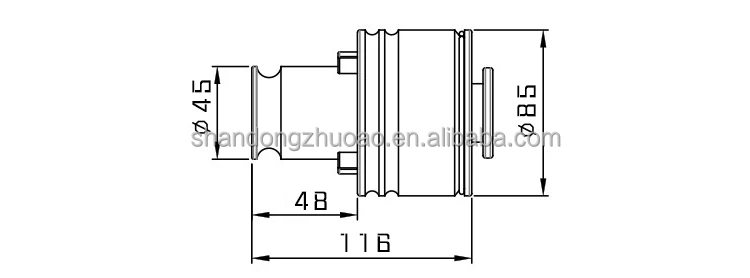

GT42 | ||||||||
ISO | Tap shank diameter × Square Drive | JIS | Tap shank diameter × Square Drive | DIN | Tap shank diameter × Square Drive |
M24 | 18×14 | M24/M25 | 19×15 | M24 | 18×14.5 |
M27 | 20×16 | M26/M27 | 20×15 | M27 | 20×16 |
M30 | 20×16 | M30 | 23×17 | M30 | 22×18 |
M33 | 22.4×18 | M32 | 24×19 | M33 | 25×20 |
M36 | 26×20 | M33 | 25×19 | M36 | 28×22 |
M39 | 28×22.4 | M34/M35 | 26×21 | M39 | 32×24 |
M42 | 28×22.4 | M36/M38 | 28×21 | M42 | 32×24 |
/ | / | M39/M40 | 30×23 | / | / |
M42 | 32×26 |
