FHD Endoscopy Camera HD Unit Portable endoscope camera system for Laparoscopy Hysteroscopy Urology ENT Arthroscopy
- Category: >>>
- Supplier: Top (hangzhou) E-Commerce Co. Ltd.
Share on (1600345997048):
Product Overview
Description
FHD Endoscopy Camera HD Unit Portable endoscope camera system for Laparoscopy Hysteroscopy Urology ENT Arthroscopy
Product Description

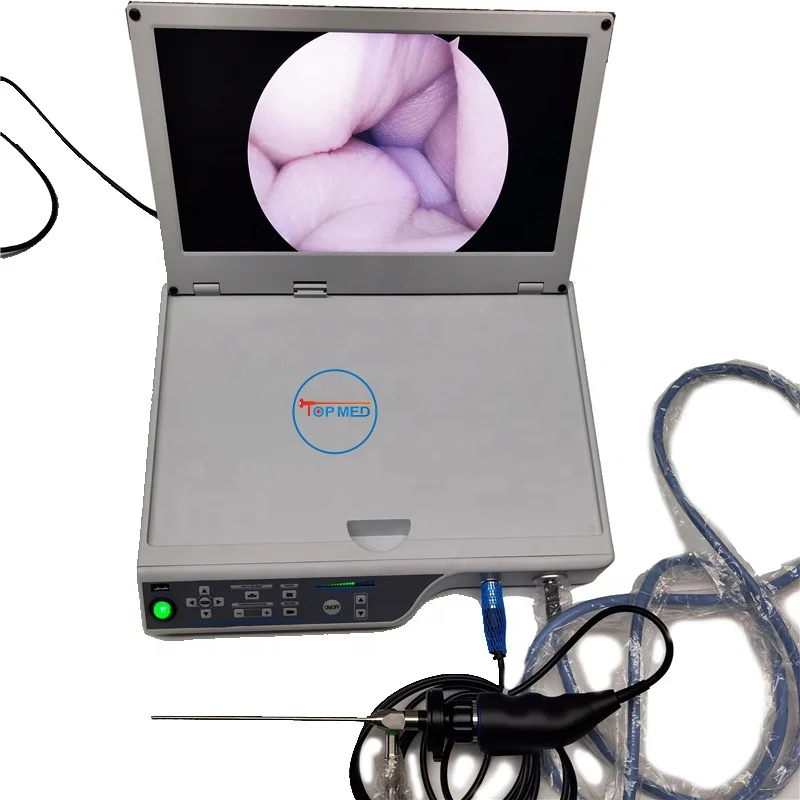

TPCS130HD FULL HD Integrated endoscopy image system

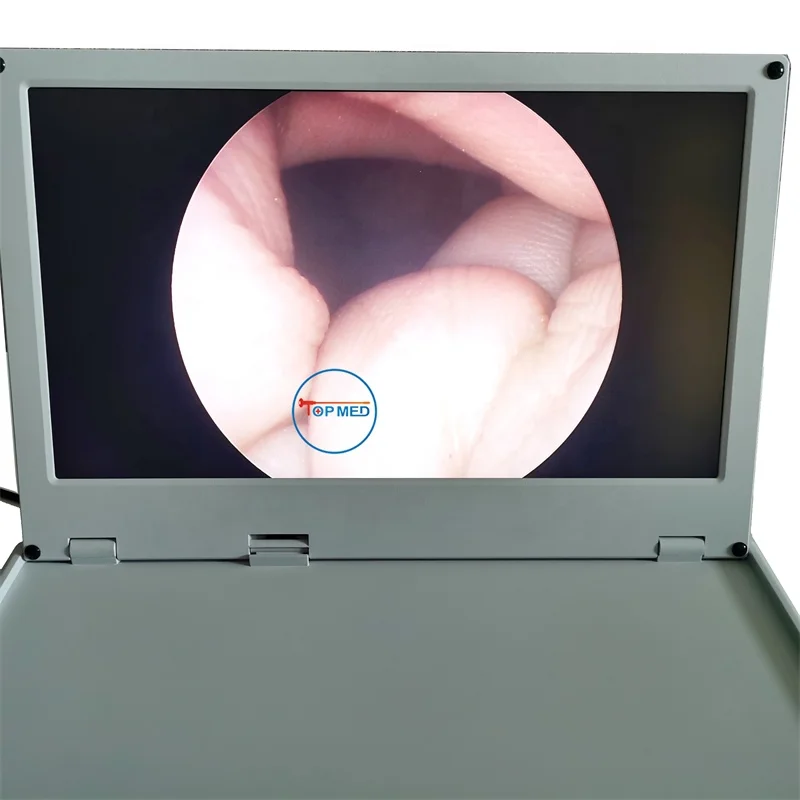

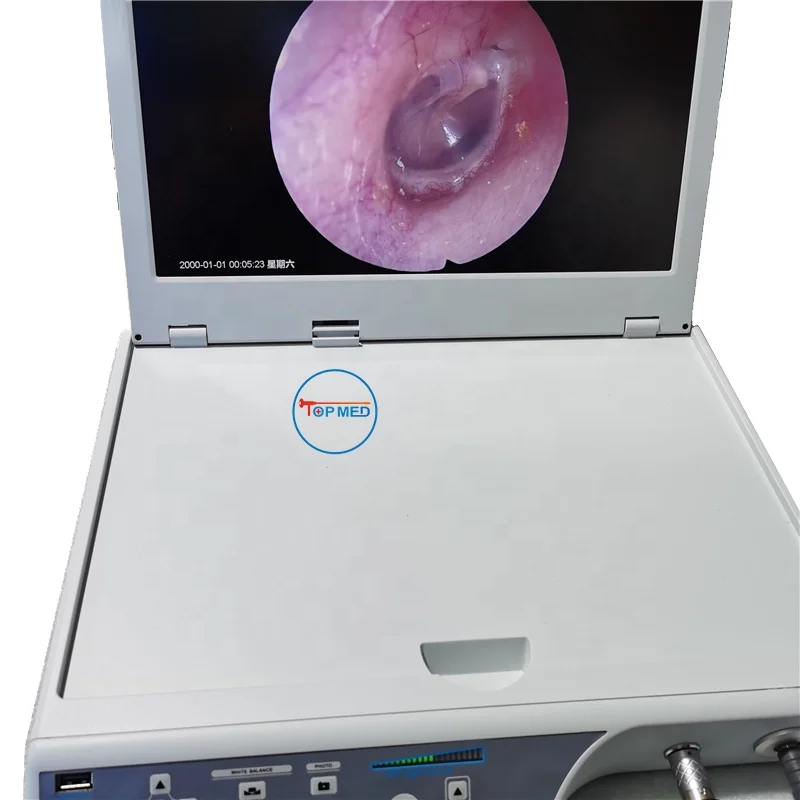

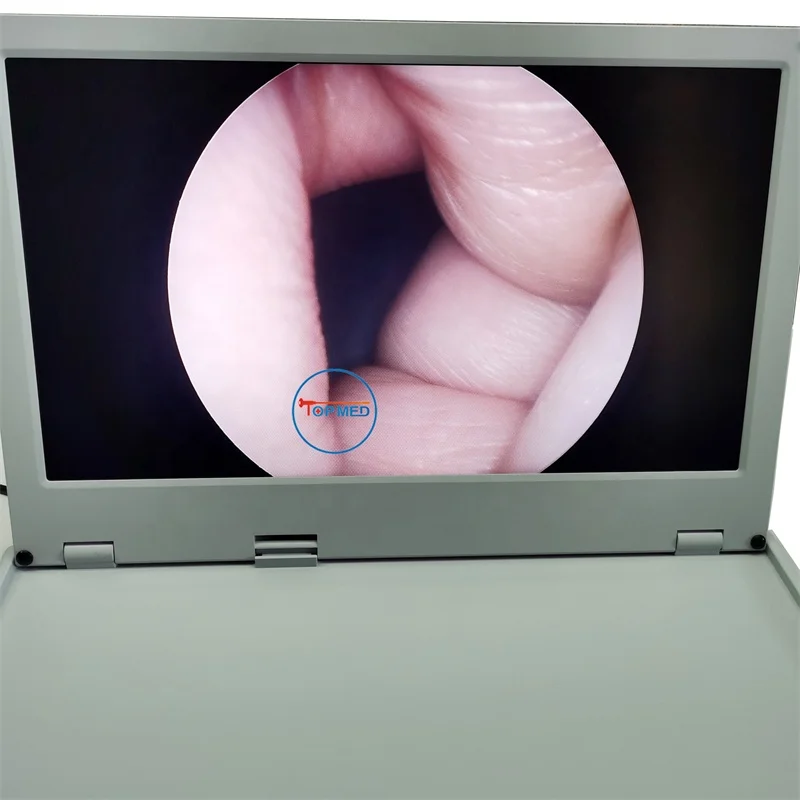

part 2 : MONITOR | |
Size | 15.6 inch LED medical monitor |
Resolution | 1920×1080 FULL HD 16 : 9 |
Angle of view | 170°/ 170°(h/v) |
Imaging processor | Medical grade ( endoscopy special) |
part 3 : LIGHT SOURCE | |
Lamp | LED |
Power of lamp | 60W |
Illumination | 1600,000Lux |
Colour Temperature | 6500K±10% |
Lamp service life | 30,000 hours |
part 4 : RECORDING SYSTEM | |
Recordable device | USB device ( support any capacity ) |
Recording format | VIDEO - MP4 |
Document resolution | 1920×1080P FULL HD |

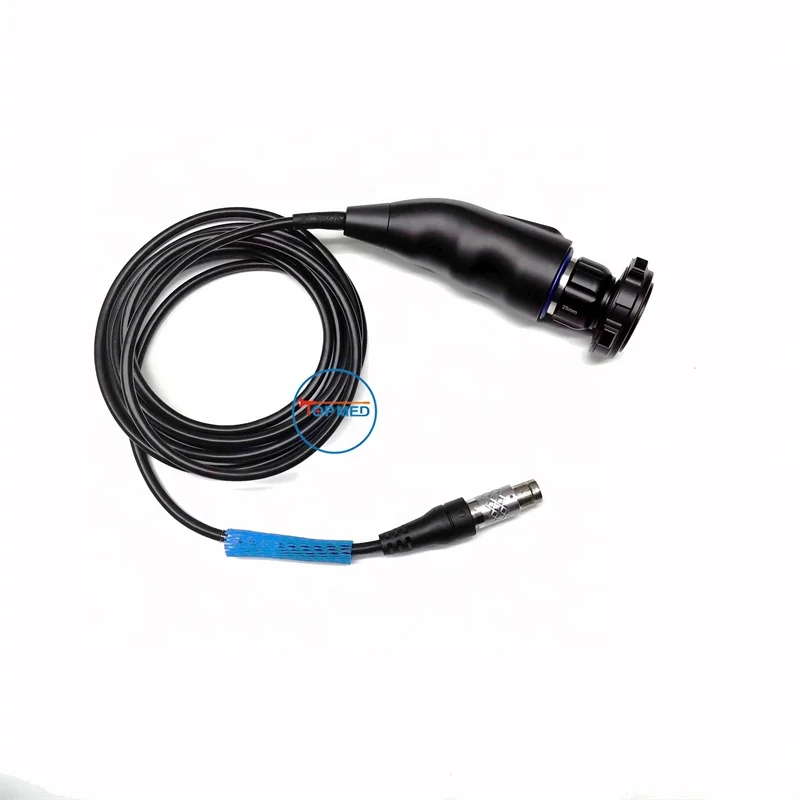

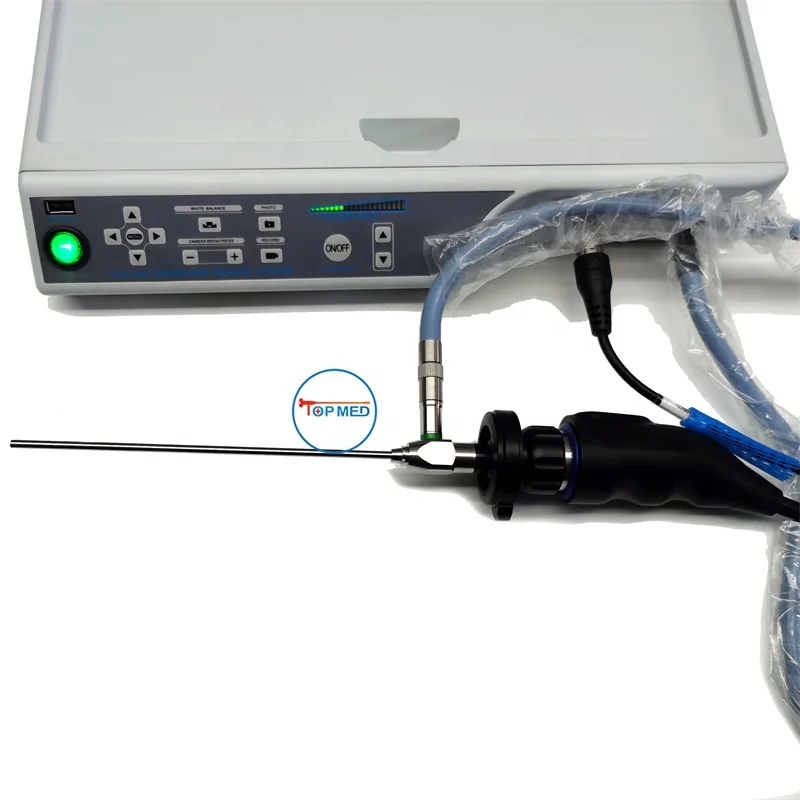

part 1 : HD CAMERA SYSTEM | |
Image sensor | 1/2.8'' Single chip |
Resolution | 1920×1080P FULL HD 16 : 9 ( 1080 TVLine ) |
effective pixels | 2.07 Megapixel |
Scanning system | Progressive scan |
Frame rate | 60 FPS |
( NOTE: When using an external monitor, frame rate should match the scan frequency of the monitor ) | |
Camera head dimensions | 38W×45H×130D mm ( with optical adaptor ) |
Camera head weight | 90g ( without optical adaptor ) |

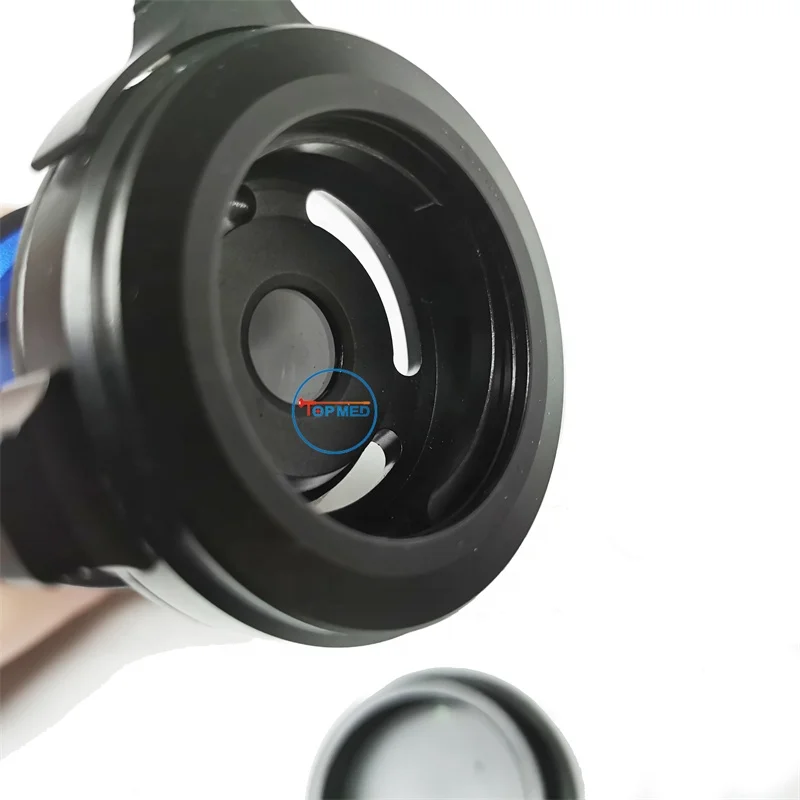

C-mount coupler | standard C- Mount F=18 or 22 or 25 or 28 or 32 autoclavable |
Cable length | 3 meters |
Camera head sterilization | Sockable IPX8 |

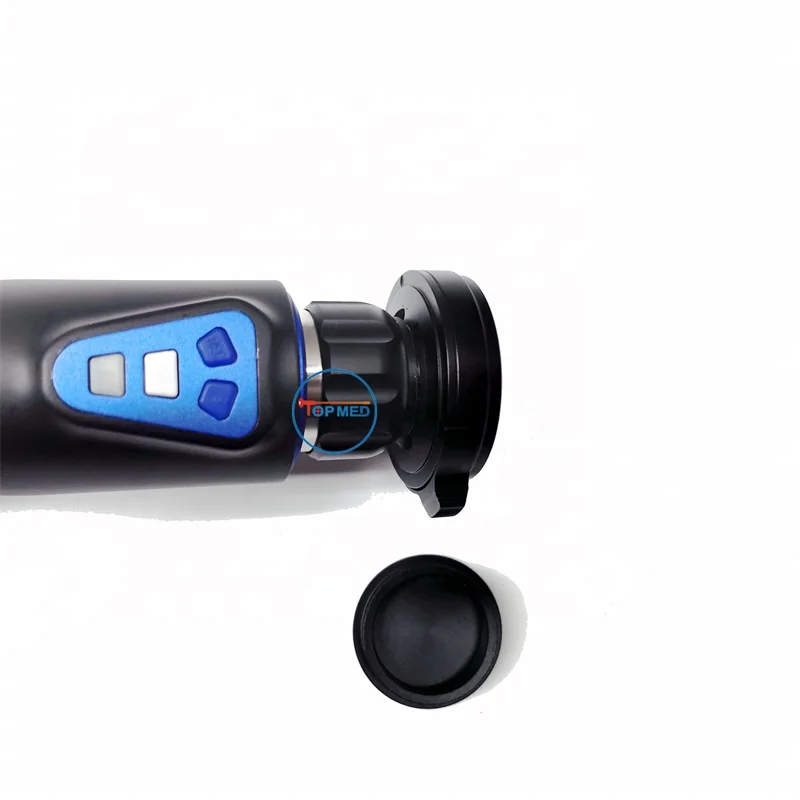

Camera head button | 2 ( buttons function can be defined by user, white balance / freeze are as defult ) |
Technical specification

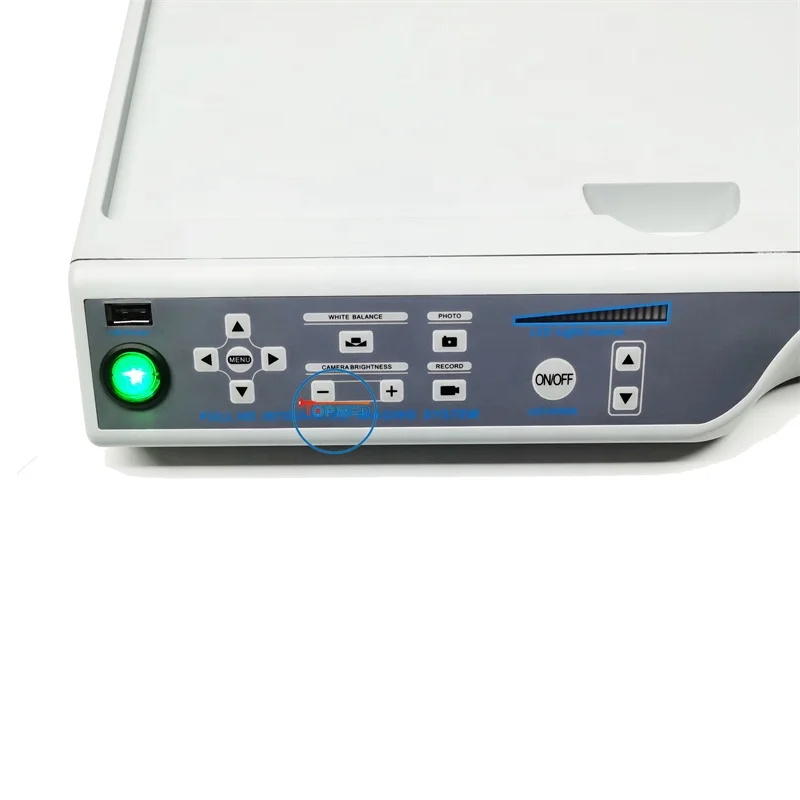

OTHER SPECIFICATION | |
Console dimensions | 400W×60H×315D Laptop style |
Console weight | 3.5Kg |
Input Electrical Range | 100 - 240V @ 50/60Hz |
Power consumption | 100watt |

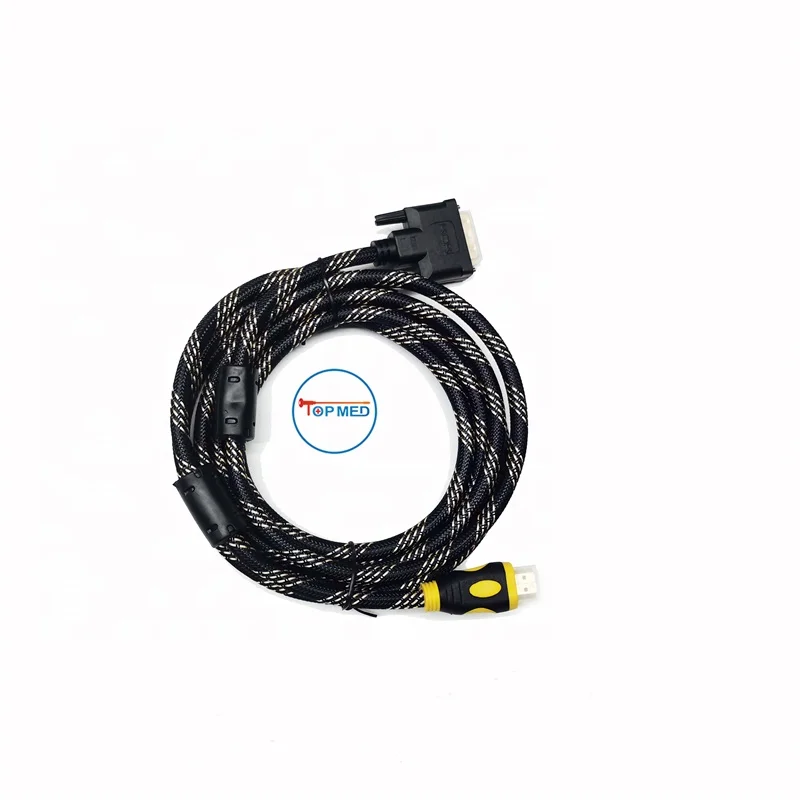

Signal output | DVI-D × 1 HDMI×1 HD-SDI×1 CVBS×1 USB×1 VGA×1 |
|
|
Fuse | F1AL250V |
Operating condition | Temporature: 5℃ - 40℃ |
| Relative humidity: 30 - 95% |
Transport & storage condition | Temporature: -10℃ - 60℃ |
| Relative humidity: 10 - 75% |
Device classification | Class I / BF applied part continuous operation |

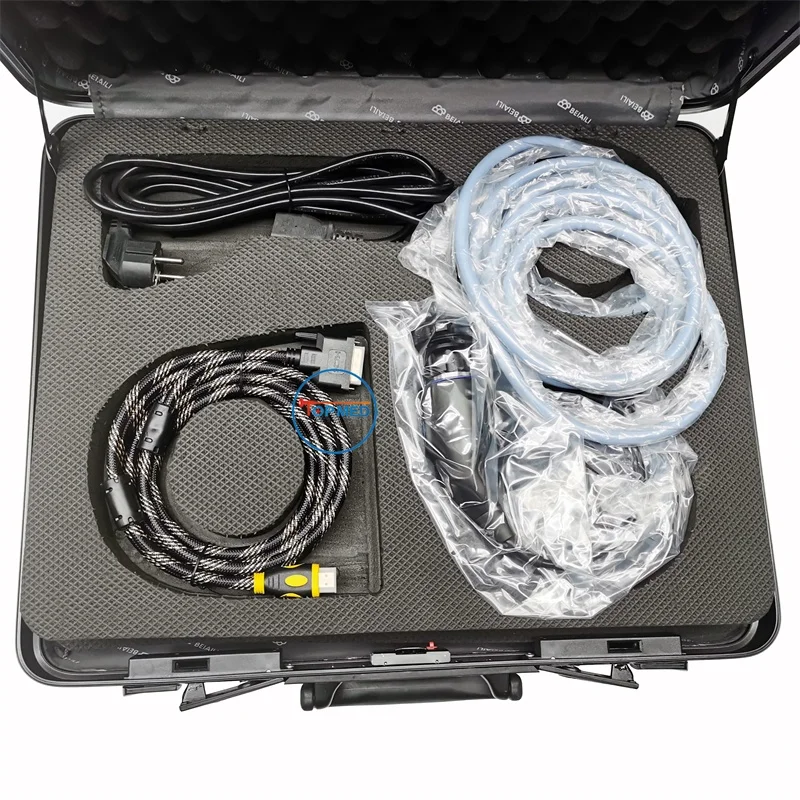

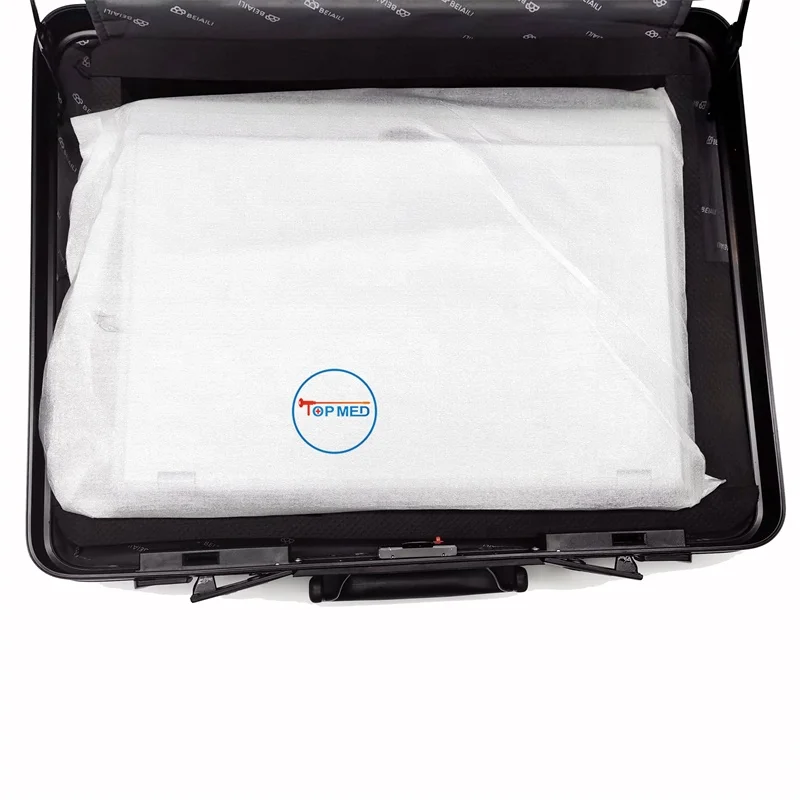

Packaging & Shipping
Our Services
Company Information
FAQ
Q: How to pay express charges if order endoscopic stapler samples?
A: For those customer, who has DHL, FEDEX, TNT, UPS account,
can give us your account and we will send the endoscopic stapler samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples by prepaid.
Q: How to pay for sample charges?
A: You can pay to our company account. When we received the sample fee, we will arrange
to make the samples for you. The prepare time for sampe will be 2-7days .
Q: What is your terms of payment?
A: Usually, we accept T/T, Weatern Union,PayPal.
