Milk plate pasteurizer

Product Overview

Description

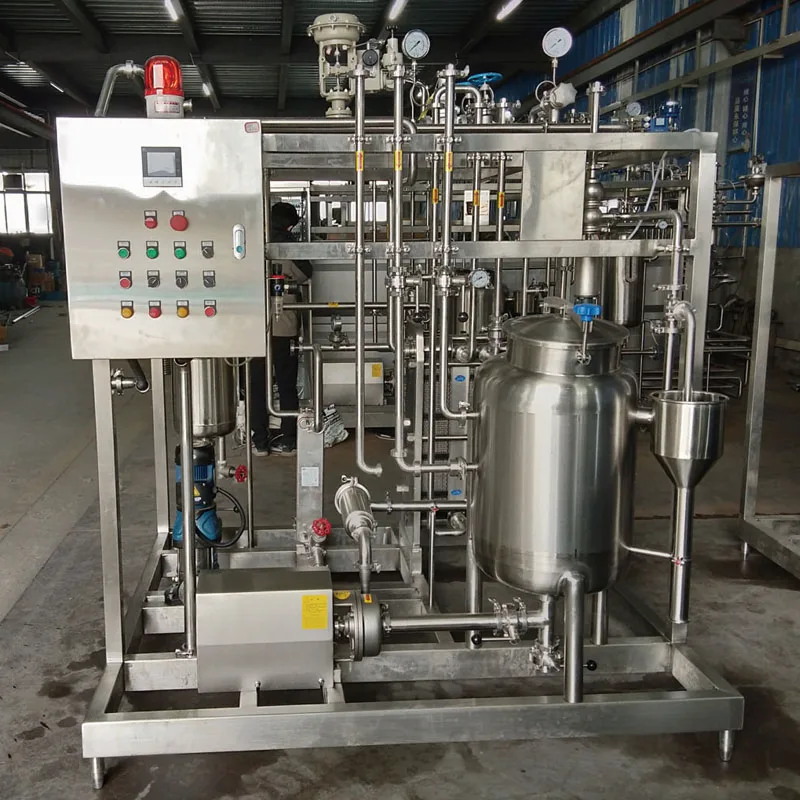

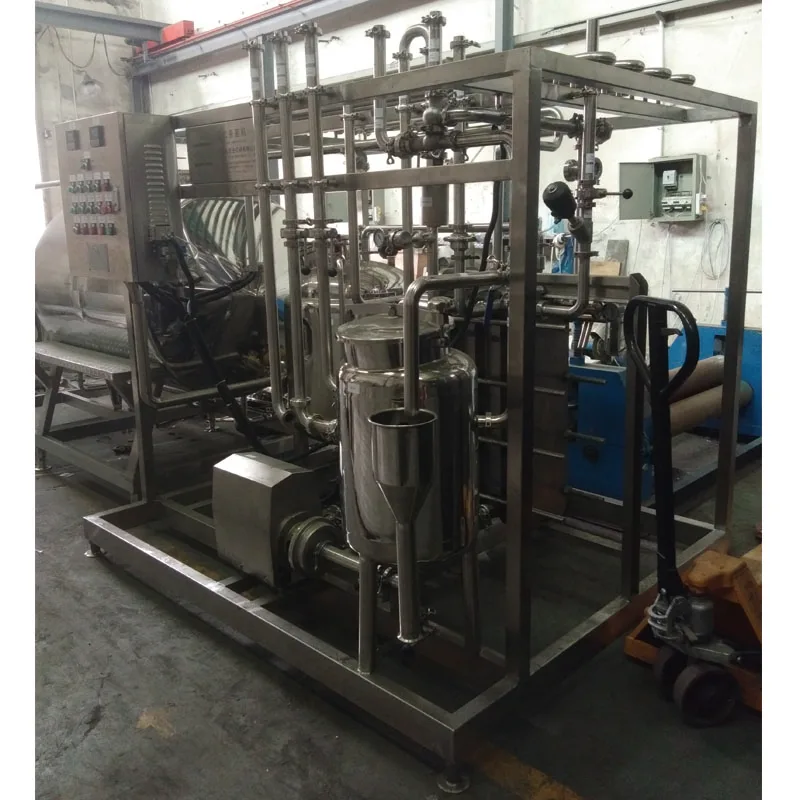

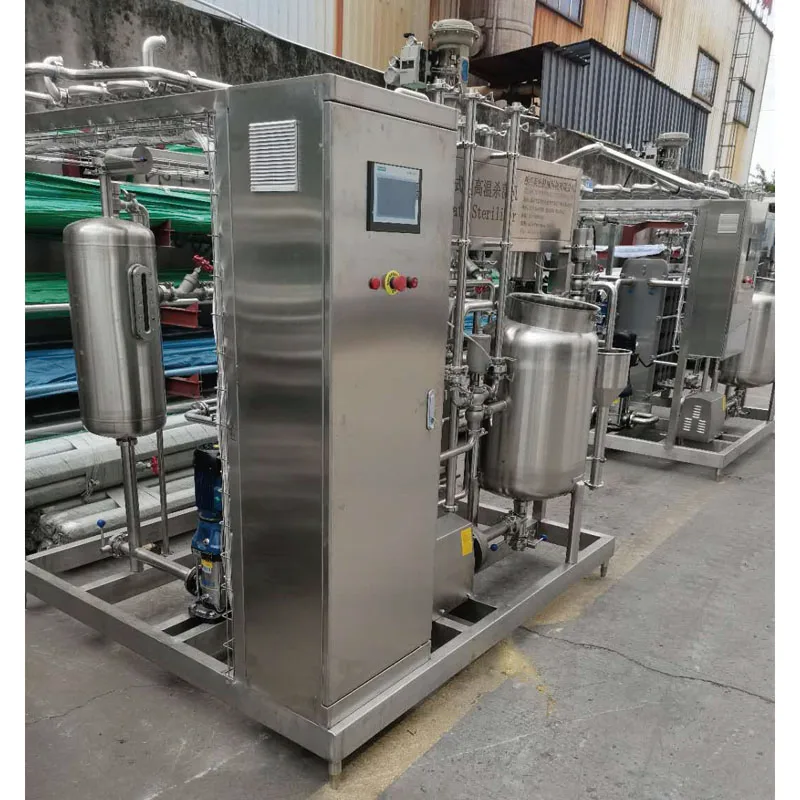

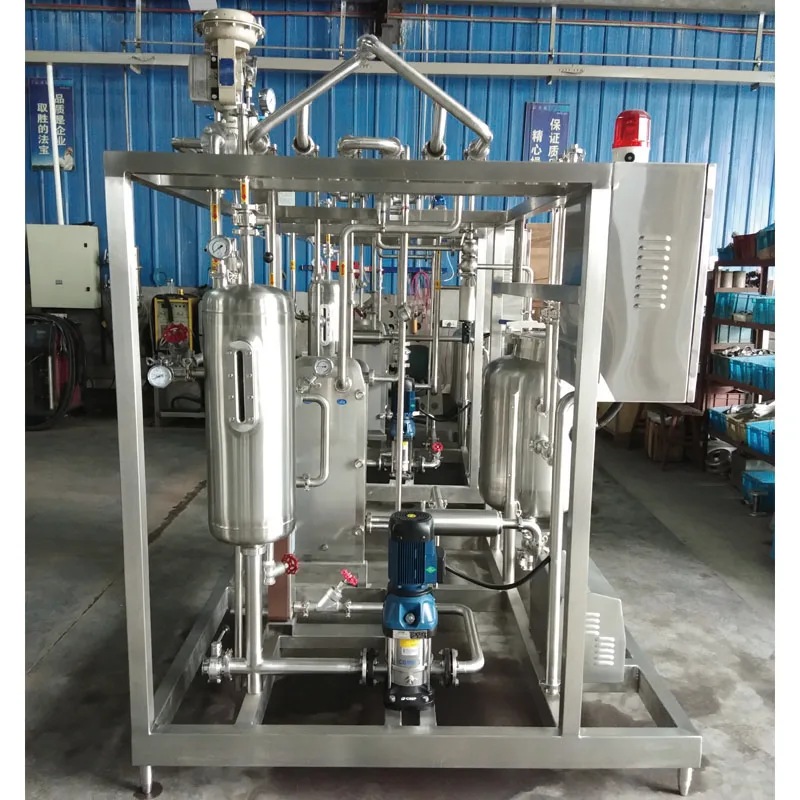

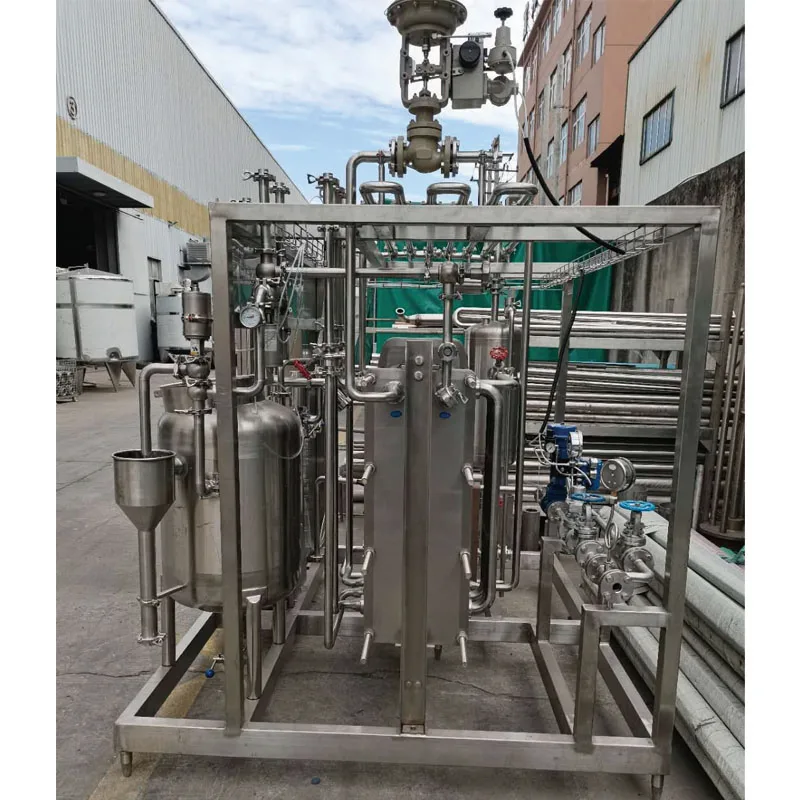

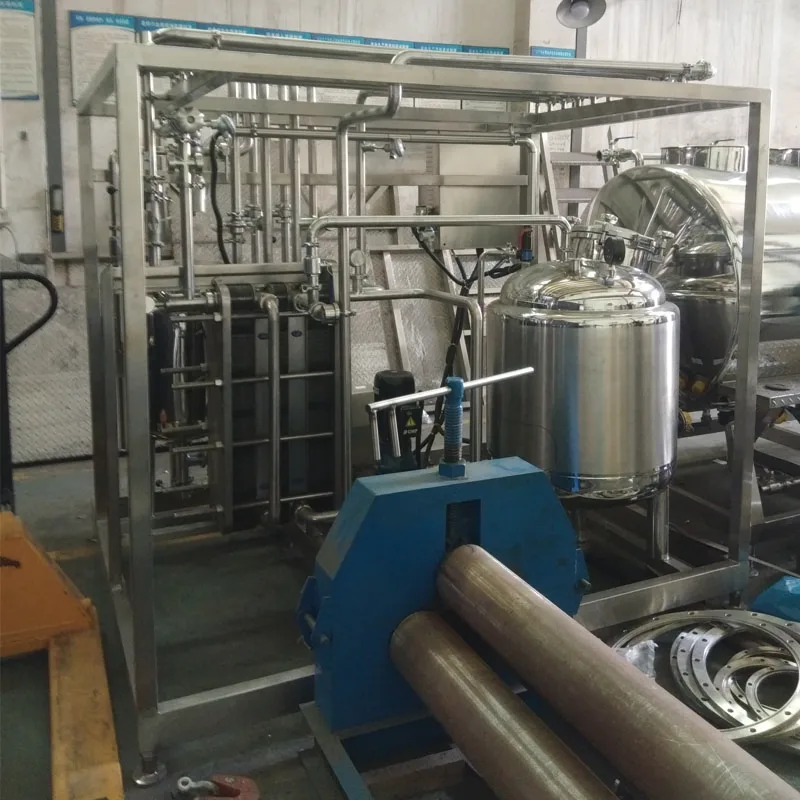

Milk plate pasteurizer



Our advantages:
Our own factory.
Customized.
Reliable quality.
Good price.
One year warranty.
Lifetime maintenance.



Overview and use of Milk plate pasteurizer

The Milk plate pasteurizer is a primary sterilization equipment specially designed for dairy beverages or similar liquid materials. It is an ideal equipment for materials to achieve the purpose of extending the shelf life through sterilization and cooling. According to the user's different process requirements for heating, sterilization, heat preservation, and cooling of different materials, different process combinations can be designed to meet process requirements, with various safety protection measures, high temperature alarms, and low temperature reflux functions. At the same time, the corresponding high-precision automatic control system can be configured according to user requirements.

The Milk plate pasteurizer is suitable for the process requirements of heating, sterilizing, heat preservation and cooling of heat sensitive liquids such as fresh milk, fruit juice drinks, and alcohol.



Features of Milk plate pasteurizer

1. The materials and heating medium are heated in their own sealed systems through non-contact heat exchange to ensure the sanitary and safety of the materials.

2. The sterilization time is short, which can ensure that the nutrients of the materials are not destroyed.

3. The whole machine adopts food-grade stainless steel materials to ensure that it meets the national requirements for the safety and sanitation of beverage and food equipment.

4. Good heat transfer effect, high heat recovery rate and low energy consumption.

5. The main control components, valves and supporting parts are all imported parts, which have a long service life.

6. Using PLC control, it can automatically control the heating temperature, hot water temperature, and steam flow adjustment of each section of the material, and is equipped with an automatic material reflux system to ensure that 100% of the material achieves the sterilization effect.



Technical parameters of Milk plate pasteurizer

Process parameters: 5℃→65℃ homogenization→95℃→140℃(4S)→25℃

Medium: ice water 1:1 (2℃) cooling water 1:1 (25℃)



Model	Capacity	Steam consumption	Steam pressure	Power	Size(m)	Weight	Pipe diameter(Φ)
	(t/h)	(kg/h)	(bar)	(kw)	(L×W×H)	(kg)	Material	Steam	Medium
SJ-BS-1	1	40	5	3.5	1.8×1.4×1.8	840	25	DN25	25
SJ-BS-1.5	1.5	60	5	3.5	1.8×1.4×1.8	880	25	DN25	25
SJ-BS-2	2	80	5	4.1	1.8×1.6×2.0	910	38	DN25	38
SJ-BS-3	3	120	5	4.1	1.8×1.6×2.0	980	38	DN25	38
SJ-BS-4	4	160	5	4.1	2.0×1.6×2.0	1050	38	DN25	38
SJ-BS-5	5	200	5	4.1	2.3×1.6×2.0	1130	38	DN32	38



Note:

1. The parameters in the chart are for reference only (subject to the actual product). If the customer requires otherwise, please submit.

2. Process parameters that need to be provided for the selection of plate sterilizer: material properties, sterilization technology, special requirements, etc.

3. Auxiliary equipment: air storage tank, air compressor, water storage tank, boiler. (Need to be prepared by the customer)
