Product Overview
Description
Customized Size Truck Bus Car Paint Booth Industrial Spray Booths
Product Description
Guangli Spray Booth Specifications

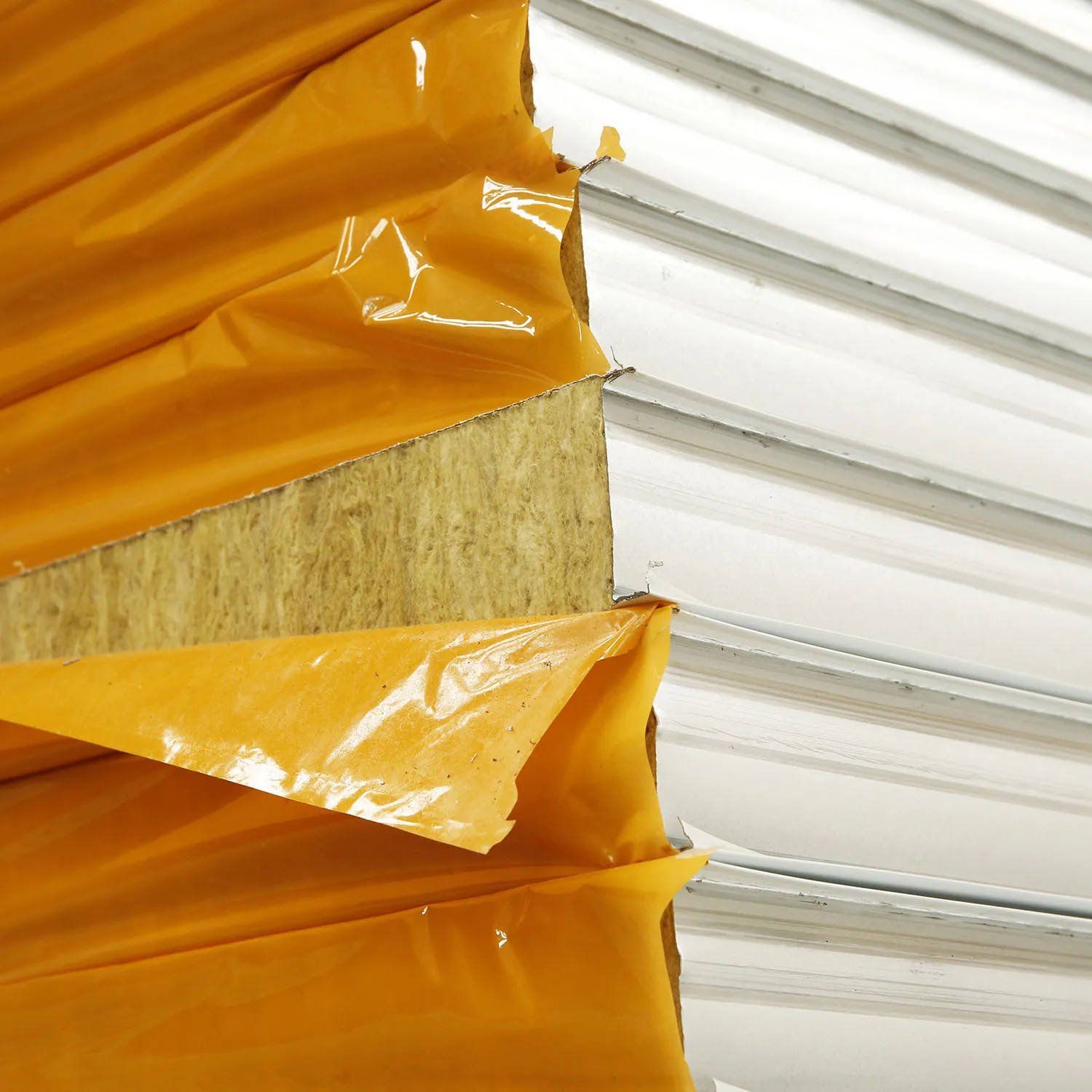

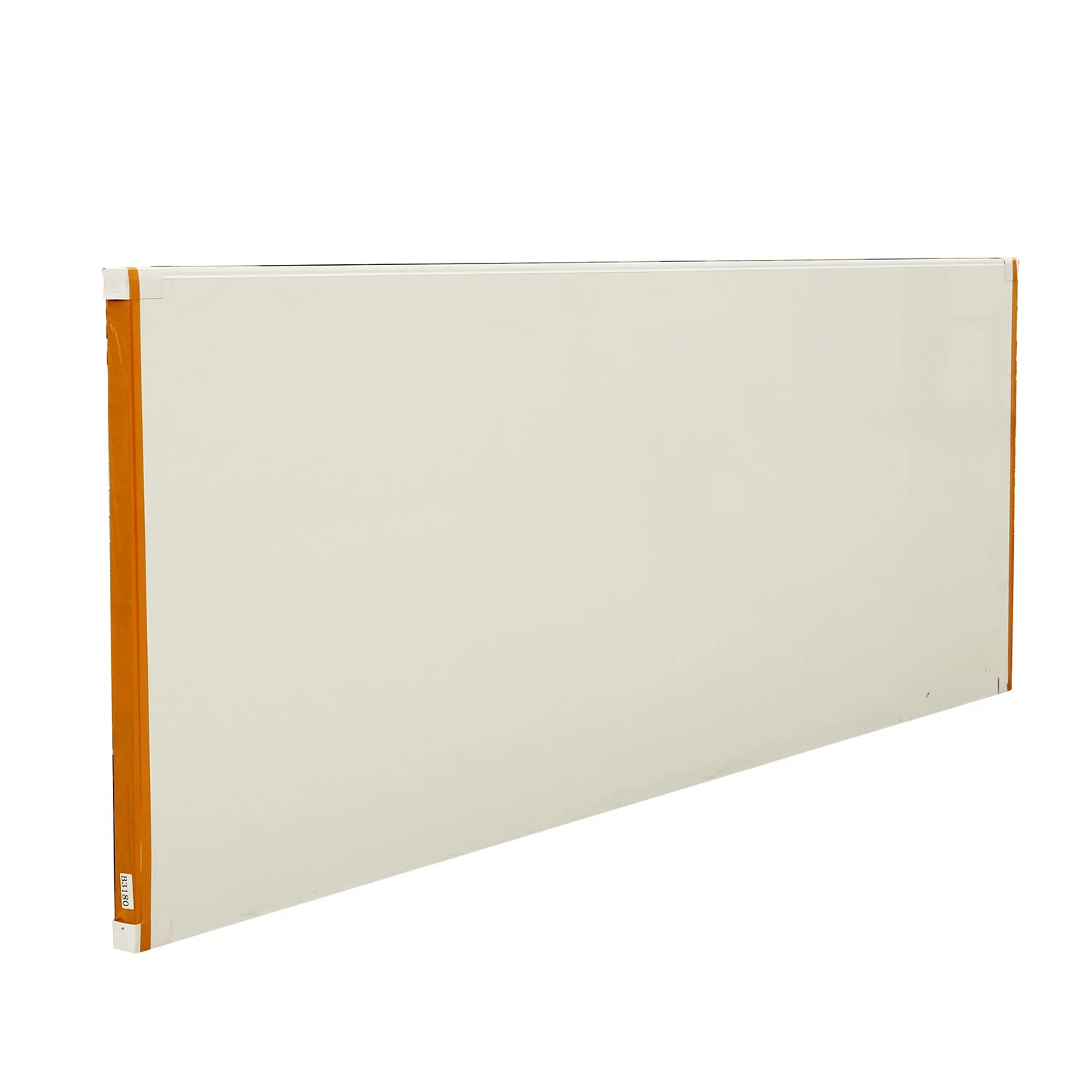

--Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
--Basement: concrete structure made by the customers, 2 rows of grids, 3D lifts as optional.
--Door: 4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
--Two units of 11kw intake fans and two units of 11kw exhaust fans.
--2 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light: 20 sets, 4*40w per set. side lights: 16sets, 4*40w.
--Two sets of exhaust/intake ducts, 5m straight, one 90° bend, and one 60° bend each. two sets of chimney, 5m straight and 2 small bends.
--2sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. 2units of RIELLO RG5S burners.
--Roof filter: 16 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--Control box: imported components, overload, overheat, phase-lacking, phase-lacking protection , engine star-delta start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter :either M style or drawer style active carbon equipment can be adopted.
| Technical Specifications | GL10-CE |
| External size(m) (LxWxH) | 15.2×6.7×5.0 |
| Internal size(m) (LxWxH) | 15.0×5.0×4.4 |
| Door width(m) | 4.0 |
Door height(m) | 4.0 |
| Air flow ( m3/h) | 72000 |
| Inside on-load air speed(m/s) | 0.3-0.35 |
| Water-based Paint Device | As option |
| Temperature(℃) | 20-80 |
| Power (Kw) | 50 |
| Color | Orange,Blue,Red,White |
| Vehicle suited | Saloon car |
| Exhaust type | Full-undershot,Bilateral,Semi-down,Unilaternal |

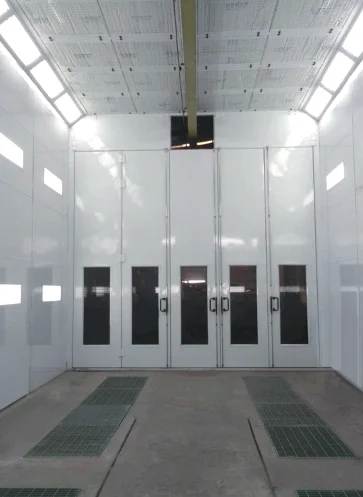

Guangli Spray Booth Show
Our Other Products
Company Information
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001:

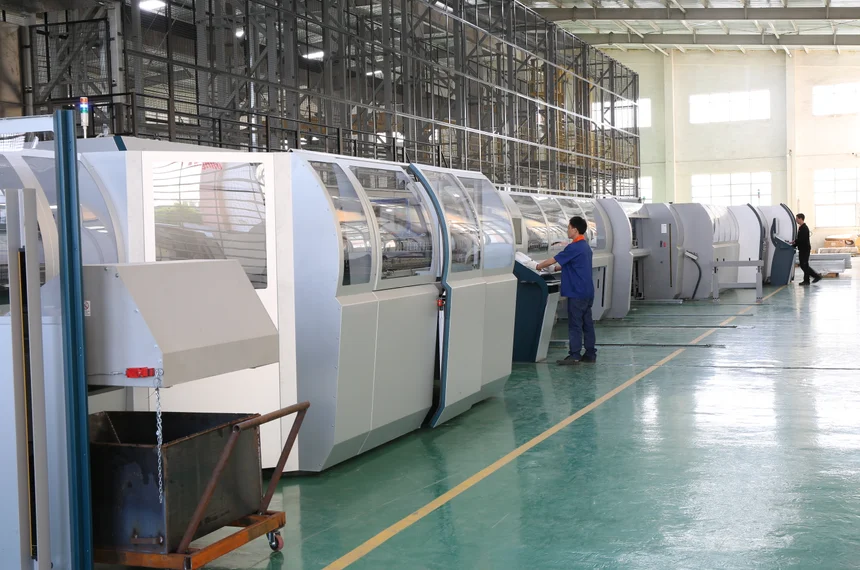

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
Guangli Successful Cases
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.
FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What’s the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What’s the delivery time?
A:If the product you ordered is our standard configurations, it’s 7 workdays.
