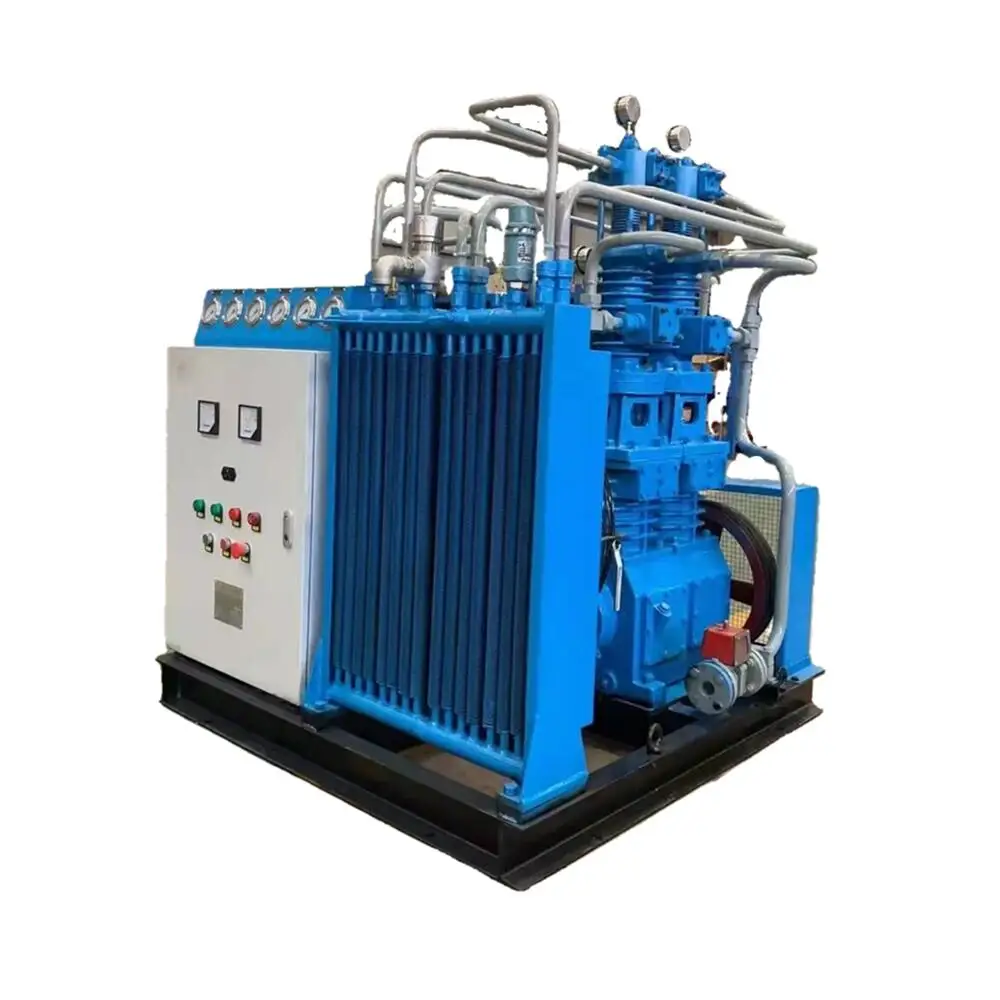

ZWF-50/5.5-150 Oil Free Oxygen Compressor

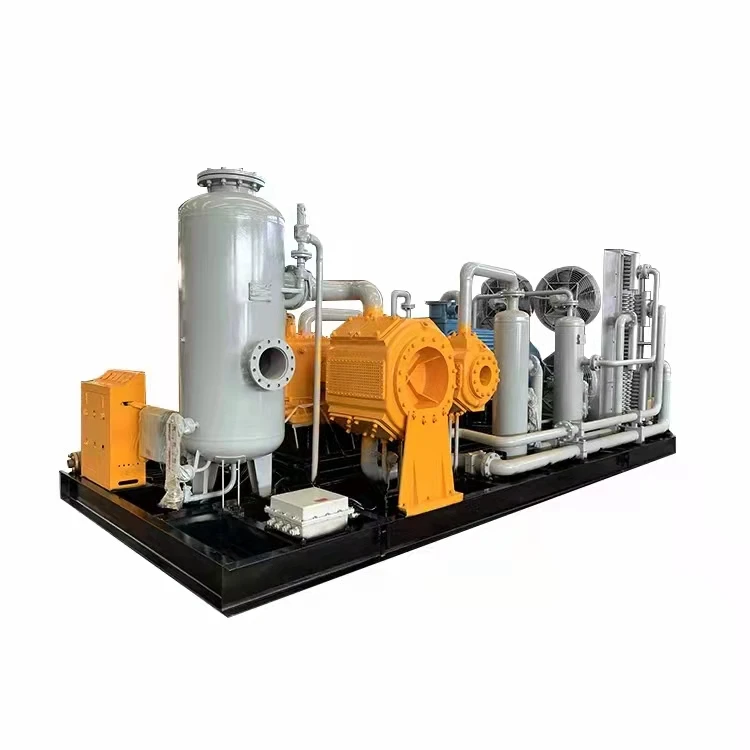

ZWF-50 / 5.5-150 oil-free oxygen compressor is a special model designed by our company for small oxygen system. It increases the pressure of oxygen at a certain pressure to 15MPa through four-stage compression. The piston host and motor are driven by belt, and the motor adopts star delta start. The whole system is installed on a skid mounted base. The overall design has compact structure, complete control and small volume.
PRODUCT SPECIFICATIONS
Main technical parameters of compressor
1.Compression medium: oxygen
2.Structure type: vertical air-cooled piston type, two rows and four stages of compression
3.Inlet pressure: 0.55mpa
4.Exhaust pressure: 15.0mpa
5.Exhaust volume: 50nm ³/ h
6.Piston stroke: 80mm
7.Speed: 570r / min
8.Inlet air temperature: less than 40 ℃
9.Exhaust temperature: less than ambient temperature + 15 ℃
10.Cylinder diameter: class I: 80; Secondary 58; Level III: 33; Level IV: 22
11.Shaft power: ≤ 9.68kw
12.Transmission mode: belt transmission
13.Start method: star triangle
14.Overall dimension of unit: 1300 * 1300 * 1450
15.Unit weight: ≈ 1.1t
16.Installation type: integral skid
2.Structure type: vertical air-cooled piston type, two rows and four stages of compression
3.Inlet pressure: 0.55mpa
4.Exhaust pressure: 15.0mpa
5.Exhaust volume: 50nm ³/ h
6.Piston stroke: 80mm
7.Speed: 570r / min
8.Inlet air temperature: less than 40 ℃
9.Exhaust temperature: less than ambient temperature + 15 ℃
10.Cylinder diameter: class I: 80; Secondary 58; Level III: 33; Level IV: 22
11.Shaft power: ≤ 9.68kw
12.Transmission mode: belt transmission
13.Start method: star triangle
14.Overall dimension of unit: 1300 * 1300 * 1450
15.Unit weight: ≈ 1.1t
16.Installation type: integral skid
