Машина для маркировки дорог из холодного пластика KONTUR 100
- Category: Road Marking Machines >>>
- Supplier: OOO,STIM
Share on:
Product Overview
Description
PRODUCT DESCRIPTION

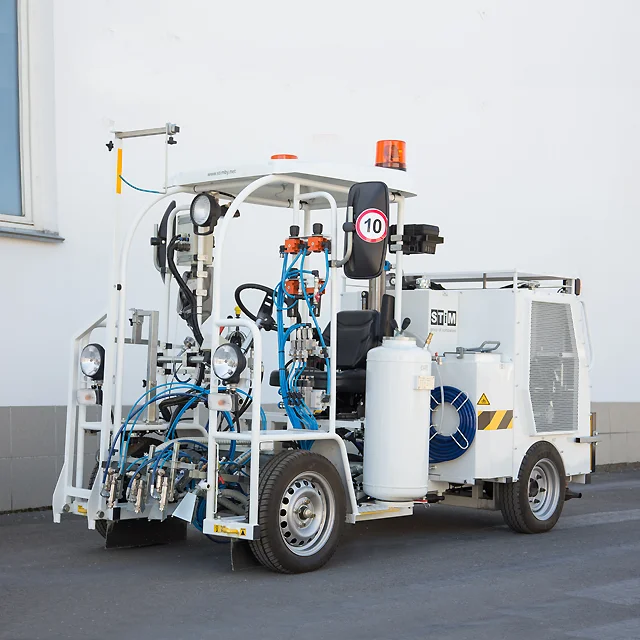

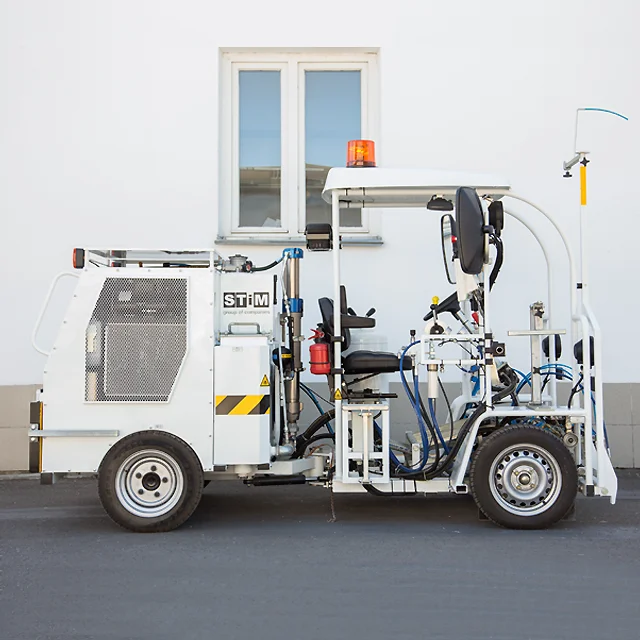

Kontur 300 is designed for airless horizontal road marking using quick-drying paints and retroreflective glass beads.
The compact size of the machine allows applying markings in the city without interfering with traffic. The hydraulic wheel drive ensures smooth running. The aiming device can be raised or lowered from the operator workplace to quickly bring the machine from the transport position to the operating position and back.
The airless marking technology, where paint pressure can reach 140 bar, allows using high-viscosity road marking materials (70 to 140 seconds measured with Ford # 4 cup) with high solids content. Such paints dry quickly and do not smear when applied in thick layers (up to 650 μm).
High-quality components ensure reliability and long service life of the equipment. In the machine we use components of leading companies like Kubota, Graco, Danfoss, Festo, Fini, and Kamber.
The compact size of the machine allows applying markings in the city without interfering with traffic. The hydraulic wheel drive ensures smooth running. The aiming device can be raised or lowered from the operator workplace to quickly bring the machine from the transport position to the operating position and back.
The airless marking technology, where paint pressure can reach 140 bar, allows using high-viscosity road marking materials (70 to 140 seconds measured with Ford # 4 cup) with high solids content. Such paints dry quickly and do not smear when applied in thick layers (up to 650 μm).
High-quality components ensure reliability and long service life of the equipment. In the machine we use components of leading companies like Kubota, Graco, Danfoss, Festo, Fini, and Kamber.
STANDARD CONFIGURATION
- Central marking unit with three pairs of paint and glass bead guns (Kamber);
- Right marking unit, without guns;
- M12 marking control panel;
- Foot pedal duplicating START button on the marking control panel;
- Paint flow meter;
- Handheld gun with 10 m hose;
- Flashing lights on the roof;
- Spotlight for the marking unit;
- Operator workplace light;
- Hydraulic drive for raising/lowering the central marking unit;
- Hydraulic drive for raising/lowering the aiming device;
- Handheld jet air gun for cleaning of working equipment;
- Rear platform.
- Right marking unit, without guns;
- M12 marking control panel;
- Foot pedal duplicating START button on the marking control panel;
- Paint flow meter;
- Handheld gun with 10 m hose;
- Flashing lights on the roof;
- Spotlight for the marking unit;
- Operator workplace light;
- Hydraulic drive for raising/lowering the central marking unit;
- Hydraulic drive for raising/lowering the aiming device;
- Handheld jet air gun for cleaning of working equipment;
- Rear platform.
OPTIONS
- Remote button duplicating START button on the marking control panel;
- Joystick for fast program selection on M12 control panel;
- Additional fourth pair of paint and glass bead guns (Kamber) on the right marking unit;
- Left marking unit, without guns (not available with Cold Spray Plastic 100:2 option);
- Line beginning photo sensor (can be installed on any gun);
- Pass This Side sign (700 mm) on a swing arm or
- Detour sign (1,100x1,100 mm);
- 50 cm handheld paint gun extension;
- Cold Spray Plastic 100:2 option, one line or
- Cold Spray Plastic 100:2 option, two lines;
- Rear platform seat.
- Joystick for fast program selection on M12 control panel;
- Additional fourth pair of paint and glass bead guns (Kamber) on the right marking unit;
- Left marking unit, without guns (not available with Cold Spray Plastic 100:2 option);
- Line beginning photo sensor (can be installed on any gun);
- Pass This Side sign (700 mm) on a swing arm or
- Detour sign (1,100x1,100 mm);
- 50 cm handheld paint gun extension;
- Cold Spray Plastic 100:2 option, one line or
- Cold Spray Plastic 100:2 option, two lines;
- Rear platform seat.
PRODUCT SPECIFICATIONS
Parameter | Kontur 300 |
Engine type | Diesel |
Engine power, kW | 24.5 |
Engine power, hp | 33 |
Engine manufacturer | Kubota |
Cylinders | 4 |
Engine capacity, cm3 | 1123 |
Maximum engine speed, rpm | 3200 |
Approval | EU Stage IНА (TIER 1) |
Generator, A | 120 |
Compressor | Piston |
Compressor capacity (inlet), L/min | 556 |
Optional compressor* | Piston |
Optional compressor capacity, L/min* | 840 |
Maximum operating road gradient, % | 20 |
Maximum gradeability, % | 30 |
Driving speed, km/h | 12 |
Glass bead tank, L | 60 |
Glass bead tank, kg | 100 |
Control panel | M12 |
Display type | Color, TFT 480x640 |
Display image size, inches | 5.7 |
Preset programs | Up to 24 |
Quick program selection buttons | 8 |
Control panel modes (automatic/semi-automatic/manual) | Available |
Marking material (main/optional) | Paint/Spray plastic 100:2 |
Maximum marking speed, km/h (with main/optional material) | 7 |
Maximum marking material amount, kg | 300 |
Maximum hardener volume, L | 30 |
Fuel tank capacity, L | 40 |
Oil tank capacity, L | 49 |
Main material tank capacity, L | 188 |
Guns (applicators) | 3 |
Double line width, mm | Up to 150 |
Single line width, mm | Up to 300 |
Working position, mm | 5000x2000x2100 |
Transport position, mm | 3150x1300x2100 |
Unladen weight, kg | 1300 |
Total weight, kg | 1900 |
