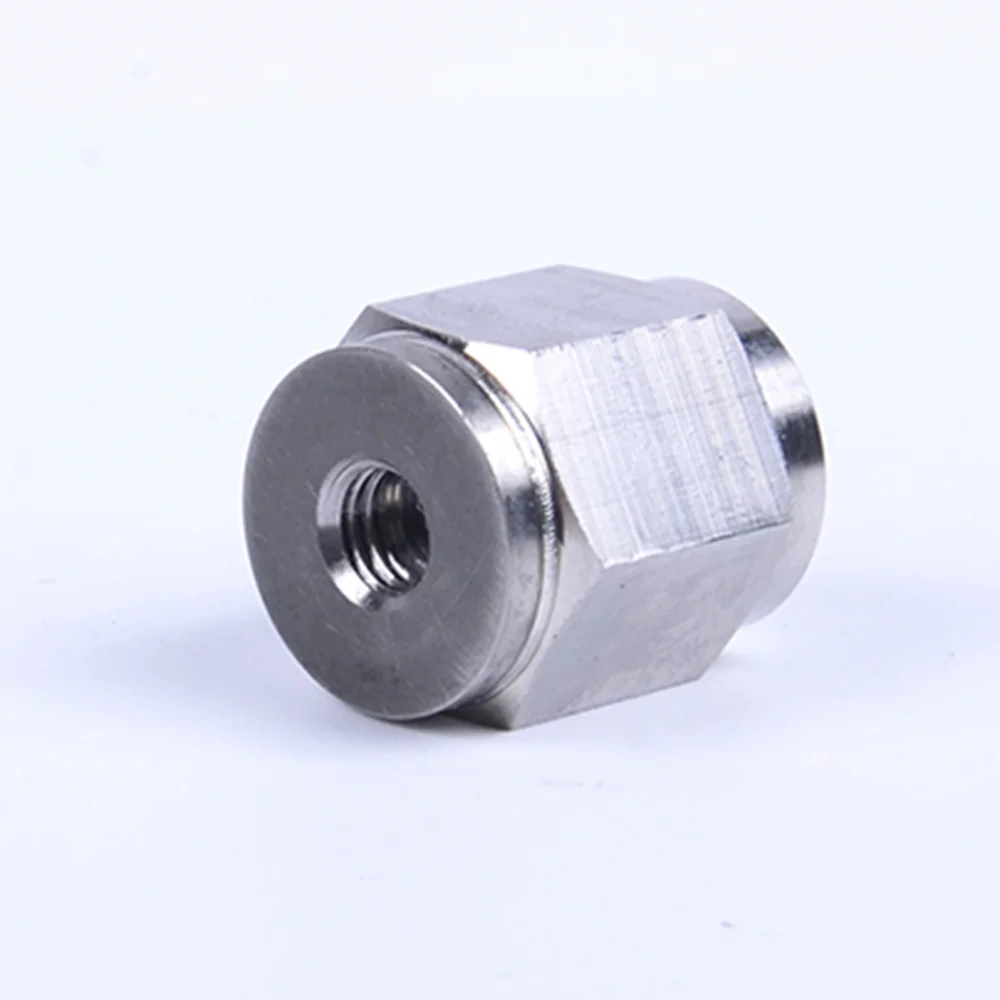

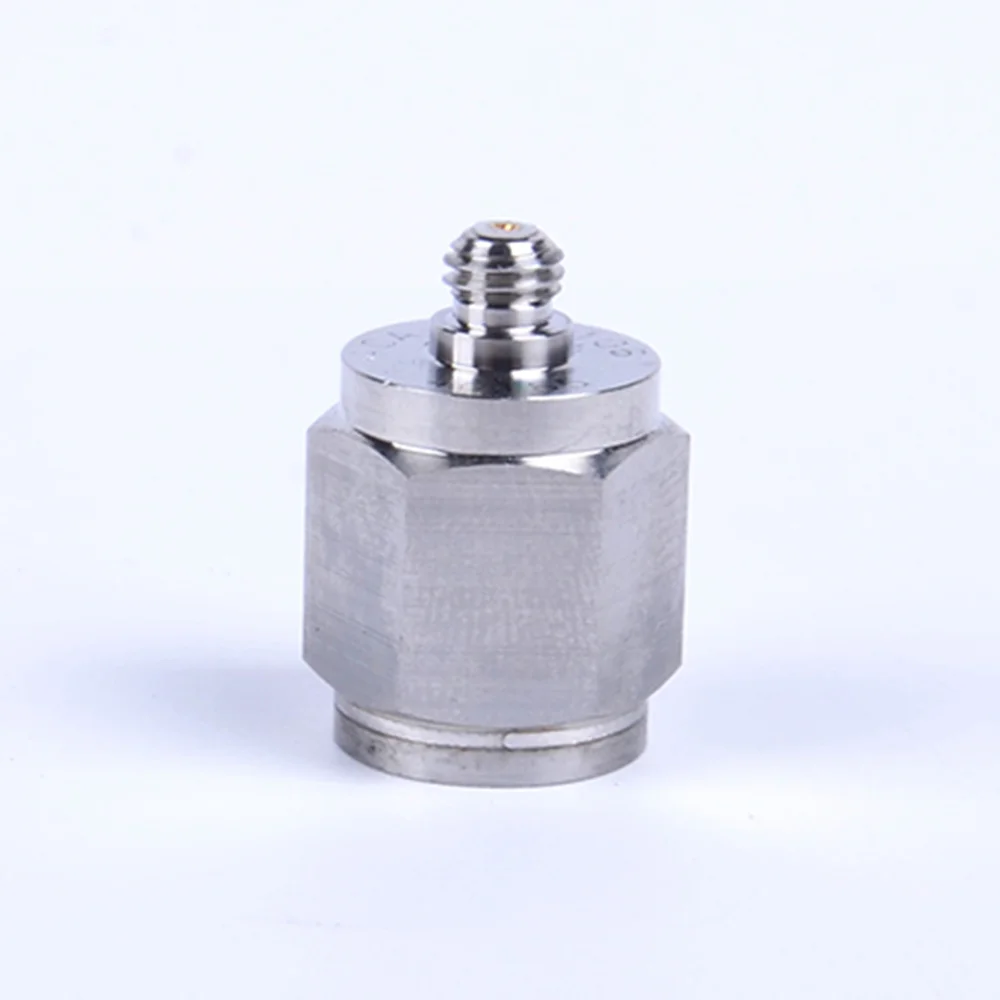

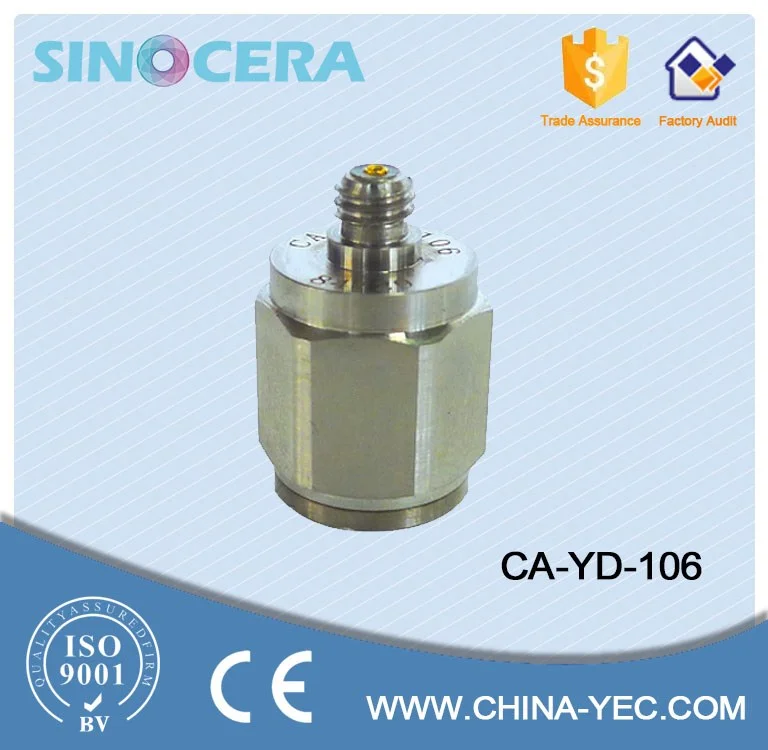

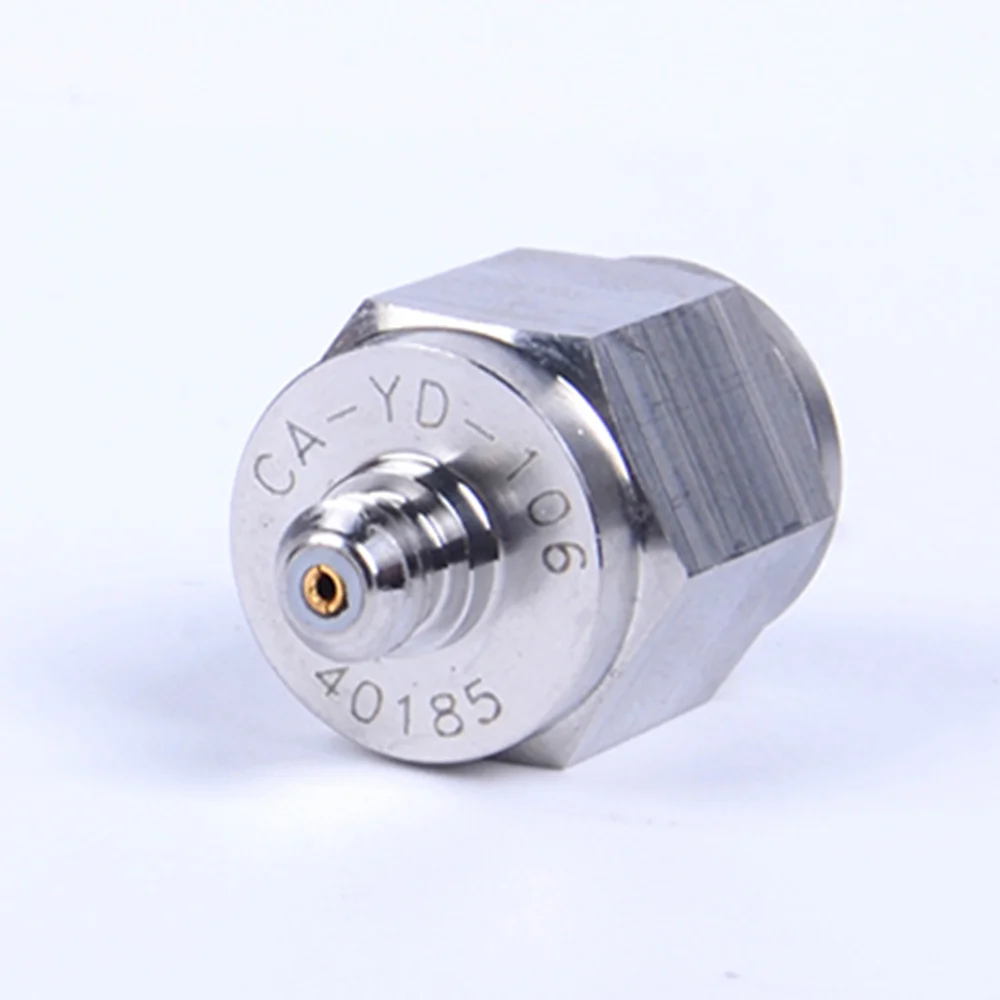

Universal Vibration Shock PE Acceleration Sensor CA YD 106
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (1600346863032):
Product Overview
Description
Universal Vibration Shock PE Acceleration Sensor
Features
l General vibration testing
l Small size, wide frequency response
l Top output
Specifications
Model: CA-YD-106
Sensitivity(20±5℃) | 25pC/g |
Measurement Range(pk) | 2000 g |
Max Transverse Sensitivity | ≤5 % |
Frequency Response(±5%) | 0.5 ~12,000 Hz |
Mounting Resonant Frequency | 40,000 Hz |
Operating Temp. Range | -20~+120 ℃ |
Temperature Response | See Graph |
Transient Temperature Response | 0.1 g/℃(0.3Hz) |
Magnetic Sensitivity | 3 g/T |
Base Strain Sensitivity | 0.8 g/με |
Case Isolation | >109 Ω |
Capacitance | ~1500 pF |
Mounting | M5 |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Central compressed |
Case Material | Stainless steel |
Weight | 15 g |
Output | Top L5 |

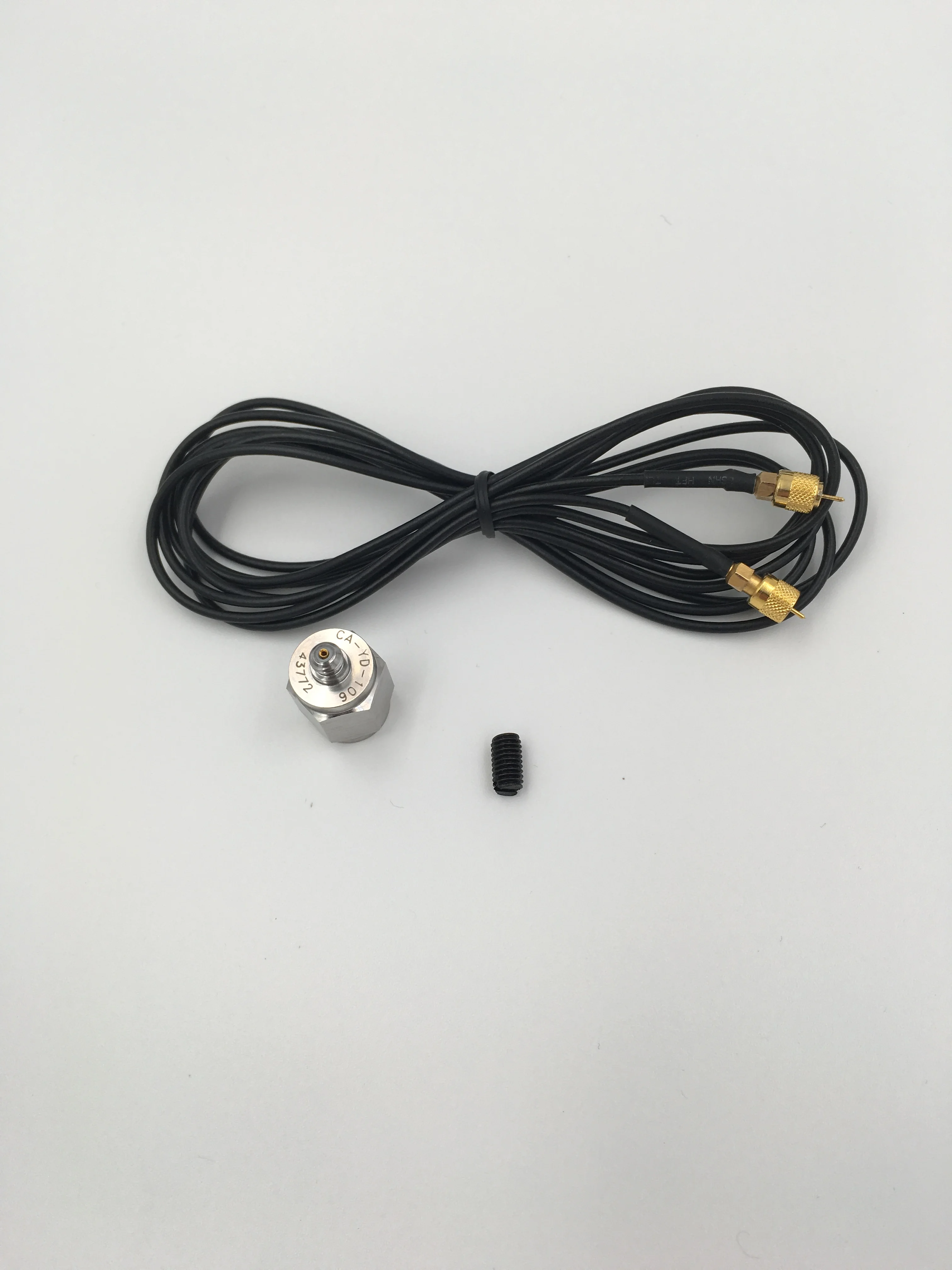

Accessories |
|
Certificate | Calibration parameter, frequency response |
M5 Stud, Protection cap | Each one |
L5/L5 STYV-1(2m) | one |
Detailed Images
| Dimensions |
 |

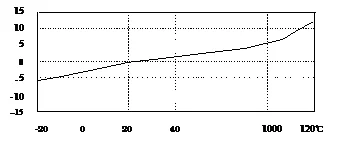

| Temperature Response |  |

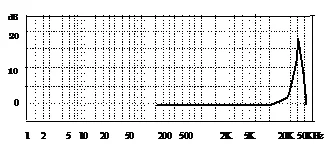

| Frequency Response |  |
