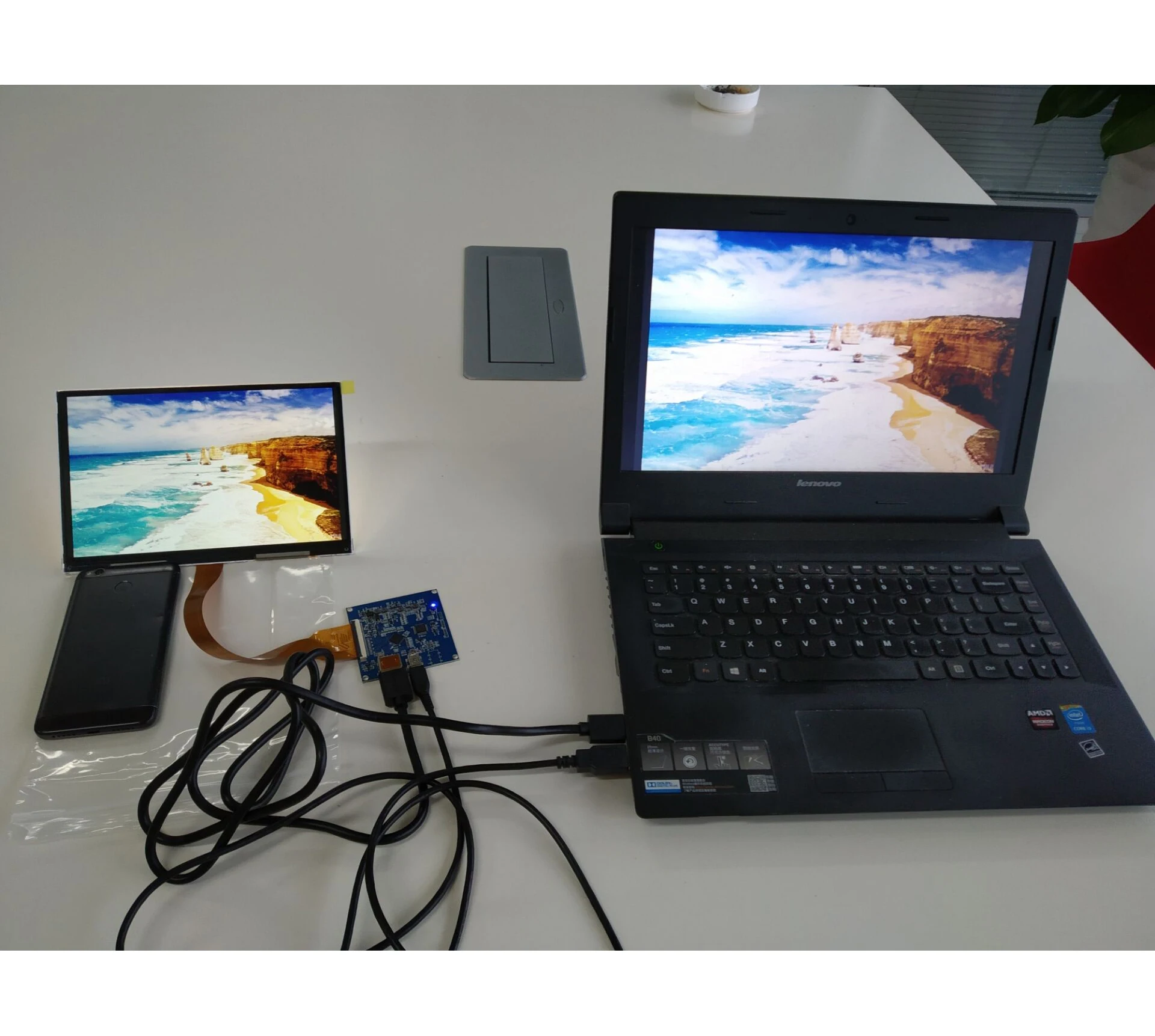

8.9inch 2560X1600 IPS LCD LED Panel Screen TFTMD089030 2K MIPI Controller Board Kit Diy For 3D Printer HDMI Compatible
- Category: >>>
- Supplier: Sichuan Aizak Business Co. Ltd.
Share on (1600346905030):
Product Overview
Description
HDMI To MIPI Controller board Kit + 8.9" 2560X1600 LCD LED 2K Panel screen TFTMD089030 for 3D printer DIY
Note :
If you want to use this Panel to the 3D printer ,the backlight of the Panel must take off , if you can't do that , when you make the order ,please mark on the order ,we will take off the backlight for you .

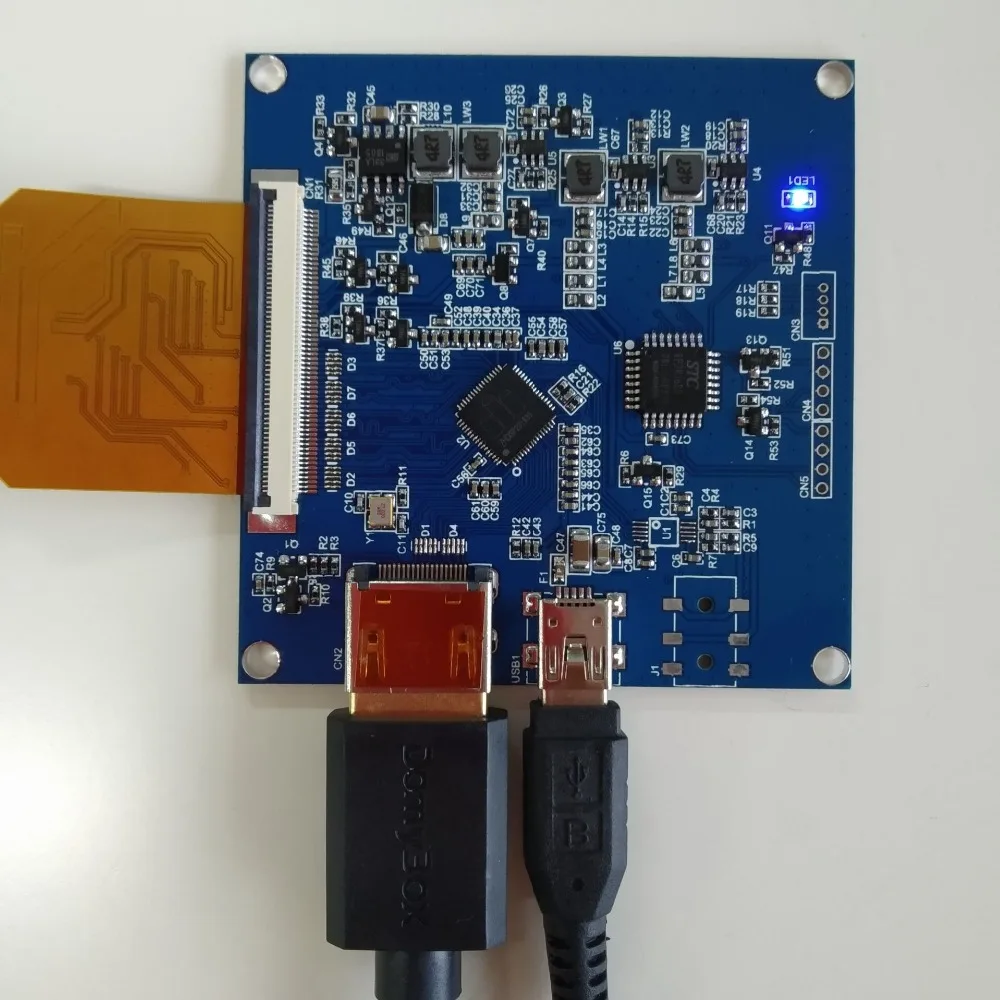

LCD LED HD MIPI Controller Board:
HDMI Board Work for Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI
Board Size: 65mm x 64mm x 3mm

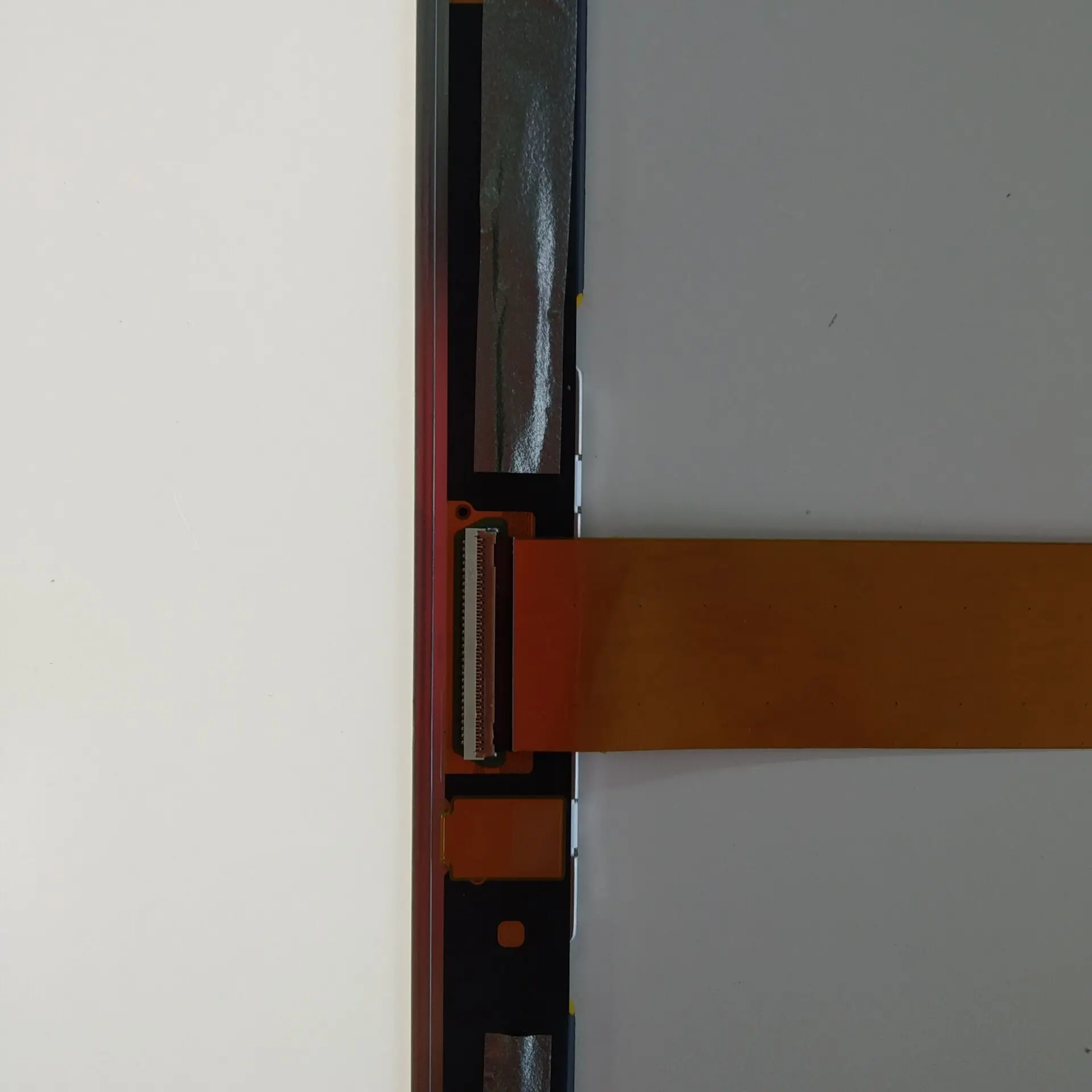

TFTMD0890308.90 inch 2560X1600 2K IPS LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 2560(RGB)×1600
Outline Size 132×198.8×1.45(H×V×D)
Display Area 123.2× 195.96 (H×V)
Brightness 500 cd/m2 (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 61pins, Connector
Backlight WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

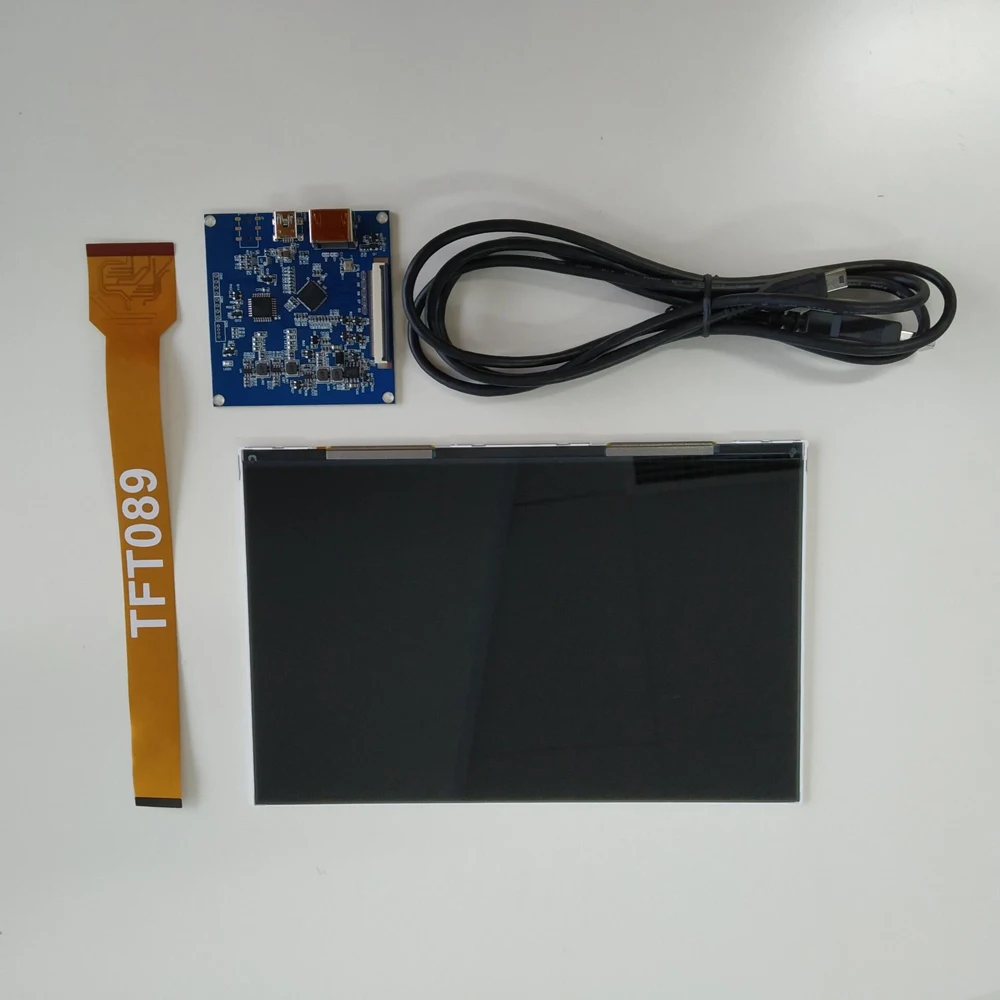

Packing list :
1× HDMI To Mipi LCD Controller Board VS-HDMITMIPI-V1
1× 8.90 inchTFTMD0890302560X1600 2K LCD Screen
1× Signal Power Cable
Instuction:
1. When HDMI signal is not accept. It shows black Image and LED flashing on main board. Please change HDMI source for test.

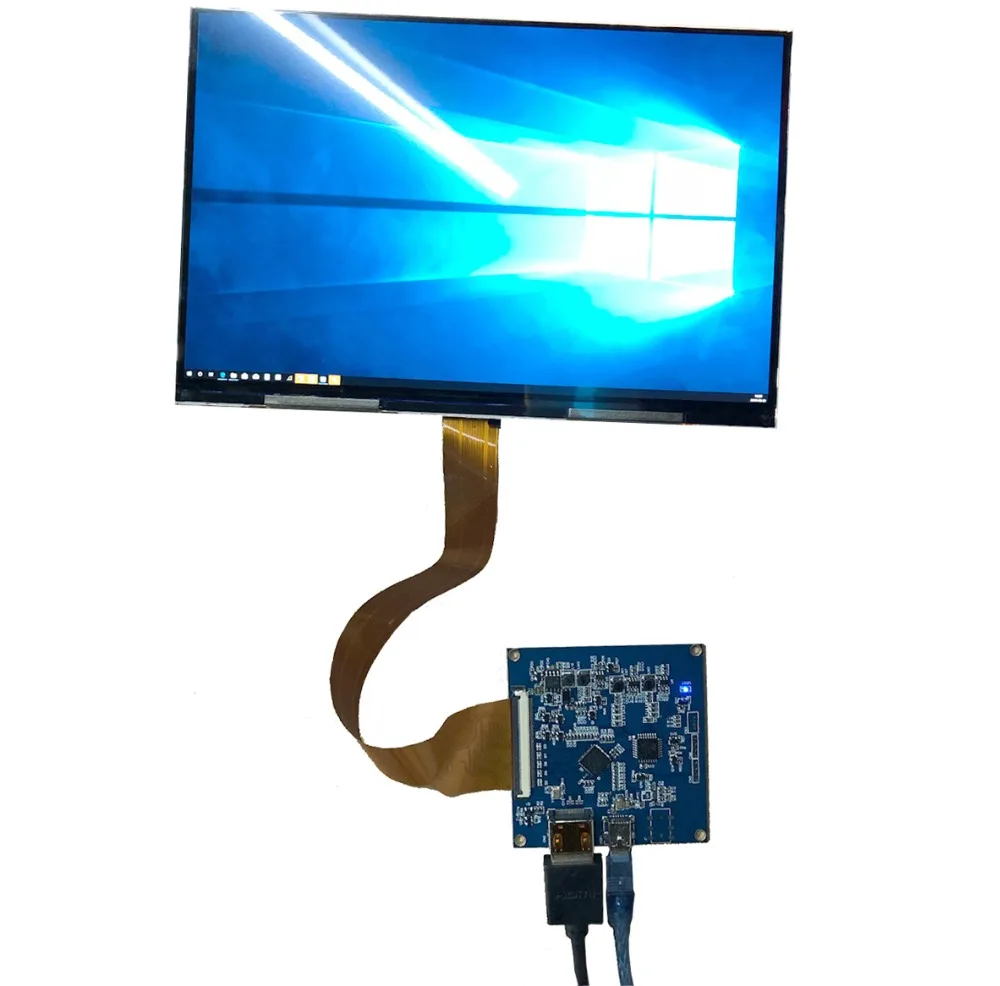

2. When HDMI accept. It shows correct image and LED is blue.
This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on HDMI input source.

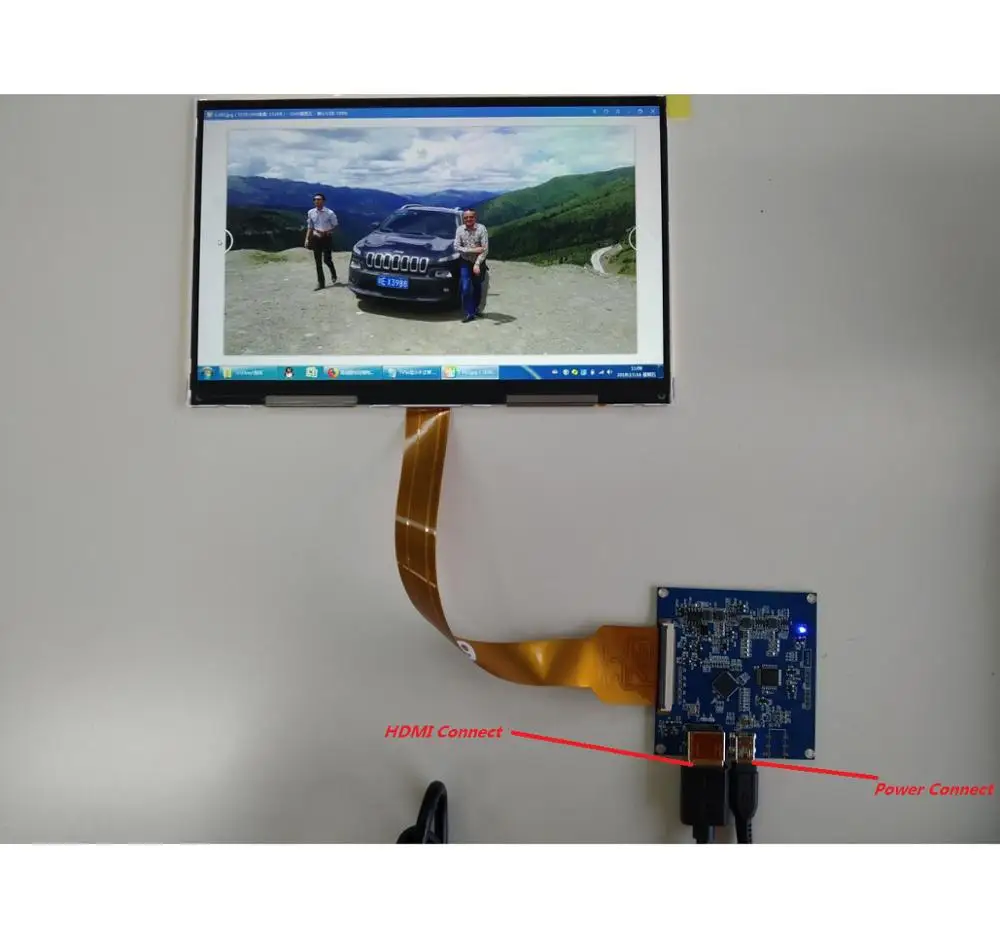

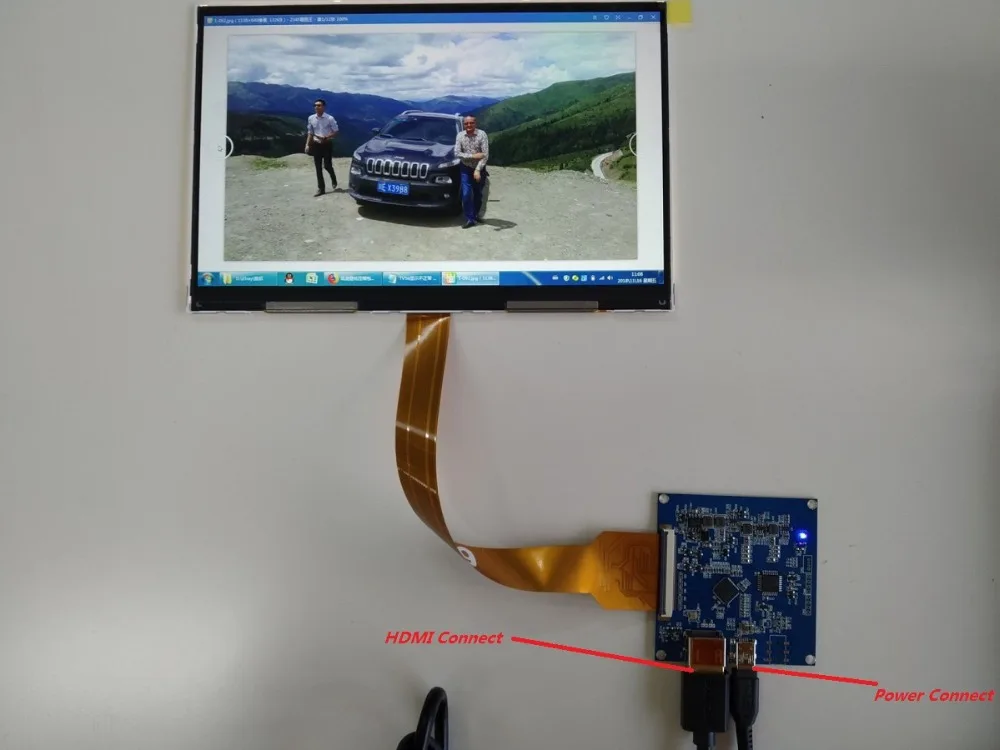

Turn On:
a,Connect Converter Board With LCD Screen Interface
b,Connect Main Board With 61Pin Cable
c,Insert HDMI Type Cable
d,Turn On 5Vdc or USB as Power Supply
Turn Off:
a,Turn Off 5Vdc or Remove USB Power Adapter
b,Remove HDMI Cable
c,Disconnect Main Board With 61Pin Cable
d,Disconnect 61Pin Cable With LCD Screen
For PC and 3D printer:
1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode.
2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.
For Raspberry Pi
1. The Main Board Four Locating Holes Compatible With Raspberry Pi.
2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
Company Information
| Sichuan Aizak Business Co., Ltd is mainly engaged in the research and development of various driver boardsand controller board, and sales of various driver boards, and is committed to the research and development of various screen backlights, as well as the sale of various screen backlights. |
Our Services
Our company has a top technical team and research team. We can provide customers with the most needed services according to different needs, such as Controller boards. We can develop corresponding fireware programs for customers according to different screen models . And the same goes for other products. We will provide customers with the best quality customized services. |
Packaging & Shipping
FAQ
1.What is the function of this product:
Reply: the Items we called Controller board which is used for almost all kinds of the panel.If your tell me the LCD model number ,then we can check the resolution and Port and then we input the right fireware program in the controller board , make the controller board work with your Panel perfect.
2.What is your delivery method?
Reply: DHL , UPS , FedEx ,TNT etc
3.What’s your products condition?
Reply: Brand New,A grade,Original Package.
4. What is your guarantee time?
Reply: 1 year
5. What is delivery time?
Reply: 3-7 days after payment is received.
6. What payment term do you accept?
Reply: T/T,PAYPAL,Alibaba Escrow Order etc.
7. what’s the certification your products get?
Reply: Rohs Compliant
8. How long can you supply the industrial grade products?
Re: at least 3-5 years
9.what’s your MOQ of your products?
Reply: Sample we accept 1 PCS sir
