Product Overview
Description
48V inverter split phase 3500W Pure Sine Wave Hybrid Inverter With ETL certificates
Product Description

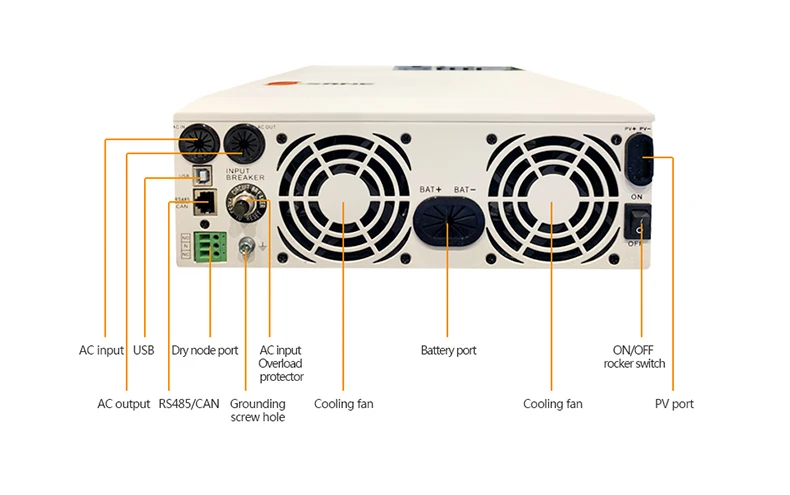

1 | CAN communication port | 9 | PV1 port |
2 | USB communication port | 10 | AC input port |
3 | RS485 communication port | 11 | AC output port |
4 | Dry node port | 12 | ON/OFF rocker switch |
5 | Overload protector | 13 | Grounding screw hole |

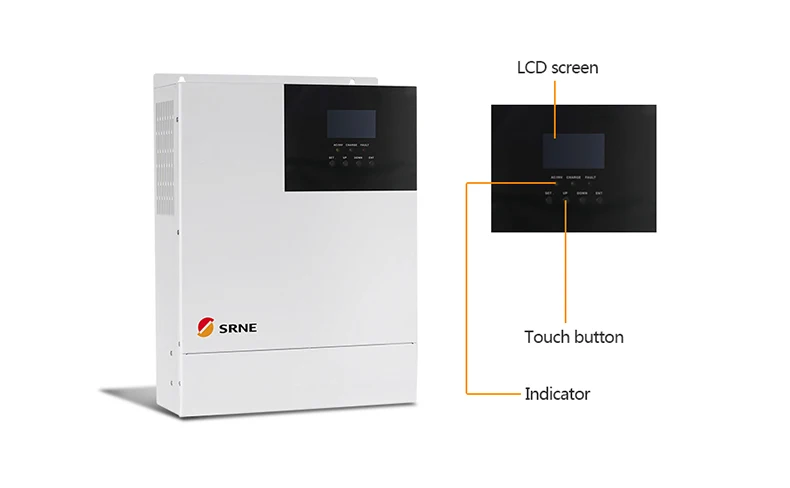

6 | Cooling fan | 14 | Touch button |
7 | Battery port | 15 | Indicator |
8 | PV2 port | 16 | LCD screen |
Models | HFP4850S80-145 | HFP4835U80-145 |
AC mode | ||
Rated input voltage | 220/230Vac | 110/120Vac |
Frequency | 50Hz/ 60Hz (Auto detection) | |
Maximum bypass overload current | 40A | |
Inverter mode | ||
Output voltage waveform | Pure sine wave | |
Rated output power (VA) | 5000 | 3500 |
Rated output power (W) | 5000 | 3500 |
Power factor | 1 | |
Rated output voltage (Vac) | 230Vac | 120Vac |
Loaded motor capability
| 4HP | 2HP |
Bypass breaker specifications | 40A | |
Rated battery input voltage | 48V (Minimum starting voltage 44V) | |
Power saving mode | Load ≤50W | |
AC charging | ||
Battery type | Lead acid or lithium battery | |
Maximum charge current | 60A | 40A |
Circuit breaker specifications | 40A | |
PV charging | ||
Maximum PV open circuit voltage | 145Vdc | |
PV operating voltage range | 60-145Vdc | |
Maximum output power | 4200W | |
PV charging current range (can be set) | 0-80A | |
Communication interface | ||

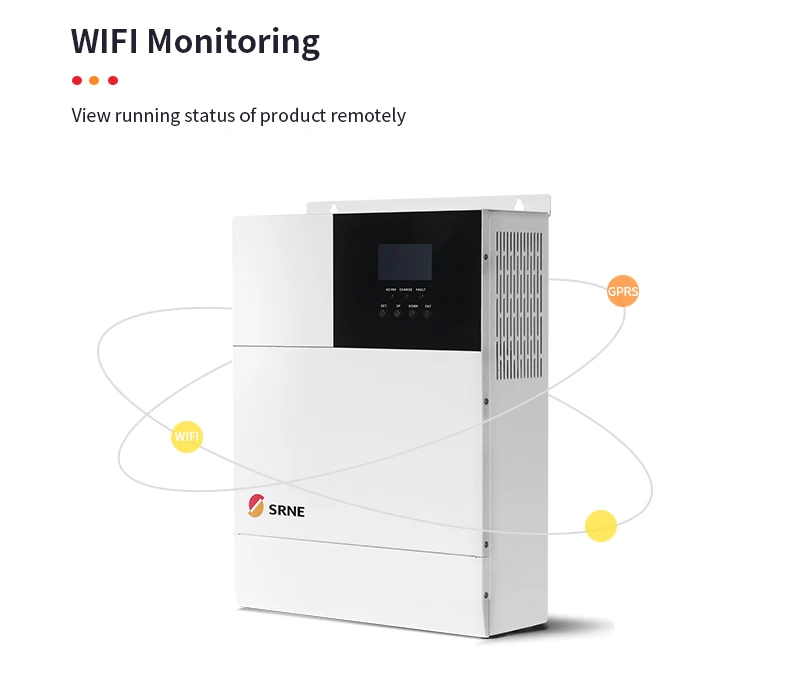

Communication interface | USB/RS485(WiFi/GPRS)/Dry node control | |
Features:
1.Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3.Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4.Advanced MPPT technology with an efficiency of 99.9%.
5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6.ON/OFF rocker switch for AC output control.
7.Power saving mode available to reduce no-load loss.
8.Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9.Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
10.360 ° all-round protection with a number of protection functions.
11.Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

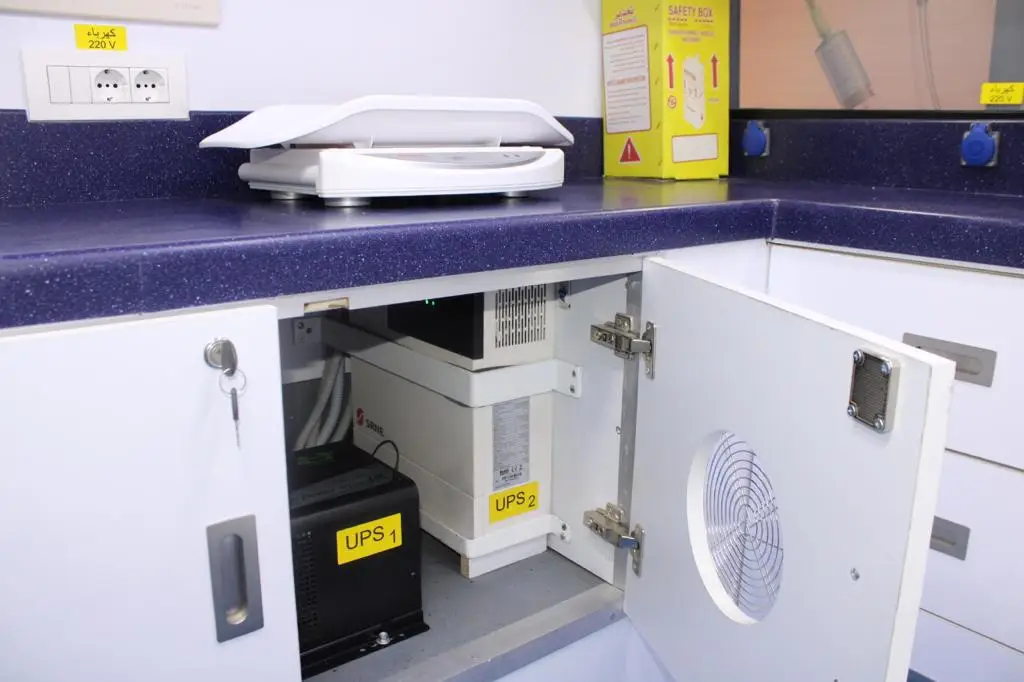

Applications
