8 inch double ball bearing TPR medical caster wheel with side brake

Product Overview

Description

8 inch double ball bearing TPR medical caster wheel with side brake

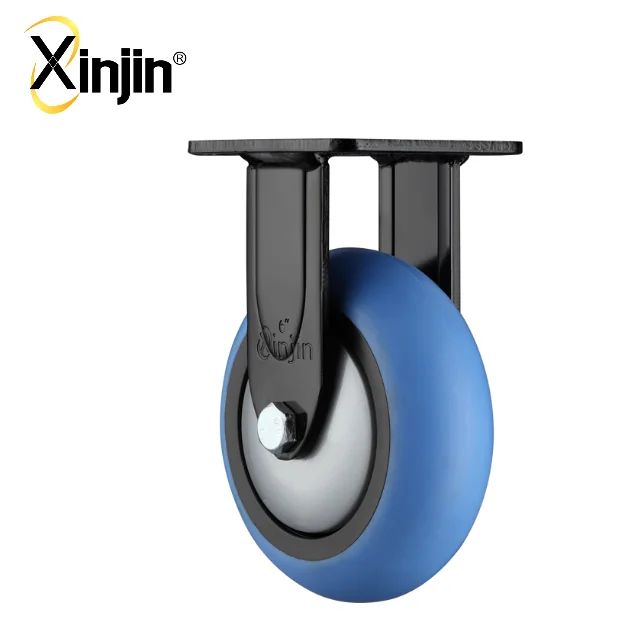

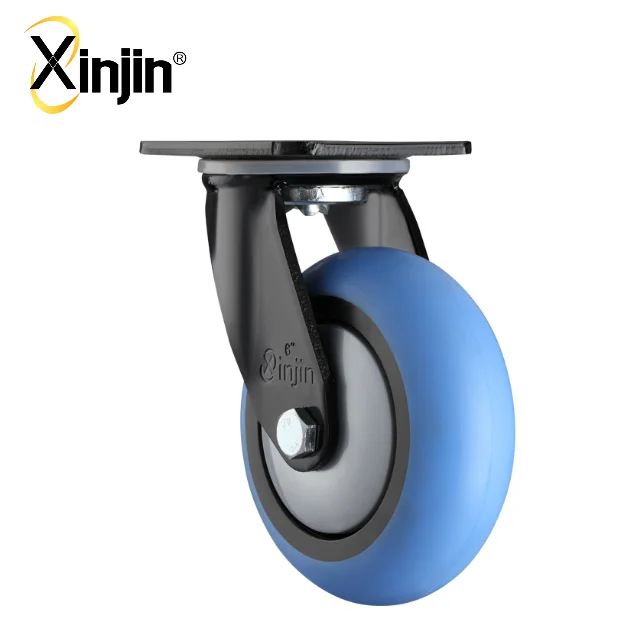

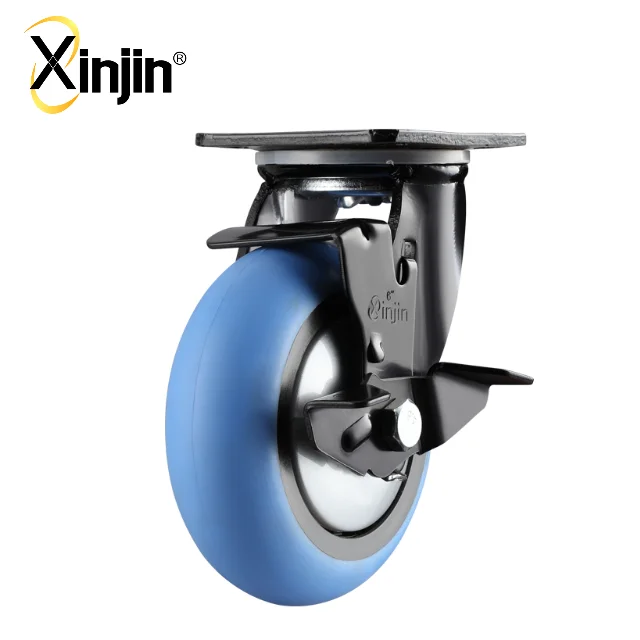

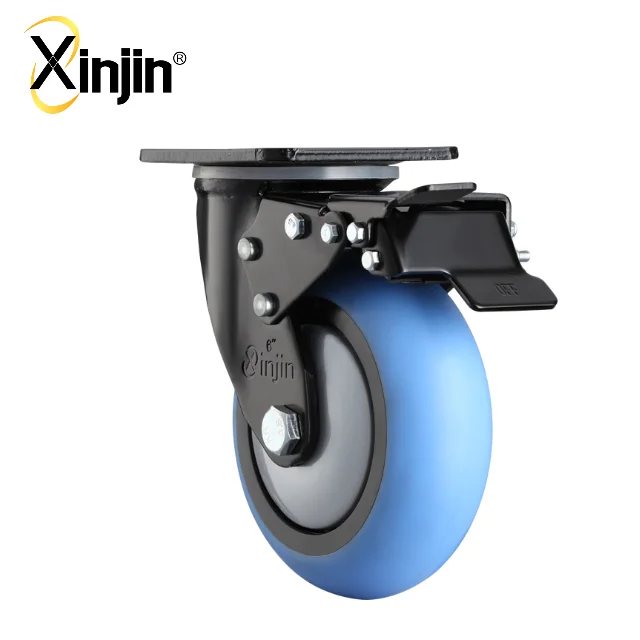

pictures of the TPR medical caster wheel

All brand new caster wheel series-more high quality,more upscale,more durable

Advantage-1:6mm thickness black painting metal frame,to prevent rust or corrosion

Advantage-2:rubber seal to protect the steel ball track,swivel more smoothly

Advantage-3:shining silver plastic dust cover to protect the ball bearing,prevent the dust and winding,rotate more flexible

Advantage-4:sustainable use for more than 3 years

Product Name	8 inch double ball bearing TPR medical caster wheel with side brake
Activity Mode	swivel caster
Model Number	XJ-H16200-04
Wheel Material	TPR
Wheel Color	blue
Bearing	double ball bearing
Bracket  Options	black paint bracket or zinc plated bracket
Mounting Type	plate type
Wheel Dia	8"(200mm)
Wheel Width	50mm
Load Capacity	350kg
Plate Size	114x100mm
Bolt Hole Spacing	84x71mm
Bolt Hole Diameter	φ11mm
Load Height	233mm
Plate Thickness	6mm
Fork Thickness	6mm
Application	suitable for multi-kinds of ground usages.Widely usage in many quiet and floor-protected application,like medical field,electronic,electrical equipment, hotel, suppermarket cart, high-end trolley.
Advantages	good elasticity,water resistance,chemical resistance.
Resistant	non-toxic,tasteless,non fading
Usage Temperature	-500C~1150C
Lead Time	25 days for a 20GP,35-40 days for a 40HC
Loading Port	Xiaolan,Zhongshan,China
Payment Terms	T/T,L/C,Western Union,Moneygram,Paypal,Trade Assurance
MOQ	100pcs,sample order will be acceptable
About Us	Established in 1987,is a 33 years experiences manufacturer. We professionally supply series of casters of cargo trolley,such as light &heavy duty casters,nylon casters, polyurethane casters, rubber casters,cast iron casters.They are widely used in tool box,cabinet,hospital,transportation,material handling, furniture, scaffolding, etc. We have a full line of professional production for punching,welding,bending, injection,molding,assembling and testing.All of the products are made of new environment raw material,which confirm our products meet stringent quality and international environmental standards.

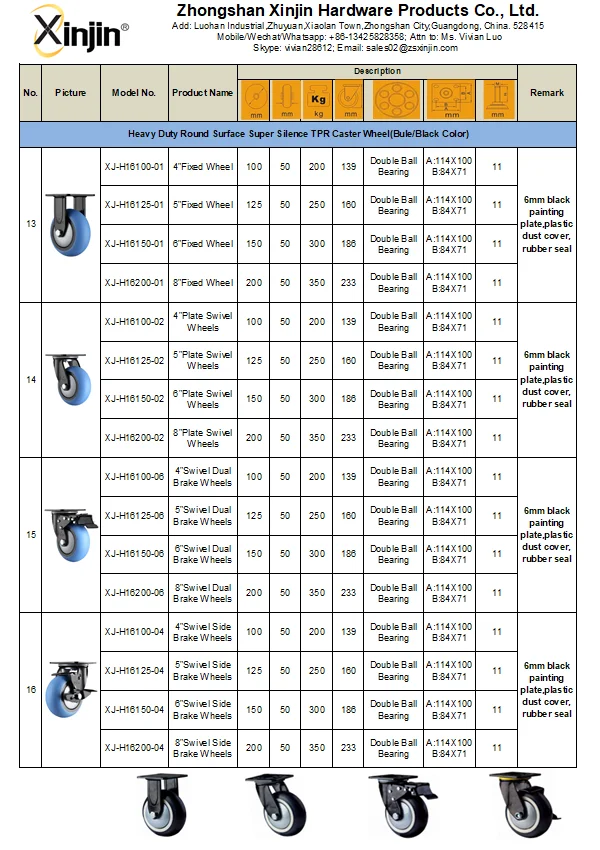

same TPR medical caster wheel with different size and type

TPR medical caster wheel company information
