rice husk particle board manufacturing mdf board making machine best price particle machine
- Category: Wood Based Panels Machinery >>>
- Supplier: Linyi,Shining,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Welcome to Linyi Shining Machinery, I hope you can pick the right product. If you have any questions, please feel free to contact us. We provide 24 hours online service. Then follow us to visit our product and company~
Full set particle board production line: Seiko quality, customizable service, factory direct sale.
Product Paramenters
Particle Board Poduction Line | ||
Raw material: | Logs, branches, twigs, industrial wood reidue | |
Board size: | 3*6 feet, 4*8 feet, 6*9 feet, etc | |
Annual capacity: | 10000cbm, 30000cbm, 50000cbm, 100000cbm | |
Total power: | According to the capacity | |
Control: | PLC | |
Particle board is to use footpaths timber, branch wood, bagasse, bamboo, wood processing waste, sawdust and other wood as raw material, Urea-formaldehyde resin adhesive imposed after mixing, through HP repression into density at 680-800kg/cubic meters of man-made sheet. Face plate for the graded structure, smooth surface, good processing performance, widely used for furniture, construction, packaging, vehicles and ship's interior decoration. As particle board with abundant sources of raw materials, product wide range of uses, noise effects and anti-borers, good performance advantages. Therefore the product has broad market prospects.
Chipper | ||
The imported raw materials size: | 230*500mm | |
Fly number: | 2pcs | |
Knife stick speed: | 590rpm | |
Max diameter of the raw material: | 230mm | |
Wood size: | 30mm | |
The dimension: | 1800*1900*1210mm | |
Dryer | ||
Cylinder dia.: | 2600mm | |
Cylinder length: | 12000mm | |
Cylinder speed: | 3-9r/min | |
Heating tube dia.: | Φ51mm | |
Motor power: | 15kw | |
Overall dimensions: | 15000*2700*2200mm | |
Weight: | 11000kgs | |
Rectangular Screen | ||
The layer number of screening: | 3 layers | |
Mesh size(upper): | 65*65mm | |
Mesh size(middle): | φ4mm | |
Screening area: | 8m² | |
Production capacity(wood): | 100-130m³/h | |
The motor power: | 7.5kw | |
Dimension: | 5250*2670*1880mm | |
Glue Blender | ||
Motor power: | 18kw, 22kw | |
Dimensions: | 2600*1000*800mm 2600*1000*850mm | |
Material of inner tank: | stainless steel | |
Forming Machine | ||
Capacity: | 50000m³/year | |
Working width: | 1830-1900mm | |
Working thickness: | 13-130mm | |
Dimension: | 6000*1650*2400mm | |
Main motor power: | 16.5kw | |

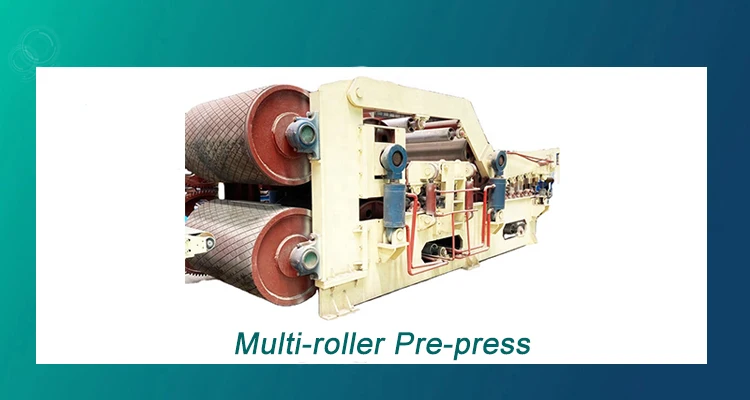

Multi-roller Pre-press | ||
Pressure roller diameter: | 900mm*2 | |
Drive roller diameter: | 640mm*2 | |
Tension bridle roller diameter: | 500mm*1 | |
Preloading roller diameter: | 196mm*8 | |
Pressure belt thickness: | 6mm | |
Pressure belt width: | 1900mm | |
Pressure belt speed: | 3-12m/min | |
The largest entry opening: | 250mm | |
The pressure of pressure roller: | 2200N/cm | |
Dimension: | 4300*4000*2000mm | |
Weight: | 14000kg | |

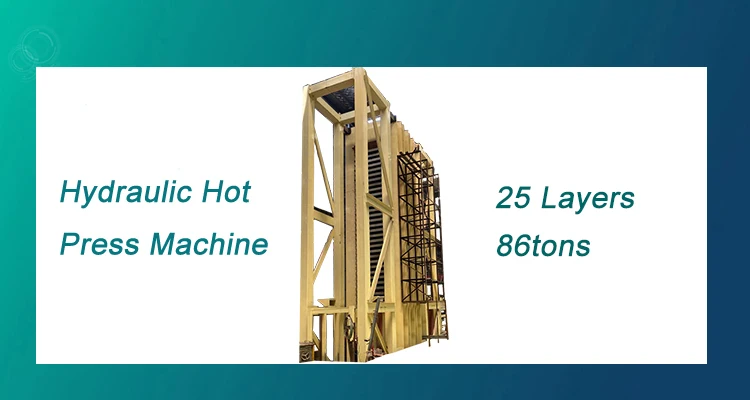

Hot Press | ||
Layer: | 25layers | |
Number of hot press plate: | 26pcs | |
Stroke: | 2000mm | |
Compression resistance: | 25Mpa | |
Main frame: | 40mm Q235 | |
Overall dimension: | 3600mm*1370mm*6720mm | |
Weight: | about 86tons | |
Edge Trim Saw for Finished Board | ||
Saw edge size: | 1830*2750mm | |
Max. sawing plate thickness: | 90mm | |
Operating speed: | 30-90m/min | |
Dia of saw blade: | Φ250mm or Φ305mm | |
Saw blade number: | 4pcs | |
Saw rotate speed: | 7500r/min | |
Dimension: | 7700*3300*1500mm | |
Sanding Section | ||
Operation width: | 1300mm | |
Min. operation length: | ≥500mm | |
Material thickness: | 5-100mm | |
Sand-belt size: | 3000*1350mm | |
Machine size: | 3450*3080*3150mm | |
Weight: | 3600kg | |
Company information
Exhibition
Why Choose Us
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Can you accept OEM?
A: Yes, we can produce the machine according to customers' requirements.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5. Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5. Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
