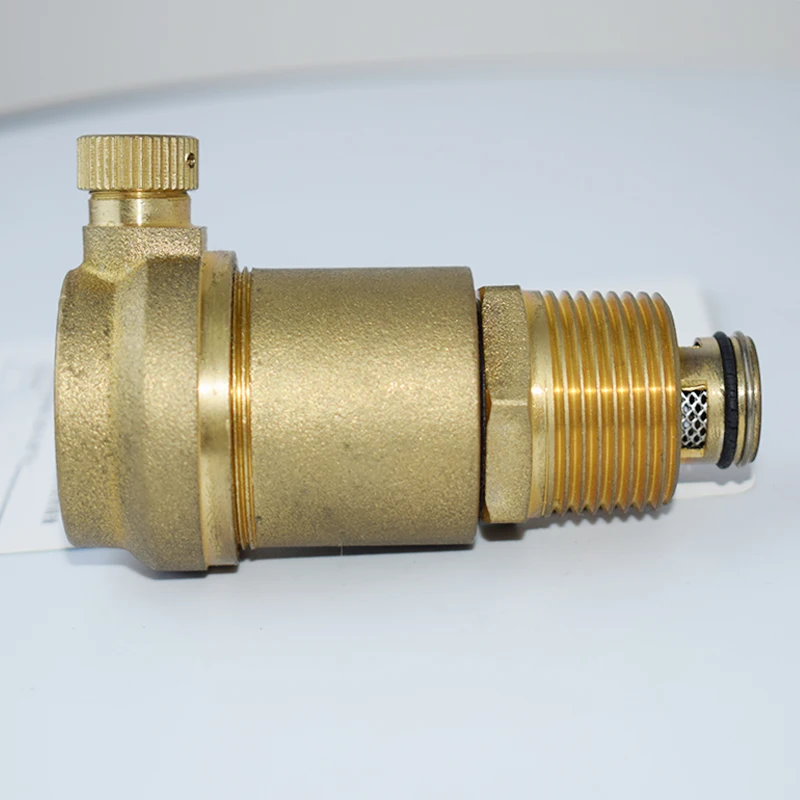

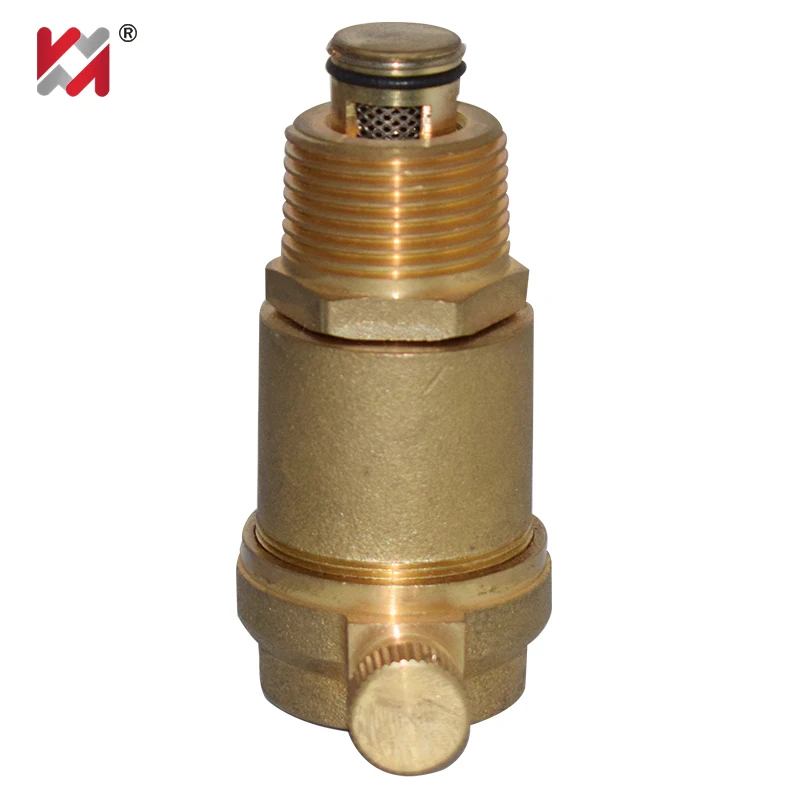

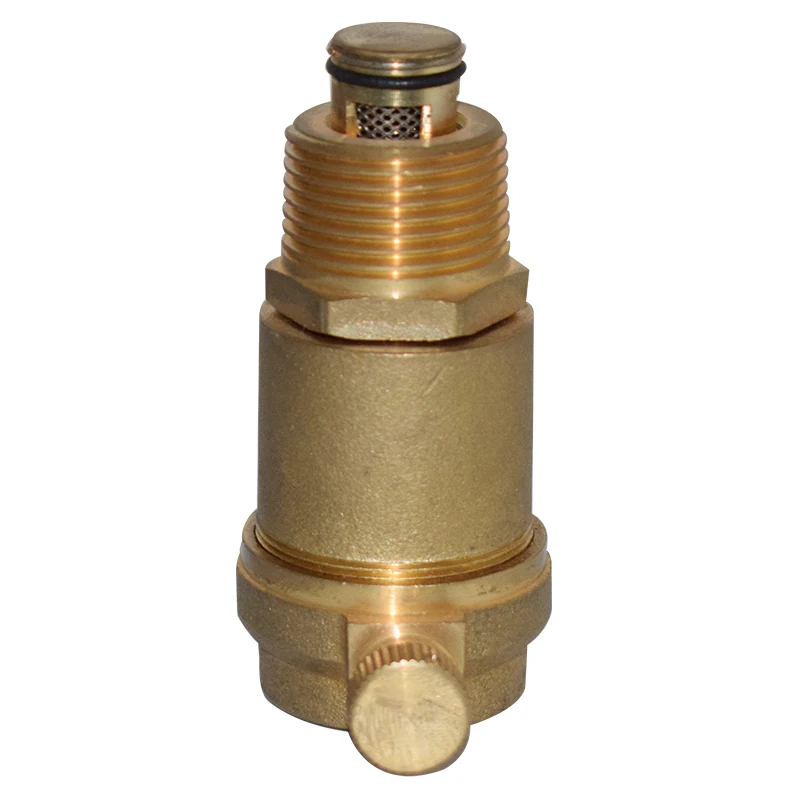

Brass automatic exhaust valve Brass Automatic Air Vent Valve Air Release Valve

Product Overview

Description

Brand                                          model                                          Nominal pressure

KTEC                     705 brass automatic exhaust valve                         1.6Mpa

Working temperature                 Standard                                             Medium

0≤t≤90℃                                   GB/T7306                                              Water

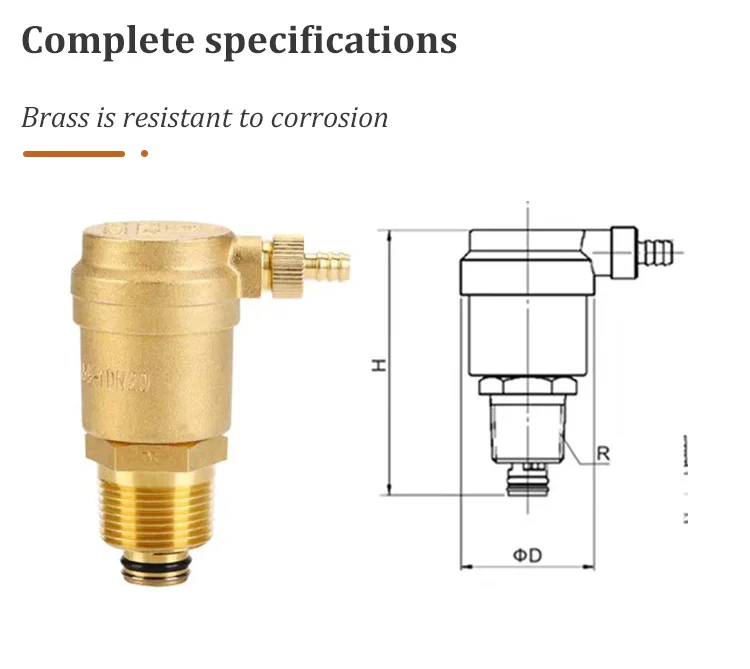

DN	øD	H
15	38	80
20	38	80
25	38	80



The technical specification

1.Nominal pressure: 1.6Mpa

2. Flow medium: water

3. Working temperature: 0℃ < T ≤90℃

4. Pipe threads conform to ISO 7 standard (GB/T7306)

Note:

1. After installation, connect the exhaust cap with an appropriate hose, and connect the other end of the hose to the place where gas and condensed water can be discharged to ensure the normal operation of the exhaust valve

2. The exhaust valve must be installed vertically

KTEC Fluid Control (Tianjin) Co,Ltd

Is a collection of valve design,research and development of low pressure butterflyvalve,spacial valve casting,manufacturing,and processing the sale is a body comprehensive enterprise,located in tianjin beichen science and technology industrial park .We have through the quality system certification of! S09001,ISO14001,API certification and TS certification.
