Hot Sales Cracker Bakery Biscuit Making Machine SKYWIN Brand Small Scale Commercial Biscuit Making Line

The 2018 new style and latest design complete soft and hard biscuit production line just finished and installation in our customer factory in South America, the full automatic biscuit production line can make all kinds of hard and soft biscuit, it is automatic from mixing to packing.

Different working width 400mm,620mm,1000mm and 1200mm line for option
Capacity from 100kgs per hour to 1500kgs per hour.
Turnkey Project are customized, full details layouts will be supplied accordingly.

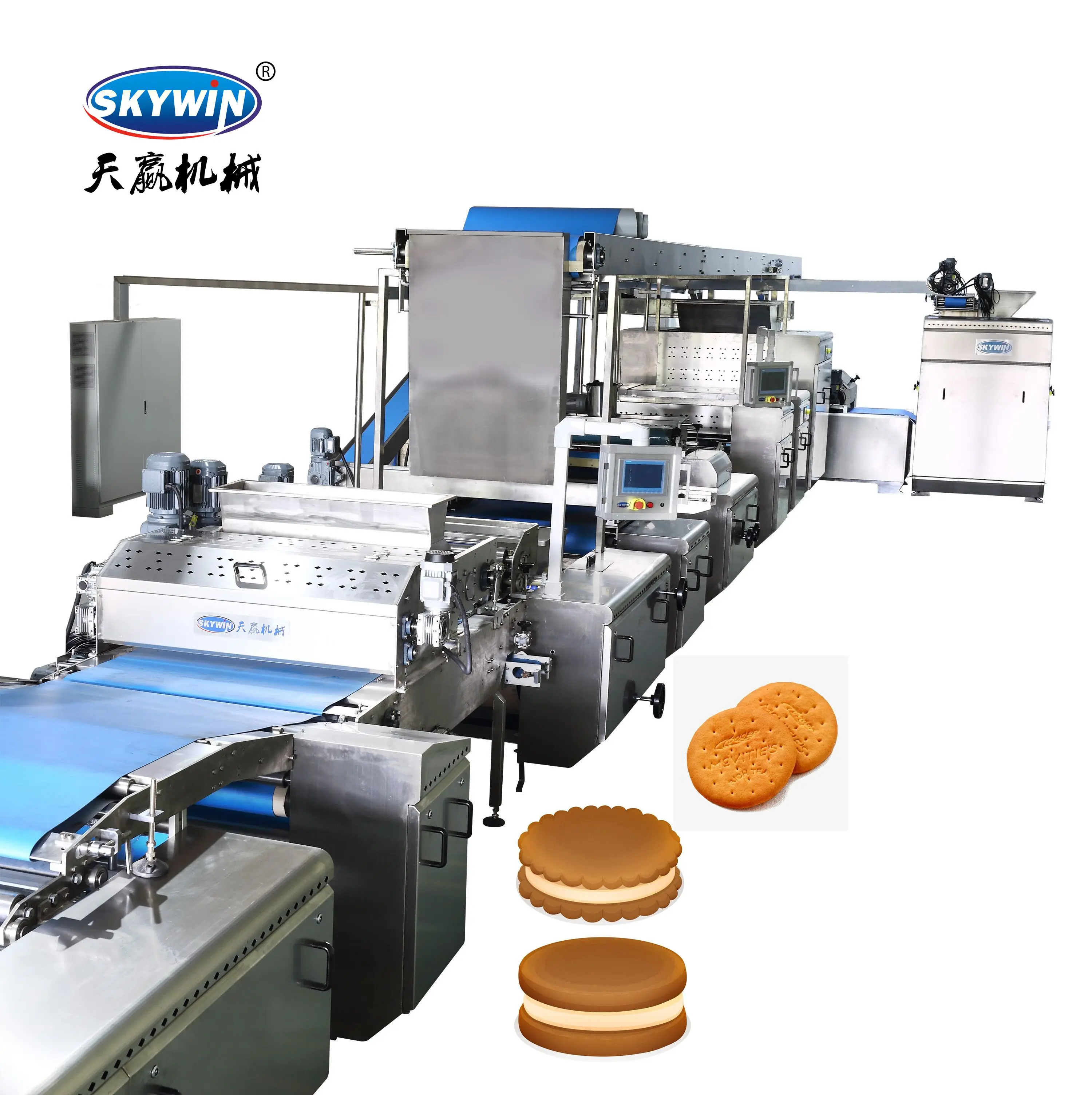

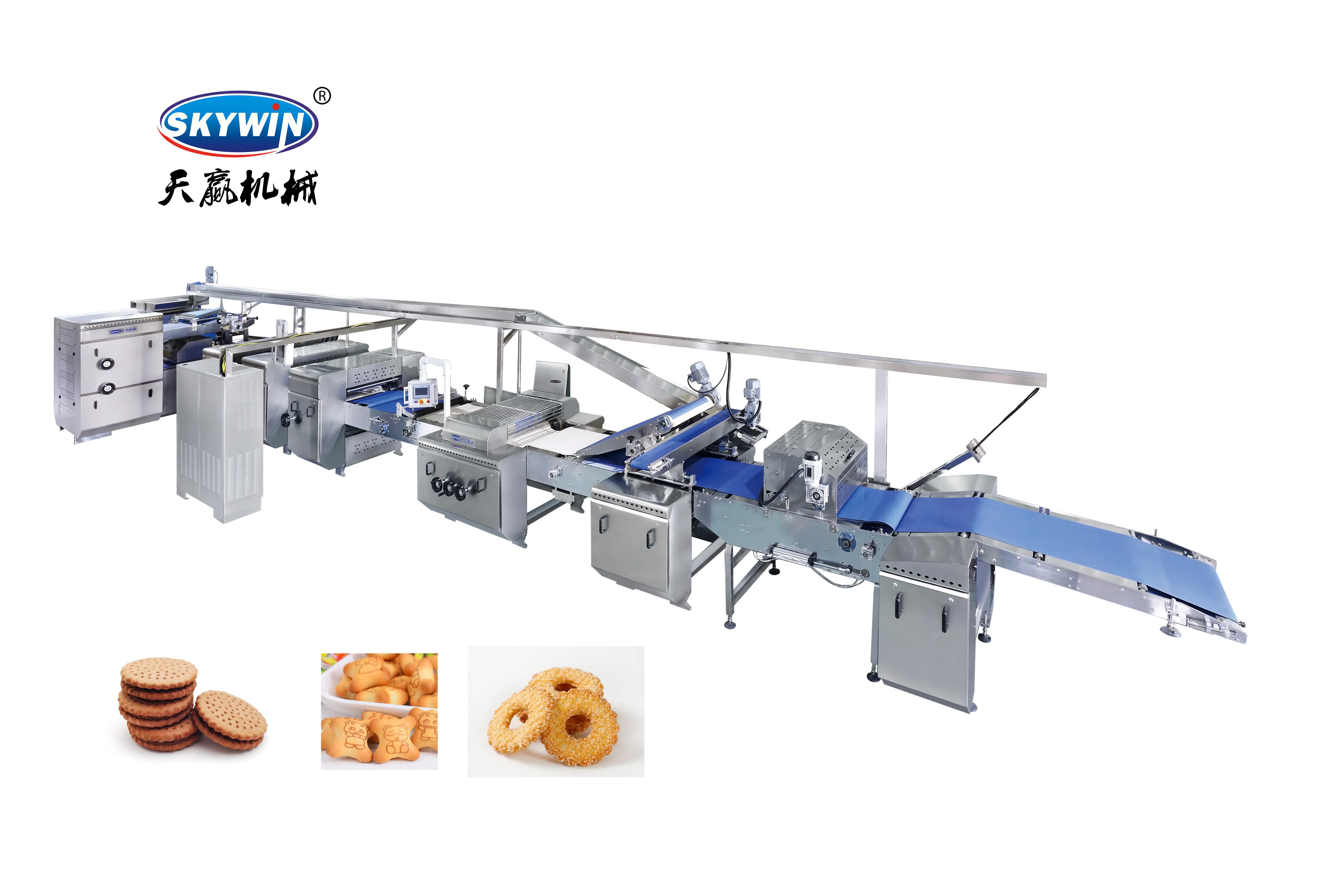

Skywin Automatic Hard and Soft Biscuit Production Line including following machinery:
Horizontal dough mixer, 250kg/batch,
vertical dough mixer 500kg/batch
Automatic dough tipper and feeding system
Three-roll combination sheeter for feeding and sheeting dough
Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
Gauge rolls
Rotary cutting machine for hard biscuit forming
Scrap collection and return system
Rotary moulder for soft biscuit forming
Salt/sugar spreading machine
Tunnel oven, electric, indirect diesel oil or gas fried for option, length can be design as per capacity.
Oil spraying machine
Turning machine 180degree or 90degree design as per the plant length
Cooling conveyor
Biscuit stacking machine
Packing table
Biscuit sandwiching machine
Automatic Feeding and Packing Line

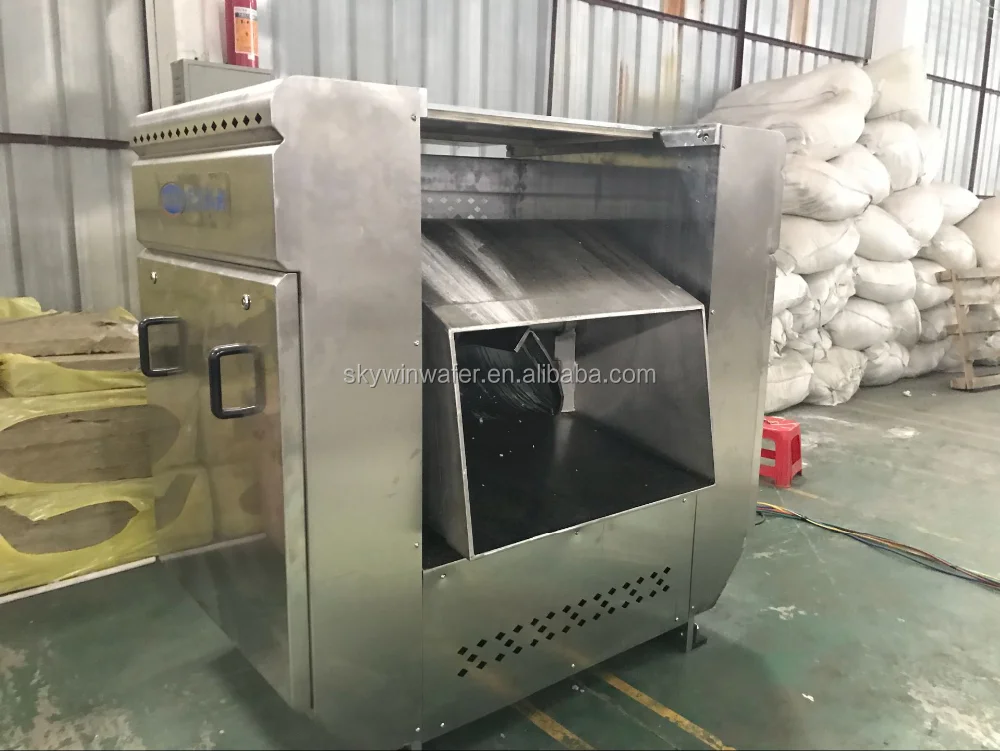

1)150kgs Horizontal dough mixer for soft biscuit and hard biscuit dough, Speed from 25r/min to Max. Speed60r/min, frequency speed.
Full stainless steel 304#
Dough Tub thickness 5mm and 8mm.
Newest design touch screen Siemens PLC control system.

2. Combination dough feeding and Sheeting machine for hard biscuit sheeting.

3.Two function biscuit forming machine for soft biscuit and hard biscuit

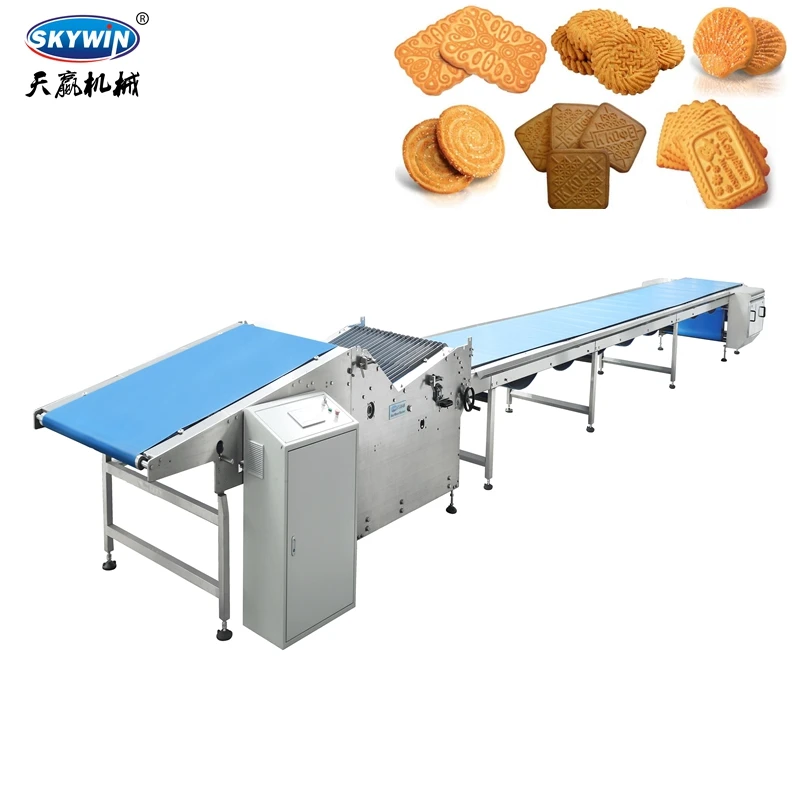

Soft and hard biscuit forming machine.
This picture shows for soft biscuit making, with belt automatic checking device.

4.Two function biscuit forming machine for soft biscuit and hard biscuit

5. Enter stove oven. Oven belt Driven machine

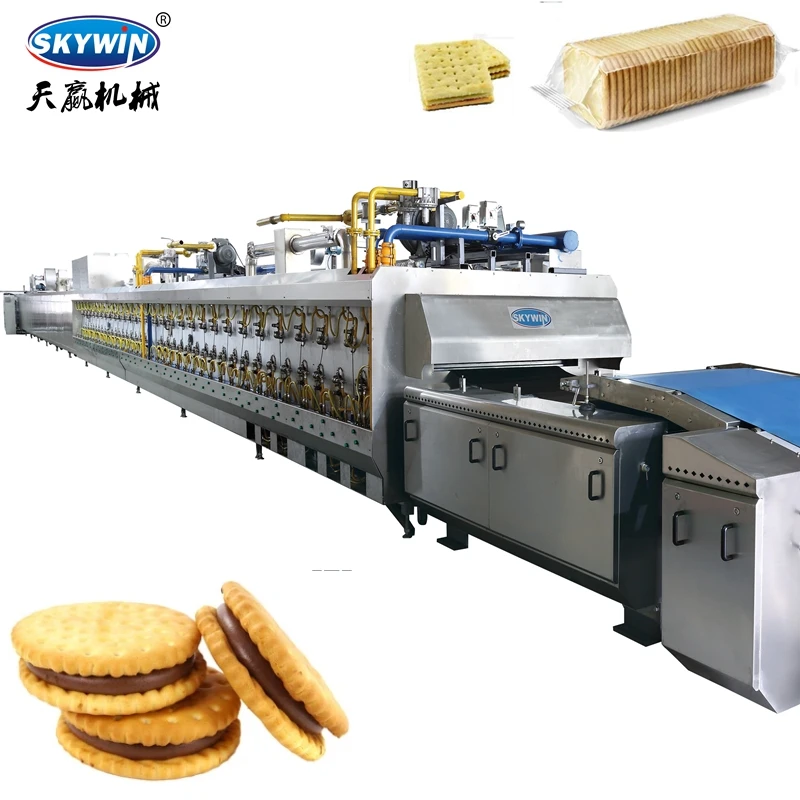

6. tunnel oven, full 304 SUS cover, insolate wood both side 250mm

7. Oven out stove machine with peeling machine.

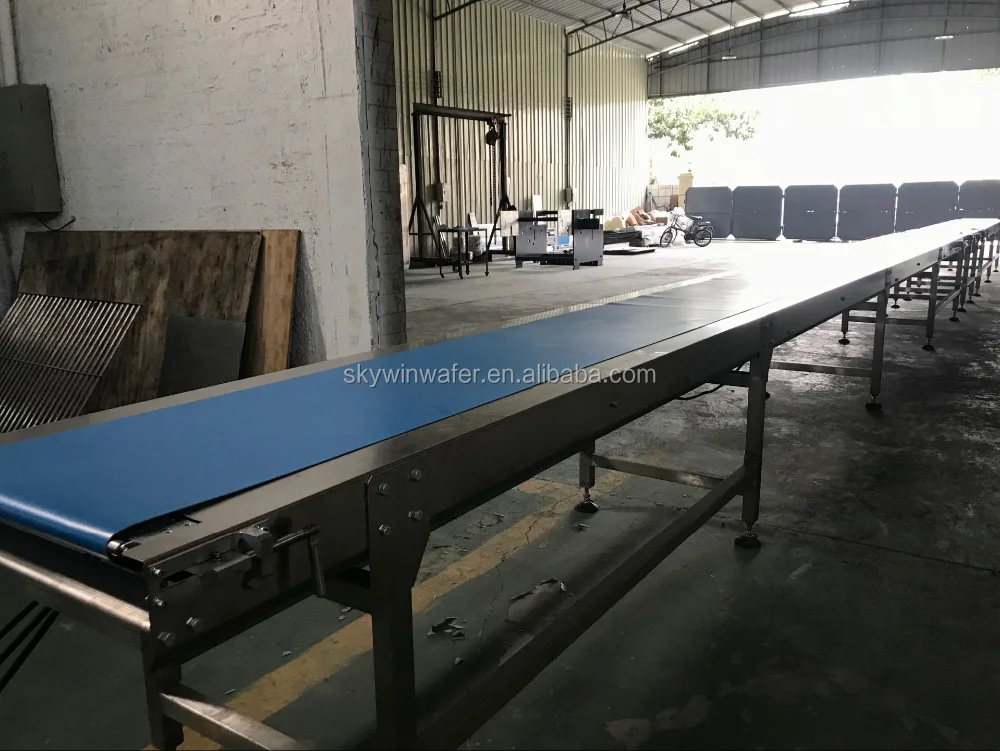

8.Food grade Cooling machine with speed stacker and packing table.
Food grade PU belt thickness 2mm,304SUS Steel plate support.
Automatic electric centering and tension adjustment device.
