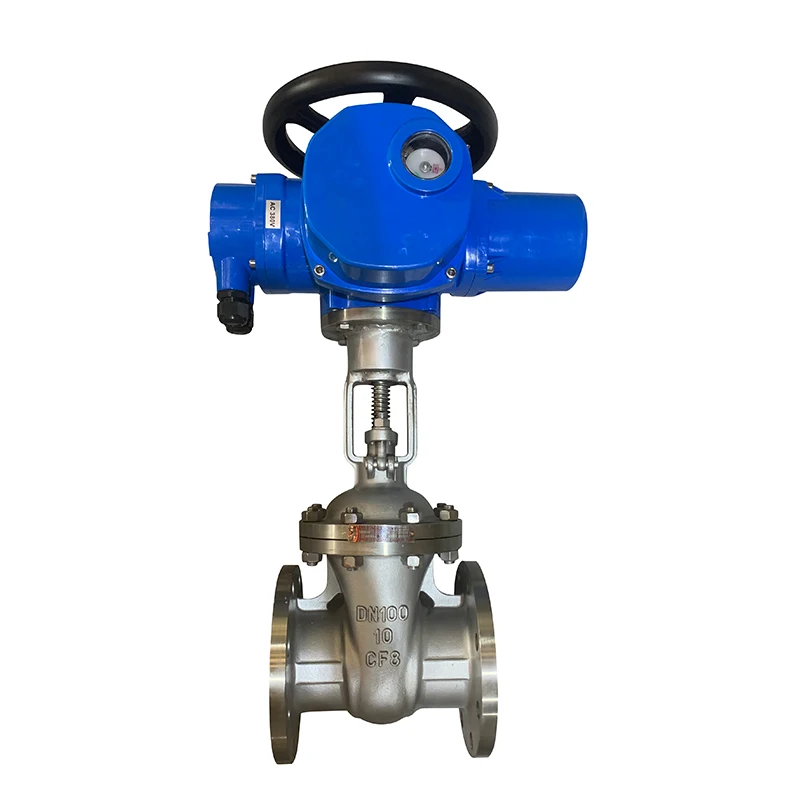

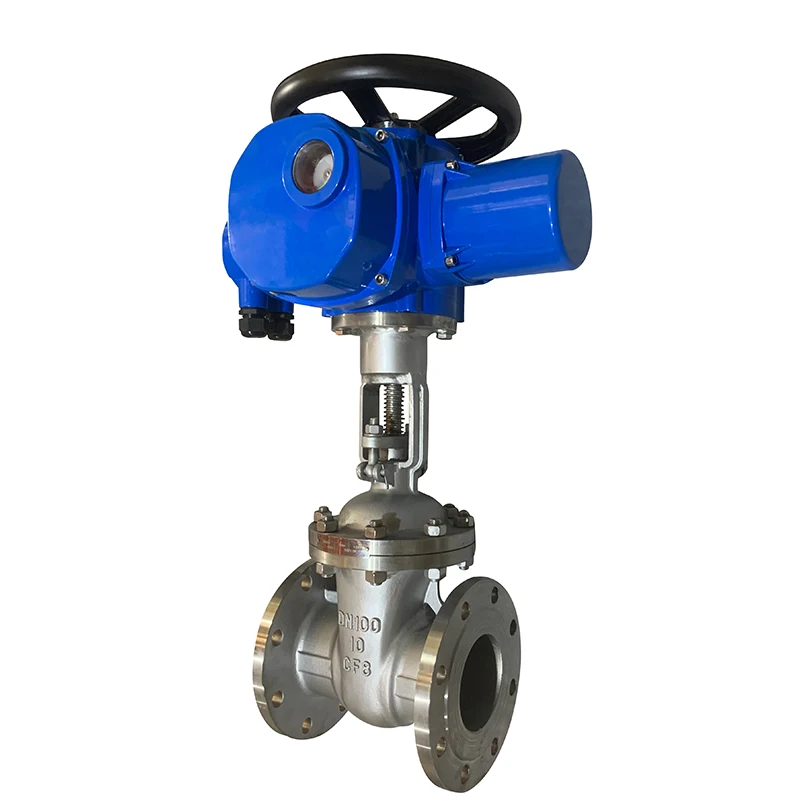

4 inch CF8M Double Flanged Multi Turn Electric Actuator Motorized Water Gate Valve
- Category: >>>
- Supplier: KTEC Fluid Control Equipment (Tianjin) Co. Ltd.
Share on (1600347339648):
Product Overview
Description
| Size Range | 2"~16", DN50~DN400 |
| Operating Pressure | PN1.6MPa |

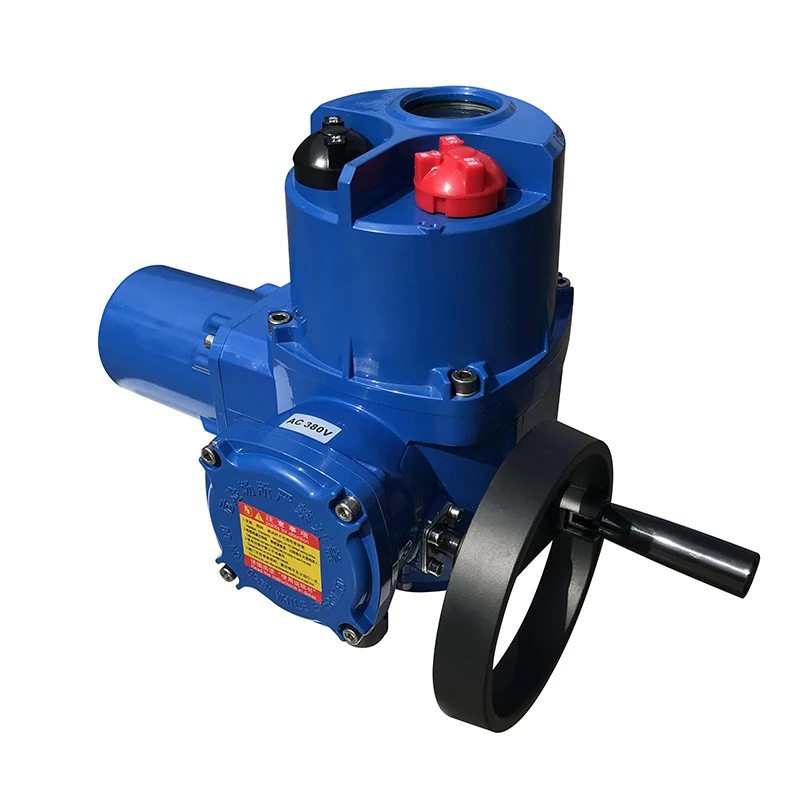

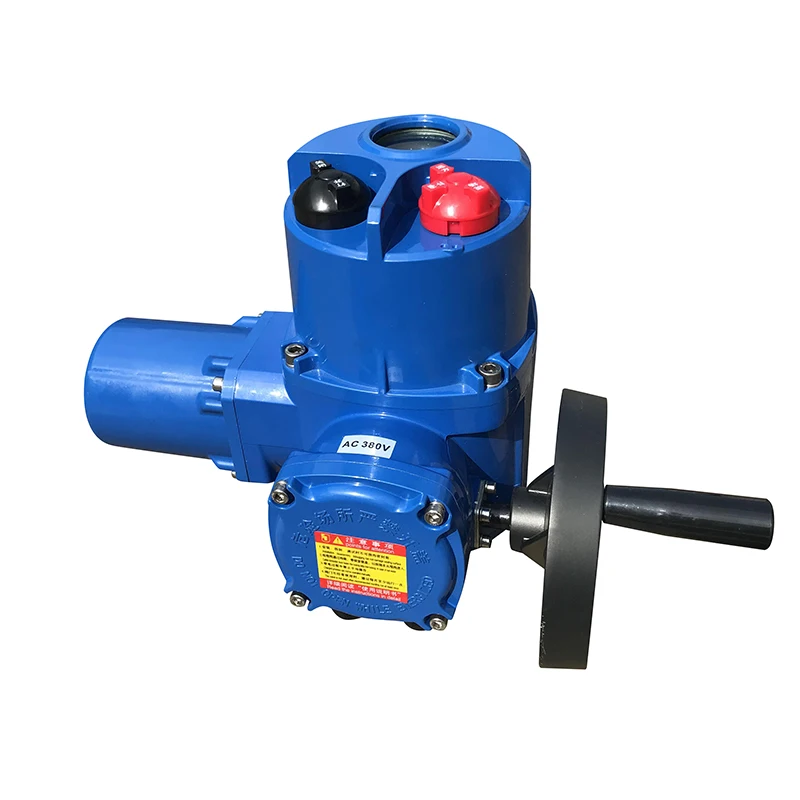

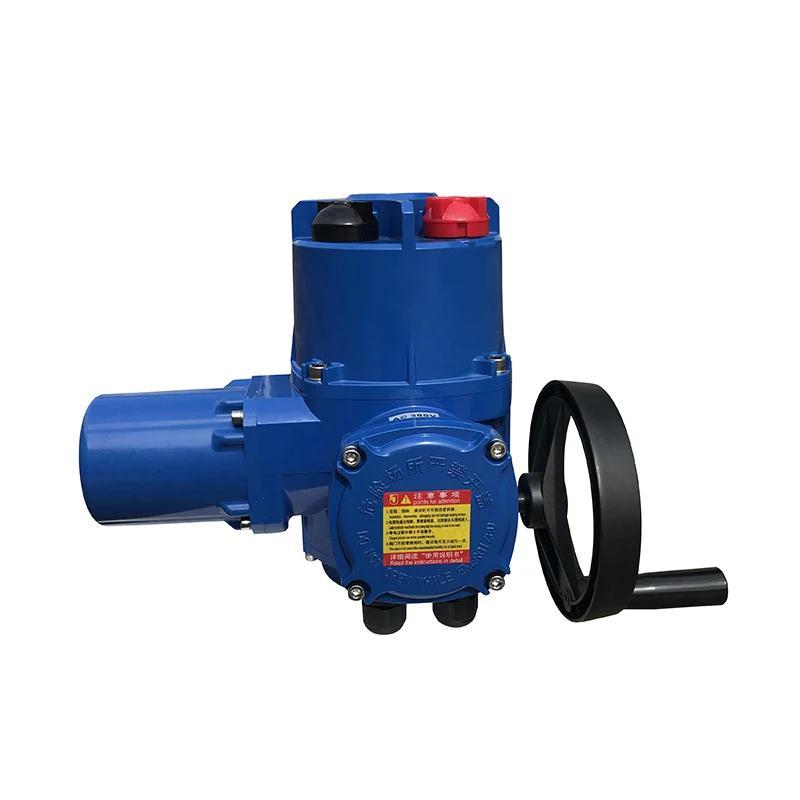

| Control Mode | Multi-Turn Electric Actuator |
| Optional Voltage | DC12~24V (±10%), AC110~220V, 50/60Hz |
| Body Material | Stainless Steel |
| Core Material | Stainless Steel |
| Sealing Material | PTFE |
| Stem Material | Stainless Steel |
| Structure | 2 Way Gate Valve |
| Connection Type | Flanged |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
| Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke |

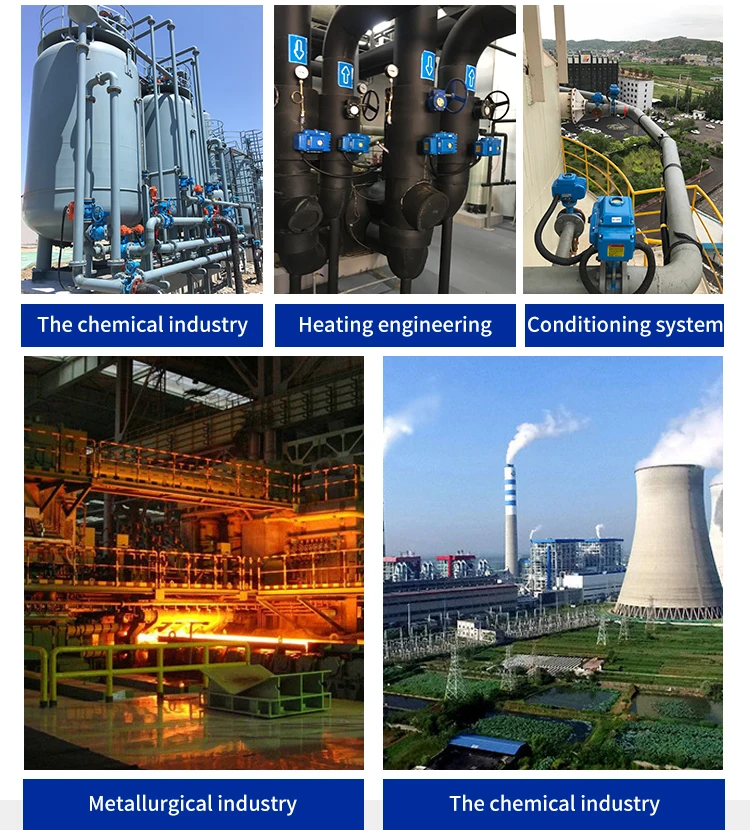

| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Z41H Flange gate valve implementation standard:
| Design and Manufacture | Length | Flange | Pressure-temperature | Testing-inspection |
| GB122234 | GB12221 | GB9113 JB79 | GB9131 | GB/T13927 JB/T9092 |
Z41H Flange gate valve pressure test:
| pressure | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 |
| Strength | 2.4 | 3.8 | 6.0 | 9.6 | 15.0 | 24.0 |
| Water seal test | 1.8 | 2.8 | 4.4 | 7.0 | 11.0 | 18.0 |
| Upper seal test | 1.8 | 2.8 | 4.4 | 7.0 | 11.0 | 18.0 |
| Gas seal test | 0.4-0.7 | |||||

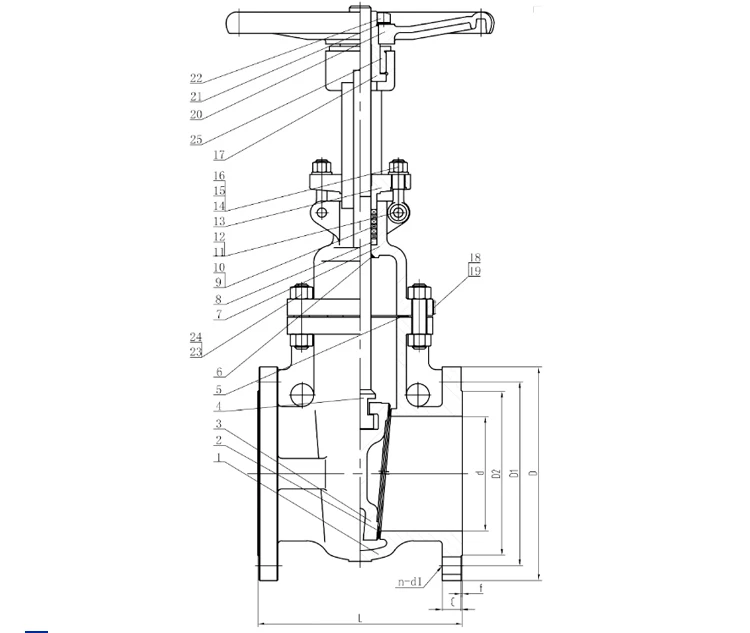

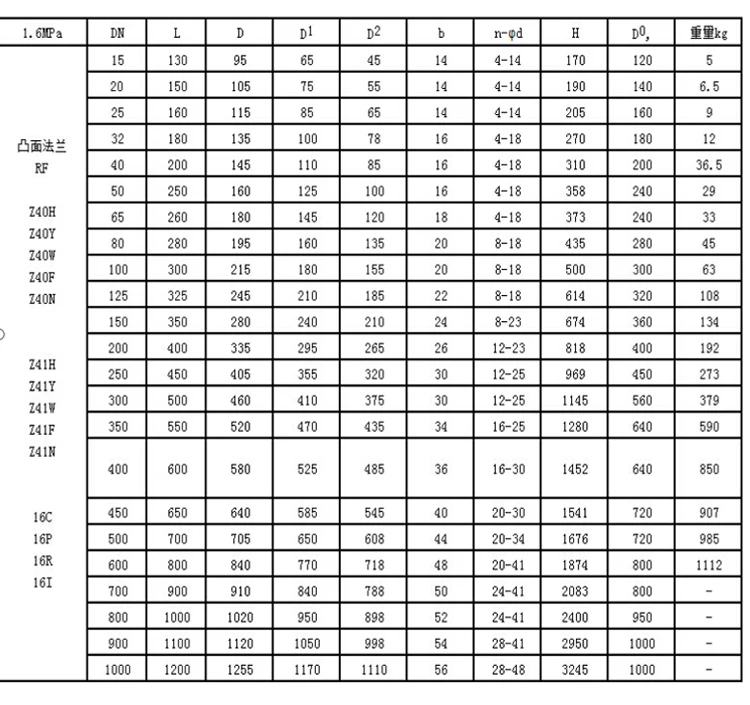

Z41H flange gate valve main appearance and weight:
KTEC Fluid Control (Tianjin) Co,Ltd
Is a collection of valve design,research and development of low pressure butterflyvalve,spacial valve casting,manufacturing,and processing the sale is a body comprehensive enterprise,located in tianjin beichen science and technology industrial park .We have through the quality system certification of! S09001,ISO14001,API certification and TS certification.
