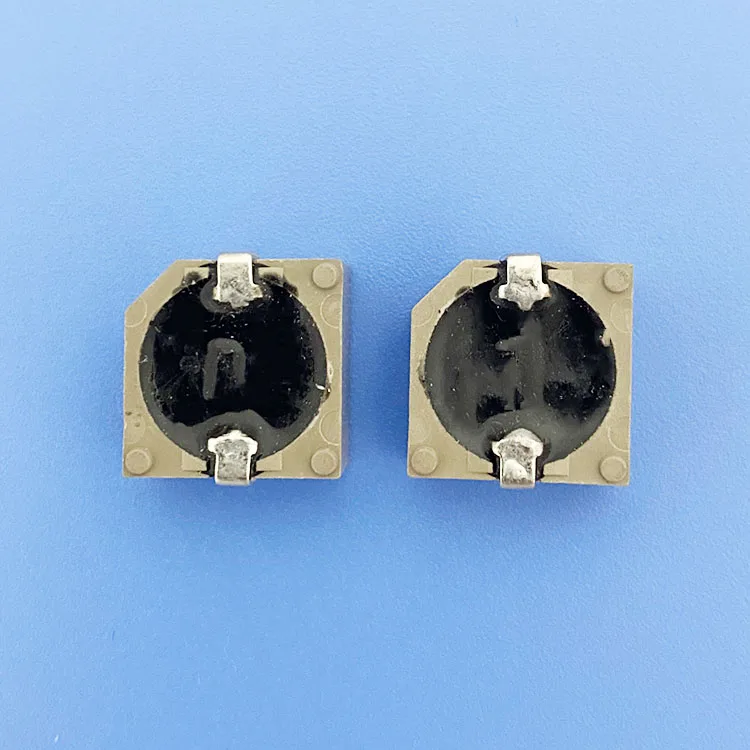

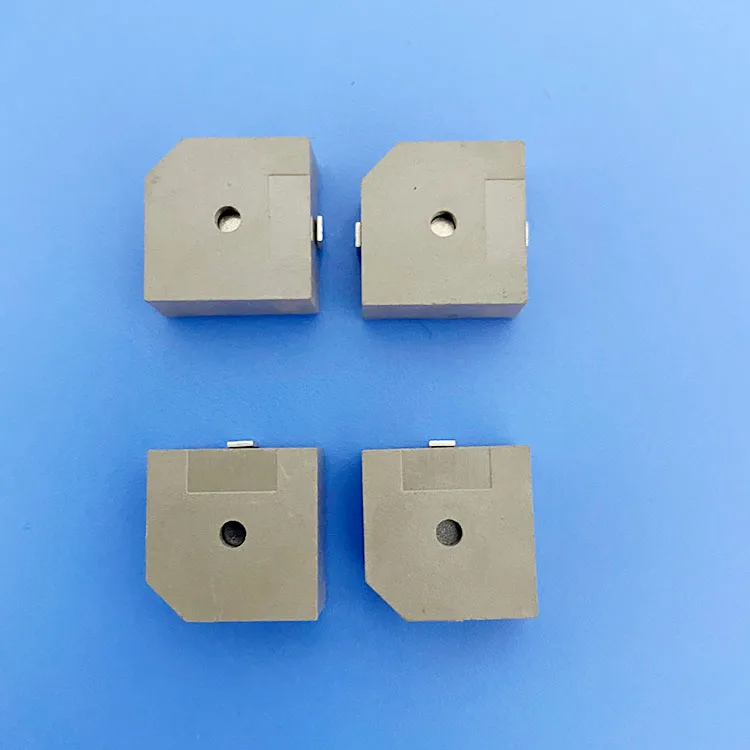

1307 12.8*12.8*6.5 mm square loud sound 85db dc active 3V 5V 12V smd magnetic buzzer
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600347378231):
Product Overview
Description
Product Name | 12.8*12.8*6.5 mm square loud sound 85db dc active 3V 5V 12V smd magnetic buzzer |
Type | SMD Magnetic Buzzer |
Rated Voltage | 3V,5V,12V |
Operating Voltage | 2V-14V |
Operating Temperature | -30°C ~ 70°C |
Sound Output at 10cm(dB) | ≥80dB |
Current Consumption (mA) | ≤30dB |
Oscillation Frequency | 2400±300 |
Input Type | DC |

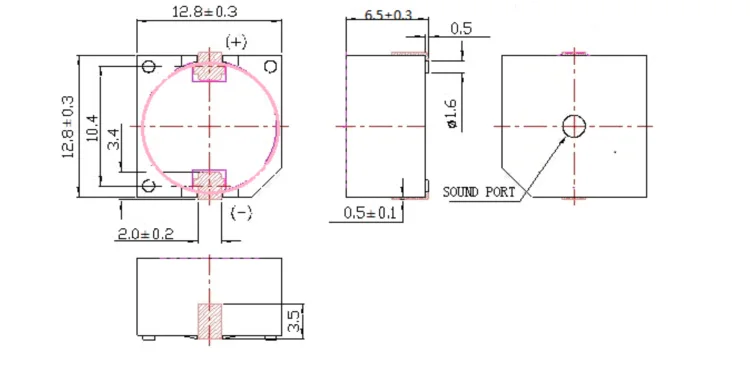

1. SMD Magnetic Buzzer Dimensions

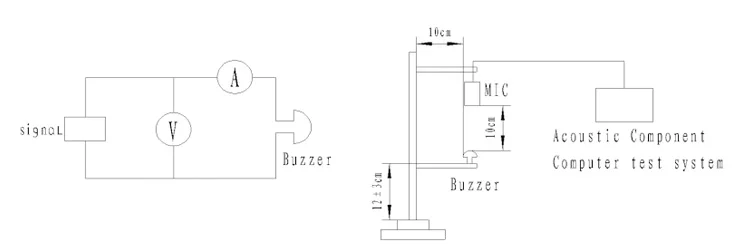

2. SMD Magnetic Buzzer Test Circuit
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.
Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .
Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.
Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.
Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.
Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
