Product Description
Machine Tools MT2 MT3 MT4 MT5 Lathe Live Center High Speed Morse Taper MT3 Live Center
cnc live center
- Made from carbon alloy steel with heat treat to HRc 50+/-2 for high rigidity and wear resistance
\t\t\t\t\t\t\t
\t\t\t\t\t\t -

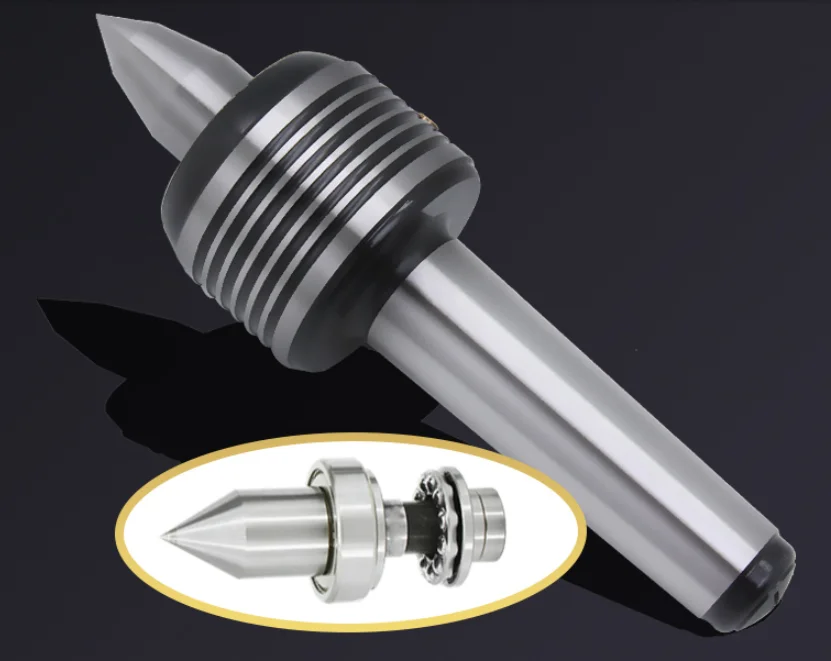

\t\t\t\t\t\t\tWith a triple bearing system in combination of 2 deep groove ball bearing and 1 thrust ball bearing
\t\t\t\t\t\t\t
\t\t\t\t\t\t -

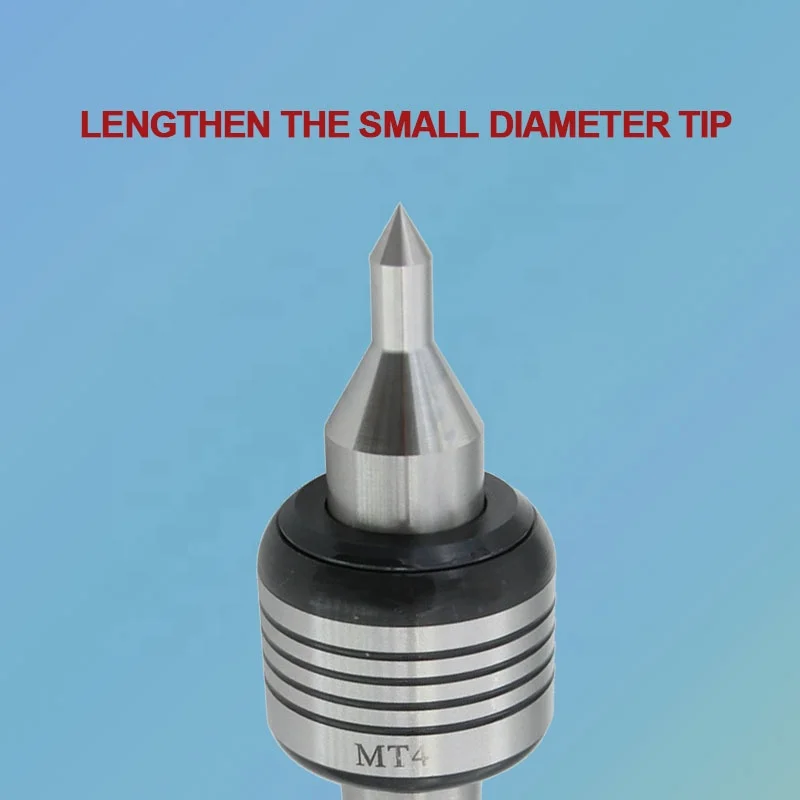

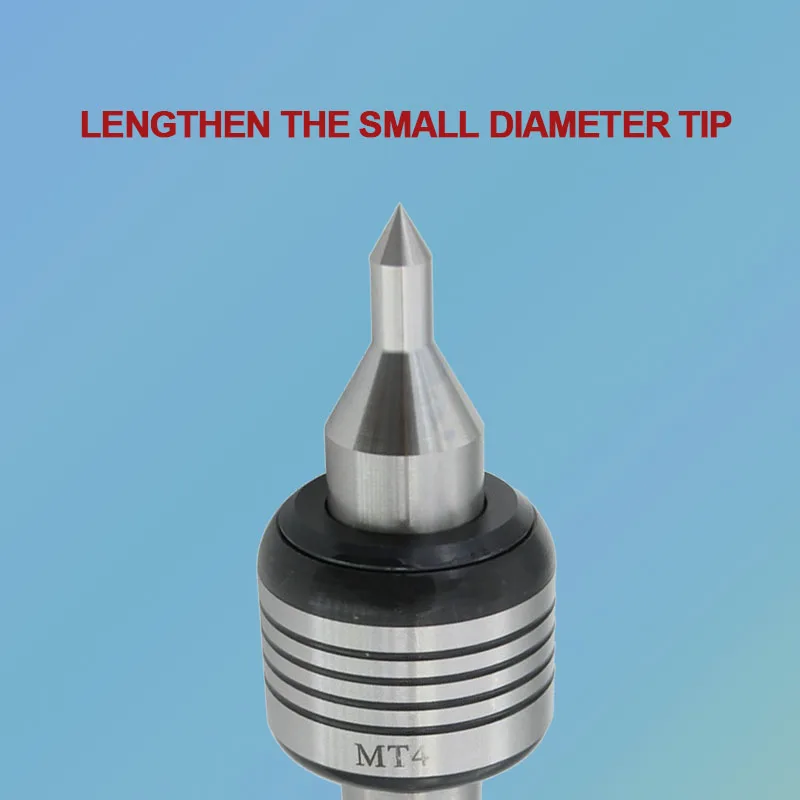

\t\t\t\t\t\t\tThe extended point provides extra tool clearance
\t\t\t\t\t\t\t
\t\t\t\t\t\t -
\t\t\t\t\t\t\t60º angle for general purpose on manual engine lathe
\t\t\t\t\t\t\t
\t\t\t\t\t\t -

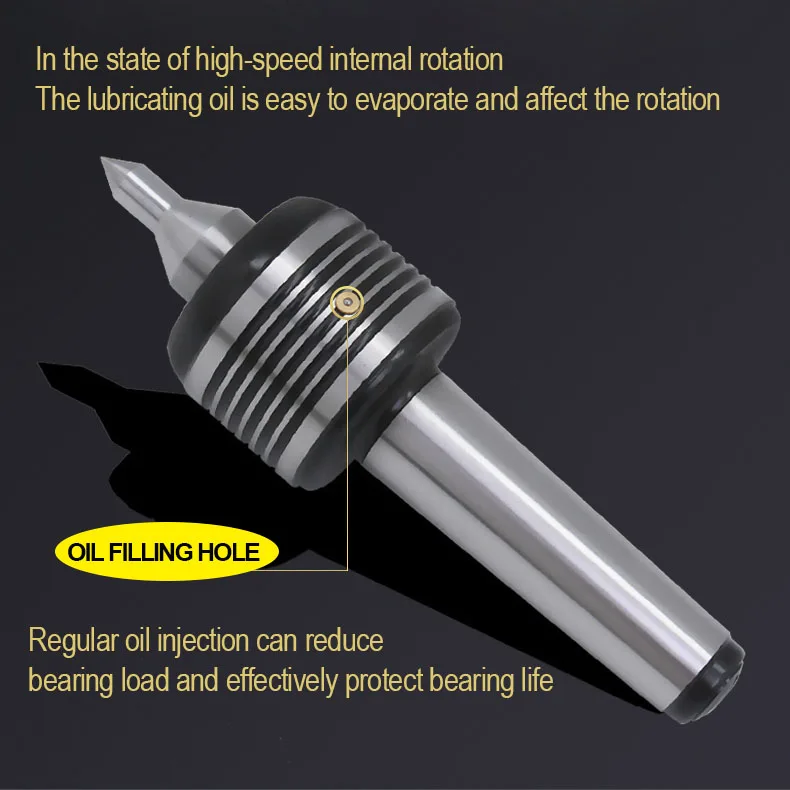

\t\t\t\t\t\t\tDust proof seal for long service life, great for high speed turning, CNC workMa
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t

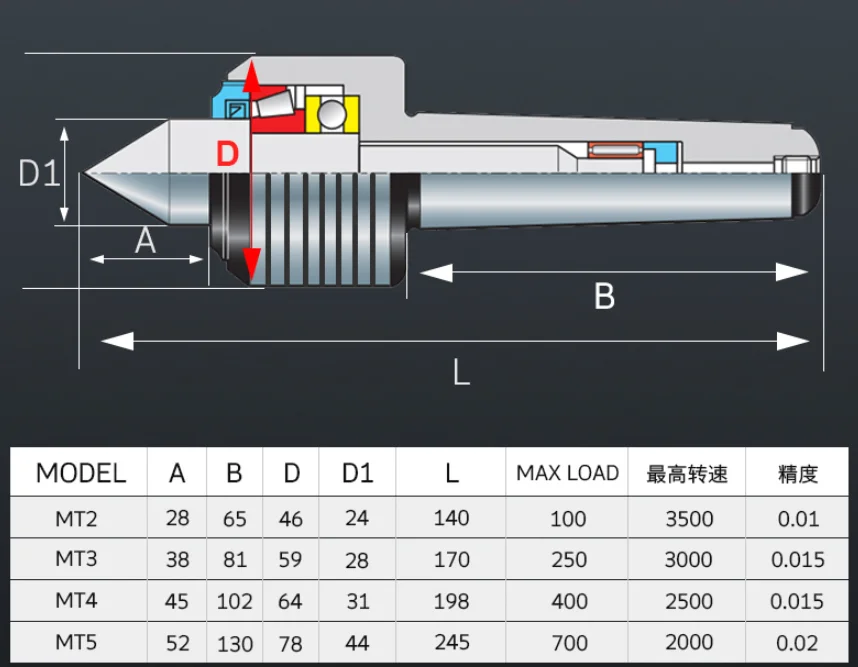

cnc live centerx loa
Model | A | B | D | D1 | L | Max load | Max Speed | Accuracy |
MT2 | 28 | 65 | 46 | 24 | 140 | 100 | 3500 | 0.01 |
MT3 | 38 | 81 | 59 | 28 | 170 | 250 | 3000 | 0.015 |
MT4 | 45 | 102 | 64 | 31 | 198 | 400 | 2500 | 0.015 |
MT5 | 52 | 130 | 78 | 44 | 245 | 700 | 2000 | 0.02 |
Internal installation display
