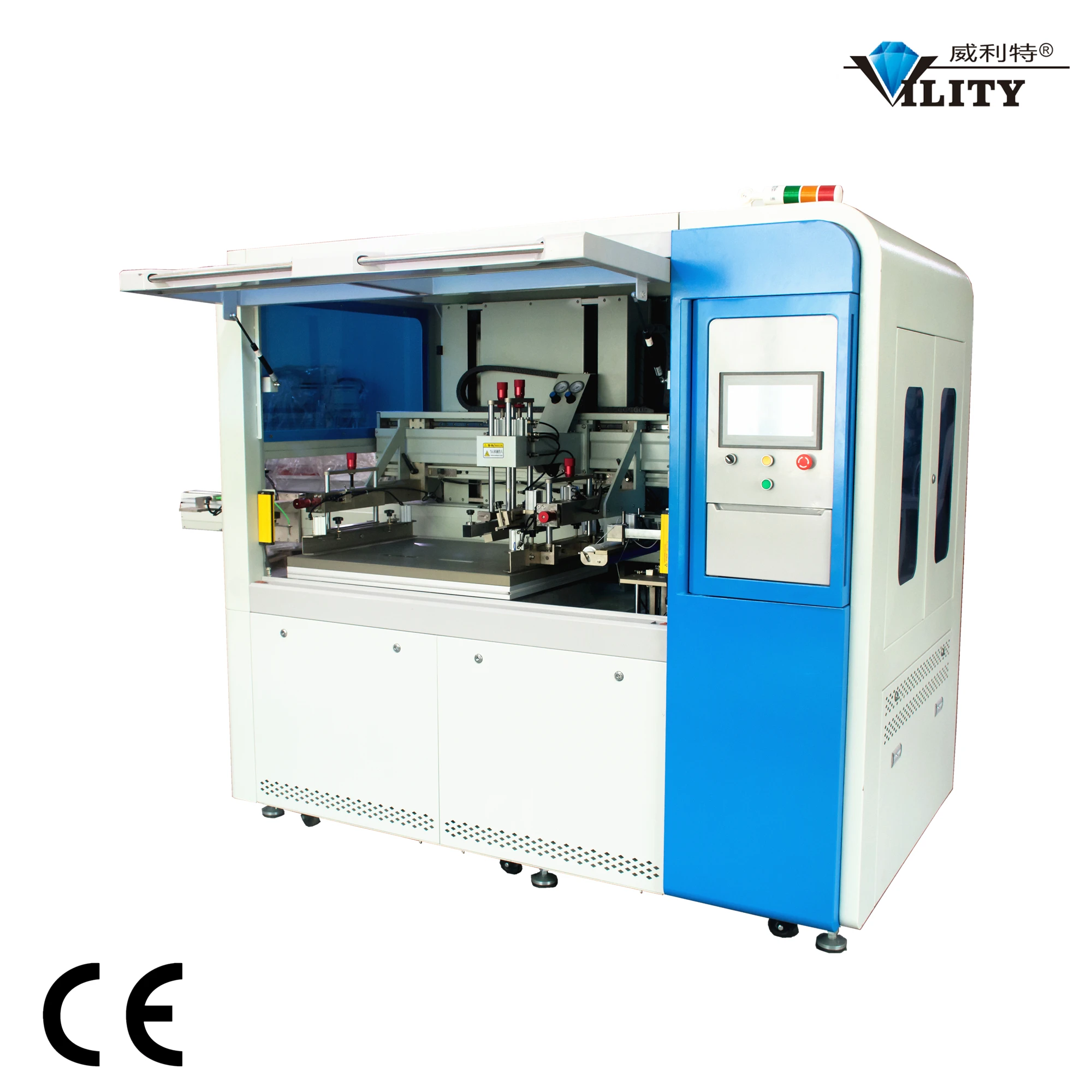

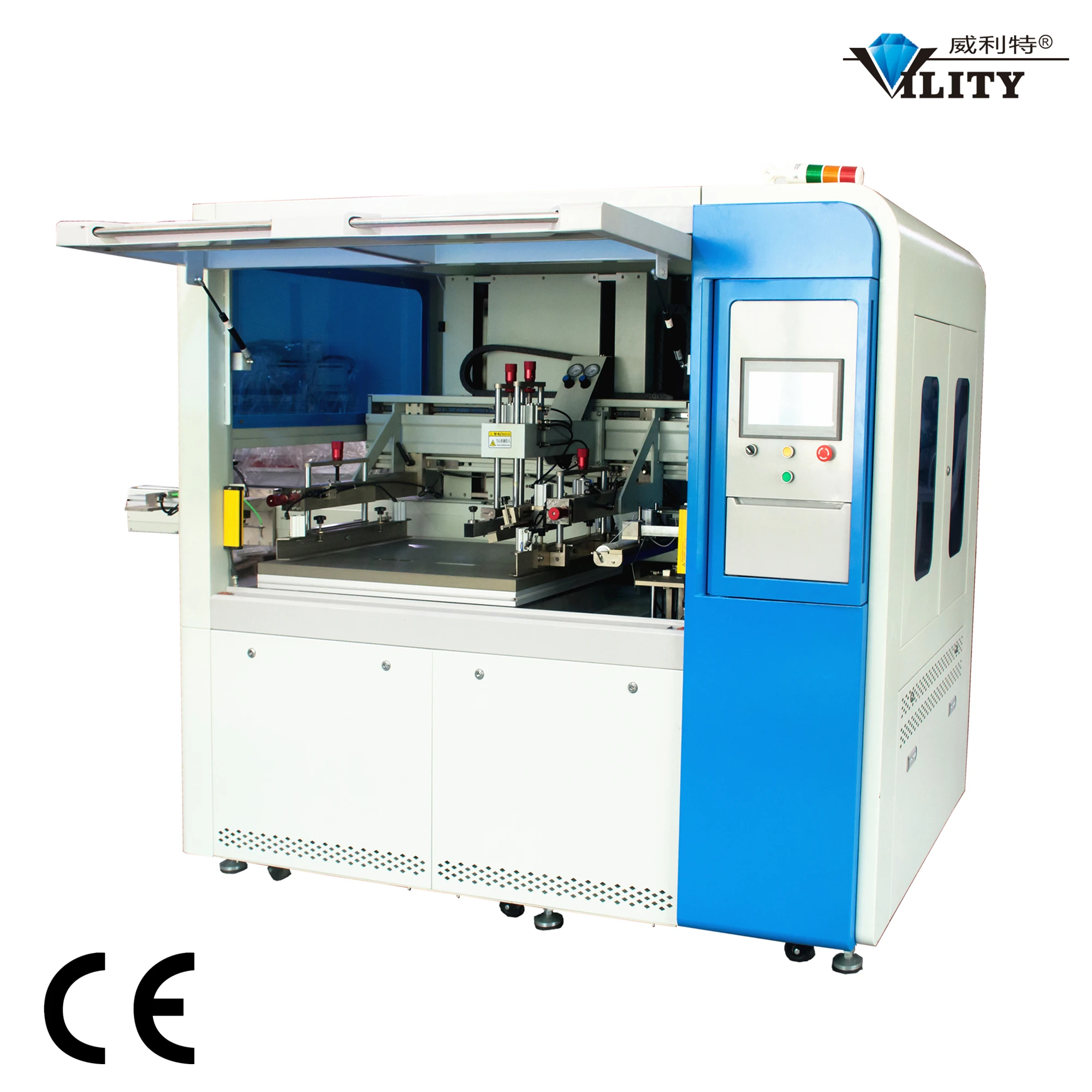

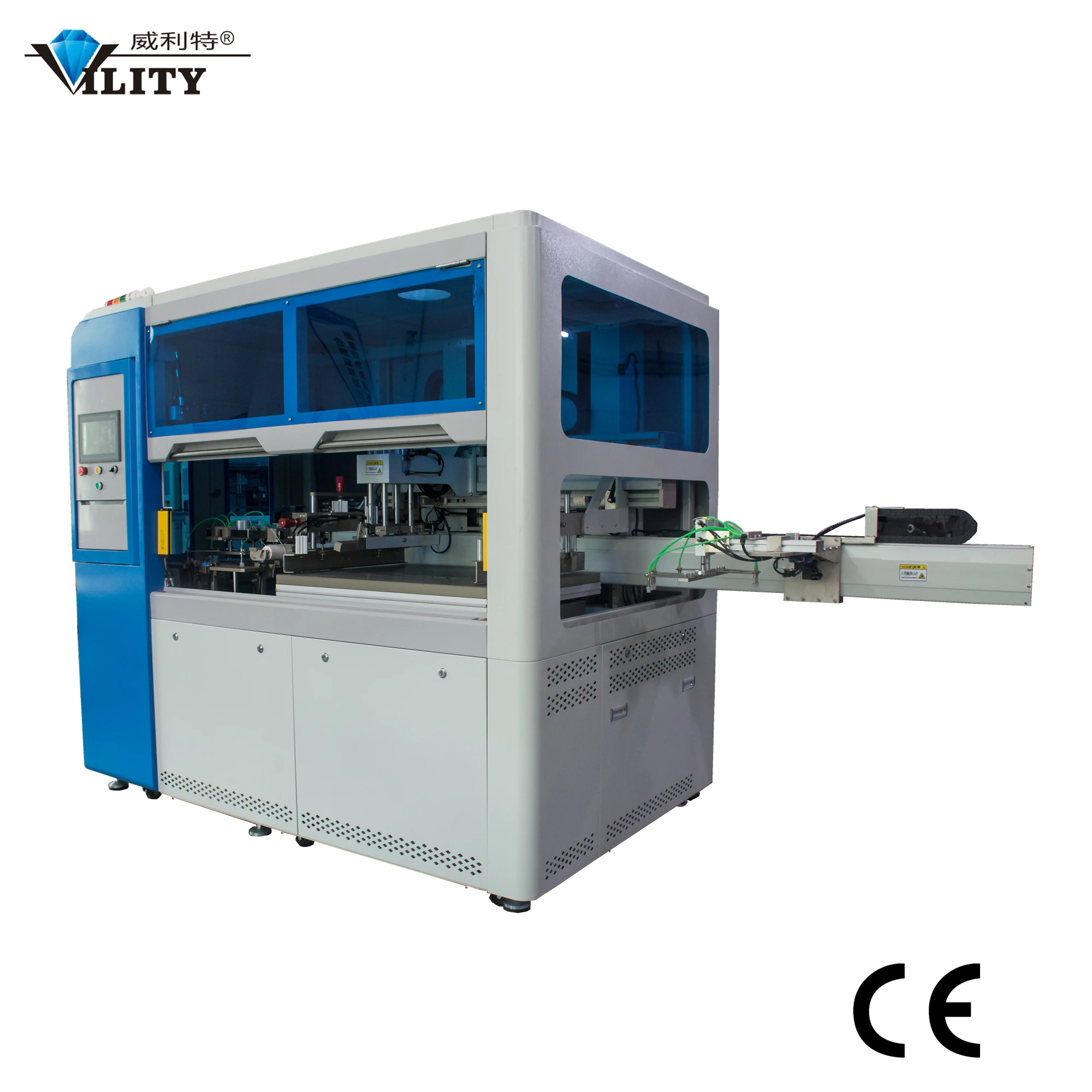

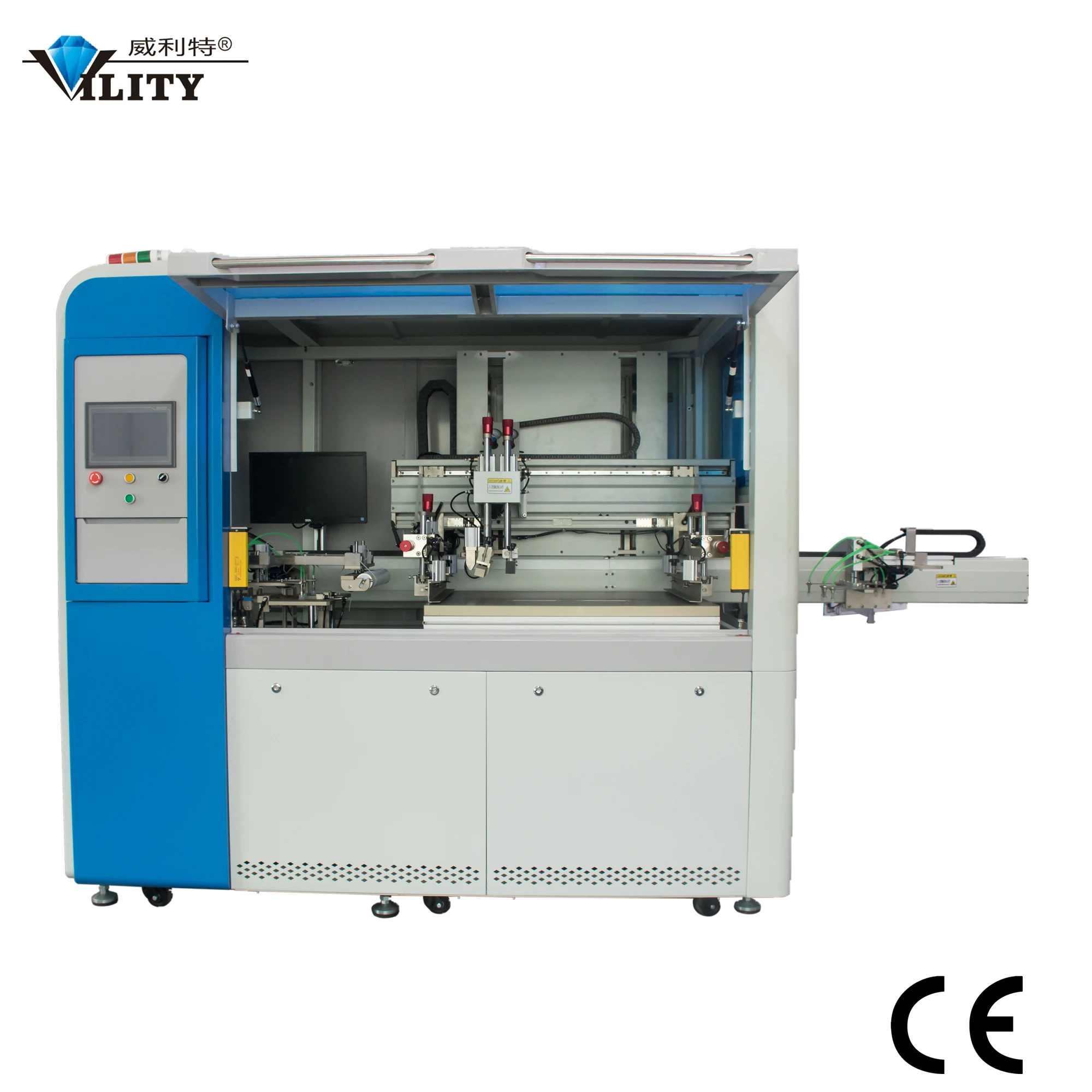

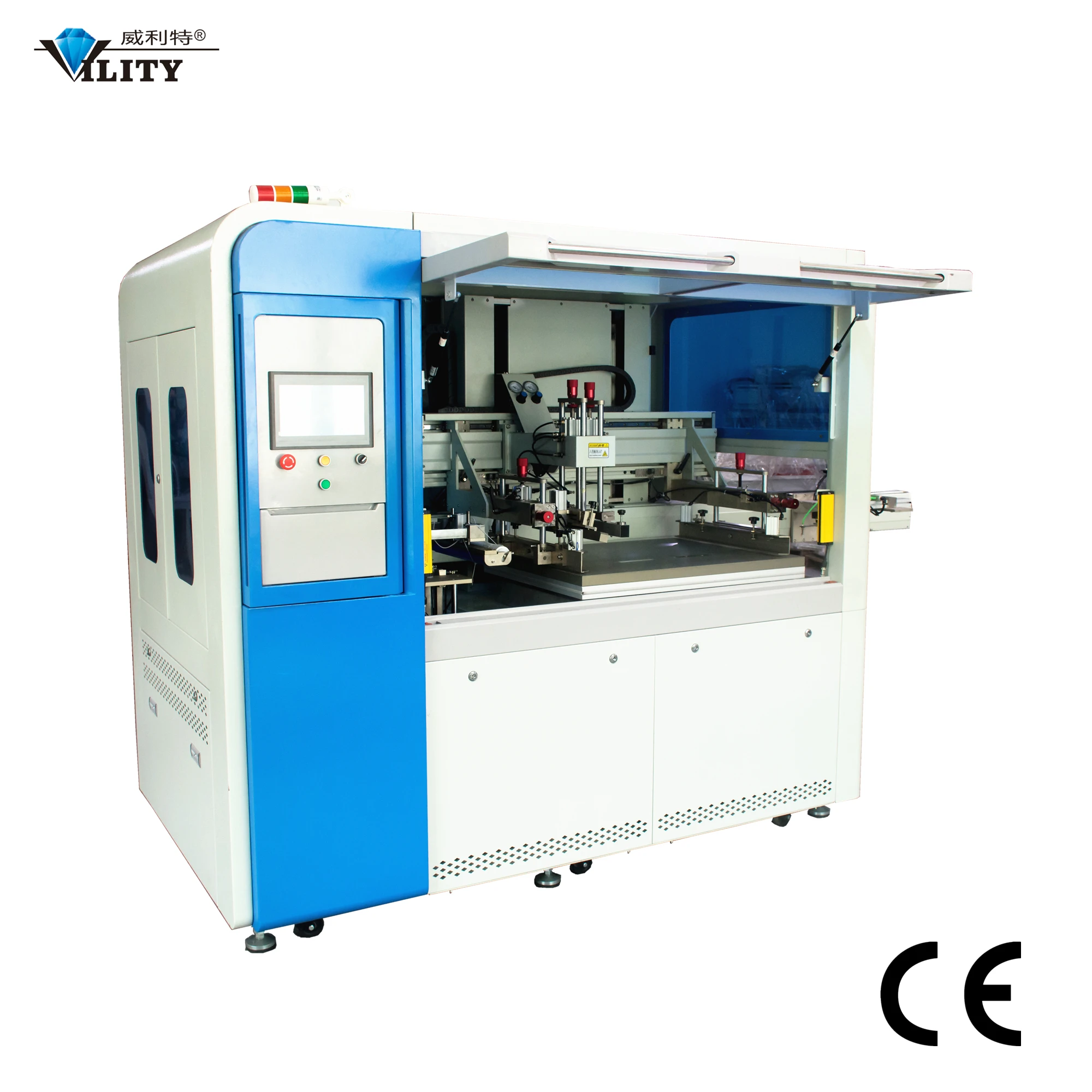

Sheet to Sheet Automatic CCD Registration Industrial Silk Screen Printing Machine For FPC
- Category: >>>
- Supplier: Shenzhen Vility Automatic Machinery Co. Ltd.
Share on (1600347441925):
Product Overview
Description
| Application Scope |

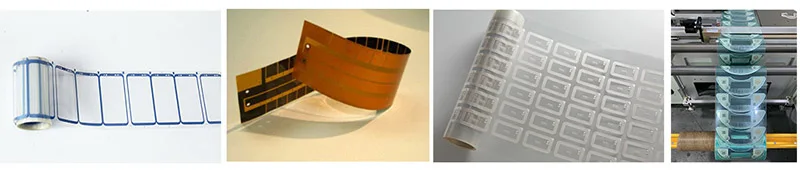

This machine is widely used in FPC,PET, PVC, transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
| Machine Process |
Raw material →Automatic feeding machine (anti-dusting, removing film, electrostatic eliminating)→Automatic printing ( automatic punching, printing, QC, automatic feeding )→Automatic oven (be self-polishing , protective film, attach tape, release paper ) →Automatic receiving →Automatic punching machine( cut)→End product.
| Machine Features |
1,Automated equipment for roll-to-roll printing;
2,Industrial computer control,Servo motor transportation,HD CCD image positioning;
3,Automatic printing production.Meet the needs of high volume orders;
4,Dramatically reduce costs, Increase productivity;
5,CCD high-precision alignment,Guaranteed high-precision printing;
6,Equipment can make production schedule,Automatic alarm after production completion;
7,Automatic machine shutdown alarm after printing material is completed;
8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;
9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;
10,Use automatic dust and static elimination function,Cleaner materials;
| Machine Parameters |
| Model | VT5070PR-1 |
| Working place area(mm) | 1000x660mm |
| Max inputting width | 450mm |
| Max printing area | 600x450mm |
| Min printing area | 400x500mm |
| Printing thickness | 0.075-0.5mm |
| CCD alignment precision | ±0.02mm |
| Printing precision | ±0.05mm |
| Air pressure | 4 - 6 kg/PSI |
| Air consumption | 2.6L/cycle |
| Voltage | 380V-50HZ |
| Power | 15KW |
| Max size of screen frame | 1100x800mm |
| Min size of screen frame | 300x200mm |
| Mix print skip distance(mm) | 2 |
| Printing speed(printing number/hour) | 1000-1200 |
| Machine size | L3300mmxW1600mmxH2200mm |
| Machine weight | 2000kg |
| Machine Description |
Product Description

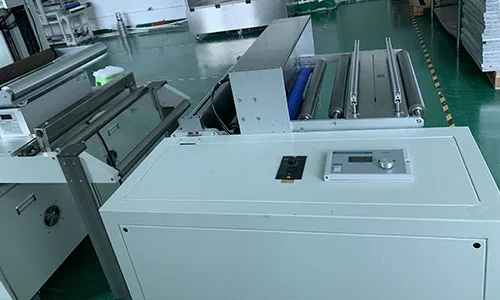

 | Feeding Machine -----UnwinderAir shaft for the roll unwinding with tension control. Air shaft for protective film peel off. Dust cleaning rollers for film cleaning. Splicer with cutting guide slot for easy film connection. Static eliminator----Ionizing Air Blower. Automatic stop and alarm when the film run out. |

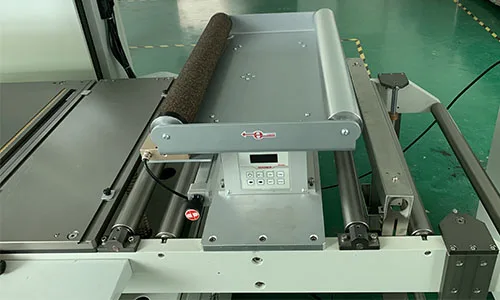

Corrector The EPC automatic correction system is adopted to effectively ensure the straightness of the material during transportation. Improve the alignment speed of the CCD vision system. Ensure the neatness of the material during the collection, which is a good foundation for the next process. |  |

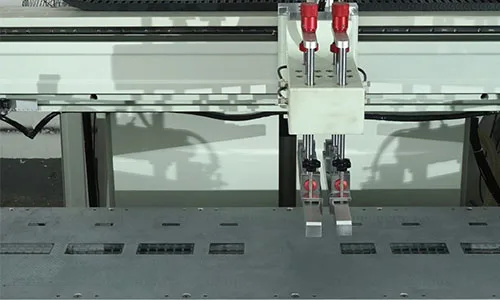

 | CCD Printing Table & Printing HeadVaccum table with air suction during printing process. CCD vision alignment, printing table automatic rotate to positioning. 3 sensors for automatic register in X-Y directions.Frame and printing head up-down by pneumatic.Printing head horizontal movement by servo motor.High precision rails and bearings for running parts. Squeegee dripless design |

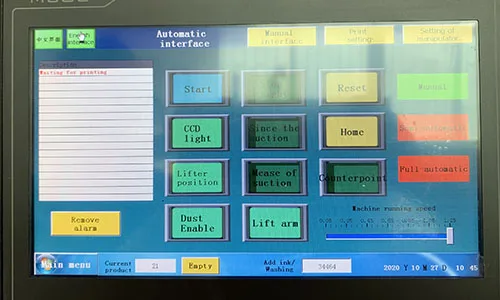

| Touch Screen Operation User-friendly PLC control combined with touch screen monitor for maximum operational convenience. The default language is Chinese-English, customer can convert to use, we also accept other language customization. The touch screen is used to control the lifting of the printing head to facilitate the maintenance, loading, unloading and cleaning for the screen and scraper. |  |

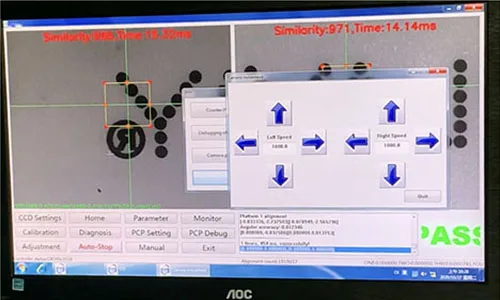

 | CCD Registration System Printing is performed automatically via CCD positioning and the CCD field of view is adjustable as per material dimension. CCD automatically calculates the spatial positions of the material and the screen according to the Mark points on the material and then commands X, Y and θ of the motor motion control and adjusting platform to rotate for automatic positioning printing. |

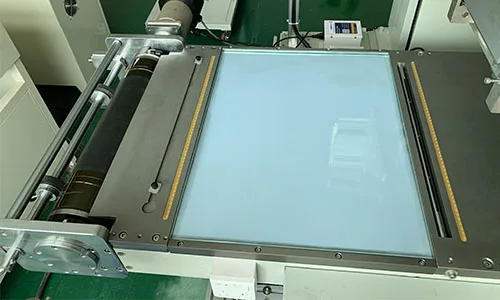

Quality Inspection Glass Table |  |
