2G 4G Gate Opener Remote Access Control Unit Gsm Gate Opener RTU5025

Share on:

Price in USD:Details


Product Overview



After-sale Service
Online technical support
Home Office
Model Number
Product name
2G  4G version GPRS/GSM Gate Opener
Parameter item
Reference scope
Digita Input
2 NC/NO dry contact
Digital Output
1 Relay, 3A/240VAC
SIM Card
Supporting 3V SIM Card
DC Power supply
12V input Max. 50mA/Average 50mA
Power consumption
12V input Max. 50mA/Average 25mA
Backup battery(Packing not include)
Packing size
190mm*140mm*60mm (W*D*H), Non-Logo package paper box.
Temperature range
-20~+60 C degree
Gross weight
Net Weight
350 g

Product Description

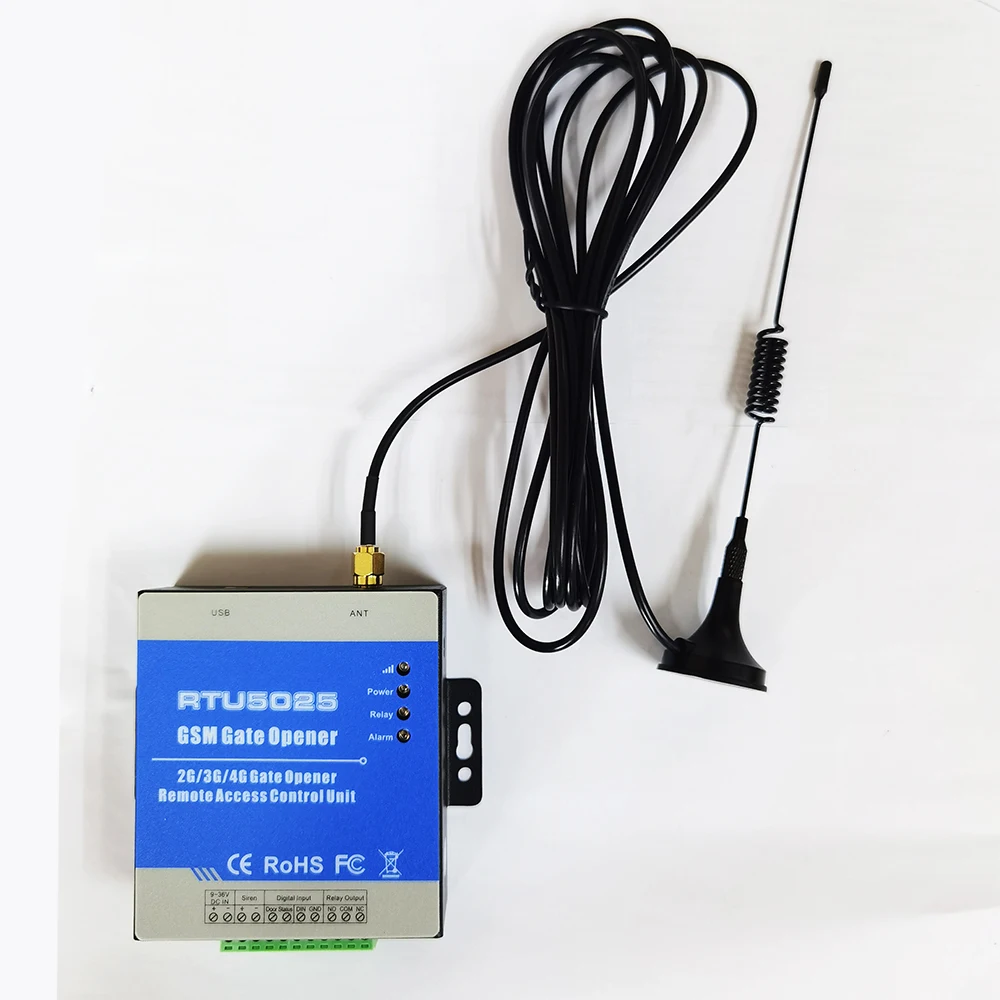

RTU5025 GSM Remote Gate/Door Opener: this one is 2G/4G.
The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control, remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.PC software for programming via USB,remote server system over TCP/IP supported*,users can easily download the access historical data anywhere anytime.

>>>>> Advantages:
> GSM or 4G band,distribute worldwide applications;
> Up to 3000 authorized phone numbers can be configured at the specified time for access control;
> No call charges.Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring';
> Secure ndash Using Caller-ID for verification, unknown phone calls are ignored;
> SMS confirmation of relay actions(door open) to the owner or authorized caller number.
> No need remote control or keys for different users;
> Up to 10,000 events log,download the operation historical dat by USB or over GPRS;
> Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

>>>>>Digital Inputs:
> One Digital input for motion sensor or other sensors to protect your door and windows,SMS alert to owner immediately when triggered;
> One Digital input special for secure door and automatically armed when door closed, SMS alert to owner immediately when door opened illegally.

>>>>>How RTU5025 Works?
1. Put a Mobile SIM Card into the Device.
2. Setting by PC software.(WindowsXP, Win7, Win8)
3.Call the RTU5025 by Authorized phone number, Relay Switch ON/OFF to remote control the Gate/Door or other Machine OPEN/CLOSE!
4. Download the access historical data by PC software via USB port.

>>>Door status checking alarm and remote control:
1.Connect wired detector/sensors in tothe DIN1/2.
2.When detector/Sensors trigger,RTU5025 send Alarm SMS Text to the 1st ~6th users automatically.
3.According to the Alarm SMS, users make a decision to CALL RTU5025 Switch Relay ON or OFF.

>>>>>NEW GSM Gate Opener RTU5025 well used for:
>> Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
>> Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.
>>Home and garage owner
>>Business company
>>Parking place
>>Other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.

Packing & Delivery

Standard Packing List:
Gate Opener main panel * 1
GSM Antenna * 1(50 Ω SMA Antenna interface)
Connect Terminal*1
User Manual (CD)*1
