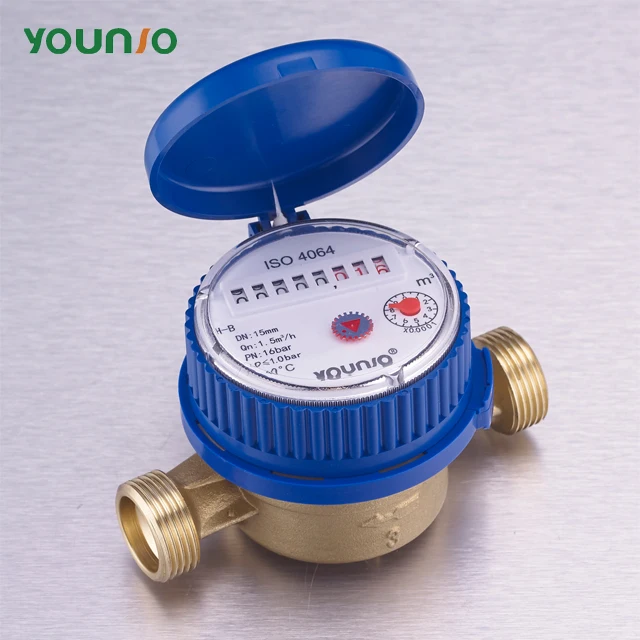

OEM Accept Class B Smart Plastic Brass Single Jet Dry Type Intelligent Digital Gauge Flow Water Meter
- Category: >>>
- Supplier: Wenling Younio Water Meter Co. Ltd.
Share on (1600347673281):
Product Overview
Description
Feature:
Dry-dial, magnetic drive, protected against external magnetic tampering;
Dry register and register with 5 or 8 numbered roller;
Vacuum-sealed register, frost resistant, keeps clear reading for long time;
Brass body or plastic body, optional;
Brass body can be painted or nickel coated;
High accuracy;
Measuring unit is m3;
The meters conform to IS04064 Standard Class B.
Dry register and register with 5 or 8 numbered roller;
Vacuum-sealed register, frost resistant, keeps clear reading for long time;
Brass body or plastic body, optional;
Brass body can be painted or nickel coated;
High accuracy;
Measuring unit is m3;
The meters conform to IS04064 Standard Class B.
Working condition:
Water temperature ≤30°c; hot water meter ≤90°c
Water pressure≤1MPa(PN:1.6MPa/16bar)
Water pressure≤1MPa(PN:1.6MPa/16bar)
△P≤0.1MPa
Accuracy:
From minimum flow-rate(qmin)inclusive, to transitional flow-rate(qt),exclusive:±5%
From transitional flow-rate (qt)inclusive,to overload flow-rate(qs),exclusive::±2%
From transitional flow-rate (qt)inclusive,to overload flow-rate(qs),exclusive::±2%
(Hot water meter: +3%)

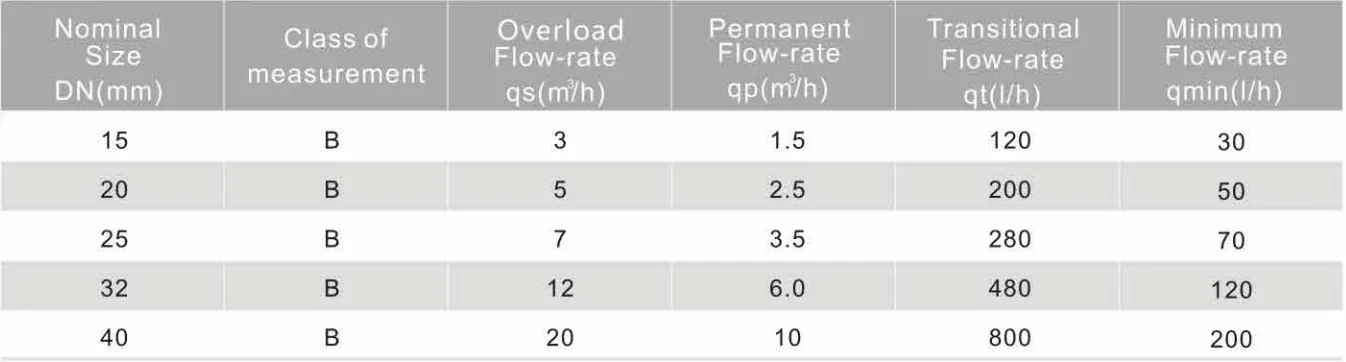

Main technical data:

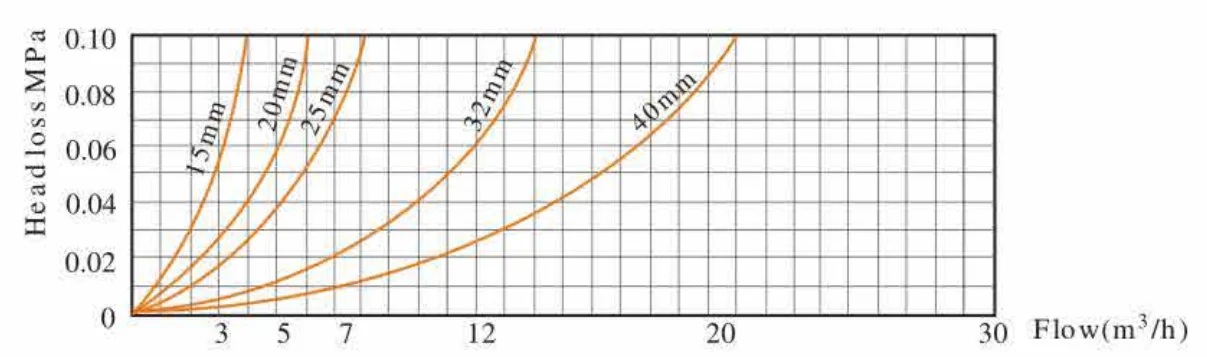

Head Loss Curve:
Error Curve:

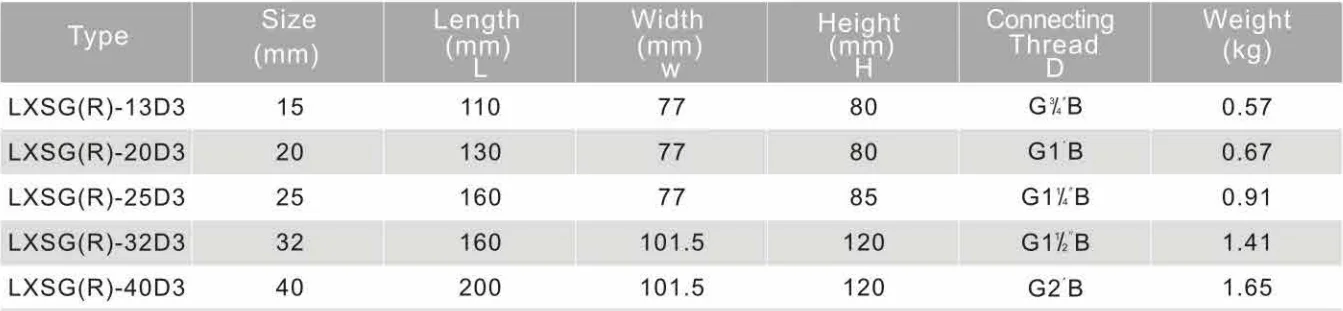

Dimension:
Device:
