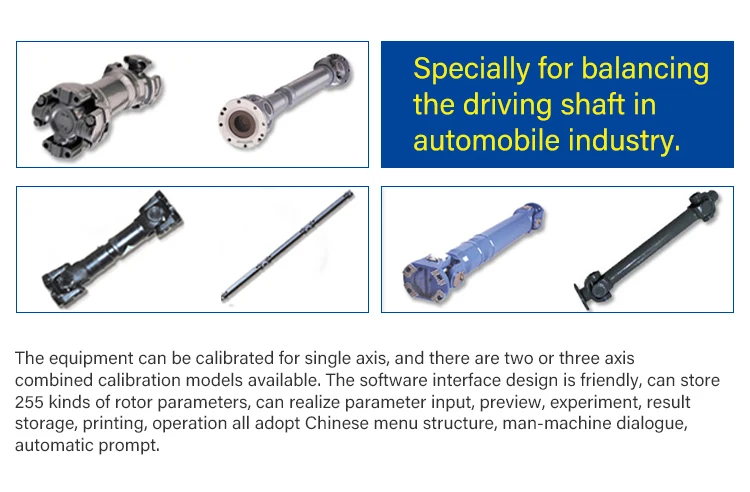

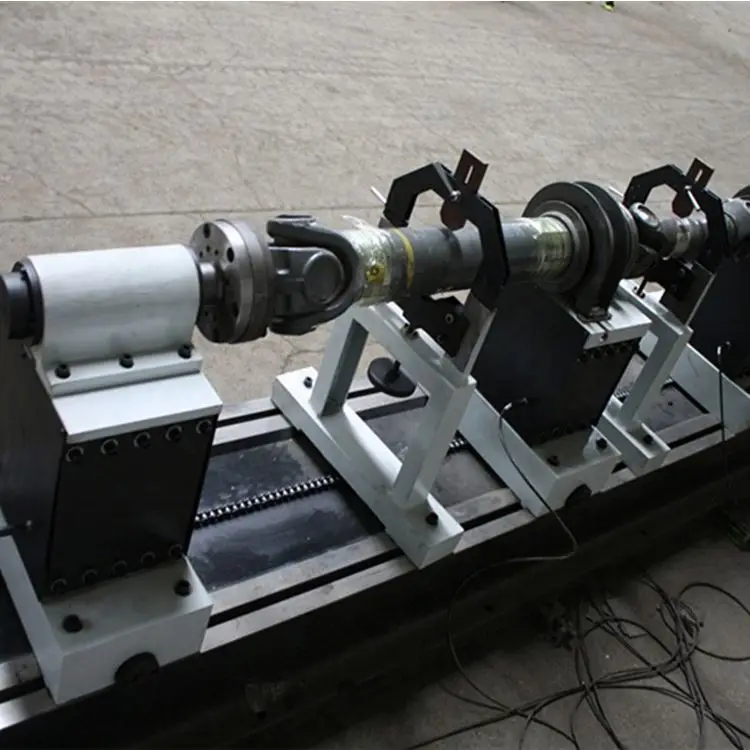

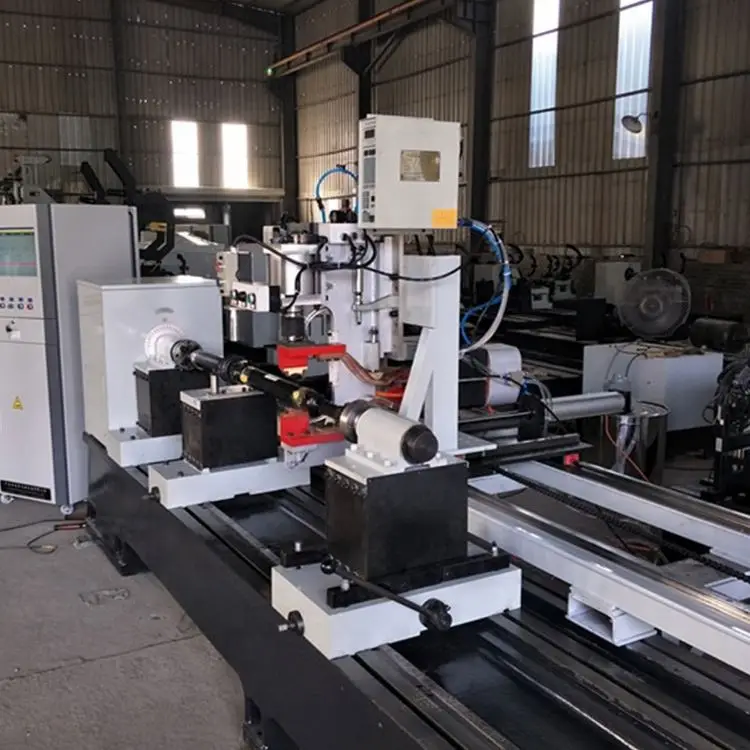

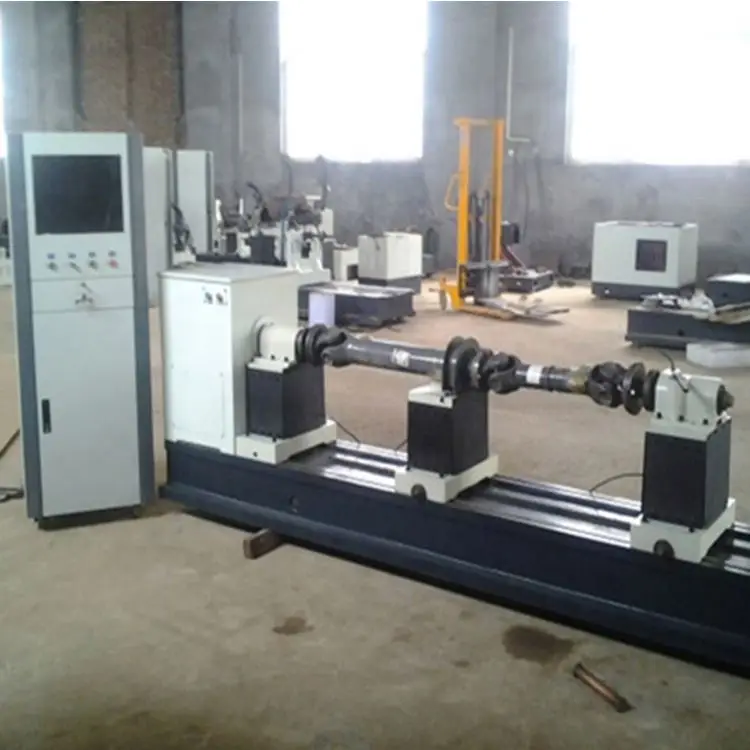

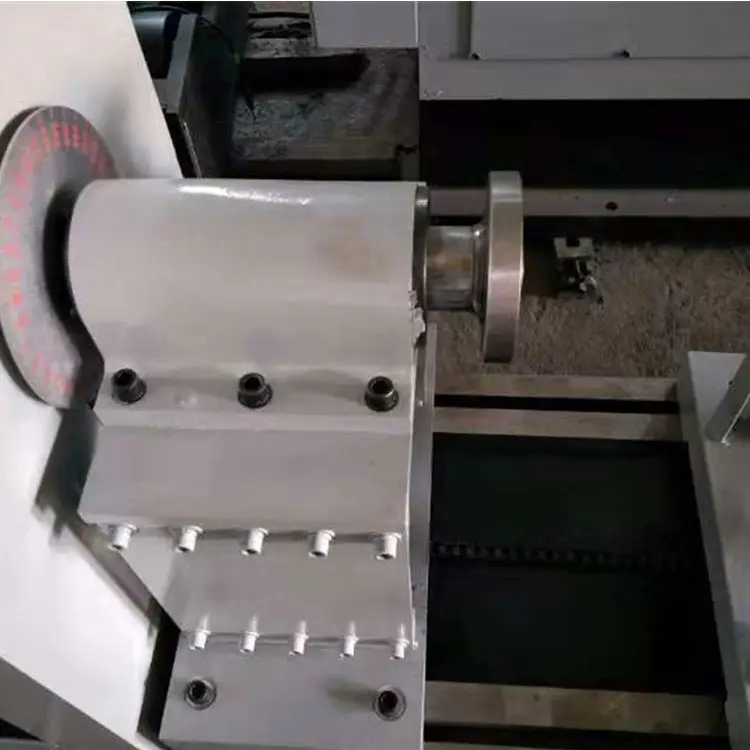

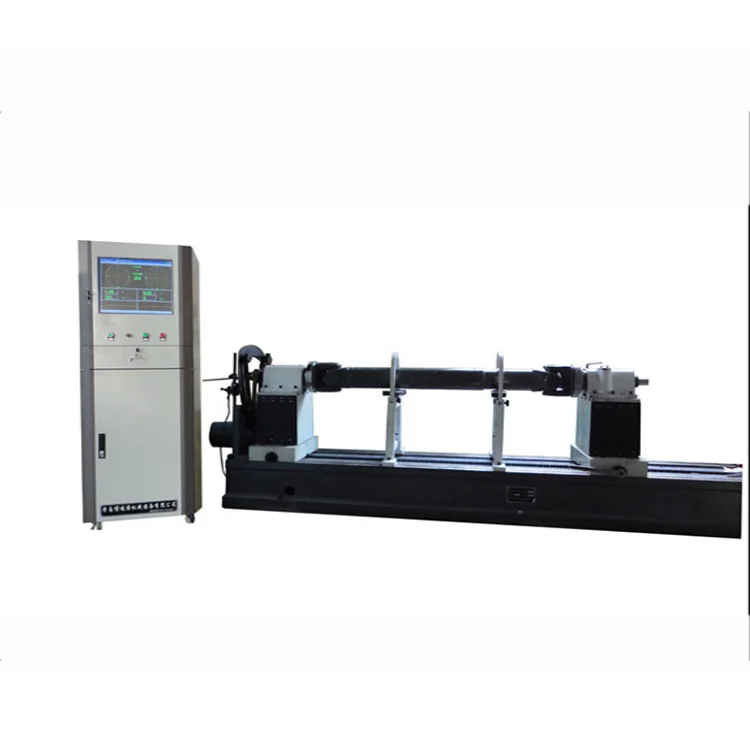

YDB 200A Car or Truck Drive Test Equipment Shaft Cardan Shaft Dynamic Balancing Machine
- Category: >>>
- Supplier: Jinan Bodihao Mechanical Equipment Co. Ltd.
Share on (1600347699223):
Product Overview
Description
Car turbocharger dynamic balance machines with new technology

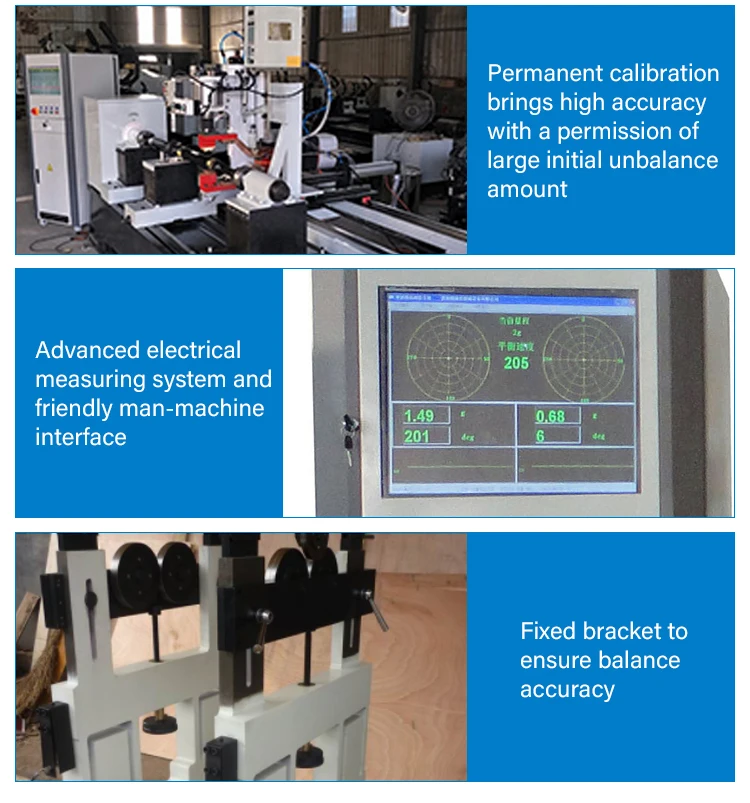

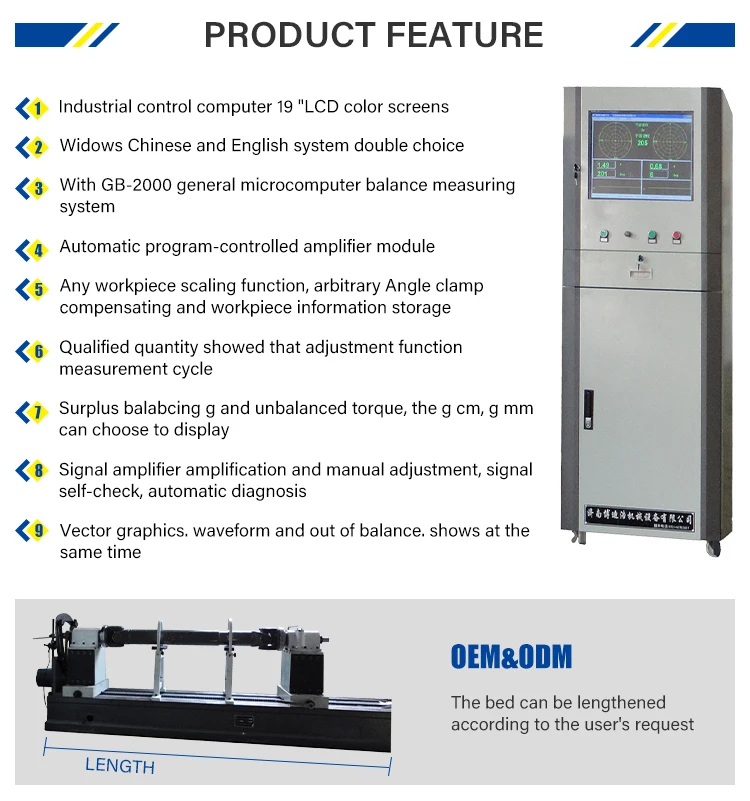

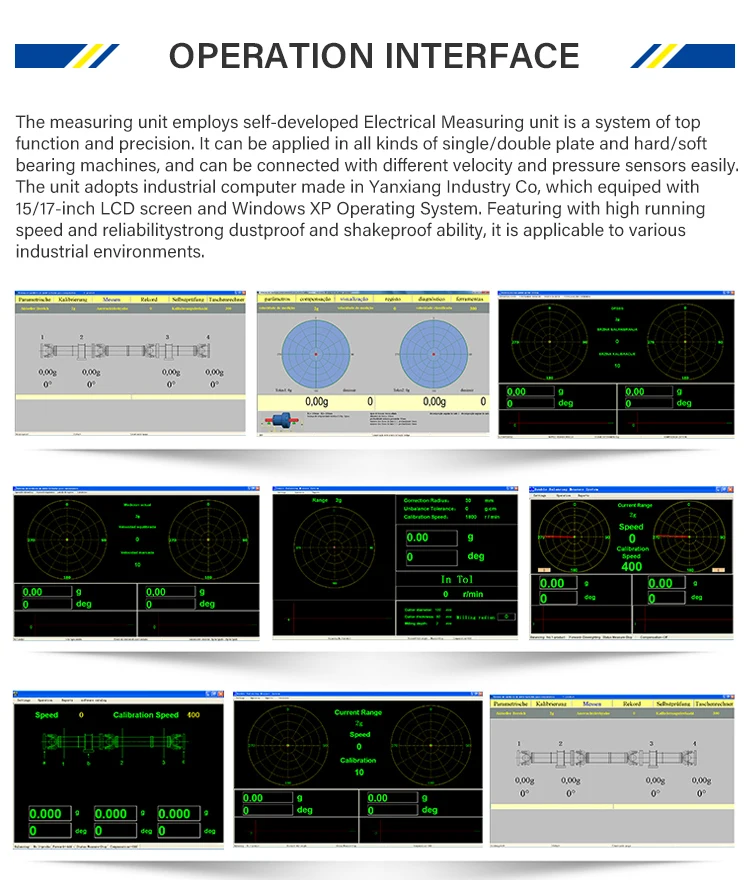

The measuring unit employs electrical measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily.
Model | YDB-100A | YDB-200A | YDW-100A | YDW-200A |
Maximum workpiece quality(kg) | 100 | 200 | 100 | 200 |
Workpiece length (mm) | 2200 Uniaxial correction | 2200 Uniaxial correction | 2100 Uniaxial correction | 2400 Uniaxial correction |
Balance speed (r/min) | 500-1500 Stepless speed regulation | 500-1500 Stepless speed regulation | 500-1500 Stepless speed regulation | 500-1500 Stepless speed regulation |
Minimum achievable residual imbalance(g.mm/kg) | ≤8 | ≤20 | ≤8 | ≤20 |
Imbalance reduction rate(%) | ≥85 | ≥85 | ≥85 | ≥85 |
Motor power (kw) | 1.5 | 1.5 | 2.2 | 1.5 |
Speed mode | Frequency | Frequency | Frequency | Frequency |
Model | YDW-200AⅡ | YDW-300AⅢ | YDW-2000A |
Maximum workpiece quality(kg) | 200 | 300 | 2000 |
Workpiece length (mm) | 3100 Two-axis joint school | 3100 Two-axis joint school | 4000 Uniaxial correction |
Balance speed (r/min) | 500-1500 Stepless speed regulation | 500-1500 Stepless speed regulation | 110-1500 Stepless speed regulation |
Minimum achievable residual imbalance(g.mm/kg) | ≤20 | ≤20 | ≤20 |
Imbalance reduction rate(%) | ≥85 | ≥85 | ≥85 |
Motor power (kw) | 2.2 | 3 | 11 |
Speed mode | Frequency | Frequency | Frequency |
