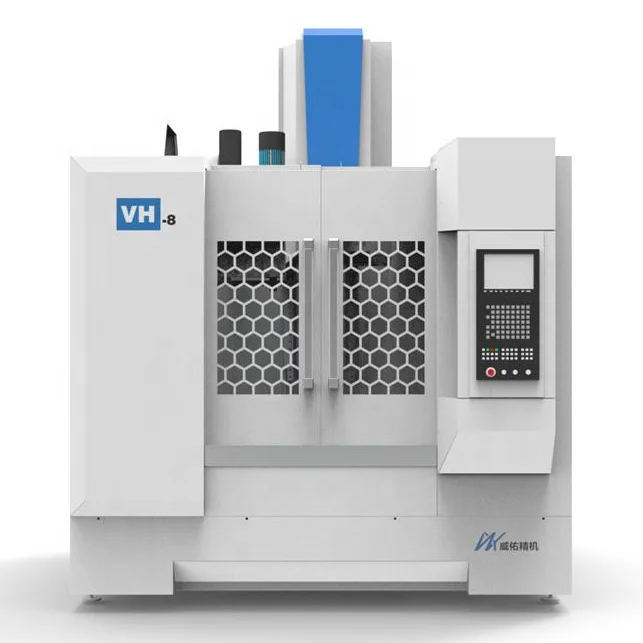

VH 8 New 5 Axis Cnc Milling Machine Vh 8 Vertical High Efficiency High Precision Mini Metal High Speed Milling Machine Center
- Category: >>>
- Supplier: Fancy machinery Co. Ltd.
Share on (1600347954432):
Product Overview
Description
Products Description
Project | 单位 | VH-8 | ||
Processing range | Lateral X stroke | mm | 800 | |
Longitudinal Y stroke | mm | 500 | ||
Vertical Z stroke | mm | 550 | ||
Distance from spindle end face to table | mm | 115-665 | ||
Distance from spindle to column guide | mm | 554 | ||
Workbench | Table size (length x width) | mm | 1000×500 | |
weight capacity | Kg | 500 | ||
Number of T-slots | No. | 5 | ||
T-slot size/spacing | mm | 18 X 105 | ||
Spindle | drive mode | / | Timing belt drive | |
Spindle speed | rpm | 50-10000 | ||
Spindle Motor Power (Max/Continuous) | Kw | 11/7.5 | ||
Spindle Torque (Max/Continuous) | Nm | 70/48 | ||
Spindle taper and specification | / | BT40 | ||
Feed | Three-axis rapid traverse speed | m/min | 48/48/36 | |
Three-axis servo motor maximum torque | Nm | 15/15/22 | ||
Three-axis screw specifications | / | 3216/3216/3216 | ||
Cutting feed rate | mm/min | 1-10000 | ||
Minimum feed | mm | 0.001 | ||
Cutter | Tool magazine capacity | No. | 24 | |
Tool magazine form | / | Tool arm magazine | ||
Shank Specifications | / | BT-40 | ||
Shank Bolt | / | P-40T( 45°) | ||
Maximum tool diameter (near empty) | mm | Φ80（Φ125） | ||
tool length | mm | 300 | ||
Tool maximum weight | Kg | 8 | ||
Tool change time (T-T) | Sec | 2.2 | ||
main precision | Positioning Accuracy (ISO) | mm | 0.008 | |
Positioning Accuracy (JIS) | mm | ±0.004/300 | ||
Repeat positioning accuracy (ISO) | mm | 0.006 | ||
Repeated Positioning Accuracy (JIS) | mm | ±0.003 | ||
Circle accuracy | mm | 0.01 | ||
General Specifications | Machine weight | Kg | 4500 | |
Machine tool dimensions (length X width X height) | mm | 2370×2750 × 2900 | ||
Equipment capacity (380VAC 50HZ) | KVA | 19.6 | ||
Lubricant capacity | L | 3 | ||
Cutting fluid capacity | L | 240 | ||
Air pressure | Bar | 6-8 | ||

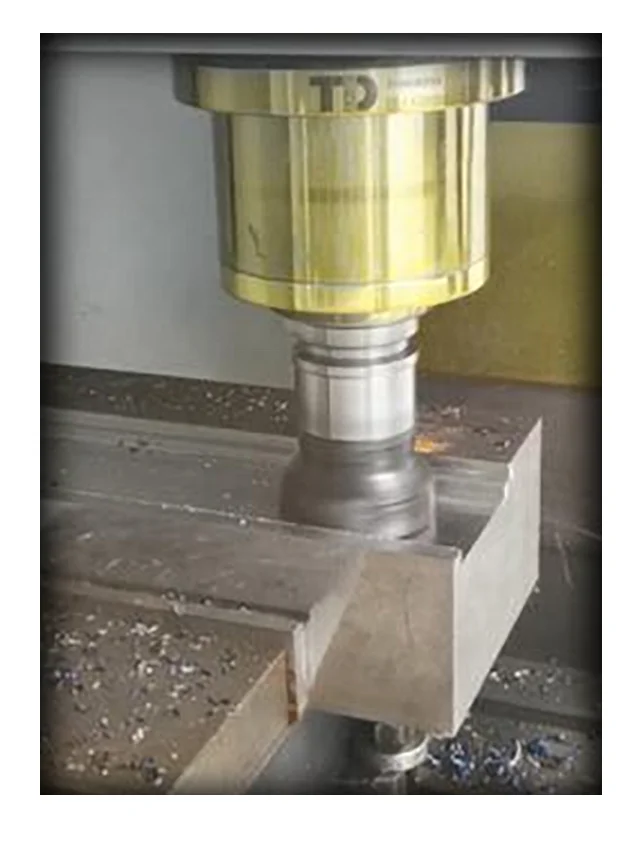

＋Quick traverse up to 48 meters, saving 50% of non-processing time
＋Three axes adopt high-speed silent rolling guides, which have high rigidity, low noise and low friction, and can obtain the best circle precision.
＋The Z-axis adopts a brake-type Hofu motor, no counterweight design, which improves the Z-axis driving performance and achieves the best surface accuracy by 3D machining.
＋Lightweight design of moving parts such as sliding saddle, worktable and spindle box to ensure high-speed and high-precision machining stability.

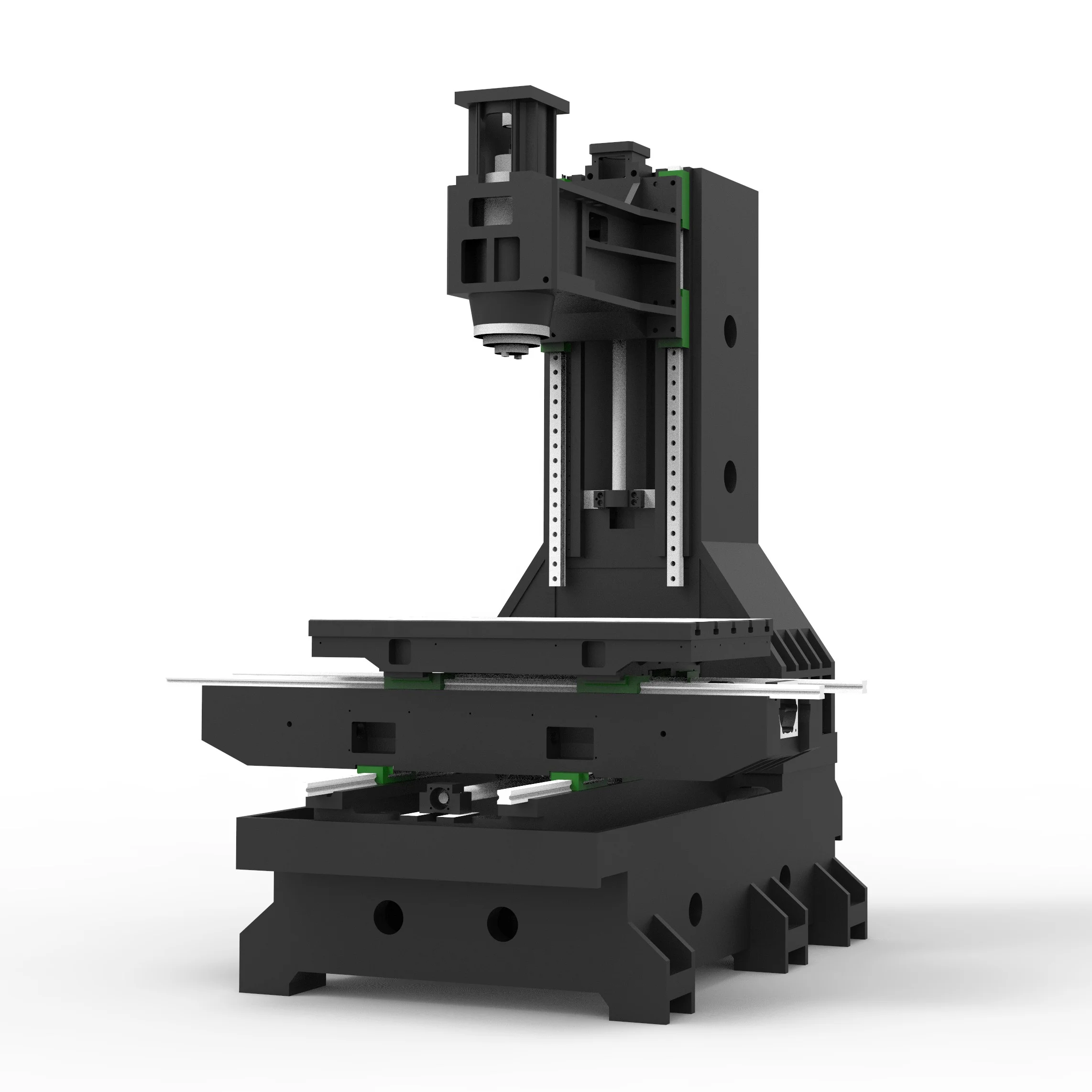

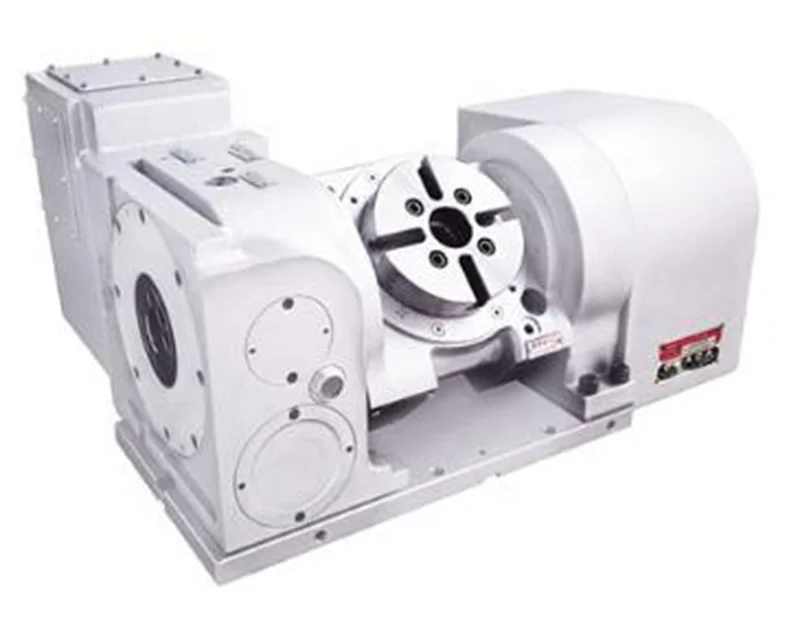

＋Elevated column design, reserved space for the installation of the fourth and fifth axes

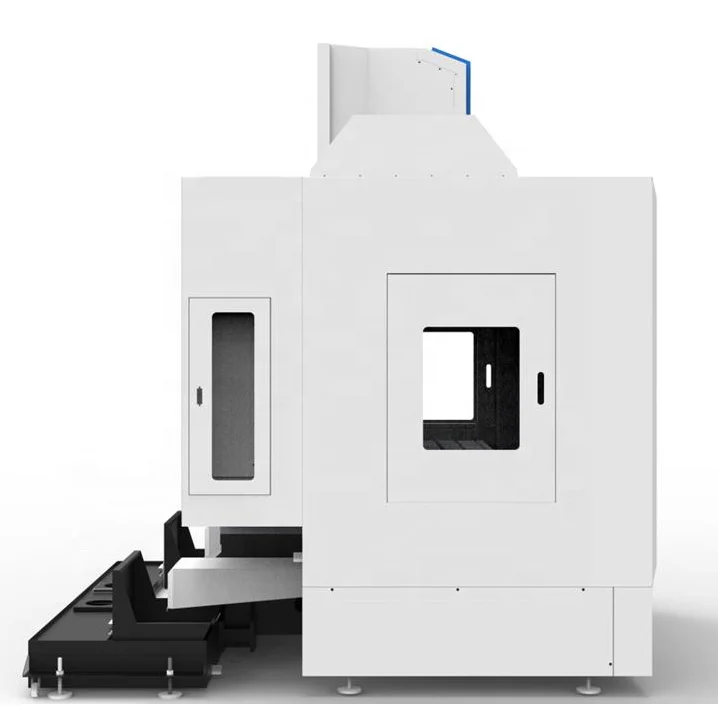

+The rear chip removal design improves space utilization and is easy to line
＋Three axes adopt high-speed silent rolling guides, which have high rigidity, low noise and low friction, and can obtain the best circle precision.
＋The Z-axis adopts a brake-type Hofu motor, no counterweight design, which improves the Z-axis driving performance and achieves the best surface accuracy by 3D machining.
＋Lightweight design of moving parts such as sliding saddle, worktable and spindle box to ensure high-speed and high-precision machining stability.
＋Elevated column design, reserved space for the installation of the fourth and fifth axes
+The rear chip removal design improves space utilization and is easy to line
Ball bar rounding test
Tool Changing detection
Level indicator
Laser accuracy test
High rate chip removal & cooling unit
+Standard rear multi-layer filter chip collecting water tank, the return water is clean and efficient, easy to set up +Double-layer water tank filter system provides good cutting fluid for the workpiece
＋Large angle, herringbone guide rail protection facilitates chip removal, ＋Standard external cooling device for cutting
+Standard rear multi-layer filter chip collecting water tank, the return water is clean and efficient, easy to set up +Double-layer water tank filter system provides good cutting fluid for the workpiece
＋Large angle, herringbone guide rail protection facilitates chip removal, ＋Standard external cooling device for cutting
＋Standard independent high-flow chip flushing system, smooth chip removal＋Standard cutting air blowing ＋Standard convenient air gun ＋Optional cleaning water gun
＋Optional spindle ring spray or spindle center water outlet
＋Convenient to choose various types of automatic chip removal devices
＋Optional spindle ring spray or spindle center water outlet
＋Convenient to choose various types of automatic chip removal devices
