Product Overview

Description



Product Description







Main Parts:

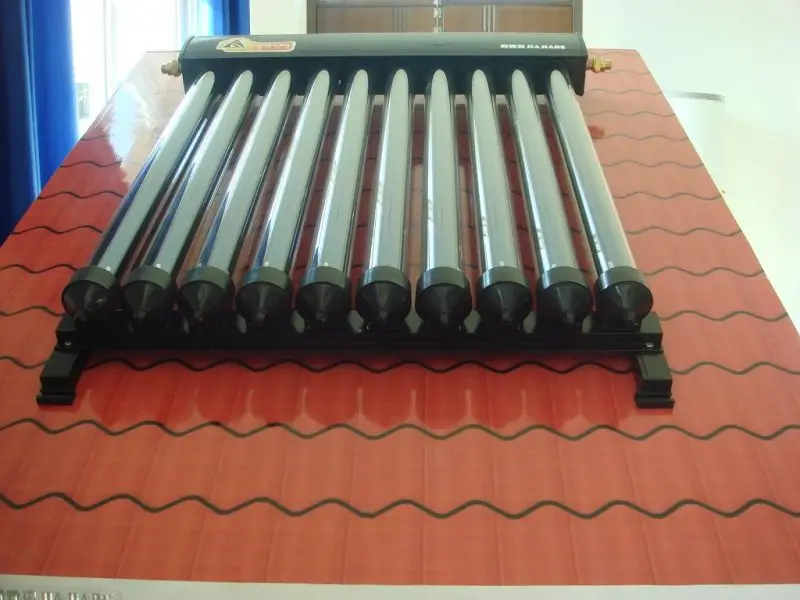

Part1 : Heat pipe vacuum tube solar collector


Part2: Upright Water Tank,


Part 3:Work Station(pump and control system)




Work Principle


 1. The collector absorbs solar energy and transmits it to the water tank through circulation.
2.When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4.The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5.When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach T max, Electric Heating Element will start to work automatically.


  Working principle.jpg














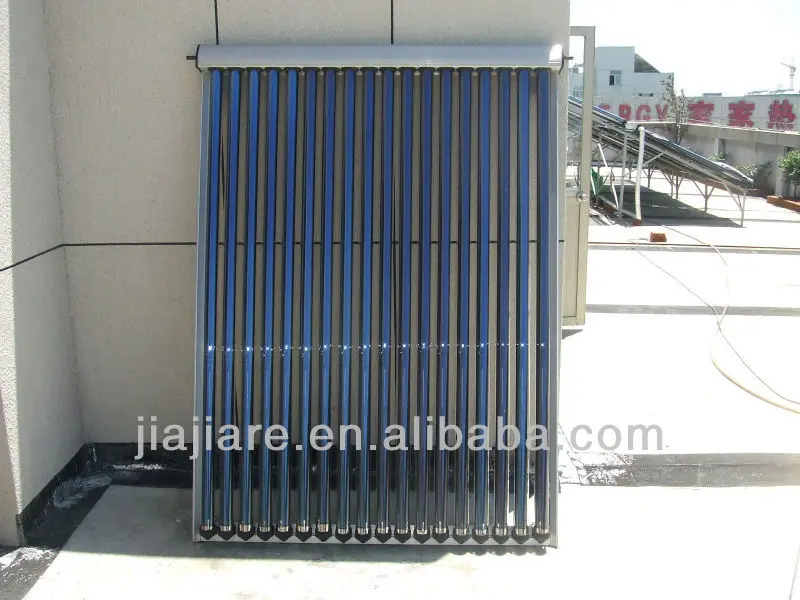

Part 1: Heat pipe  vacuum tube solar collector

























Composition



Specification



Heat pipe



Frost crack resist technology with IC-CN patent(-30°C~300°C);


Cu+H2O, the most stable configuration, with RoHS certificated;


Perfect copper material(TU1)


S-WHT technology to reduce non-condensable gas



Vacuum tube



1.6mm High borosilicate Glass 3.3


Vacuum degree   P<5*10 -3 Pa


Heat-absorbing rate    >93%-96%


Solar radiance exposure        ≤2.8MJ/M2


Calories absorption      9.1MJ/M2


Average heat loss        ≤8.6W/(M3.K)


Stagnation Temperature       >220 Celsius degree


Pressure-endure ability         1.0Mpa


Resist hailstone  Ø 25mm


Resist wind         30m/s


Lifespan     15 years



Support frame



1.5~2.0mm high galvanized materials with Electrostatic Spray


Fastness: stainless steel screws


Angle:15/25/27/45(up to you)


streamline figure with mechanical principles of design


One-time stamping forming


simple and convenient to install


product of customized service












248.jpgsolar panel().JPG

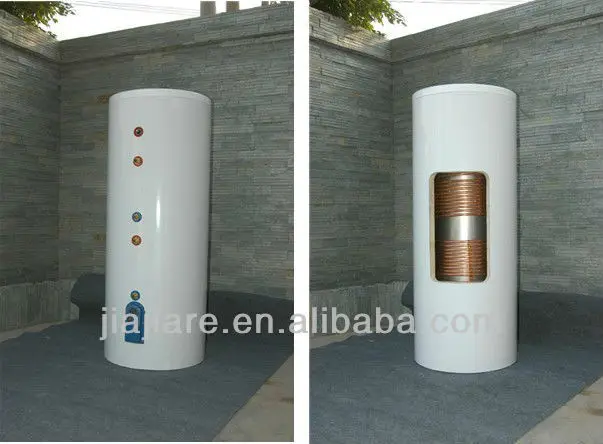

Part 2: Pressure  water  tank with copper coil





























































Capacity(L)100150200300
Material of inner tankFood grade SUS 304-2B stainless steel
Dimensions of inner tankØ360mm, T1.0mmØ360mm, T1.2mmØ450mm, T1.5mmØ480mm, T1.5mm
Material of outer tankColorful steel with thickness
Outer tank diameterØ470mm, T0.5mmØ470mm, T0.5mmØ550mm, T0.5mmØ580mm, T0.5mm
Tank insulating layer50-60mm high-density polyurethane foamed
Foam density45kg/m3 minimum
Heat preservation96 hours
Material of coilCopper coil of Ø12*T1.0mm
Inlet and outlet pipeMale G 3/4" screw, SUS 304-2B stainless steel, 2.5mm thickness
Tank weldingArgon arc welding
















.jpg


 Water tank .jpg


Part 3 : Working station






































"WILO" Circulation pumpLittle noise, high efficiency, long service time.WILO RS15/6,three phases,220V/50Hz(German)
Flow meterAdjusts the circulation medium flux
Intelligent controlController SP24 control whole system automaticlly and intelligently
Expansion tankAdjusts system working pressure when medium expands due to heat
5L volume,-10~99°C operation temperature,1Mpa maxium operation pressure(Italy Varem)
Relief valveStable working pressure at 0.6Mpa, to ensure the system safe
Others accessoriesManometer, copper piping and bubble box




controller 2.JPG

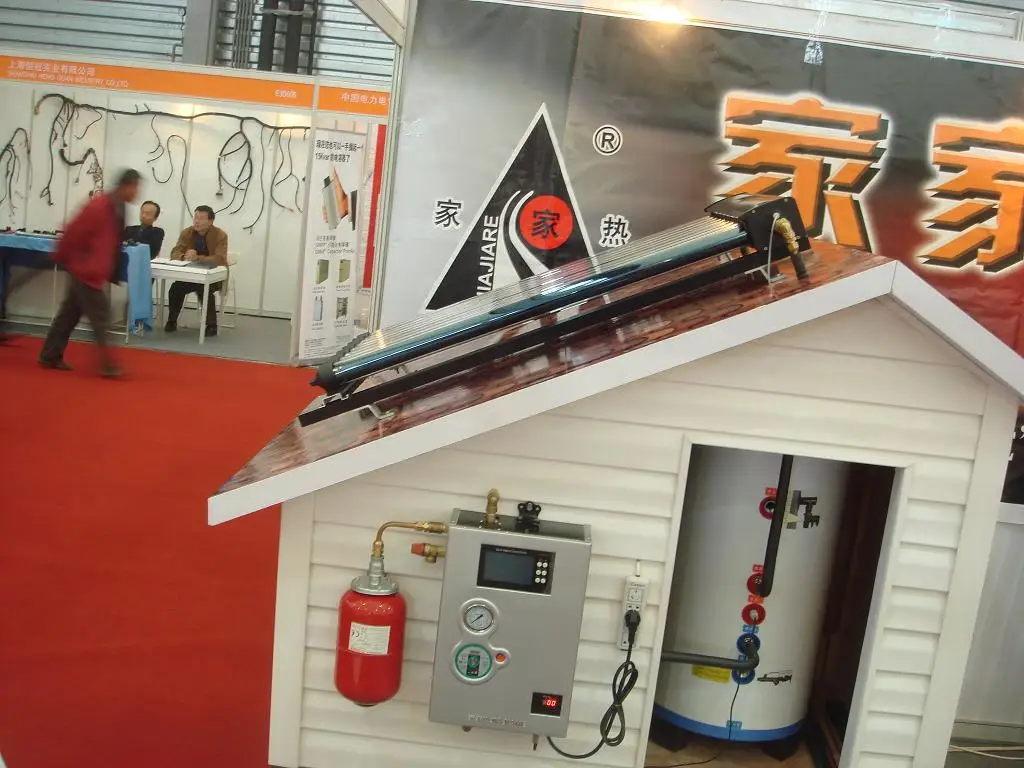

The compete split solar water heater system pictures for your reference


























Packaging & Shipping


1)Port: Shanghai or Ningbo


2)Selling package: all export cartons.





package001


  3)Transport package: Samples use the wooden box, others use the export cartons


4)Shipping: Small LCL and high value suggest air transport. FCL use the sea vayage.


940195331_079





Our Services


1). Free sample service: One or two samples below  100L  will be free to our clients.


     Terms;Clients pay the samples first, we will cut the value of the sample in the next order.


 2).OEM service:we are a solar water manufacturer, we provide free OEM.


 3).After service:


    1.Tech support: we will provide all the tech support, including the install manual the advertisement, the repairments, and selling.


    2.Refunding and exchanging: we will provide a free refund and exchange for the broken products in the warranty. but we will make some evaluation before we make the complement.


    3.Anual visit: we will make a visit to our client to have a local visit and meeting to make our business better.
