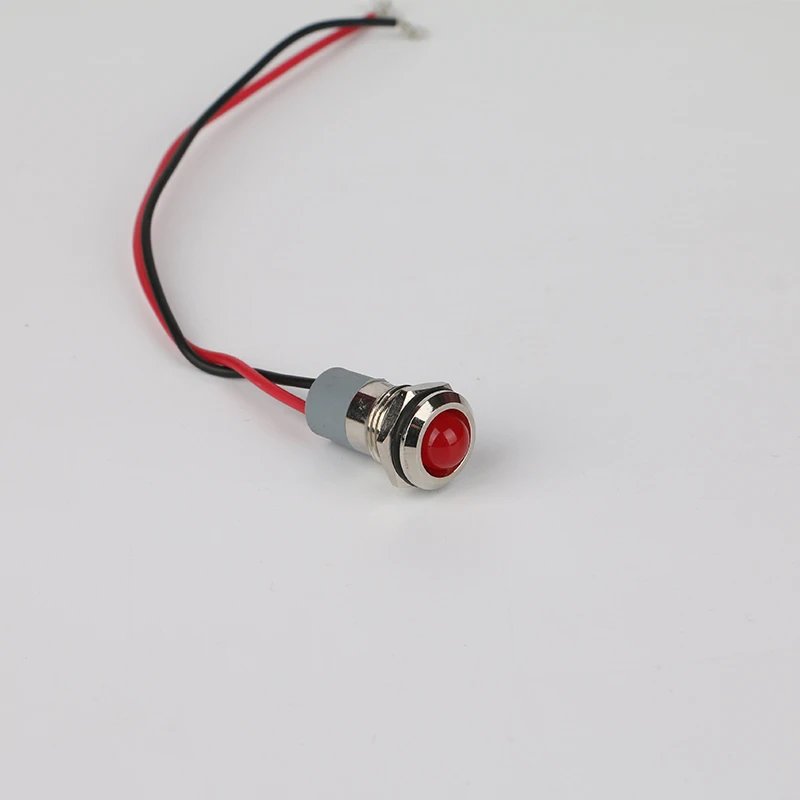

HUSA 12mm Metal Led Indicator Light Waterproof Signal Lamp Red Green Blue White Yellow Orange LED Industrial Indicator Light
- Category: >>>
- Supplier: Yueqing Husa Electric Co. Ltd.
Share on (1600348226992):
Product Overview
Description
HUSA - Product Description
Pilot Lamp/Indicator Light/Signal Lamp
SHORT INTRO:
LED lamp with waterproof rubber ring, fire-retardant metal shell materials, flame retardant base, Easy-to-connect&High quality terminals(Wire terminal/Soldering terminal/Screw terminal).FEATURES:

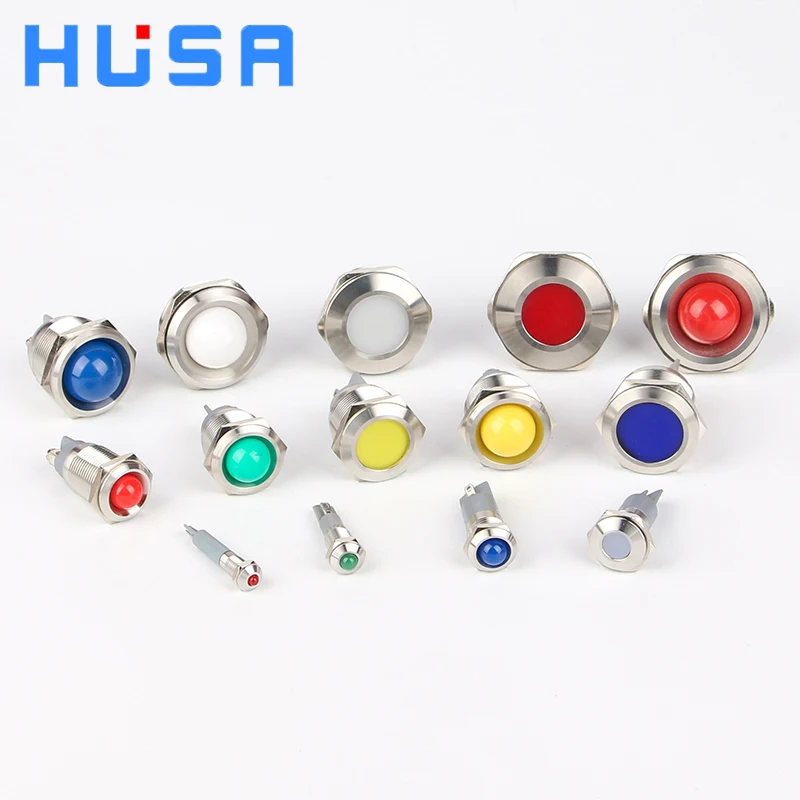

1. High bright LED, five basic lighting colors(R/G/B/W/Y), other color,Bi-color,Tri-color can be made to order.
2. Corrosion resistance, excellent impact resistance and vibration resistance.
3. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
4. The volume is small and exquisite, the exterior is delicate, economy applicable, cost-effective.
PRODUCT INFO:
HUSA 12mm Metal Led Indicator Light Waterproof Signal Lamp Red Green Blue White Yellow Orange LED Industrial Indicator Light
Product Type | Pilot Lamp / Indicator Light / Signal Lamp | |
Model No. | HS12F(B)-LED/J(W)/S | |
Brand Name | HUSA | |
Mounting Hole | φ 12mm | |

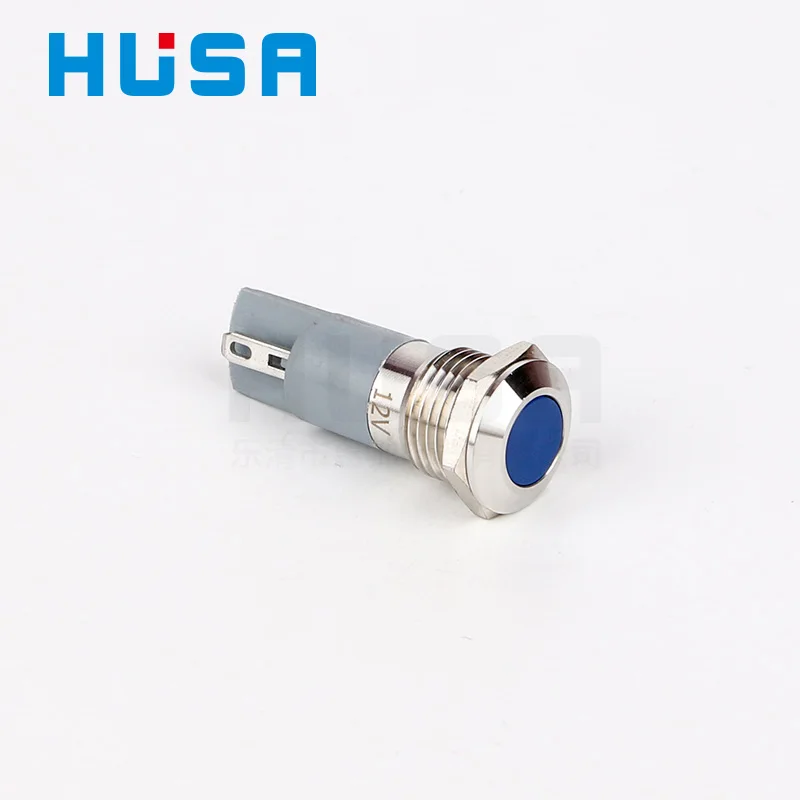

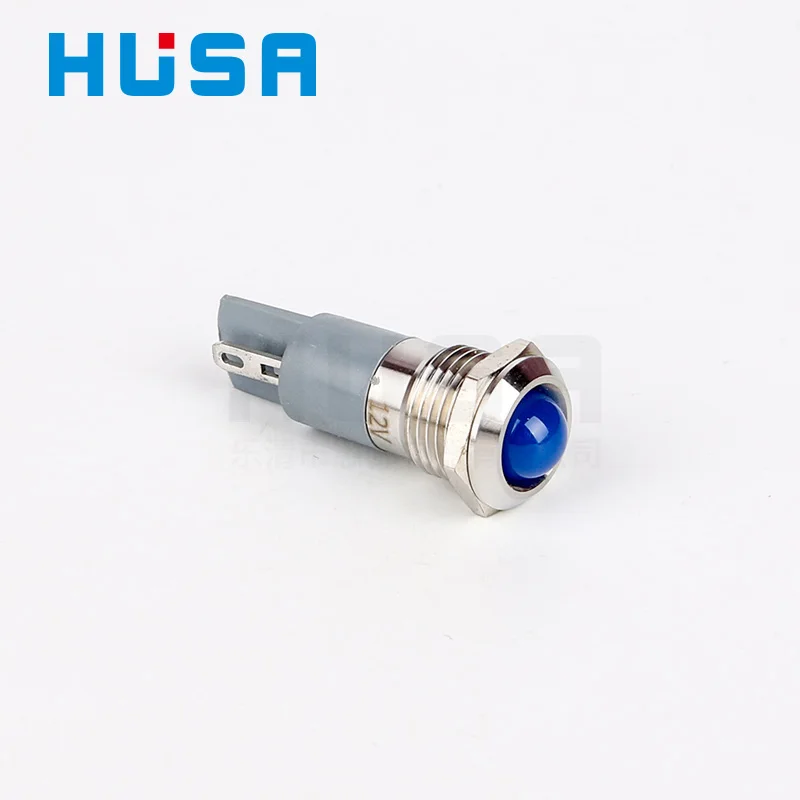

Head Shape | Flat head & Ball Shape head | |
Light Source | LED | |
LED Color | R , G , B , Y , O , W ( or as you like. ) | |
Terminal Type | Wire Terminal or Solder Terminal | |
Enclosure Shell Material | Stainless steel ( or Nickel Plated Brass ; Aluminium oxide ) | |
*Customization LED Symbol: Available *Customization Shell Color: Available | Available | |
Performance Characteristics | ||||||||
Protection Level | IP67 ; IK10 | LED Life | 40000 hours | |||||
Dielectric Intensity | 1100 VAC | Panel Thickness | 1~6mm | |||||
Ambient Temperature | -25°C ~ +85°C (No freezing; Air circulation) | Working Environment Humidity | 45-85%RH (NO Condensation) | |||||
Nut Torque | About 0.2Nm | Max. voltage resistance | 1500VAC (50Hz, 1Min) | |||||
Rated Current | 2mA~20mA | Insulation Resistance | ≥1000MΩ | |||||
Rated Voltage | AC/DC3V~220V | Accessories | Nut; Rubber O-ring | |||||
>LED Wick
●High brightness
●Not dazzling
●Long service life
>GREAT
Waterproof Effect.
●Waterproof Silicone sealing ring included in internal.
Waterproof Effect.
●Waterproof Silicone sealing ring included in internal.
●Attached with Waterproof Rubber O-ring.
>Effective
Fire Prevention...
Innovative Technology Creation.
>Metal Shell
Anti-corrosion & Strong and durable
>Optional Shell Material
● Stainless Steel Housing
(Most Welcome)
● Nickel Plated Brass
(Economical and practical)
● Aluminium Oxide
(Shell Color Customizable)
>Flame-retardant Base
High Quality Fire-retardant Material
More safe & reliable
More safe & reliable
>Three kinds of terminals:

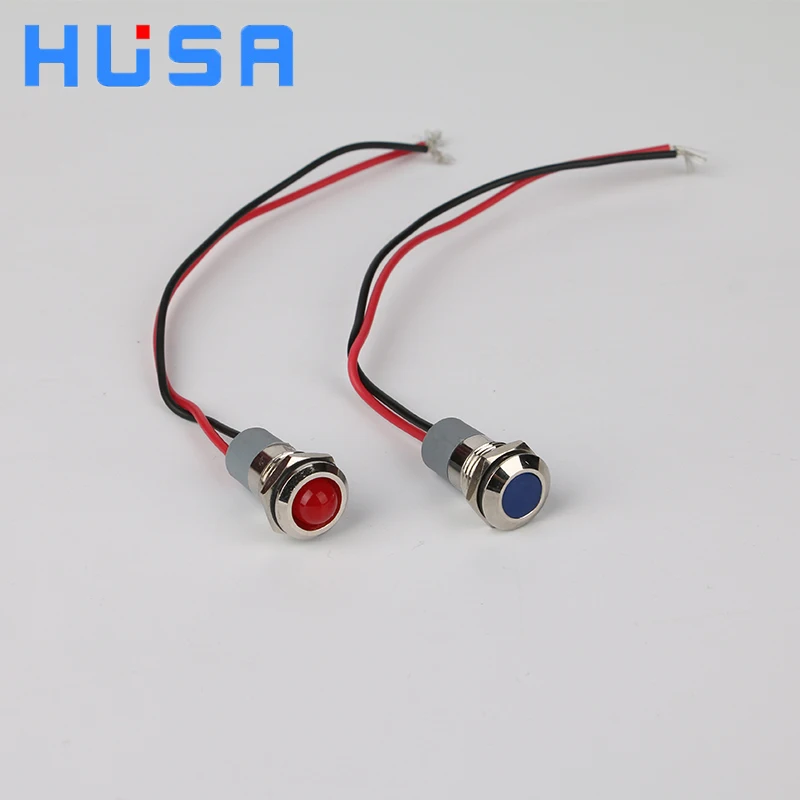

●Wire Terminal
(About 15mm length wire)

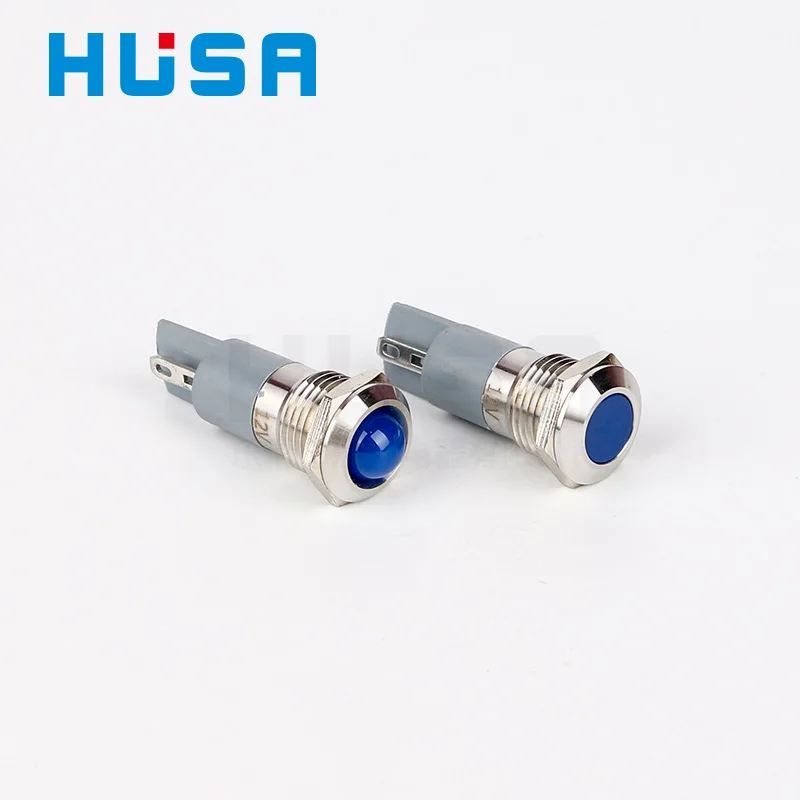

●Solder Terminals
(Easy welding & quick installation)
●J Pin Terminals
(Simple & Fast to connecting wires)
Scope of application:
Industrial control equipment, automobile and motorcycle modification, home appliance modification, power distribution, telecommunications, machine tools, machinery, electrician.
Recommend Products

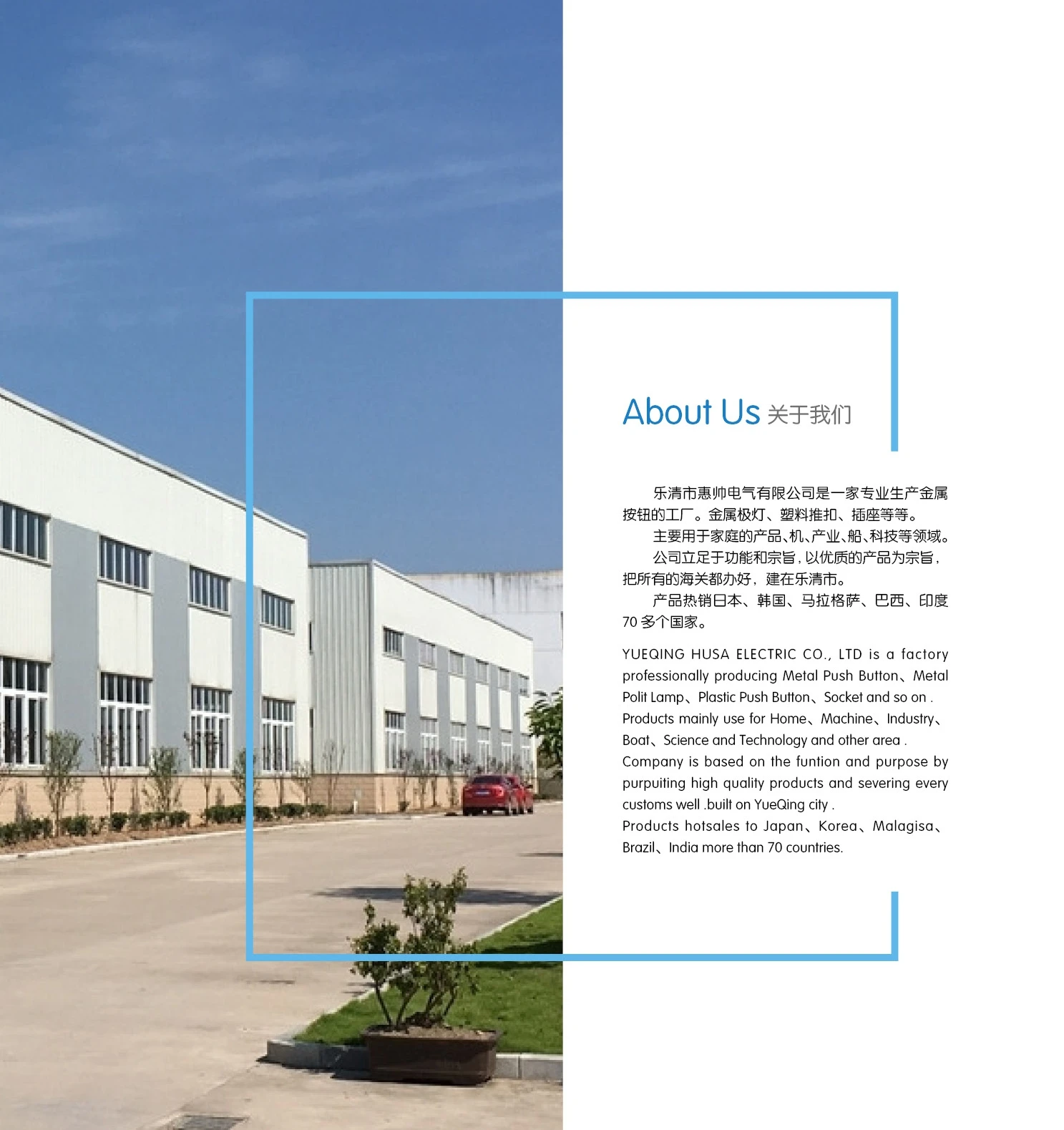

Company Profile
YUEQING HUSA ELECTRIC CO., LTD.
Our Products mainly use for Home, Machine, Industry, Boat, Science & Technology, and other areas.
The business scope of ours are including button switch, distribution switch control equipment, complete sets of equipment, high and low voltage electrical appliances, electronic components, hardware punches, pneumatic components, plastic parts, moulds, communication equipment, explosion-proof electrical appliances and all various of its accessories.
At present, our products sell well in Europe, North and South America, Asia, Africa and Oceania, covering more than 100 countries and regions in the world.
At present, our products sell well in Europe, North and South America, Asia, Africa and Oceania, covering more than 100 countries and regions in the world.
What are our advantages?
▲ Company strength & Superiority of price:
We are one of the source manufacturer in China, most of the products circulated on the market were produced and supplied by us. All of our products could be supplied to you with a most competitive price.
▲ Strong market competitiveness:
In addition to the price advantage, we also have a perfect product quality assurance and after-sales service system, and we also provide you with customized product services.
▲ Quality assurance & Fast Delivery Service:
All the products will be inspected and tested repeatedly before delivery; all the orders will be shipped immediately after completion.

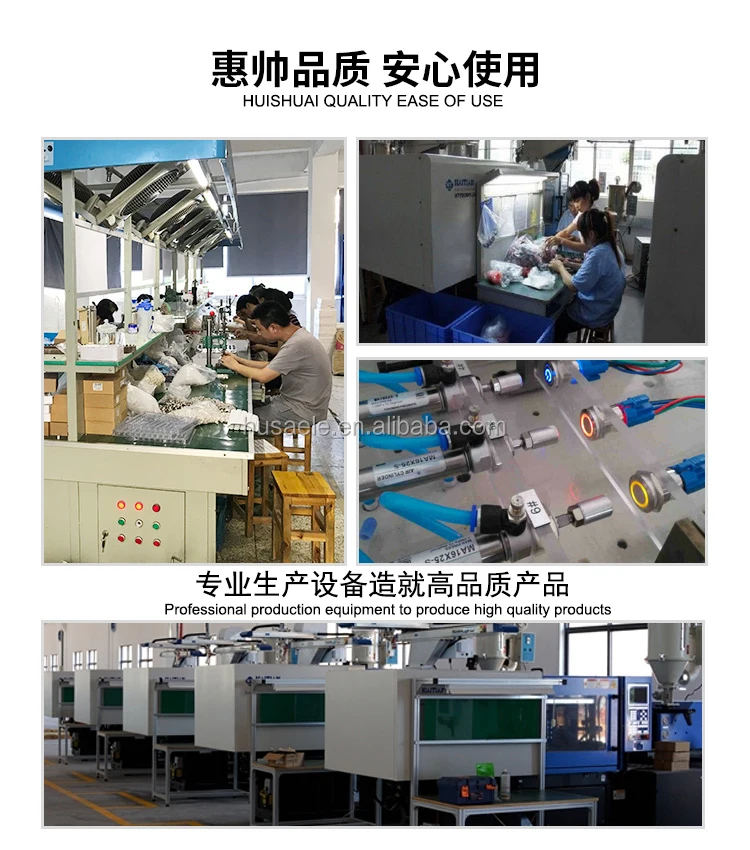

Almost all the component parts of our product are produced by our own work.
We provide better quality control, competitively price, timely delivery services to all customers.
We are the factory! We are the source manufacturer!

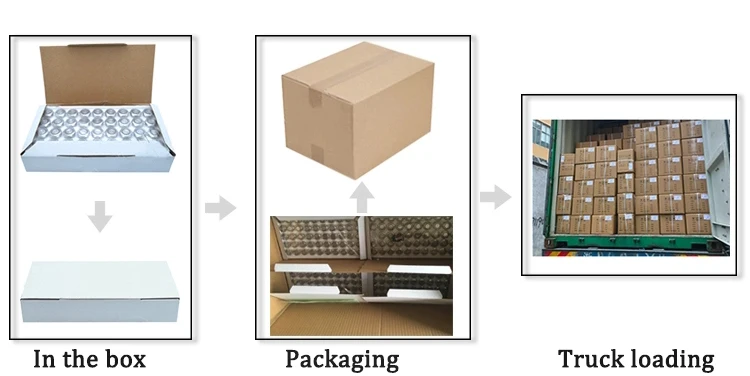

Packing & Delivery
DELIVERY Safe , Fast , Effective
333
FAQ
1. Are you a factory or trading company?
We are a professional manufacturer who producing & selling our products by ourselves, welcome to visit our factory.
We are a professional manufacturer who producing & selling our products by ourselves, welcome to visit our factory.
2. What are your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
3. How can I pay for my order?
You can pay by PayPal , Western Union, T/T... For big order it‘s also available to pay 30% as deposit first, and 70% balance before delivery.
You can pay by PayPal , Western Union, T/T... For big order it‘s also available to pay 30% as deposit first, and 70% balance before delivery.
4. Could I put my own logo or designs of label on the products?
Yes, welcome to show us your design artwork, we will follow your requirements to produce the product for you.
Yes, welcome to show us your design artwork, we will follow your requirements to produce the product for you.
5. I did not find the products what i want in your shop and catalog, could you please follow my design to produce the products for me?
Sure, welcome to let us know your ideas, requirements, and product design artworks of the product what you want, we will do our best to produce the product as your requires for you.
Sure, welcome to let us know your ideas, requirements, and product design artworks of the product what you want, we will do our best to produce the product as your requires for you.
6. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit ;
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
❆Please feel free to send us an inquire for more details. : )
