Product Overview
Description
PRODUCT INFORMATION
UET roof thermal insulation rock wool panel is a suitable substrate board for all low-slope roof decks and is compatible as the substrate for mechanically attached membrane systems. It has excellent acoustic properties. The product can be used as either a base layer of thermal insulation in an acoustic assembly with the top layer of a hybrid roof assembly with polyisocyanurate or other roof insulations.
AVAILABLE FORMS
Rigid Panel
AVAILABLE SIZE
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Length (mm) | Packing (pcs/PKG) | PKG/40'HQ (No#) | |
| UET ROOF 12050-100 | 120 | 50-100 | 600 | 1200 | 4-9 | Loading Qty, Please consult | |
| UET ROOF 16050-75 | 160 | 50-75 | 600 | 1200 | 6-9 | ||
| UET ROOF 18030-50 | 180 | 30-50 | 600 | 1200 | 9-10 |
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET ROOF 16050
| Tested Content | Tested Method | Tested Method | |
| Density | 160kg/m³ | GB/T 5480.3 | |
| Thickness | 50mm | GB/T 5480.3 | |
| Thermal Conductivity (W/m·K) | 0.035 | ASTM C518 (C177) | |
| Average NRC | 0.90 | ASTM C423 | |
| Maximum Service Temperature | 750°C | GB/T 17430, GB50264 | |
| Recommended Service Temperature | 650°C | ASTM C411-05, ASTM C447-03, GB50264 | |
| Compression Strength (kPa) | 100 | EN 826 | |
| Tensile Strength (kPa) | 206 | EN 1607 | |
| Shear Strength (kPa) | 70 | EN 12090 | |
| Point Load Strength (Deform 5%) (kPa) | 800 | EN 1607 | |
| Non-Combustibility | |||
| Flame Diffustivity | 50 | ASTM E84-10 | |
| Flame Propagation | 25 | ASTM E84-10 | |
| Fire Performance | Class A1 | GB 8624, EN13501-1, BS 476 Part4 | |
| Water Vapor Sorption (% by Weight) | ≤1% | ASTM C1104/1104M | |
| Water Vapor Sorption (% by Volume) | ≤1% | ASTM C1104/1104M | |
| Water Repellency (Option available) | >99% | GB/T 10299 |
SOUND ABSORPTION
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| UET-ROOF 12050 | 0.50 | 0.70 | 0.85 | 0.90 | 0.96 | 1.01 | 0.85 | |
| UET-ROOF 12075 | 0.55 | 0.76 | 0.95 | 1.00 | 1.00 | 1.05 | 0.89 | |
| UET-ROOF 120100 | 0.60 | 0.78 | 1.01 | 1.05 | 1.05 | 1.00 | 0.90 |
PACKAGING

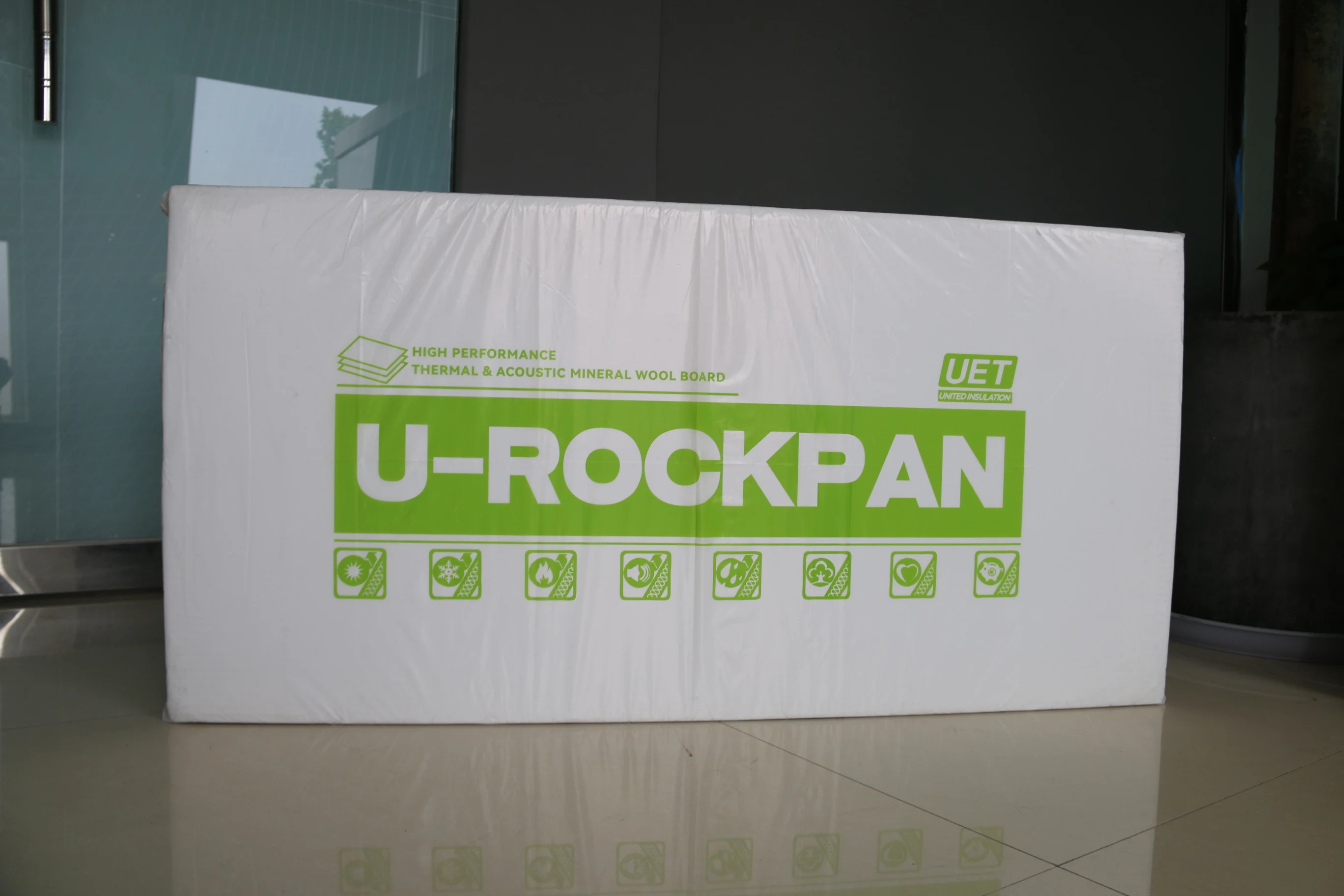

Rock wool panel is wrapped by shrink film, packed by pallet. It's easy to load and un-load with forklift to save labor cost.
STORAGE AND TRANSPORT
Store flat. Handle with care, especially on the edges and corners, which can be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007 and FM Certificate
FEATURES AND BENEFITS
• Natural inorganic material
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Flat Steel Deck Roof and Flat Concrete Deck Roof System
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
