Product Overview

Description

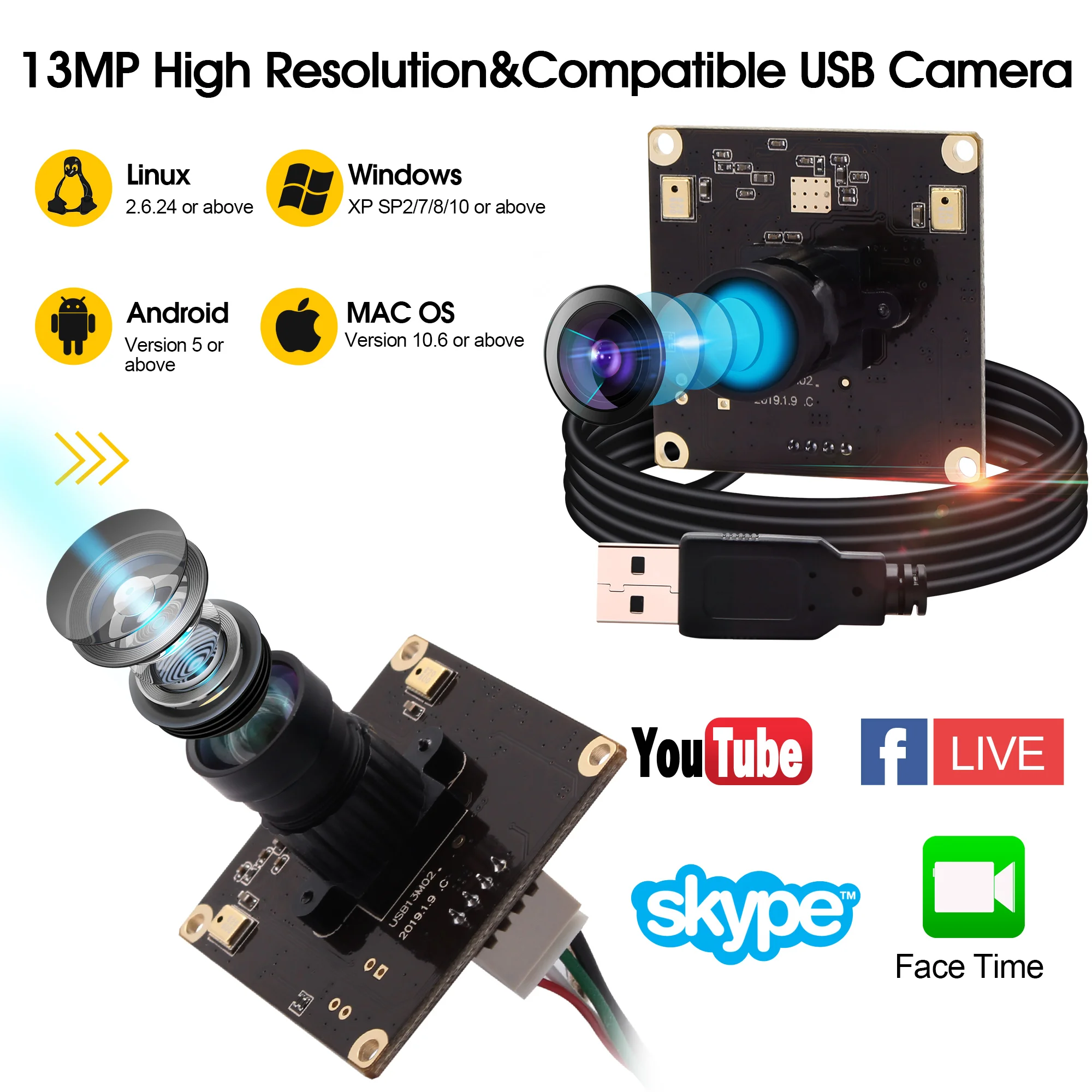

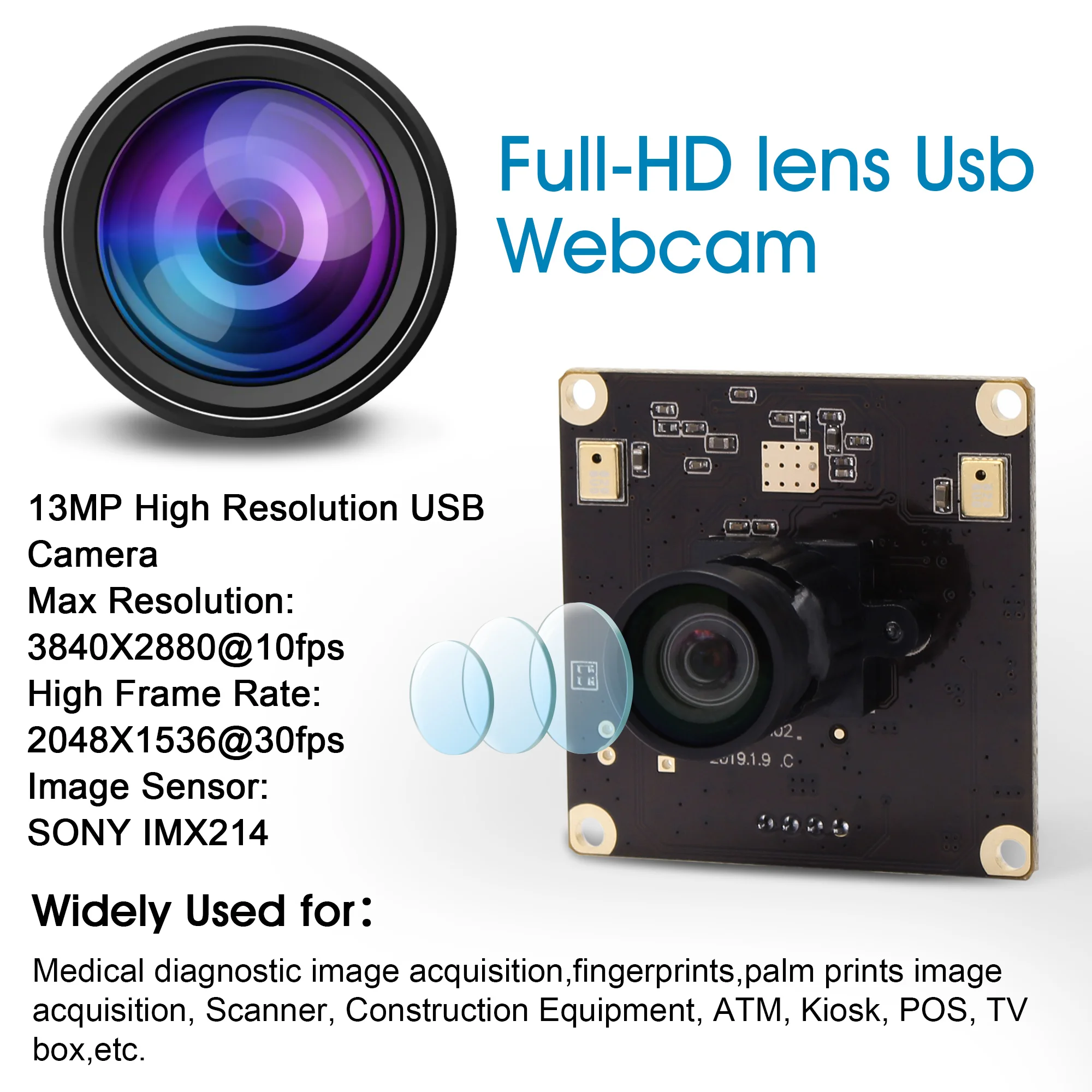

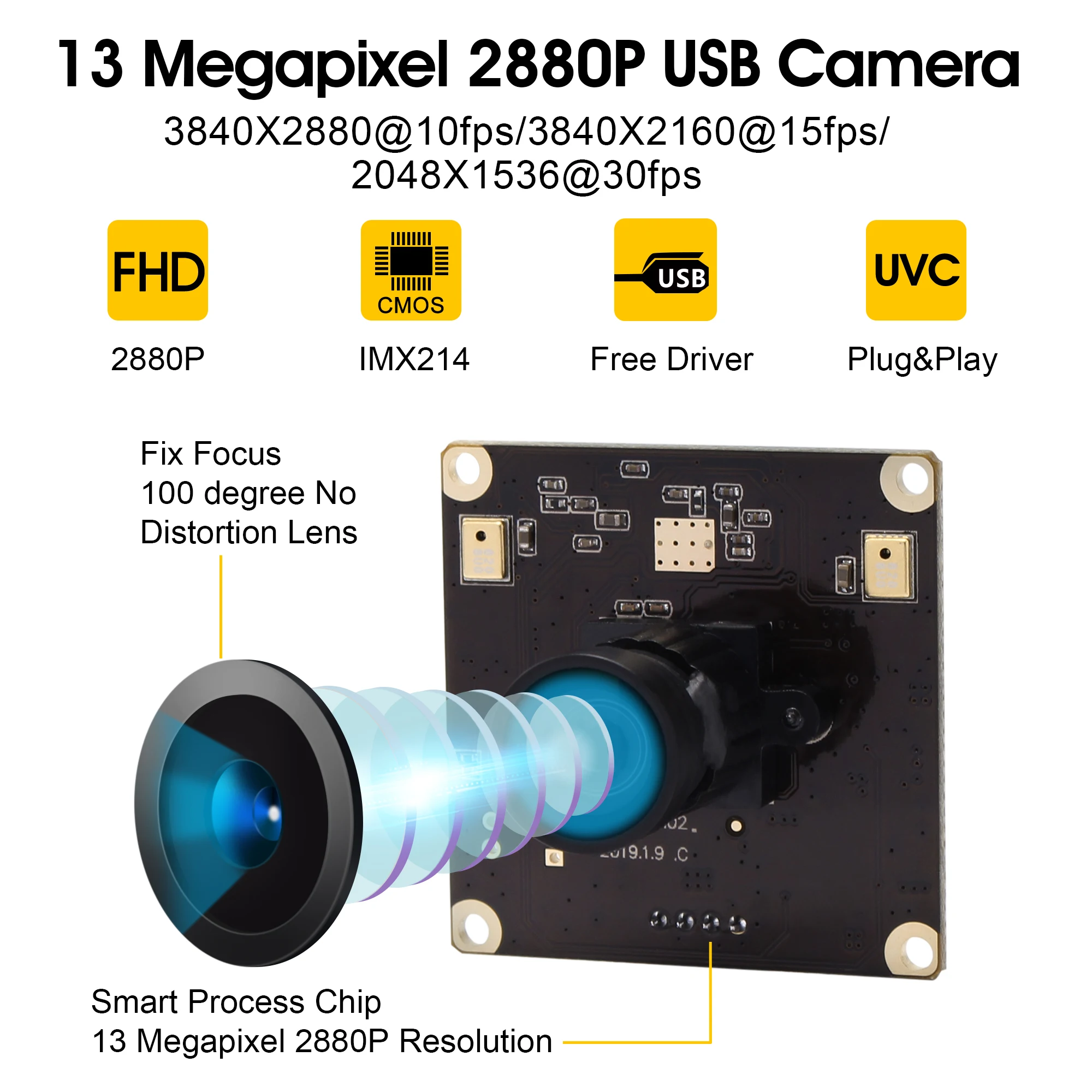

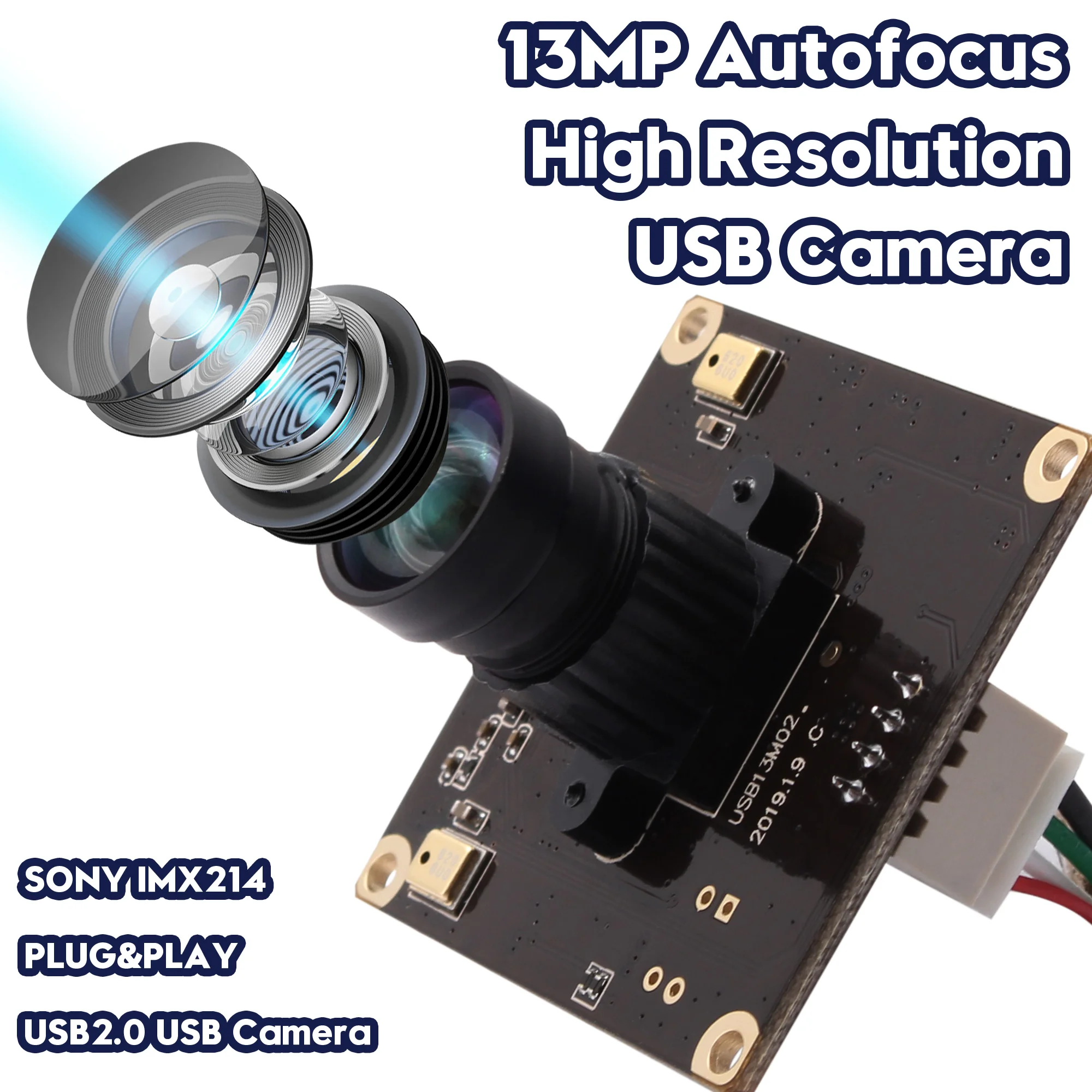

ELP 13MP 3840X2880 USB Camera Module CMOS Sony IMX214 Mini USB Camera


Products Description


Features:
* 13mp 3840(H) *2880 (V) High resolution , suitable for document capture
* Camera With Microphone, support audio input
*Advanced IMX214 (1/3 ) image sensor .
* High quality 2.1/2.8/3.6/6/8/12mm lens, 170/180 degree fisheye lens,2.8-12mm varifocus lens
* Support OS: Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
* Compression : MJPEG&YUY2
* Mini size :38*38mm



Specification


Module No.
ELP-USB13M02-L21 (2.1mm lens)
ELP-USB13M02-L28 (2.8mm lens)
ELP-USB13M02-L36 (3.6mm lens)
ELP-USB13M02-L60 (6mm lens)
ELP-USB13M02-L80 (8mm lens)
ELP-USB13M02-L12 (12mm lens)
ELP-USB13M02-FV (2.8-12mm varifocus lens)
ELP-USB13M02-L170 (170 degree fisheye lens)
ELP-USB13M02-L180 (180 degree fisheye lens)
Sensor
IMX214 (1/3 )
Max. Resolution
3840(H) *2880 (V)
Sensitivity
1000mV/Lux-sec
Image area
6100µmx4524µm
Maximum Image Transfer Rate
3840x2880@10fps MJPEG/ 3264x2448@ 15fps MJPEG
3840x2160@ 15fps MJPEG / 2592x1944@ 20fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG
1280x960@30fps MJPEG/1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Focus
Fixed focus
Object distance
8CM-100M
Resolution
1000LW/PH (Center)
interface
USB 2.0 High Speed
protocol
USB Video Class(UVC)
S/N Ratio
33dB
Shutter
Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF
Auto
Output Formats
YUYV/MJPEG
Adjustable parameter
Brightness Contrast Hue Saturation Sharpness Gamma White
Balance Exposure Focus
Lens Parameter
 2.1/2.8/3.6/6/8/12mm lens, 170/180 degree fisheye lens
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Operating Voltage
DC5V
Power consumption
220mW
Module Size
38mm × 38mm
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 60°C
USB Cable
1M
Operating system request
Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC


Product Display




Packing & Delivery


Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm





Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.


Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.

In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.


Company Profile


Shenzhen Ailipu Technology Co.,Ltd, who has 15 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.

With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.






FAQ


1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.

2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.

3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.

4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module

5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac

7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
