STMA heavy duty truck lifts 20 tonne forklift enclosed cab and air conditioner
20 tonne forklift

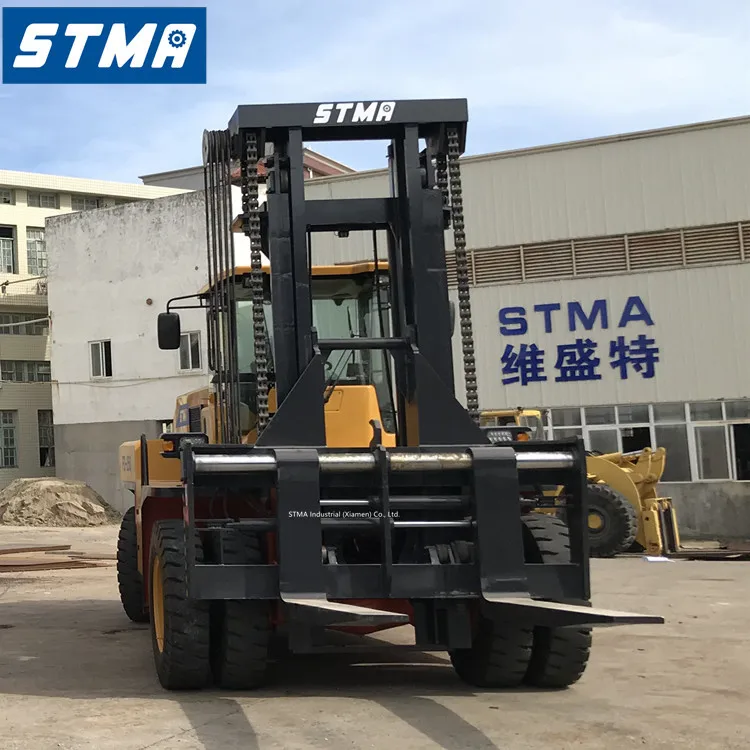

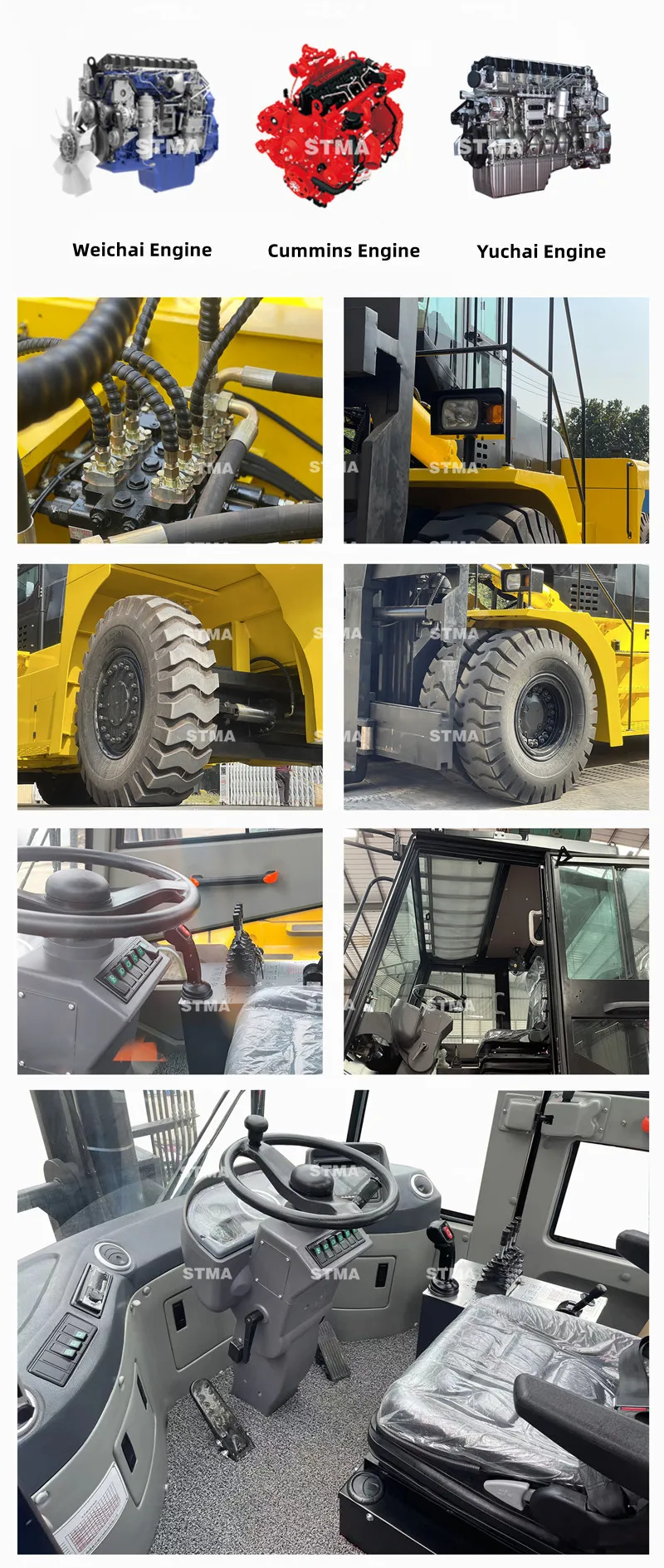

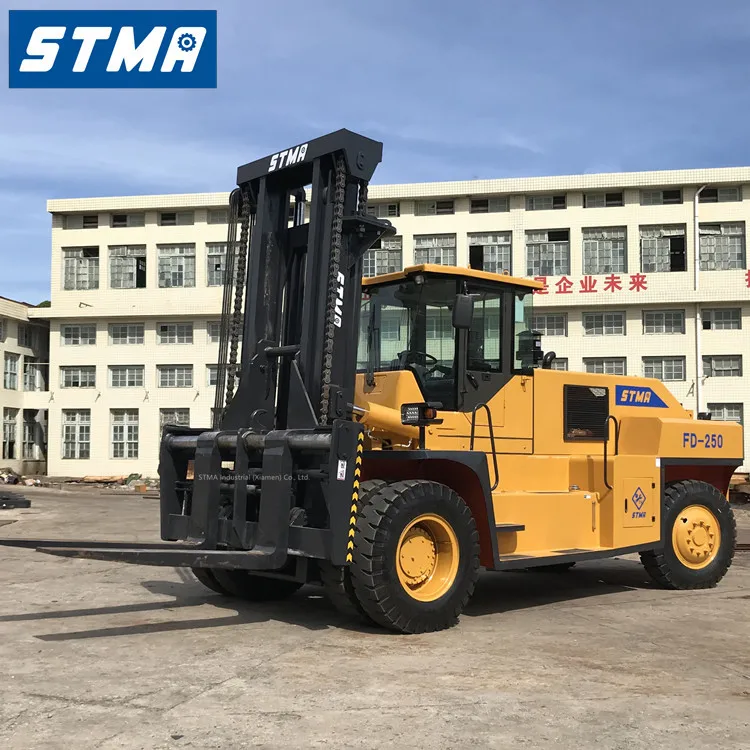

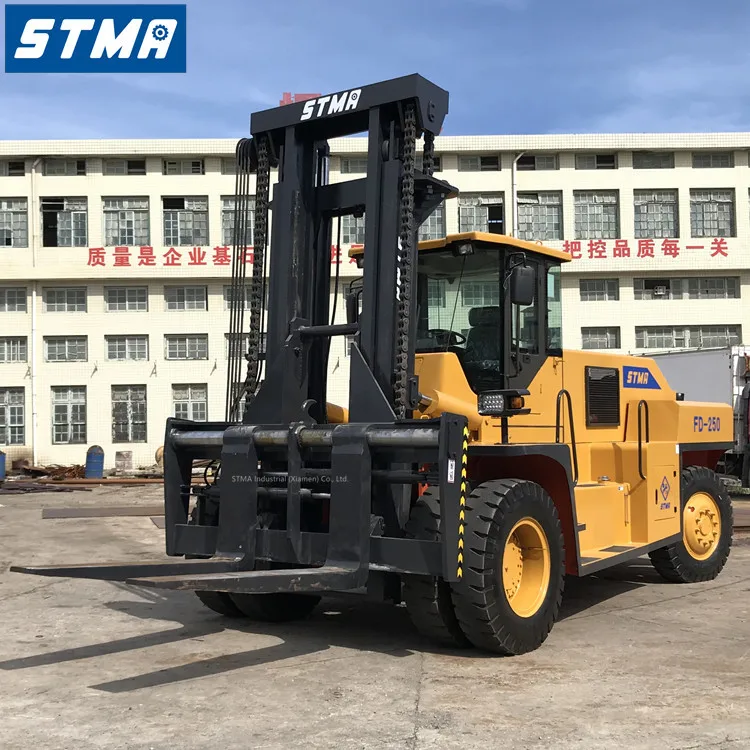

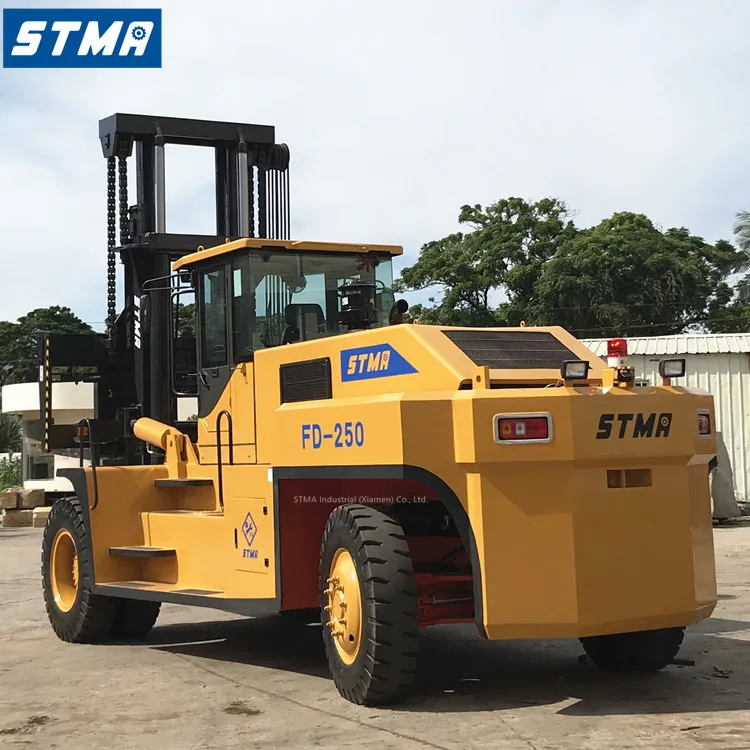

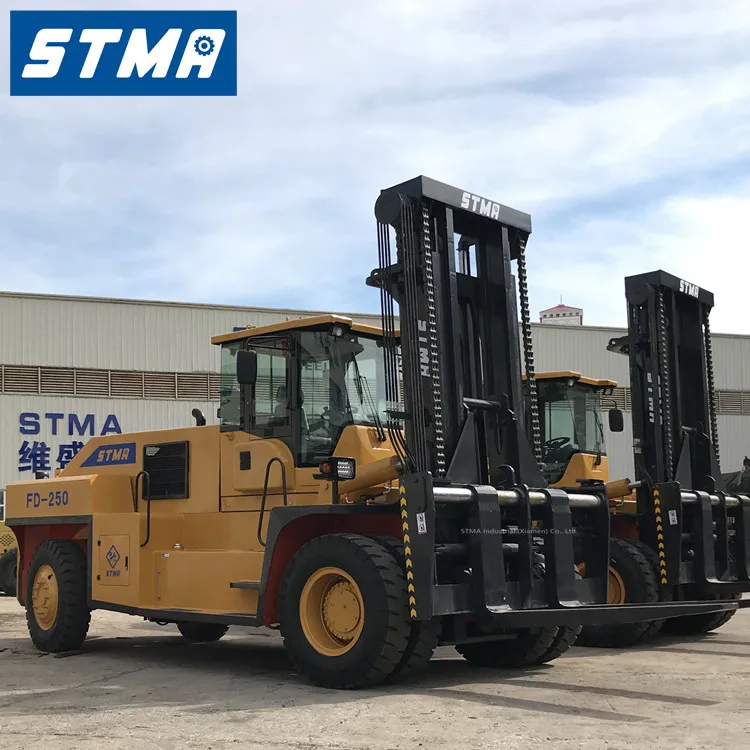

Detailed Image
Main features of heavy duty truck lifts
--Imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
--Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity
--Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
--High pressure oil line use the first brand Parker Oil Tube, impact resistance, wear resistance and long service life
--Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
--Use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers' labor intensity
SPECIFICATIONS FOR 20 TON FORKLIFT TRUCK | ||||||
Configuration | diesel heavy duty forklift truck 20 ton, komatsu forklift 20 ton Model | Unit | FD200 | |
Vehicle configuration | FD200 | |||
Performance | Rated load | 20000 | ||
Load center | 900 | |||
Free lift | mm | 180 | ||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 8100 | |
Width | mm | 3020 | ||
Height | mm | 3600 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2000X260X100 | ||
Min. turning radius | mm | 5800 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 180 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 26000 | ||
Tyre | Front | 4X14.00-24/24PR | ||
Rear | 2X14.00-24/24PR | |||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2390 | ||
Wheelbase | mm | 4000 | ||
Min. ground clearance | mm | 250 | ||
Engine | Model | SC8D180 | ||
Rated power/rotate speed | KW/r.pm | 132/2000 | ||
Max. torque/rotate speed | N.m/r.pm | 810/1600 |

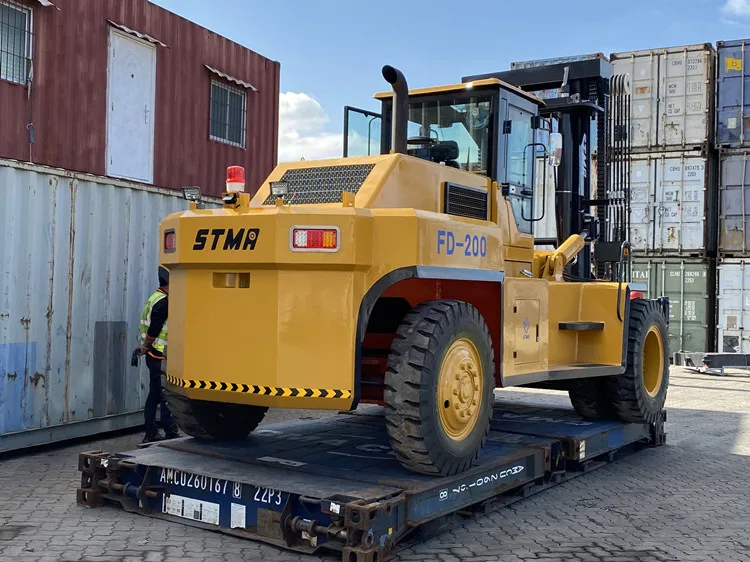

Packing & Delivery
