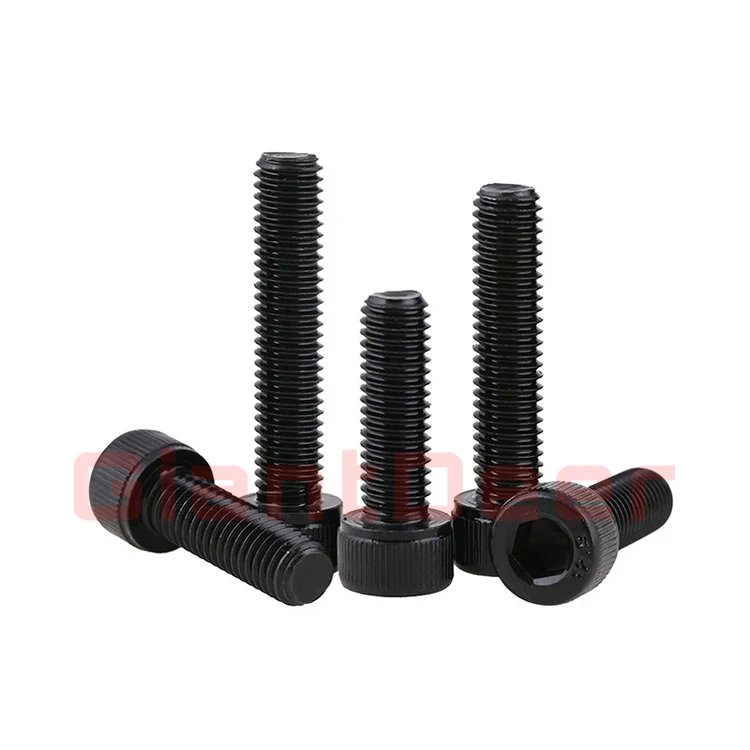

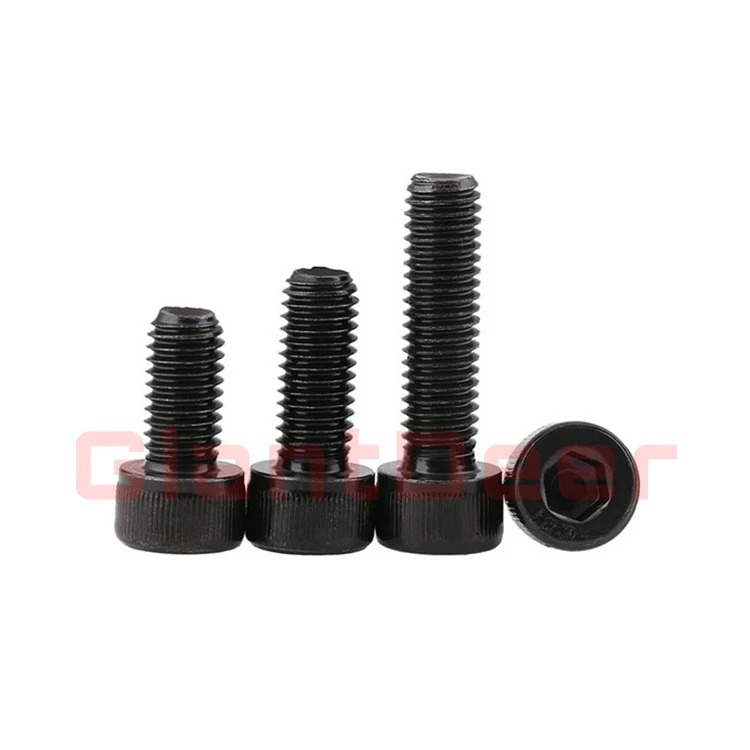

Fastener Manufacturer M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M16 DIN 912 Carbon Steel Hexagon Head Fitted Bolts
- Category: >>>
- Supplier: Guangzhou Giantdeer Caster Co. Ltd.
Share on (1600348576147):
Product Overview
Description

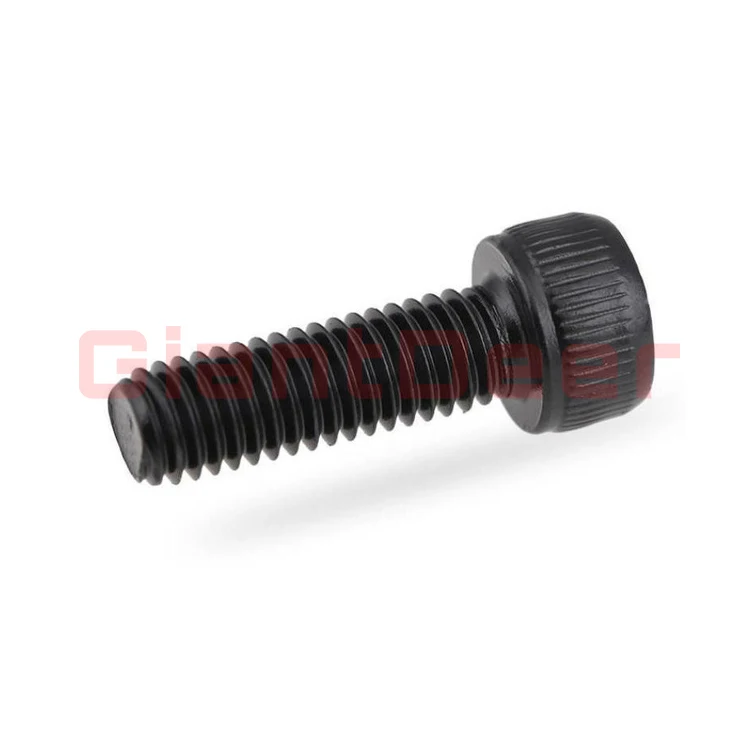

Fastener Manufacturer M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M16 DIN 912 Carbon Steel Hexagon Head Fitted Bolts
Product Description

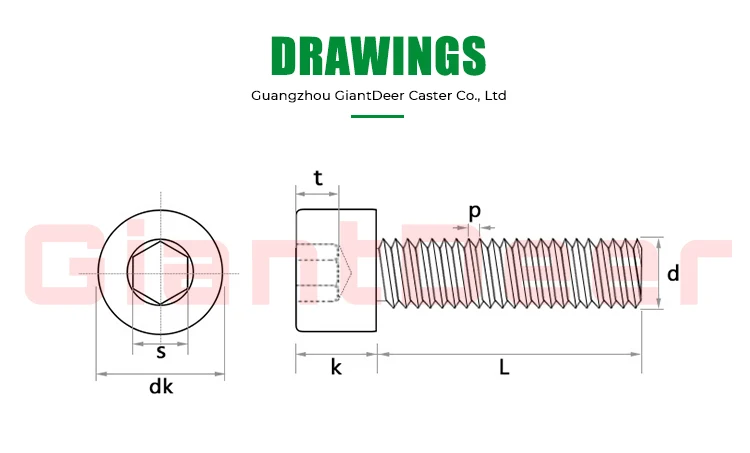

| Model | Material
| Thread Diameter (d) | Thread Length(L) | Thread Pitch (P) |
Head Diameter(dk)
| Head Thickness(k)
|
Inner Hex Across Flat Width(s) |
Inner Hex Thickness (t) | |||
max | min | max | min | max | min | min | |||||

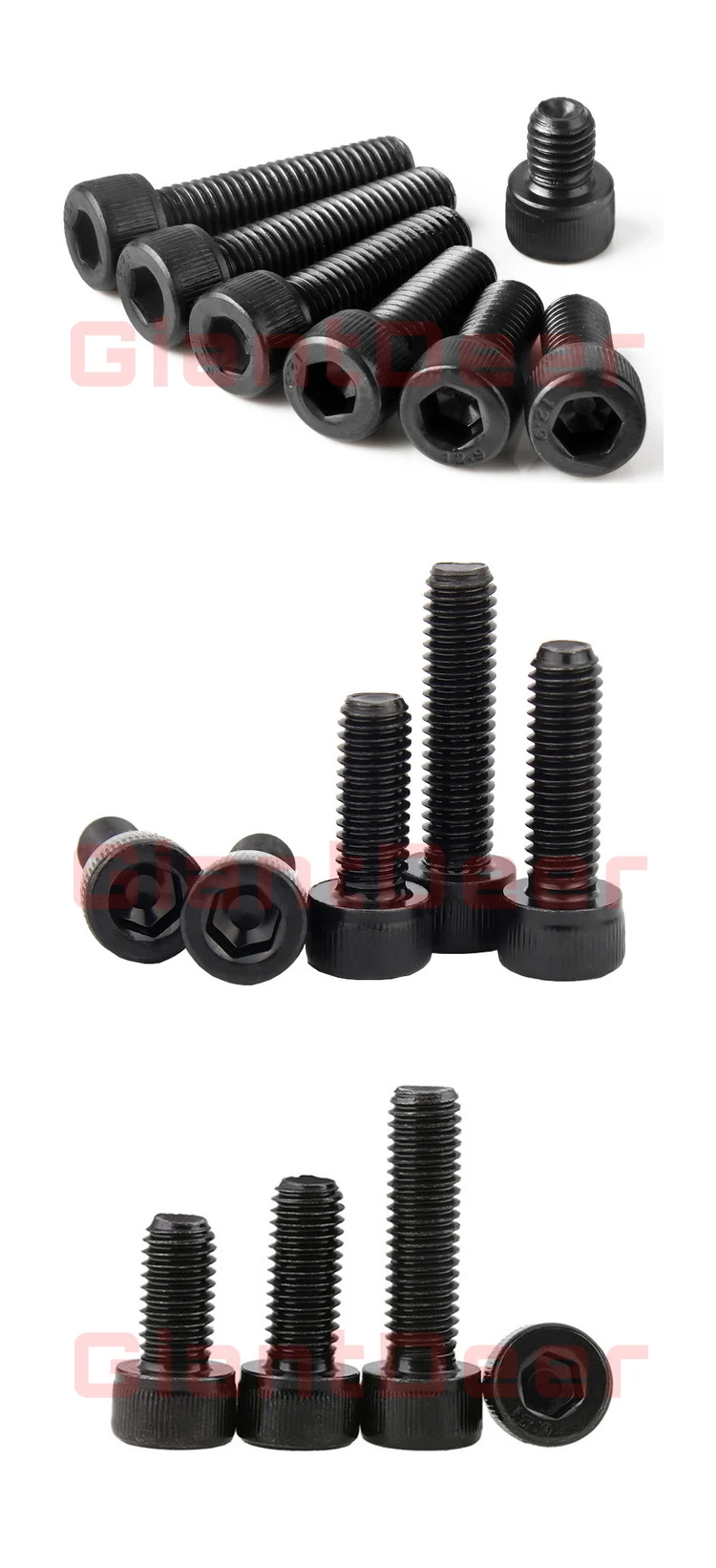

GIDHSB03-M2 | Carbon steel 8.8/10.9/12.9 | M2 | 4/5/6/8/10/12/16/20 | 0.4 | 3.98 | 3.62 | 2 | 1.86 | 1.56 | 1.52 | 1 |
| GIDHSB03-M2.5 | Carbon steel 8.8/10.9/12.9 | M2.5 | 4/5/6/8/10/12/16/20 | 0.45 | 4.68 | 4.32 | 2.5 | 2.36 | 2.06 | 2.02 | 1.1 |
GIDHSB03-M3 | Carbon steel 8.8/10.9/12.9 | M3 | 4/5/6/8/10/12/16/20/ 25/30/35/40/45/50 | 0.5 | 5.68 | 5.32 | 3 | 2.86 | 2.58 | 2.52 | 1.3 |
GIDHSB 03-M4 | Carbon steel 8.8/10.9/12.9 | M4 | 6/8/10/12/16/20/ 25/30/35/40/45/50 | 0.7 | 7.22 | 6.78 | 4 | 3.82 | 3.08 | 3.02 | 2 |
GIDHSB 03-M5 | Carbon steel 8.8/10.9/12.9 | M5 | 6/8/10/12/16/20/ 25/30/35/40/45/50 | 0.8 | 8.72 | 8.28 | 5 | 4.82 | 4.095 | 4.02 | 2.5 |
GIDHSB 03-M6 | Carbon steel 8.8/10.9/12.9 | M6 | 8/10/12/16/20/ 25/30/35/40/45/ 50/60/70/80/100 | 1 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 | 3 |
GIDHSB 03-M8 | Carbon steel 8.8/10.9/12.9 | M8 | 10/12/16/20/25/30/ 35/40/45/50/60/ 70/80/90/100 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 4 |
GIDHSB 03-M10 | Carbon steel 8.8/10.9/12.9 | M10 | 16/20/25/30/35/40/ 45/50/60/70/80/ 90/100/110/120 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.175 | 8.025 | 5 |
GIDHSB 03-M12 | Stainless Steel 304 | M12 | 10/12/16/20/25/30 /35/40/45/50/55/ 60/70/80/90/100 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.025 | 6 |
GIDHSB 03-M16 | Stainless Steel 304 | M16 | 10/12/16/20 | 2 | 24.33 | 23.67 | 16 | 15.57 | 14.21 | 14.032 | 8 |
