50 60 tons 3 axles low bed semi trailer heavy lowloaders pavers transport lowbed semi trailer hydraulic
- Category: Commercial Truck Trailers >>>
- Supplier: Shandong,Shengrun,Automobile,Co.,Ltd.
Share on:
Product Overview
Description
3 axles low bed semi trailer truck heavy loaders pavers transport lowbed semi trailer hydraulic
Products Description

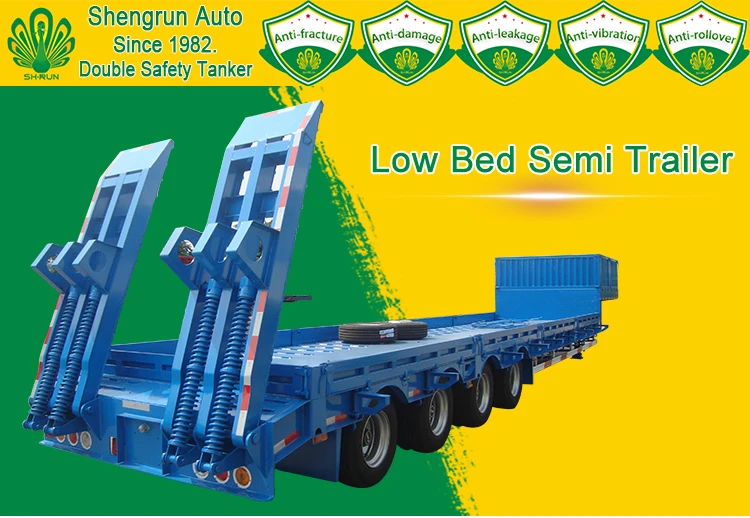

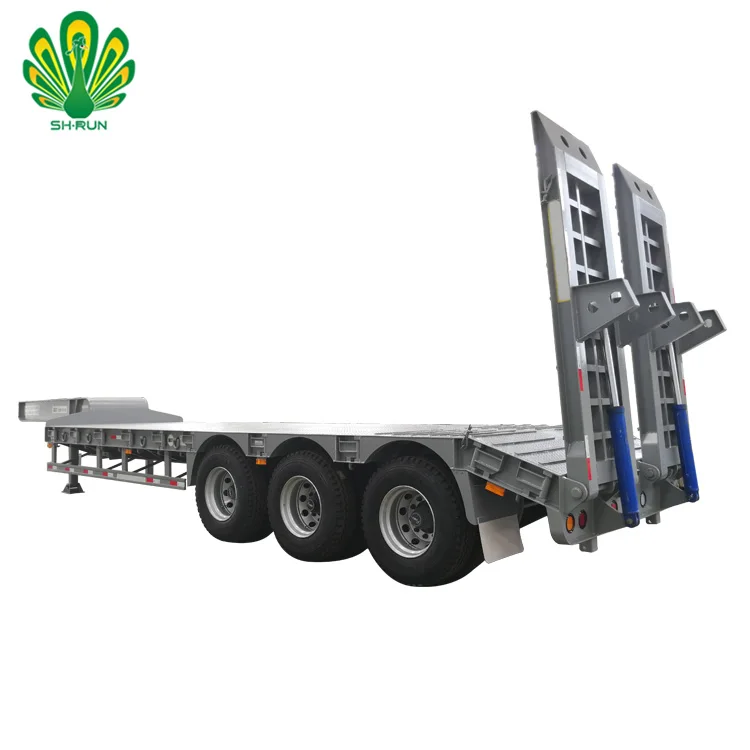

Low Bed Semi Trailer as known as low bed trailer, lowbed trailer, lowboy trailer. There are generally used to transport construction machinery and large equipment.
We support customized design, it helps getting most suitable vehicles for you.
We support customized design, it helps getting most suitable vehicles for you.
Specification
Manufacturer | Shandong Shengrun Automobile CO., LTD. |
Type | Low bed semi trailer |
Dimension | 9500-16500*2500-3000*3200 (Exact size depends on the final design) |
Tare weight | Approx. 8000kgs-12800kgs |
Capacity | 30 ton - 100 ton |
Main beam | Height 450mm-520mm, upper plate is 14mm-25mm, middle plate is 14mm-25mm, down plate is 16mm-25mm, material is Q345B steel |
Side beam | 16 mm- 25 mm channel steel (Material is Q235 steel) |
Platform | 3 mm - 5 mm thickness chequered plate or can be optional |
Gooseneck | For chosse |
Ladder | Manual type or Hydraulic type |
Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
King pin | Jost 2.0 or 3.5 inch bolted type |
Suspension | Mechanical suspension / Germany type or America type / Air suspension |
Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer |
Braking system | WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank |
Rim | 9.0*22.5 / 8.0-20 / 8.5-20 |
Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
ABS | Optional |
Fire extinguiser | Two pieces 4 kgs |
Spare tire carrier | 2 pieces |
Safety guard | With standard |
Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of finla painting, Color advised by customer. |
Accessories | One standard tool box |
Light | LED light |
Shipping terms | By bulk vessel or RORO or 40 HQ container |
More Types
Product Advantages
1. Strong Loading Capacity 30-100 Tons
2. H-beam for side beam instead of channel steel.
3. High Stength full thickness Steel, which ensure Beam and frame’s Toughness and strength.
4. Tough ribs design, Ensure the safety and carrying capacity of trailer.
5. Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.
6. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
7. Anti-slip strip on tail and rear of platform to ensure loading safely.
8. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
2. H-beam for side beam instead of channel steel.
3. High Stength full thickness Steel, which ensure Beam and frame’s Toughness and strength.
4. Tough ribs design, Ensure the safety and carrying capacity of trailer.
5. Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.
6. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
7. Anti-slip strip on tail and rear of platform to ensure loading safely.
8. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
Our Service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
Packing & Shipping

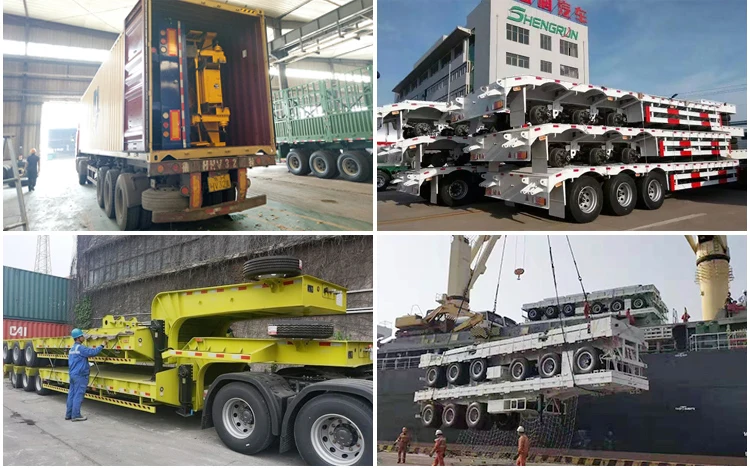

Low bed semi trailer usually ship by bulk carriers or ro-ro ships. We spray wax on the tank. Cover it with a waterproof rain cloth.
Some countries can also ship by container or frame cabinet.
Some countries can also ship by container or frame cabinet.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity). Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
About Shengrun Auto
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management. We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment.
Shengrun has passed ISO9001:2008 quality management system certification, 3C product certification, national safety production standardization secondary enterprise, has obtained A2 fixed pressure vessel (low temperature storage tank), C2 automobile tanker(low temperature), C3 tank container pressure vessel Production license, American Society of Mechanical Engineers ASME qualification certification, European ADR vehicle certification, China Classification Society tank container production approval certificate, national dangerous goods packaging, container production license, measurement management system certification, rated by the state as high-tech enterprise. And obtained more than 60 national patents.
Shengrun has passed ISO9001:2008 quality management system certification, 3C product certification, national safety production standardization secondary enterprise, has obtained A2 fixed pressure vessel (low temperature storage tank), C2 automobile tanker(low temperature), C3 tank container pressure vessel Production license, American Society of Mechanical Engineers ASME qualification certification, European ADR vehicle certification, China Classification Society tank container production approval certificate, national dangerous goods packaging, container production license, measurement management system certification, rated by the state as high-tech enterprise. And obtained more than 60 national patents.
