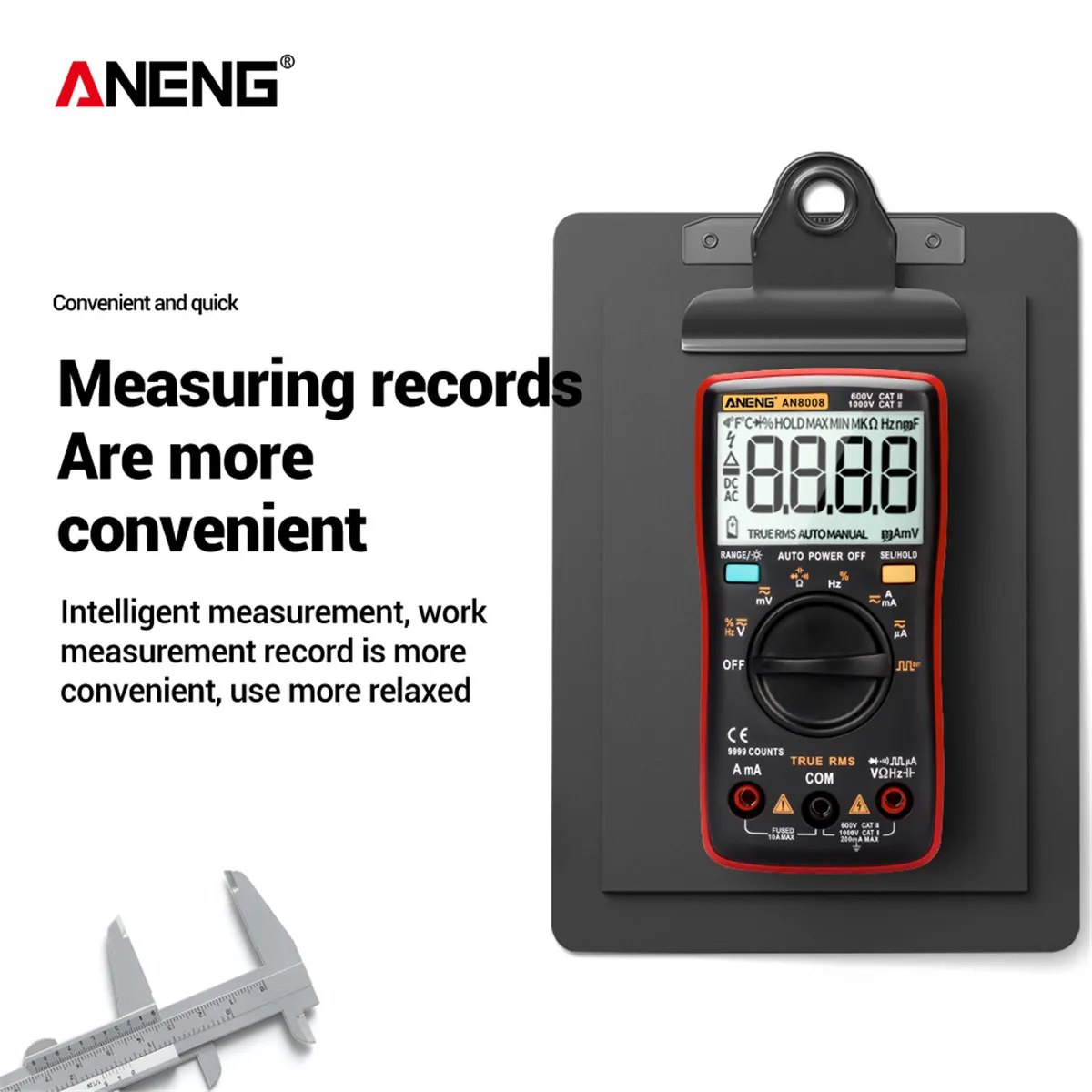

Цифровой мультиметр ANENG AN8008 Pro, 9999 отсчетов, True RMS, квадратная волна, подсветка, амперметр напряжения постоянного и переменного тока, Ток Ом, автоматический/ручной
- Category: >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600348696040):
Product Overview
Description

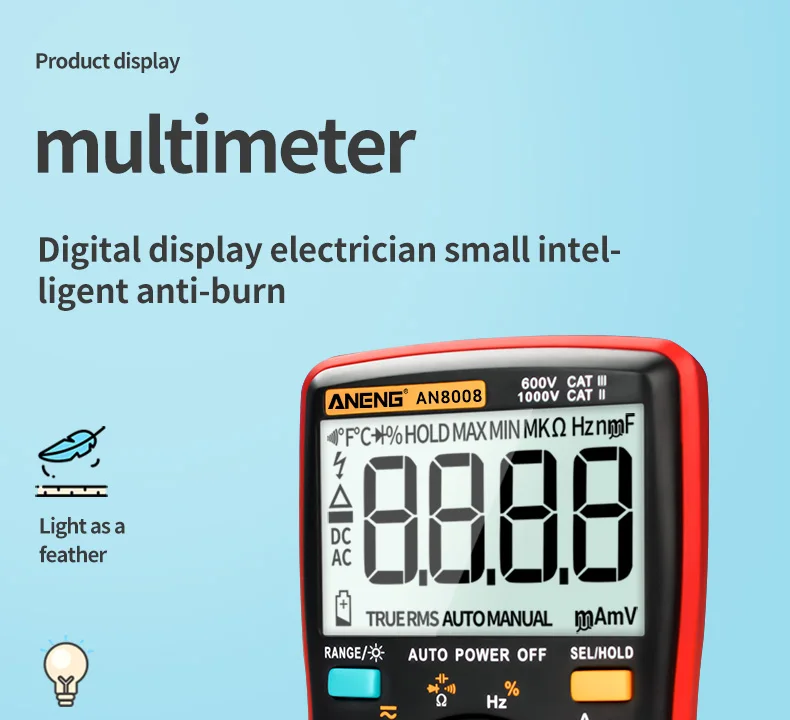

ANENG AN8008 True-RMS Digital 9999 counts Multimeter
Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual.
Feature:
The product is battery-powered with true-rms, LCD display and backlight.
1-1.AN8008 Multifunction:Can measure AC/DC voltage,AC/DC current,resistance,capacitance,
frequency,duty cycle,square wave output,diode and continuity.

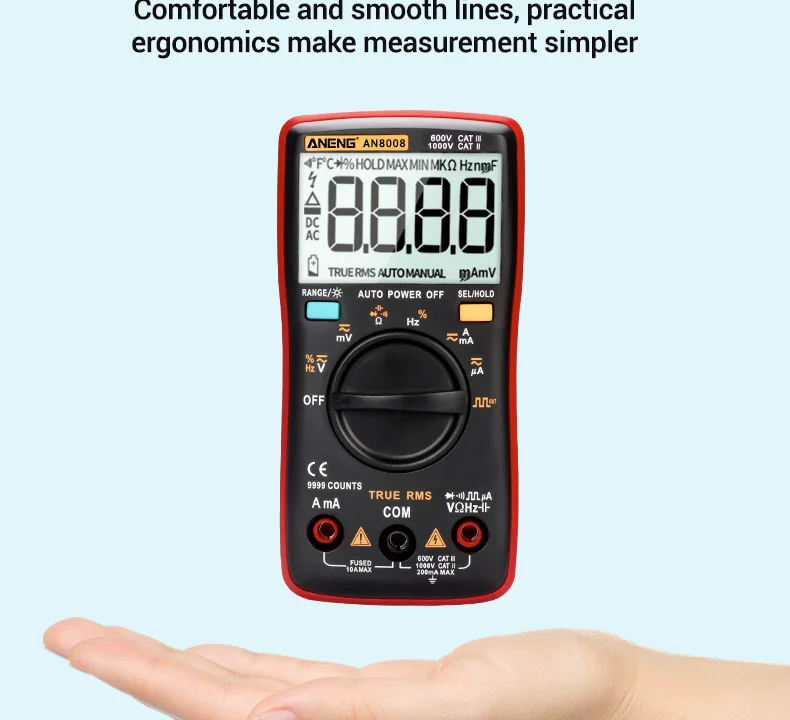

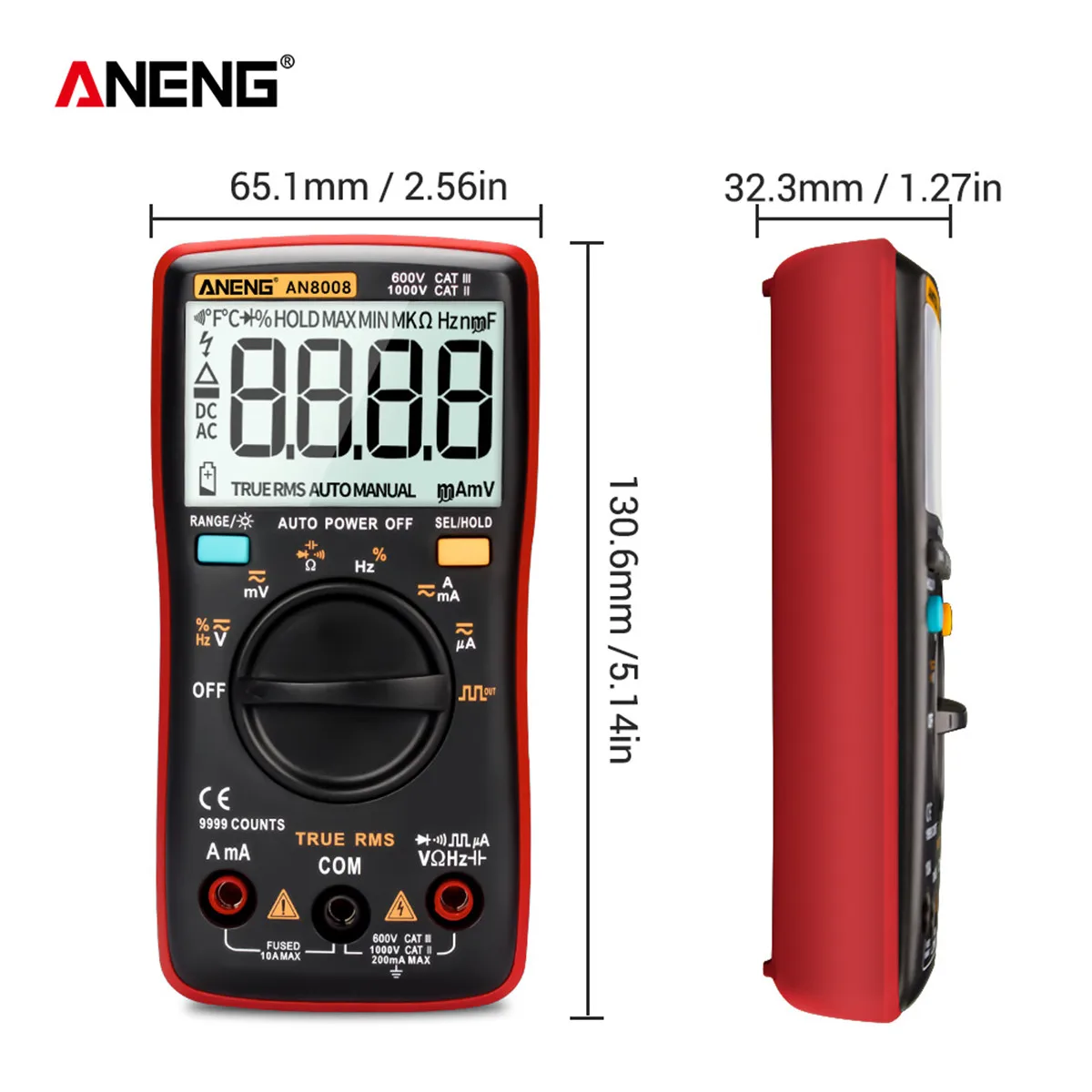

1-2.Portable design:There is a back bracket for supporting multimeter,convenient to operate.
1-3.Wide range of applications:It's a perfect tool for the laboratory,factory and home.

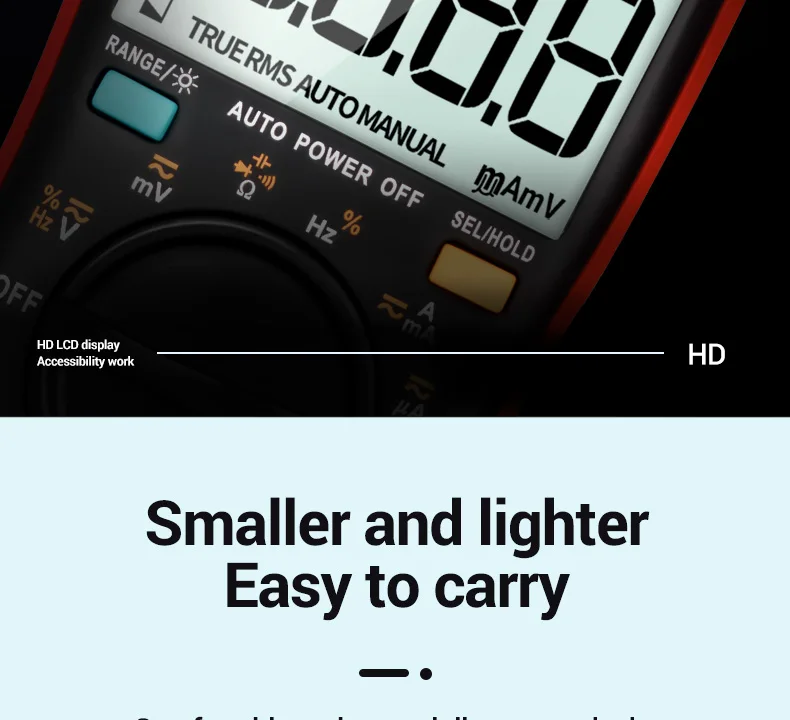

1-4.Clear to read:With large LCD backlight display and data hold,easy to read data.

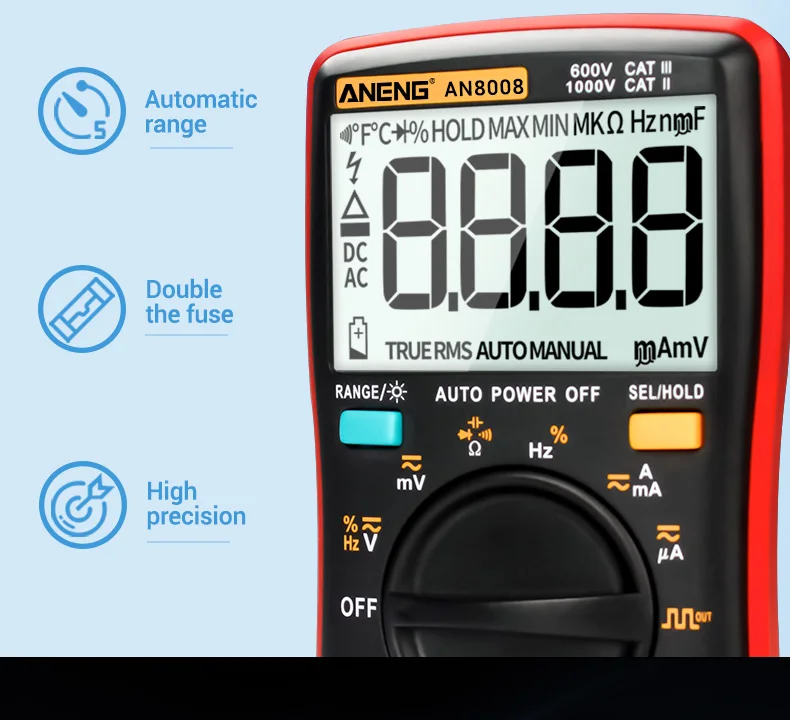

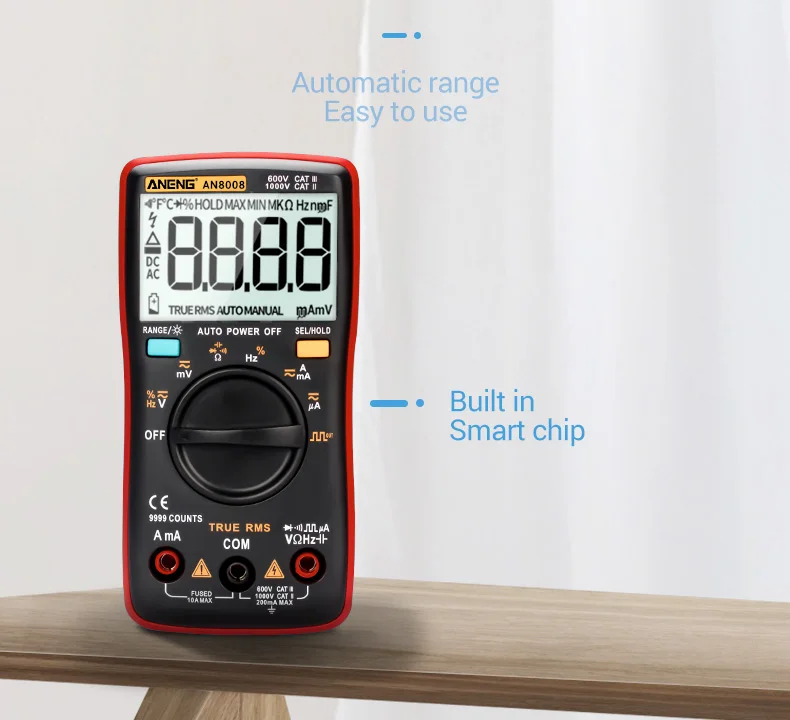

1-5.More advantages:Auto/manual range,true RMS,auto power off and over range indication.

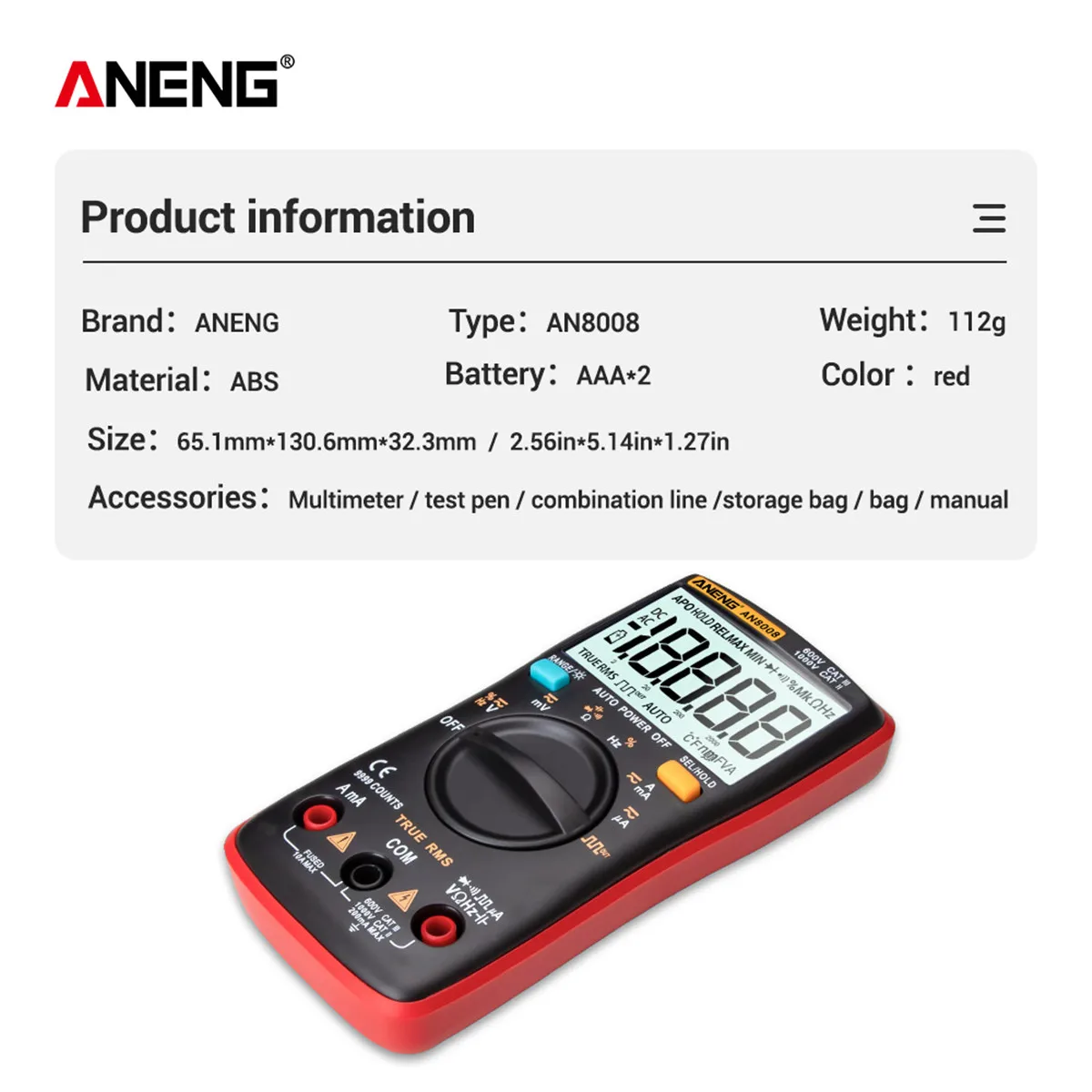

Specification:
Brand Name | ANENG | Model | AN8008 |
Counts | 9999 | Diode Test | Yes |
Continuity | Yes | Square wave output | Yes |
Backlight | Yes | Data hold | Yes |
Auto/manual range | Yes | Auto power off | Yes |
Over range Indication | Yes | Duty Cycle | 1%-99% ±( 0.1%+2) |
DC voltage | 999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV 99.99mV±(0.5%+3) |

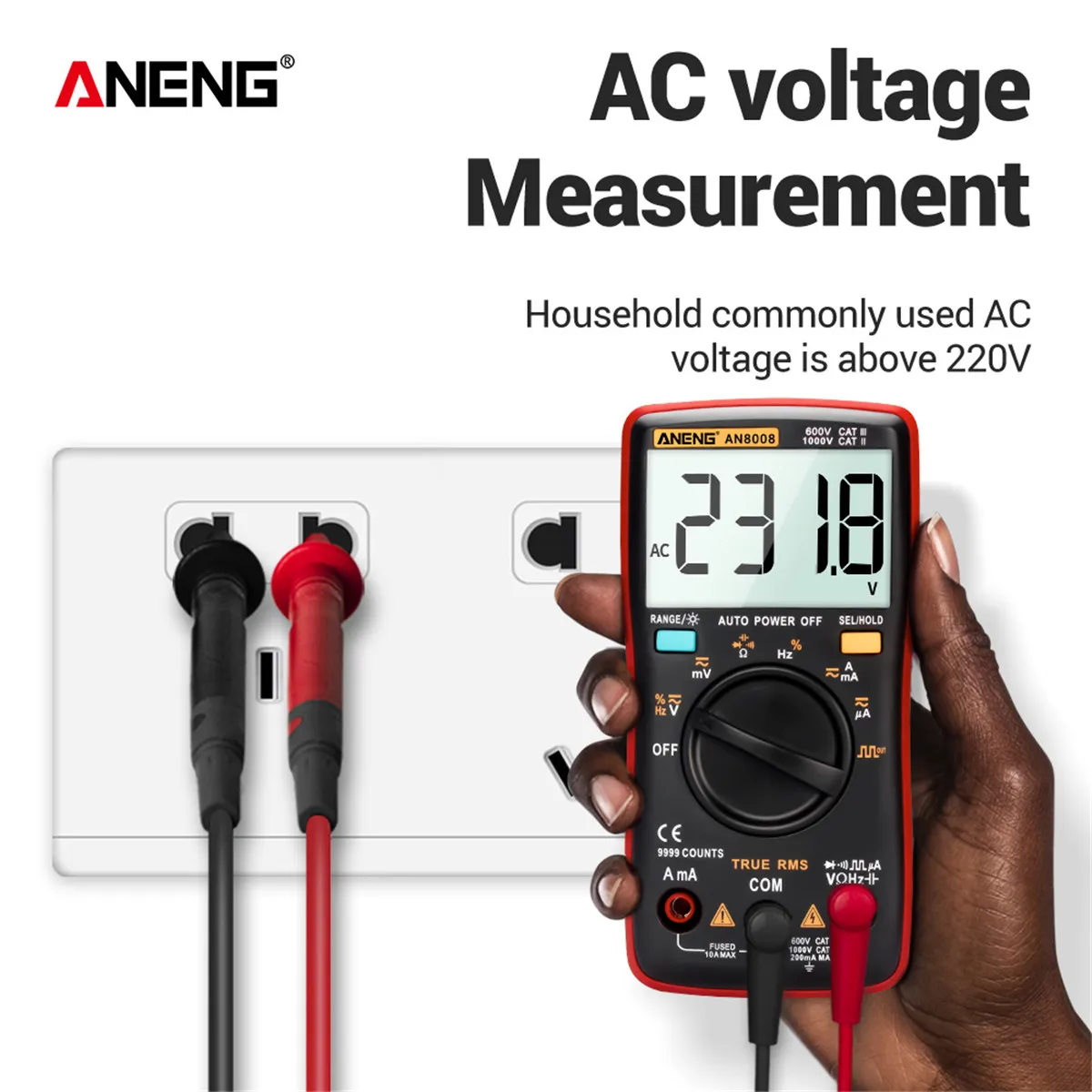

AC voltage | 999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV 99.99mV±(1.0%+3) |
DC current | 999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3) |
AC current | 999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3) |
Resistance | 99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ 999.9kΩ±(0.5%+3),9.999MΩ±(1.5%+3) |
Capacitance | 9.999nF±(5.0%+20),99.99nF/999.9nF/9.999μF 99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5) |
Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz 9.999MHz ±(0.1% + 2) |
Power | 2 x 1.5V AAA (Not included) |

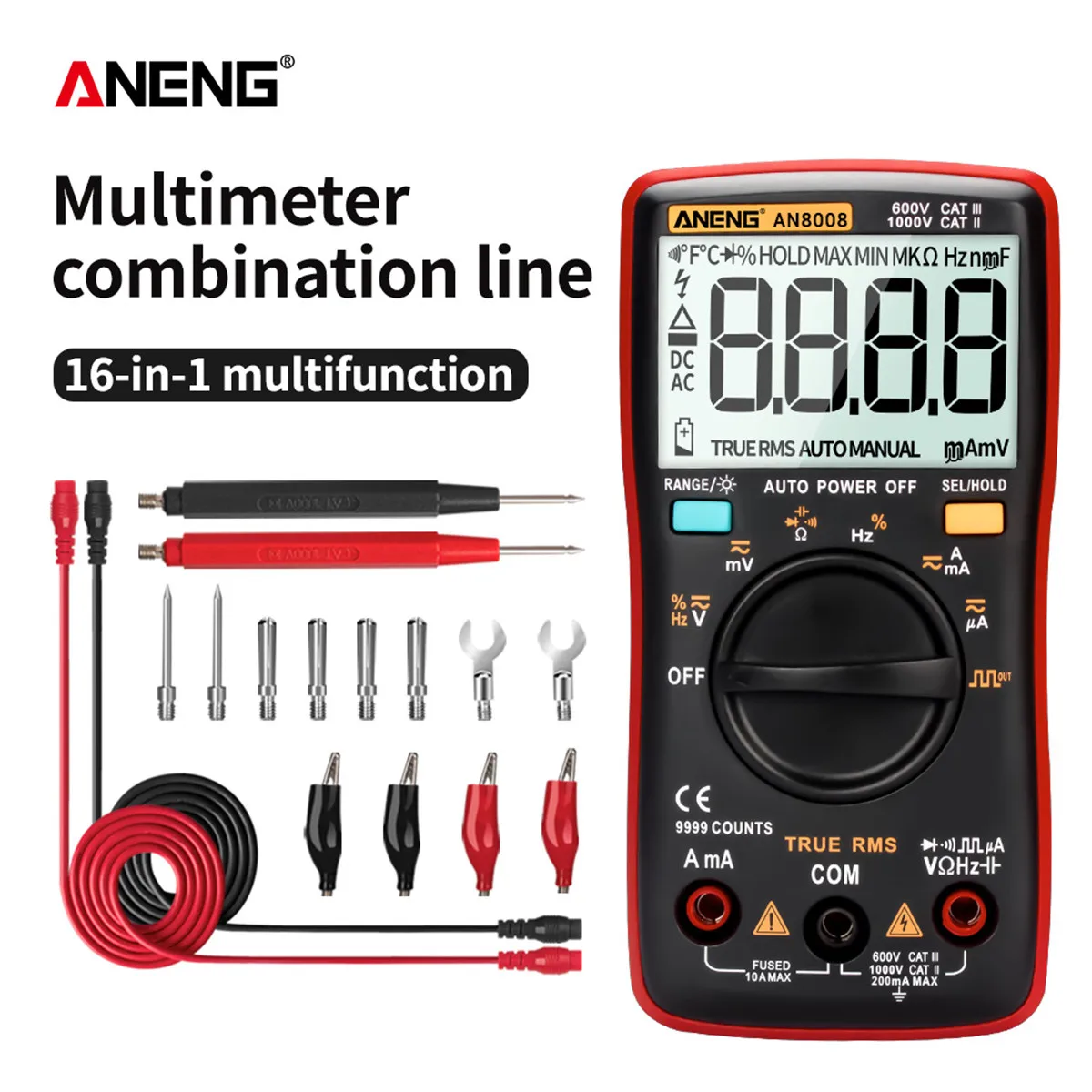

Package List:
1 x Digital Multimeter
2 x Test Leads Pens
1 x 16 in 1 multifunctional test line (Choose by package)
1 x Storage bag
1 x User Manual
