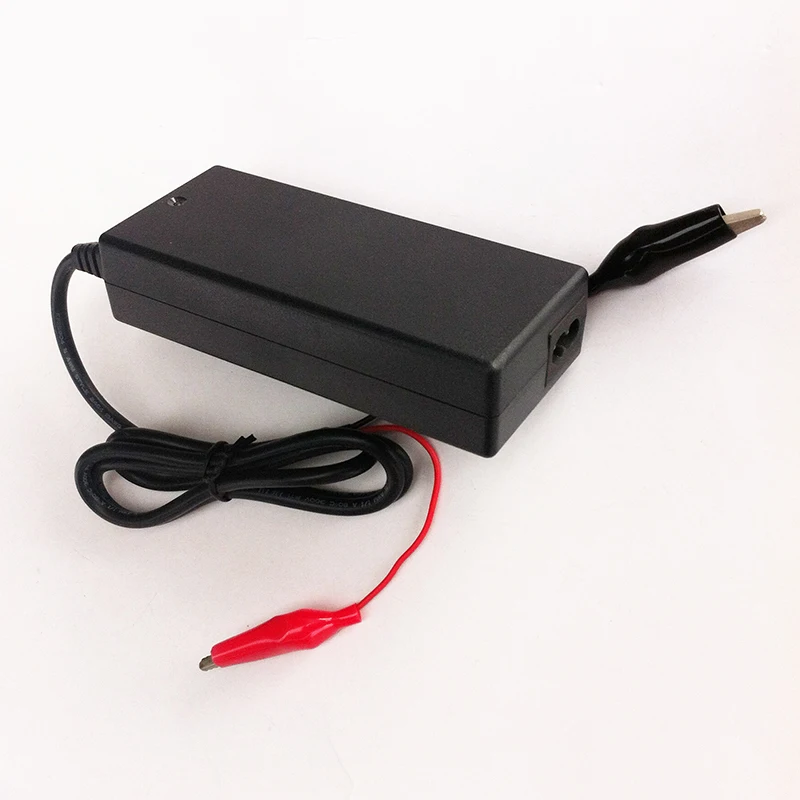

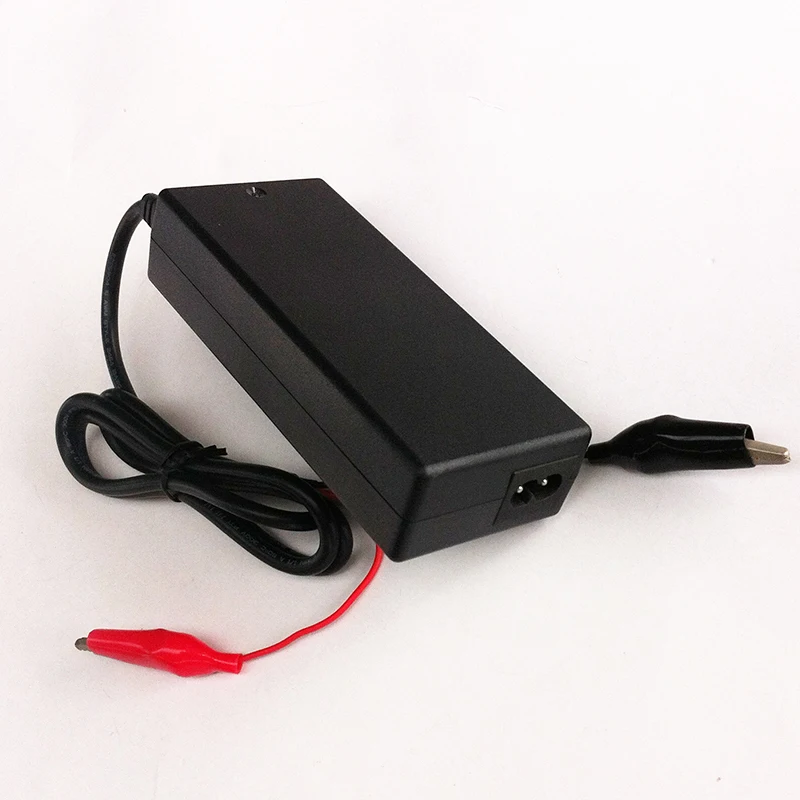

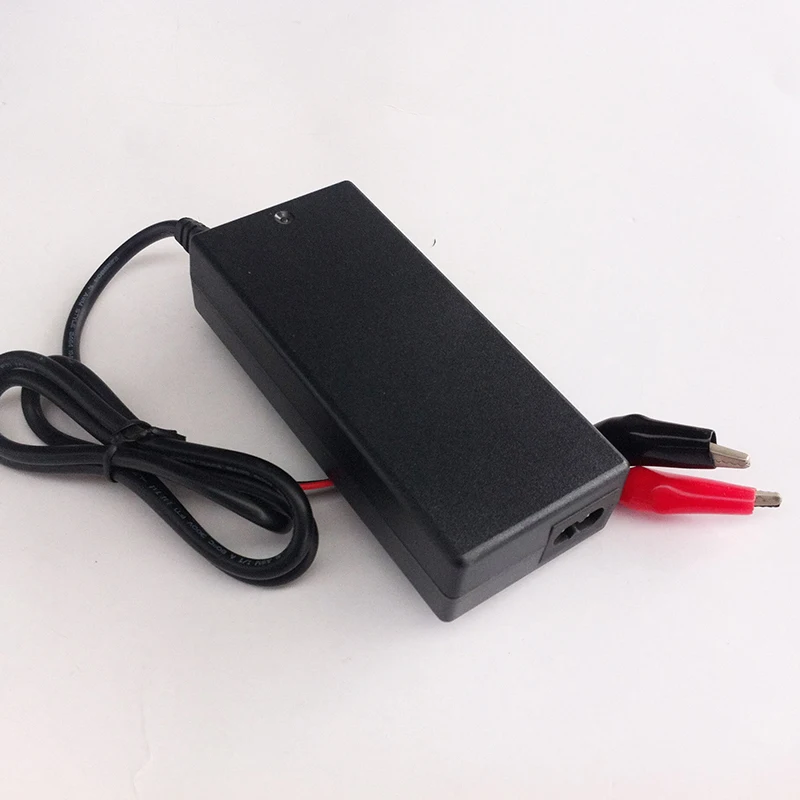

12.6v6a 75.6w li ion 18650 battery charger device ac 100-240v to dc 12.6v 6a chargers batteries power supply made in shenzhen
- Category: Charger >>>
- Supplier: Dongguan,Intai,Power,Supply,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Description
Intai lithium battery charger 12V 6A is designed employing the most up-to-date technology, and in accordance with latest industry standards. The 12V lithium charger powers up battery quickly with 6A current density and advanced lithium charge algorithms maximizing battery life and performance. The 12V lithium battery recharger enables safest operation. Safety certification available for 12V lithium battery charger series including UL/cUL1310 Class 2 Battery Charger, TUV/EN60335-1/ 2-29 and AS/NZS60335-1/ 2-29 Household and similar electrical appliances - Particular requirements for battery chargers. The 12 volt lithium battery charger series is also compliant to EN 55014-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product Specificatio
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 7-12.6V |
Open Circuit Voltage | 12.6V±5% | |
Charge Current | 6A±5% | |
Battery Type | 3S 12V Lithium battery 18065 pack | |
Battery capacity recommended | 12AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class II battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA |
Company Information
Certificate
FAQ
Do you have a MOQ requirement? |
| What is the lead time? 3~5 days for testing samples, 2~3 weeks for mass production |
| Can I pay by Paypal for testing samples? Yes |
| What if there are quality problems with the products I bought? We take the following measures to ensure the quality of products |
| 1, Strict management of product design |
| 2, All products on sale are safety certificated |
| 3, Strict production process control |
| 4, Two hours burn-in testing on 100% products |
| 5, Carrying out random finally inspection on each lot |
| There will no defective in large scale. However, as our quality level AQL is: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5, defective is allowed for one or few pieces. We offer 3 year warranty for all items. We provide replacements for all defective products have had at our costs as long as you have picture to prove that these products are broken in the normal use. If you are our regular customer we would include the replacements in the nearest shipment. |
What is the ambient temperature specified for safety test & evaluated by safety testing agencies including UL and TUV? It was 35℃. The data shows on our certifications. |
Our Services
1: Professional service 1) We reply any inquiry in 12 hours Website: www.intaia.com |
2. OEM/ODEM available: 1) Customized products available 2) We can put your ideas into concrete products |
| 3. High quality and reasonable & competitive price |
4. After-Sale Service : We offer 3 years warranty , replacements available |
5. Faster delivery : In term of an urgent order, we apply flexible production management to catch up your delivery date. |
Packaging & Shipping
Each piece in a white box, then 48pcs in an outer carton.
Carton gross weight: 15~22kg, carton size: 53x36.5x21cm
