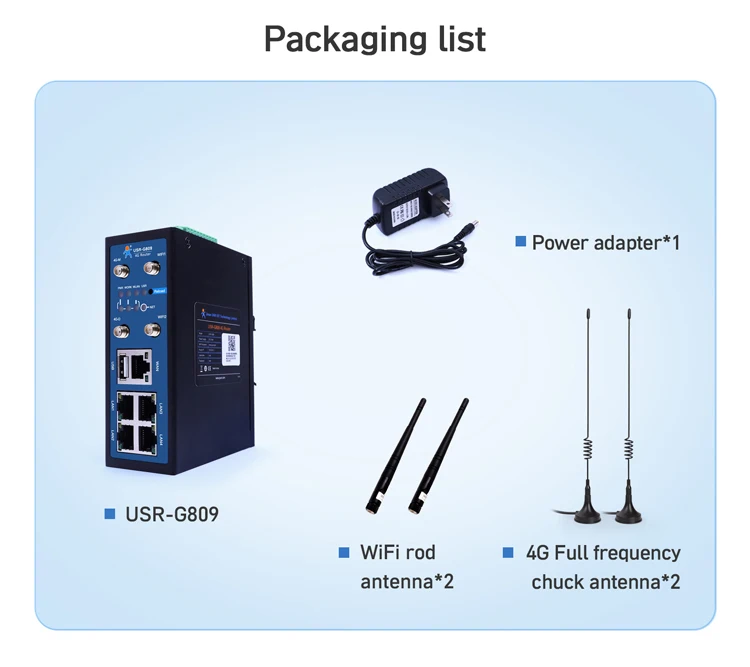

USR-G809-EAU Industrial Cellular VPN Router Modem 4g Wifi Lte Router With Sim Card Slot

HardwareSpecifications

Cellular Interface

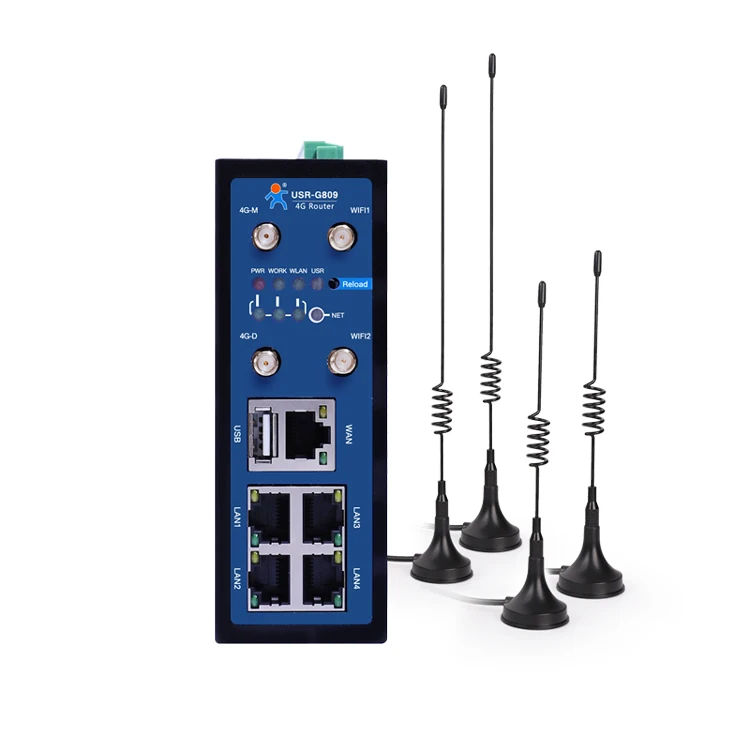

Antenna

2x SMA-K

Note: North America models: 2 x SMA 4G antenna connectors.

SIM card

1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots

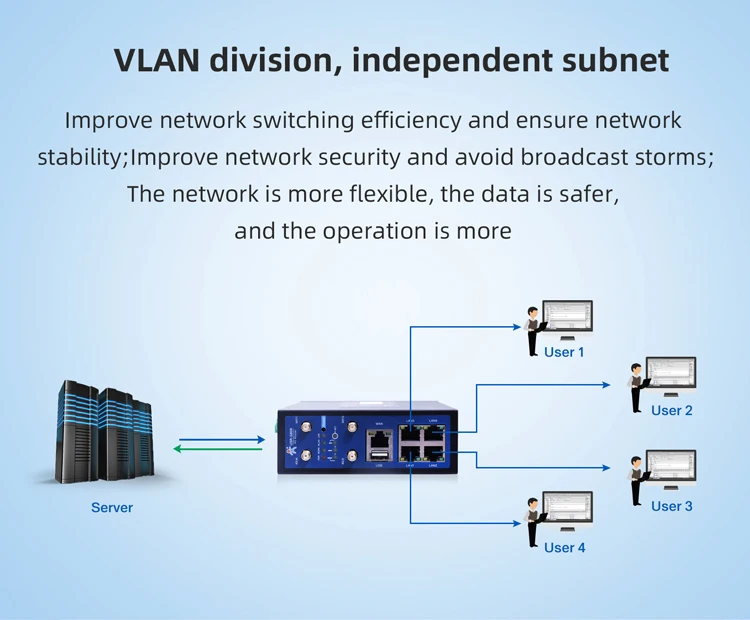

Ethernet

1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection

4 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection

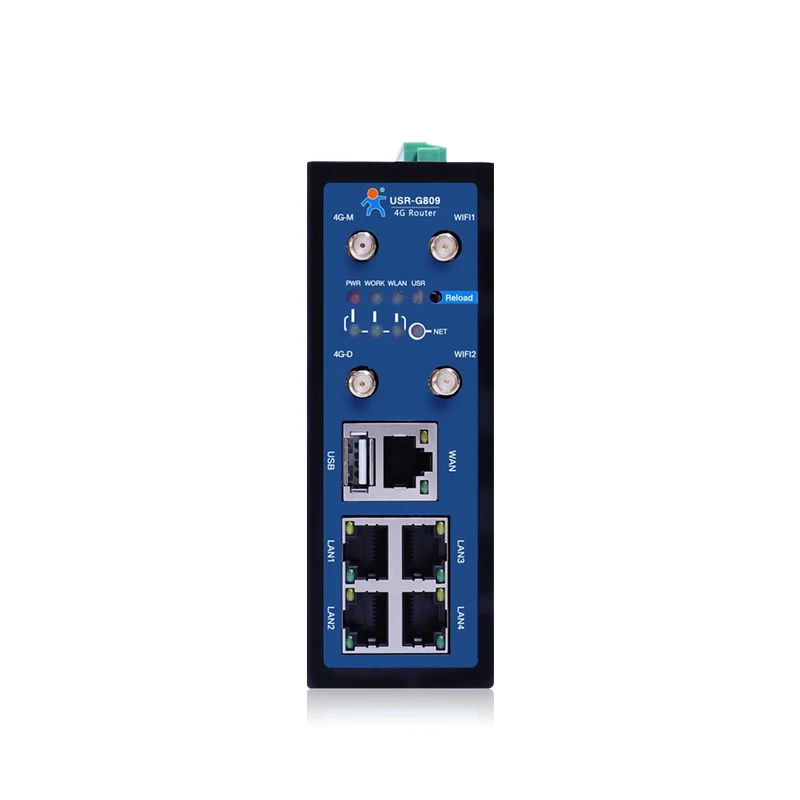

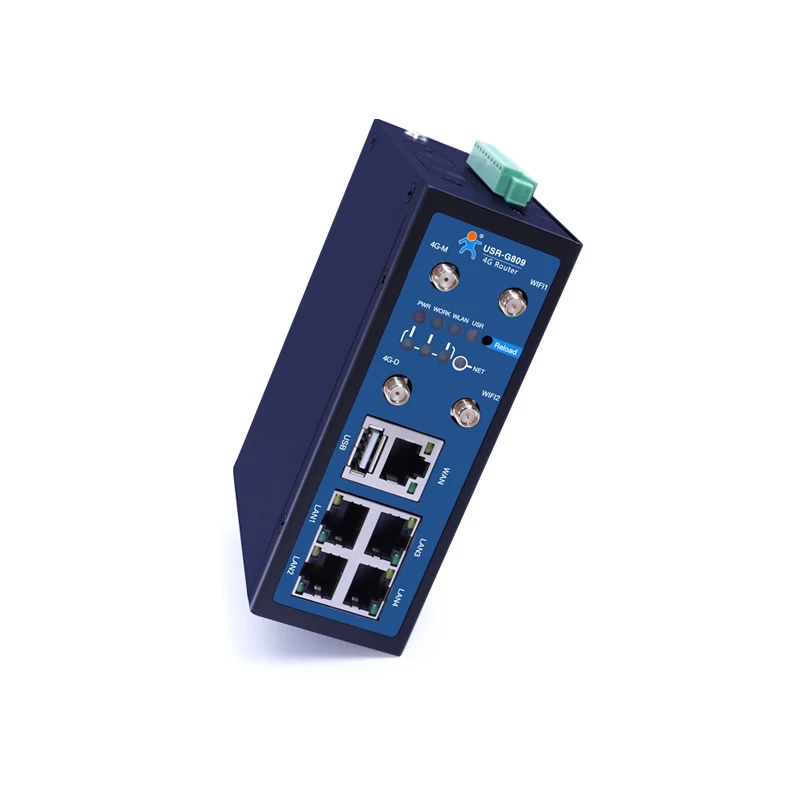

Indicators

LED

PWR: red,always on after powered on

Work: green,blinking when the router is ready and working properly

WLAN: green,always solid on when WiFi is enabled and working properly

USR:user defined.

Net indicator:

Red always on after connected to 2G network

Green always on after connected to 3G network

Orange always on after connected to 4G network

Signal strength:3 solid bars,strongest signal

Terminal block

Pinout

V+,V- : 2 cores terminal power supply socket,built-in power supply phase-reversal protection

GND:groundterminal

Tx/B:RS-232/RS485pin(setupby software)

Rx/A:RS-232/RS485pin(setupby software)

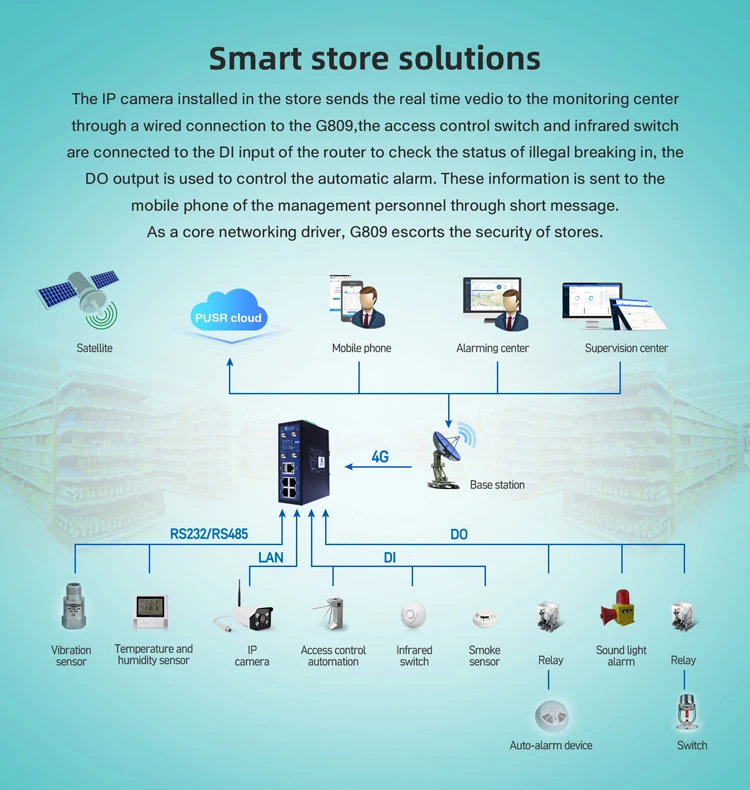

DI:2 x Digital input,passive switch

DO:2 x Digital open collector output, max output 36 V, 300 mA

COM: common terminal,use in conjunction with DOs

WiFi Interface

Standards & Frequency

IEEE 802.11b/g/n,2.4GHz, AP mode

Data speed

IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps

Antenna

2x RP-SMA-K

Transmission distance

80 meters by line of sight.Actual transmission distance depends on environment of the site.

Power Supply

Adaptor

DC 12V/1A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block,reverse polarity protection

Input voltage

DC 9~36V

Working power

Average 522mA/12V, Maximum 811mA/12V

Serial Interface

RS485/RS232(alternative)

industrial terminal block.

Note:RS232 default.

Baud rate(bps)

1200,2400,4800,9600,19200,38400,57600,115200,230400

Data bits

8

Stop bits

1,2

Parity

NONE,ODD,EVEN

Physical Characteristics

Housing

Metal shell,IP30

Dimensions

125.0*103.0*45.0mm (L*W*H,antenna pedestal,terminal block and DIN Rail are not included)

Installation method

Ear mounting, DIN-Rail mounting

EMC

StaticIEC61000-4-2, level3

Pulsed Electric FieldIEC61000-4-4, level3

SurgeIEC61000-4-5, level3

Operating temperature

-20℃~+70℃

Storage temperature

-40℃~+125℃

Operating humidity

5%~95%RH(non-condensing)

Others

Reload

Pinhole button,restore factory defaults/firmware resume/firmware upgrading with USB

TBD

Debug interface (TTL Level)

USB

Firmware upgrading

TF

TF card slot

Ground protection

Screw

Embedded Watchdog

Device runs self-detection, auto recovers from malfunctions

Certificate

CE
