CNC Single Column Vertical Lathe CK5116 Vertical Cnc Lathe Machine For Heavy Cutting
- Category: >>>
- Supplier: Dalian R&C Machinery Co. Ltd.
Share on (1600349164990):
Product Overview
Description
Heavy Duty large vertical turret lathe

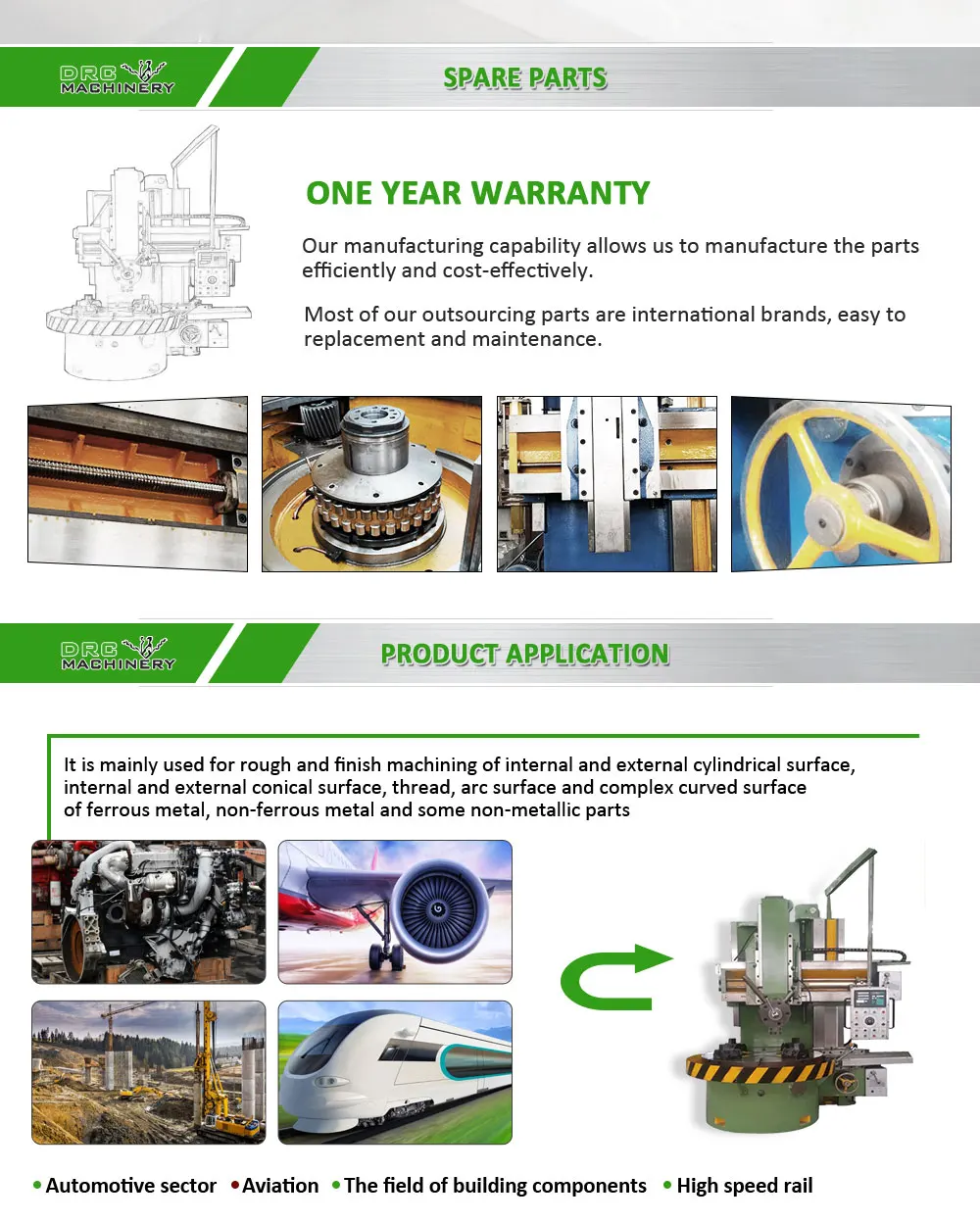

Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.

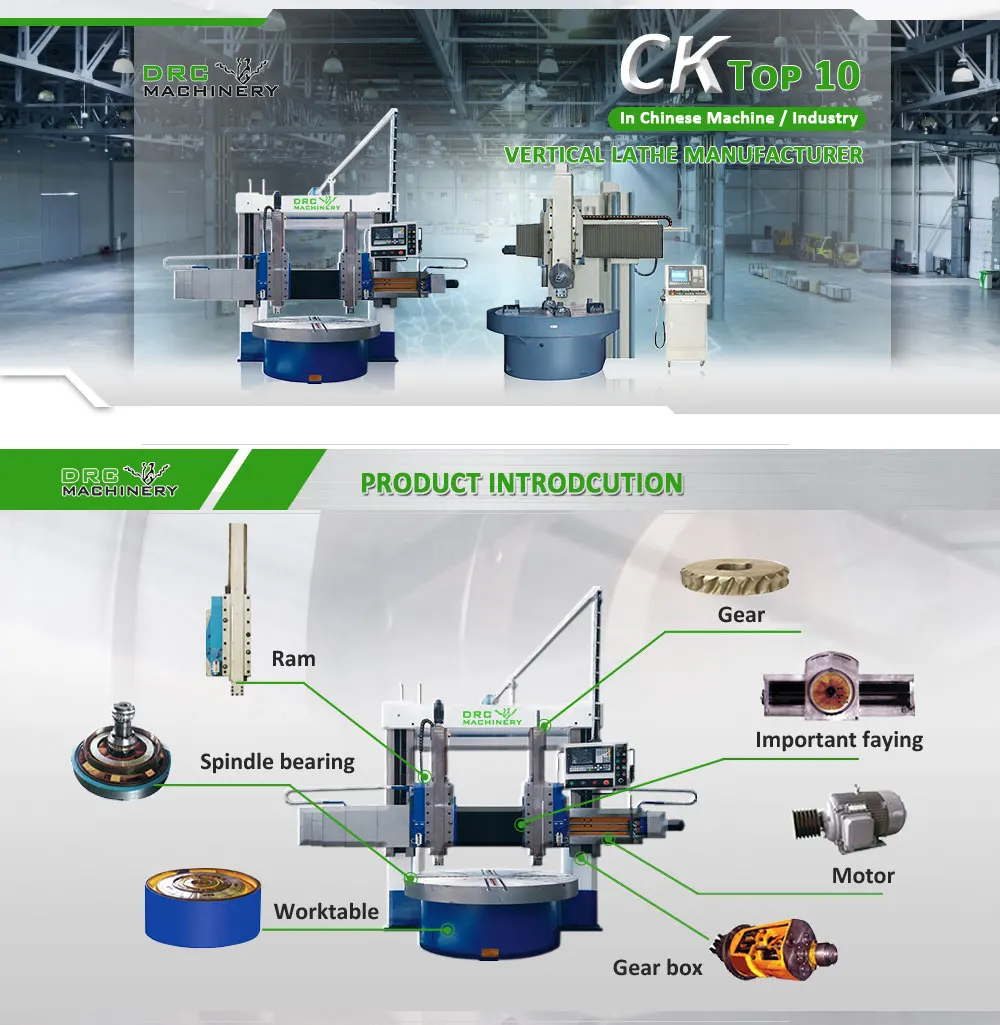

Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.

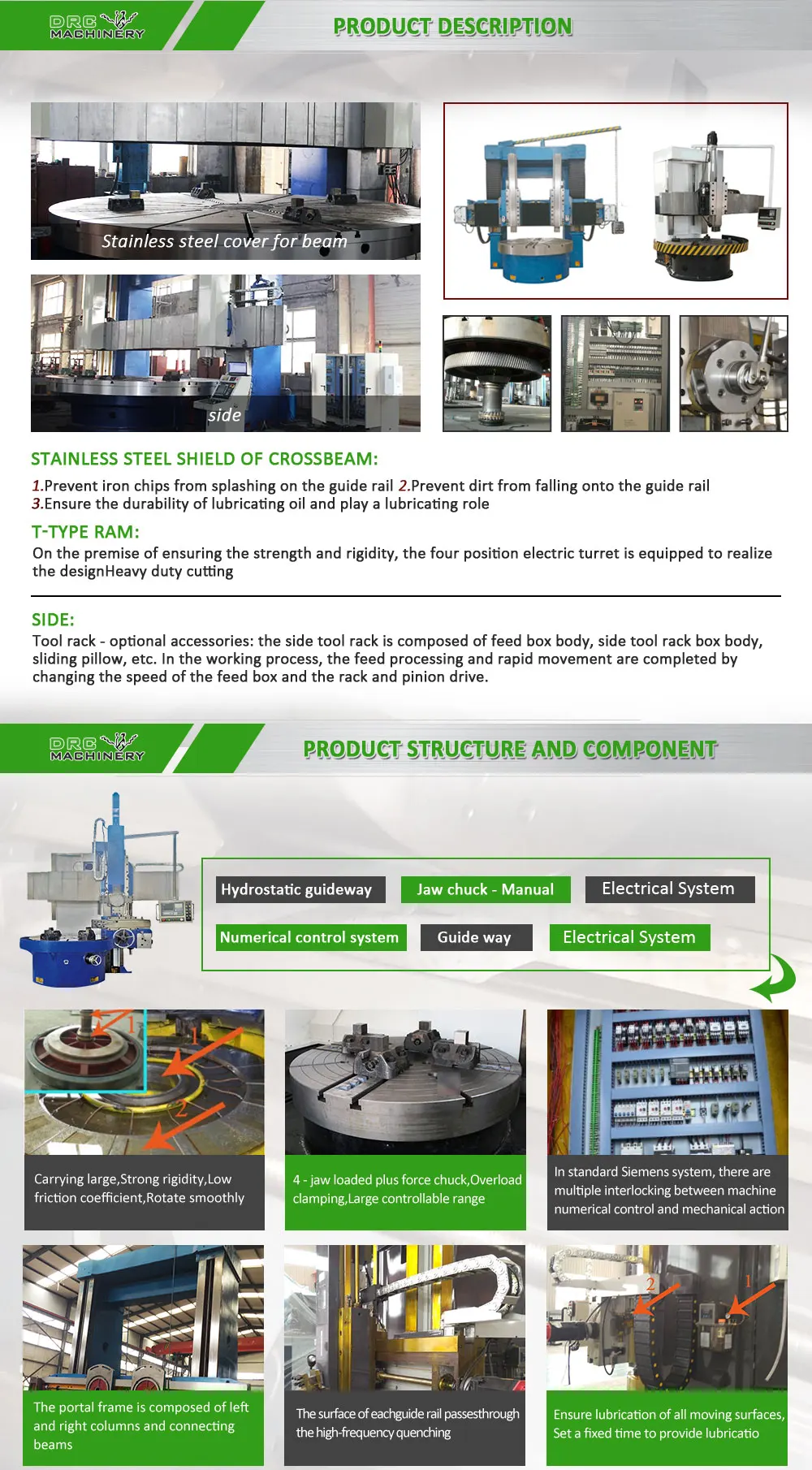

High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.
Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision.
Machine tool electric using domestic brand-name products, high reliability.
Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance.
High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
Main Features:
1. Vertical CNC lathe machine with single column;
2. Rigid column and stable;
3. DRO optional;
4. Precise cutting for heavy metal parts.
1. Vertical CNC lathe machine with single column;
2. Rigid column and stable;
3. DRO optional;
4. Precise cutting for heavy metal parts.
Name | Unit | CK5112A | CK5116A |
Max. turning diameter of vertical tool post | mm | 1200 | 1600 |
Max. turning diameter of workpiece | mm | 1100 | 1400 |
Diameter of worktable | mm | 1000 | 1400 |
The artifact max. height | mm | 1000 | 1200 |
Max. weight of the workpiece | T | 3.2T | 5T |
Max. cutting force of tool holder Right tool holder | kg | 2000 | 2500 |
Max. cutting force of tool holder Left tool holder | kg | 2000 | 2000 |
Max. total cutting force | kg | 3500 | 4000 |
Max.torsion moment of worktable | Kg/m | 1750 | 2500 |
Number of shift stages of work table | Stepless | 16/Stepless | 16/Stepless |
Variable speed range of work table | rpm | 6.3-200 | 5-160 |
Feed level | Stepless | 12/Stepless | 12/Stepless |
Feed range | mm/min | 0.8-86 | 0.8-86 |
Vertical tool post stroke level | mm | 700 | 916 |
vertical | mm | 650 | 800 |
Side tool post stroke level | mm | 630 | 630 |
vertical | mm | 900 | 900 |
Beam stroke | mm | 650 | 650 |
Fast moving speed of tool post | mm/min | 1.8 | 1.8 |
Beam lifting speed | mm/min | 0.44 | 0.44 |
Max. turning angle of tool post | ° | ±30° | ±30° |
Tool square size (width×height) | mm | 30×40 | 30×40 |
Main motor power | kw | 22 | 30 |
Machine size (length×width×height) | mm | 2360×2277×3100 | 2660*2665*3528 |
Machine weight | (about)kg | 8000 | 12500 |
