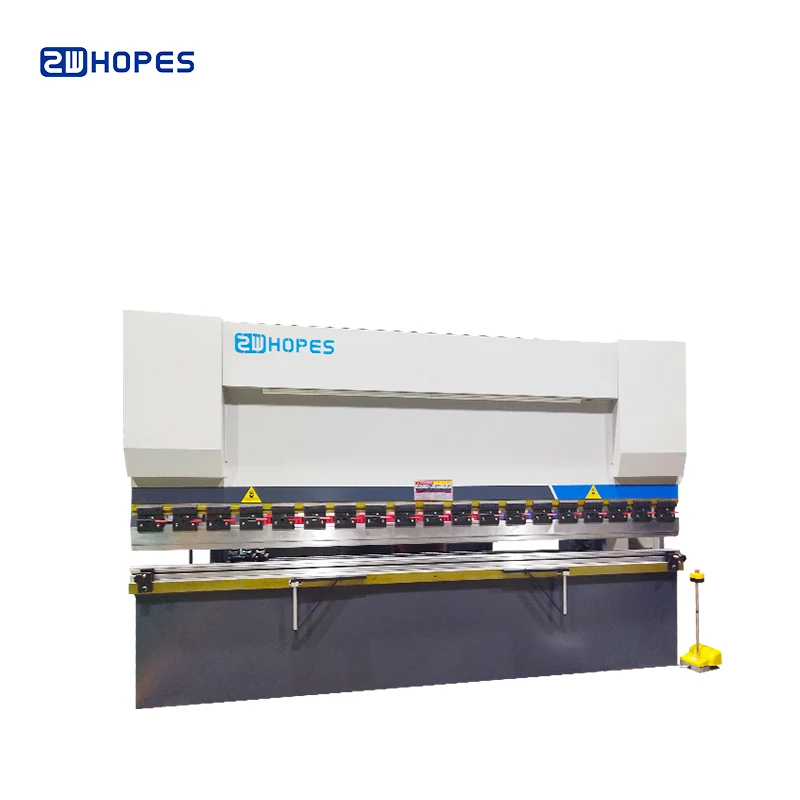

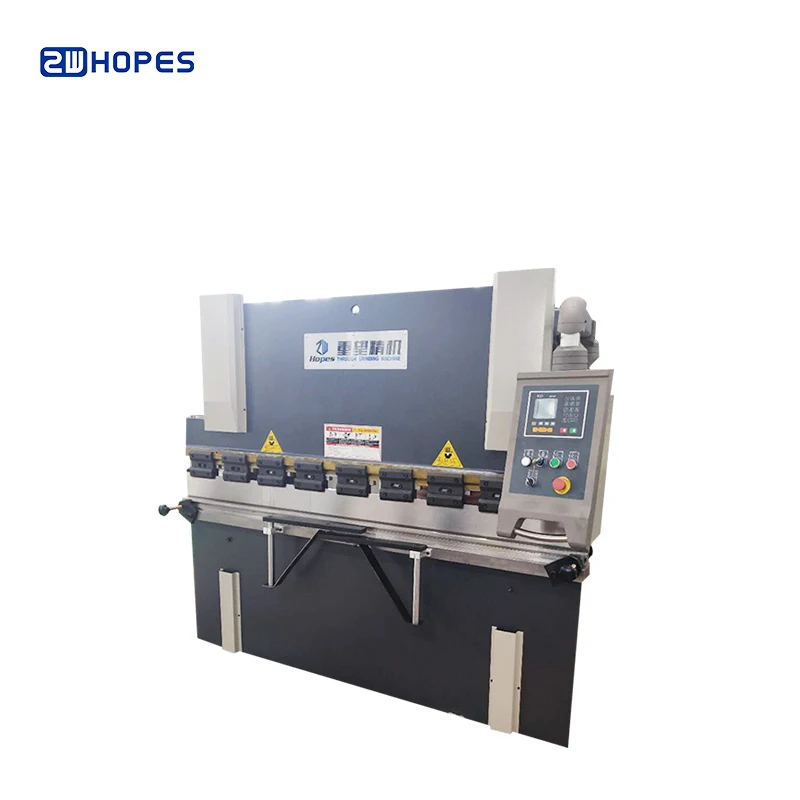

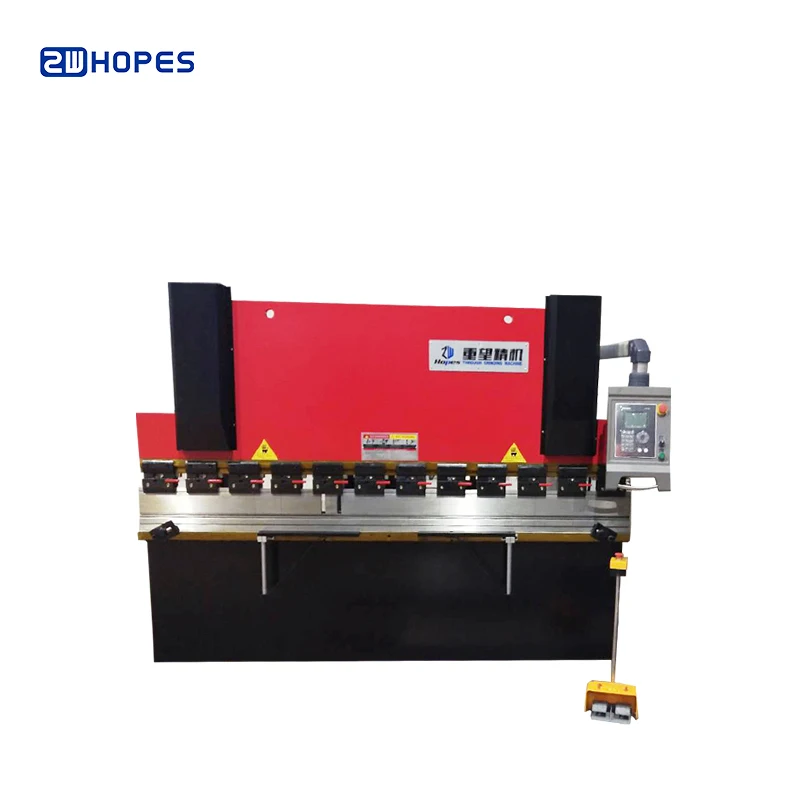

Sheet metal bending machine 4 1 axis 80T2500mm cnc hydraulic press brake with Delem DA52S controller
- Category: >>>
- Supplier: Anhui Zhongwang Precision Machinery Manufacturing Co. Ltd.
Share on (1600349487587):
Product Overview
Description
Product Information
Hot sale Sheet metal bending machine 4+1 axis 80T2500mm cnc hydraulic press brake with Delem DA52S controller
WE67K series electro-hydraulic synchronous CNC hydraulic sheet metal bending machine adopts electro-hydraulic servo
◆ The system controls the two-cylinder synchronization and cooperates with the
grating ruler imported from Germany.
◆Through the CNC system of the bending machine,a fully closed-loop
synchronous control is formed to produce high-precision,
◆High-efficiency working state, the positive and negative range can control the
positioning accuracy of 0.02mm,
◆Repeat positioning accuracy is 0.01mm,and bending accuracy is ≤0.5°
◆Top-moving structure,low noise,stable working condition. Streamlined design, all steel
◆Welding, annealing to remove stress, the machine tool has sufficient strength
and rigidity and performance
◆The stability. The large-scale boring and milling machine is processed in one step
to ensure all processing surfaces ◆The parallelism and perpendicularity.
◆ The system controls the two-cylinder synchronization and cooperates with the
grating ruler imported from Germany.
◆Through the CNC system of the bending machine,a fully closed-loop
synchronous control is formed to produce high-precision,
◆High-efficiency working state, the positive and negative range can control the
positioning accuracy of 0.02mm,
◆Repeat positioning accuracy is 0.01mm,and bending accuracy is ≤0.5°
◆Top-moving structure,low noise,stable working condition. Streamlined design, all steel
◆Welding, annealing to remove stress, the machine tool has sufficient strength
and rigidity and performance
◆The stability. The large-scale boring and milling machine is processed in one step
to ensure all processing surfaces ◆The parallelism and perpendicularity.
1，Control system: Dutch DELEM, Italy ESA
2，Grating ruler : Germany HEIDENHAIN or Italy GIVI,
2，Grating ruler : Germany HEIDENHAIN or Italy GIVI,
3，Servo motor: Nanjing Estun Servo
4，Servo Drive: Nanjing Estun,
4，Servo Drive: Nanjing Estun,
5，Main motor: SIEMENS
6，Hydraulic valve: Germany BOSCH-REXROTH,
6，Hydraulic valve: Germany BOSCH-REXROTH,
7，High-pressure gear pump: SUNNY, USA
8，Main seal: Japan VALQUA,
8，Main seal: Japan VALQUA,
9，Hydraulic pipe fittings: German JS
9，Backgauge configuration: ball screw + linear guide + double linear guide beam,
9，Backgauge configuration: ball screw + linear guide + double linear guide beam,
10，Main electrical components: SCHNEIDER, France
11，Mould: overall quenched, hardness HRC47±2°
11，Mould: overall quenched, hardness HRC47±2°
Model | Nominal Pressure | Bending Length | Bending Thickness | Bending Material | ||||
WE67K-80T/2500 | 800KN | 2500 mm | 3.5mm | Carbon or Stainless | ||||
Vertical Distance | Depth of Throat | Slider Travel | Max. Open Height | Main Power | ||||
2050 mm | 300 mm | 100 mm | 380 mm | 5.5 kw | ||||
Crowing Cylinders | Control Axes | X Axis Travel | X Axis Speed | Overall Dimension | ||||
2 | 4+1 | 500 mm | 200 mm/s | 2605*1725*2300mm | ||||
Weight (T): 4.6 | ||||||||
ESA630
1,10-inch touch screen and powerfulimage
processing capabilities
2,Simple operation process,efficient algorithm
processing capabilities
2,Simple operation process,efficient algorithm
3,Direct control of various servo valves without
external amplifier
4, Can support 4-axis control (Y1.Y2 and two additional axes)
5,Workbench disturbance compensation control
external amplifier
4, Can support 4-axis control (Y1.Y2 and two additional axes)
5,Workbench disturbance compensation control
6,Mould/material/product library O
7,USB peripheral interface
DA52S
* 7" widescreen color TFT
* Can support4-axis control(Y1.Y2 and two additional axes)
* Workbench deflection compensation control
* Mould/material/product library
* USB peripheral interface
* Y-axis control algorithm,
* Can control closed loop or open loop valve C Panel type installation structure,optional suspension box
* Can support4-axis control(Y1.Y2 and two additional axes)
* Workbench deflection compensation control
* Mould/material/product library
* USB peripheral interface
* Y-axis control algorithm,
* Can control closed loop or open loop valve C Panel type installation structure,optional suspension box
Anhui Zhongwang Precision Machinery Manufacturing Co., Ltd.
Anhui Zhongwang Precision Manufacturing Machinery Co., Ltd. (formerly known as State-owned Dangtu Machinery Factory) was established in 1978. Now the company specializes in the research and development of bending machines, shears and other mechanical equipment. Production.
The main products cover: QC11Y, QC12Y, WC67Y, WE67K, W11, J23, J21s, J21S, Q35Y and more than 20 series, more than 200 varieties of large, medium and small ordinary CNC shears,Ordinary CNC bending machine, electro-hydraulic servo bending machine, press. It is widely used in automobile manufacturing, communication, computer and other fields. The company has its own scientific research and development institution, and has strong domestic product research and development capabilities.
To our customers: Your demand for quality is the driving force for our efforts. May our products and efforts bring you the joy of success!
The main products cover: QC11Y, QC12Y, WC67Y, WE67K, W11, J23, J21s, J21S, Q35Y and more than 20 series, more than 200 varieties of large, medium and small ordinary CNC shears,Ordinary CNC bending machine, electro-hydraulic servo bending machine, press. It is widely used in automobile manufacturing, communication, computer and other fields. The company has its own scientific research and development institution, and has strong domestic product research and development capabilities.
To our customers: Your demand for quality is the driving force for our efforts. May our products and efforts bring you the joy of success!
