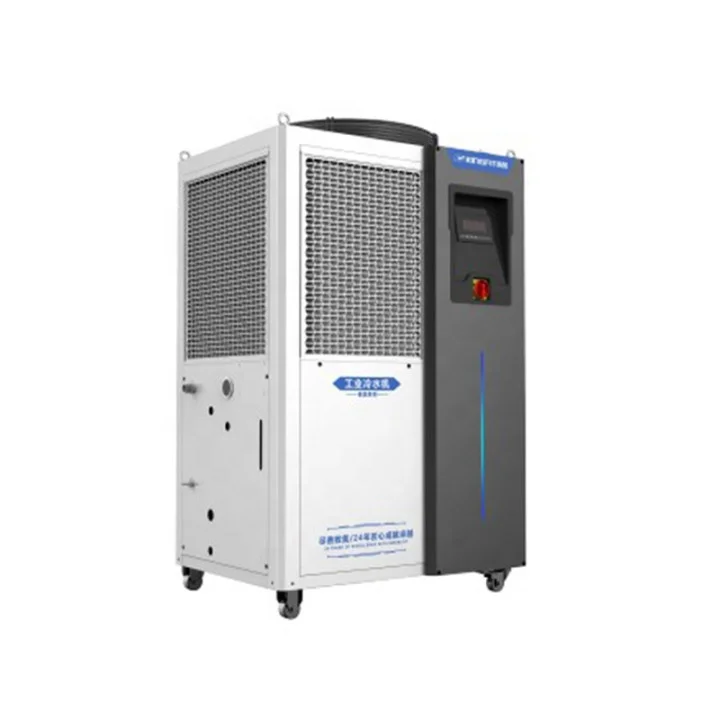

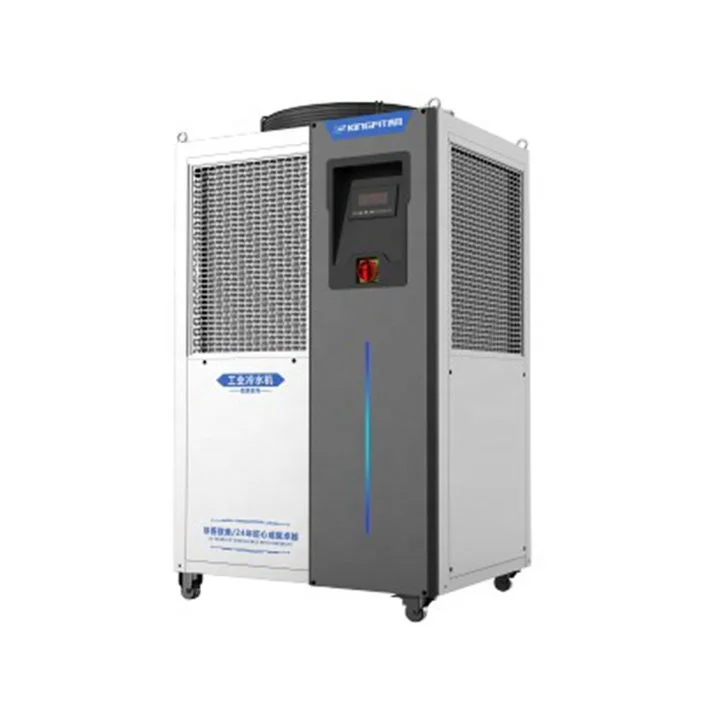

Micro channel plate air cooled industrial mold injection chiller manufacture
- Category: >>>
- Supplier: Zhejiang Kingfit Enviroment Co. Ltd.
Share on (1600349528040):
Product Overview
Description
Product Description
Microchannel Air Cooled Chiller:
What is a micro channel coil?
The Micro channel coil design is based on technology from the automotive industry. It is constructed of parallel flow aluminum
tubes that are mechanically brazed to enhanced aluminum fins, resulting in better heat transfer and a smaller, lighter, corrosion
resistant coil.
How does Micro channel compare to other types of coils?
Other manufacturers use copper tubes with aluminum fins, or spiny fin coils which are aluminum tubes with spiny fins tightly
wrapped around them. Both of these designs result in a larger coil that is MUCH easier to damage and both require twice as much
refrigerant. The aluminum fins in both of the above designs are delicate and very hard to clean without causing damage.
The Micro channel coil design is based on technology from the automotive industry. It is constructed of parallel flow aluminum
tubes that are mechanically brazed to enhanced aluminum fins, resulting in better heat transfer and a smaller, lighter, corrosion
resistant coil.
How does Micro channel compare to other types of coils?
Other manufacturers use copper tubes with aluminum fins, or spiny fin coils which are aluminum tubes with spiny fins tightly
wrapped around them. Both of these designs result in a larger coil that is MUCH easier to damage and both require twice as much
refrigerant. The aluminum fins in both of the above designs are delicate and very hard to clean without causing damage.

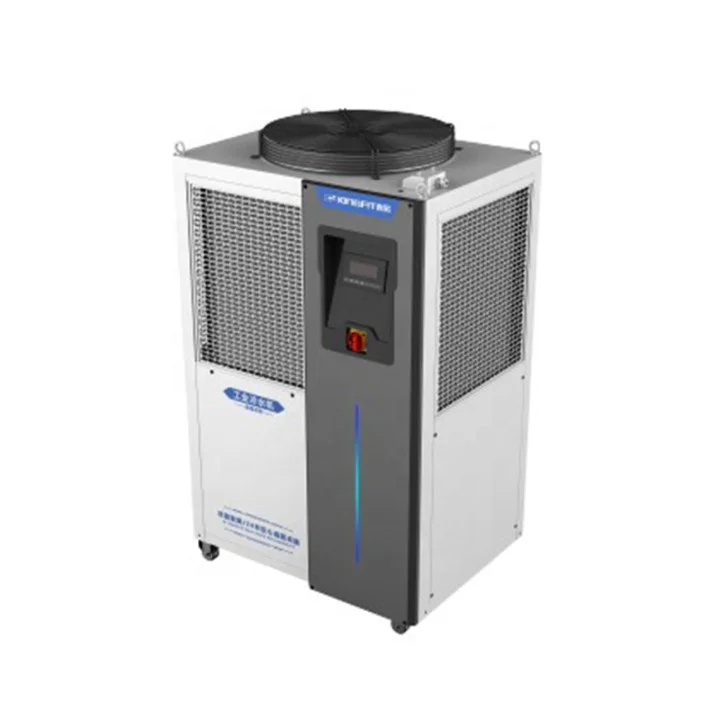

Left side view
Back side view

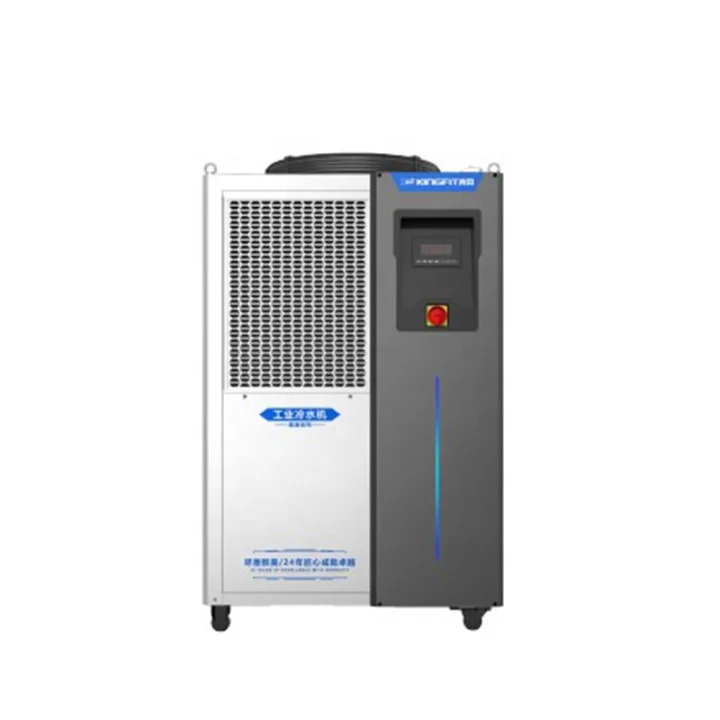

Right view
What are the advantages of using Micro channel coils?
Size and Efficiency - Micro channel coils are 40% smaller, 40% more efficient, and use 50% less refrigerant than standard tube and fin coils. Durability and Resistance to Corrosion – Micro channel coils are much sturdier and harder to damage. These coils last up to 7 times longer in a coastal environment.
Easier to clean - Micro channel coils are easy to clean!
You can actually wash the Micro channel coils with a high pressure sprayer without bending the fins – with a tube and fin coil that would bend all the fins flat! Now you have an opportunity to add condenser coil cleaning to your maintenance contracts; you can easily clean a coil to like-new condition in less than 10 minutes with a pressure spray; there is no other coil that is this easy to clean.
Enhanced coil protection - Standard tube and fin coils are easily damaged in transit and handling.
The coils are far more resistant to damage, plus these units also have a steel coil guard and a Diamond Mesh guard to keep coils thoroughly protected and great looking for years.
Easier to clean - Micro channel coils are easy to clean!
You can actually wash the Micro channel coils with a high pressure sprayer without bending the fins – with a tube and fin coil that would bend all the fins flat! Now you have an opportunity to add condenser coil cleaning to your maintenance contracts; you can easily clean a coil to like-new condition in less than 10 minutes with a pressure spray; there is no other coil that is this easy to clean.
Enhanced coil protection - Standard tube and fin coils are easily damaged in transit and handling.
The coils are far more resistant to damage, plus these units also have a steel coil guard and a Diamond Mesh guard to keep coils thoroughly protected and great looking for years.
Detailed Images

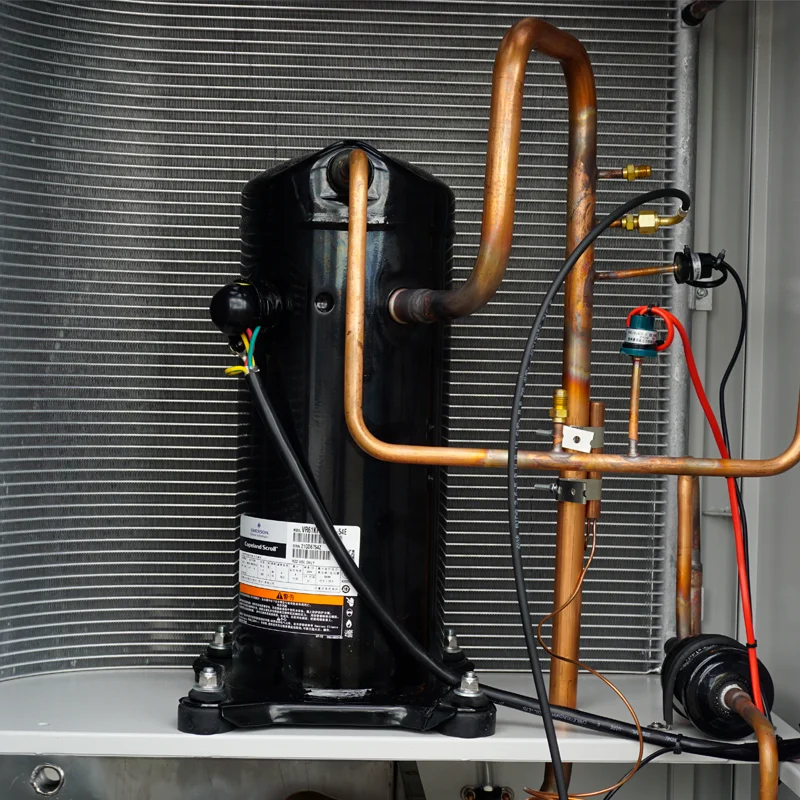

Copeland Scroll Compressor

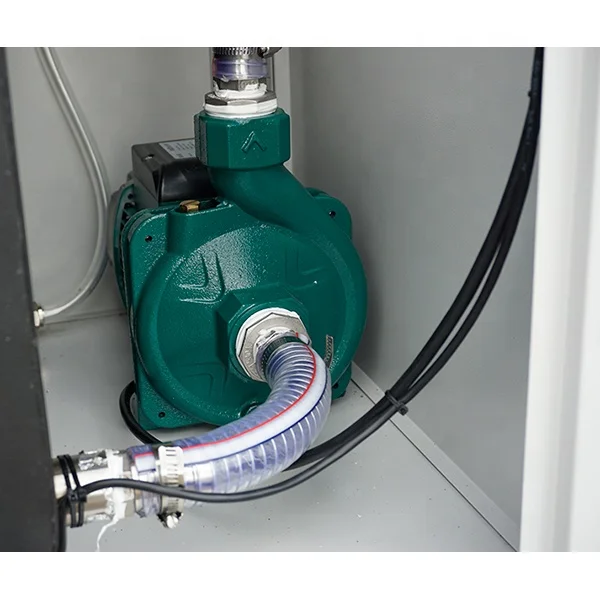

Circulating Water Pump
Low Noise Condenser Fan
Microchannel Coil Condenser
Electrical Cabient
Stainless Steel Tank + Copper Coil
Specification
Mode | QLB25MC/LG | ||||||
Cooling Capacity ( kw ) | 25.4KW | ||||||
Cooling Type | Air Cooled | ||||||
COP | 3.11 | ||||||
Power Supply | 380V/50HZ | ||||||
Max. current | 13.7A | ||||||
Compressor | Mode | Full-hermetic Scroll | 1set | ||||
Input Power | 7.42KW | ||||||
Loading | 0~100％ | ||||||
Refrigerant | R410A | ||||||
Wiring（mm²） | 10 | ||||||
Condenser | Mode | Microchannel Coil | |||||
Condensing Fan Motor ( kw ) | 0.38kw | ||||||
Ambient Temp. | Dry Bulb 35℃ / Wet bulb 28℃ | ||||||
Evaporator | Mode | 90 liters Tank + Coil | |||||
Chilled water in ( ℃ ) | 12℃ | ||||||
Chilled water out ( ℃ ) | 7℃ | ||||||
Water flow rate ( M3/h ) | 2.18M3/h | ||||||
Throttle Methods | Thermal Expansion Valve | ||||||
Safety protection | High or low pressure protection, over-load protection, anti-phase protection, compressor over-heat protection, extra high pressure fusible plug protection, oil pressure protection, etc. | ||||||
Piping connection | Chilled water in &out (DN) | DN25 | |||||
Dimension | L x W x H | 705mmx 660mm x 1520mm | |||||
Weight (kg) | 152KGS | ||||||
Solutions
Plastic injection cooling, Die cooling, mould cooling, PVC PPR PP Extruding cooling purpose.
Food & beverage processing, Metal surface finishing electroplating etc.
Company Profile
About US
Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment. The scale of production can each an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.

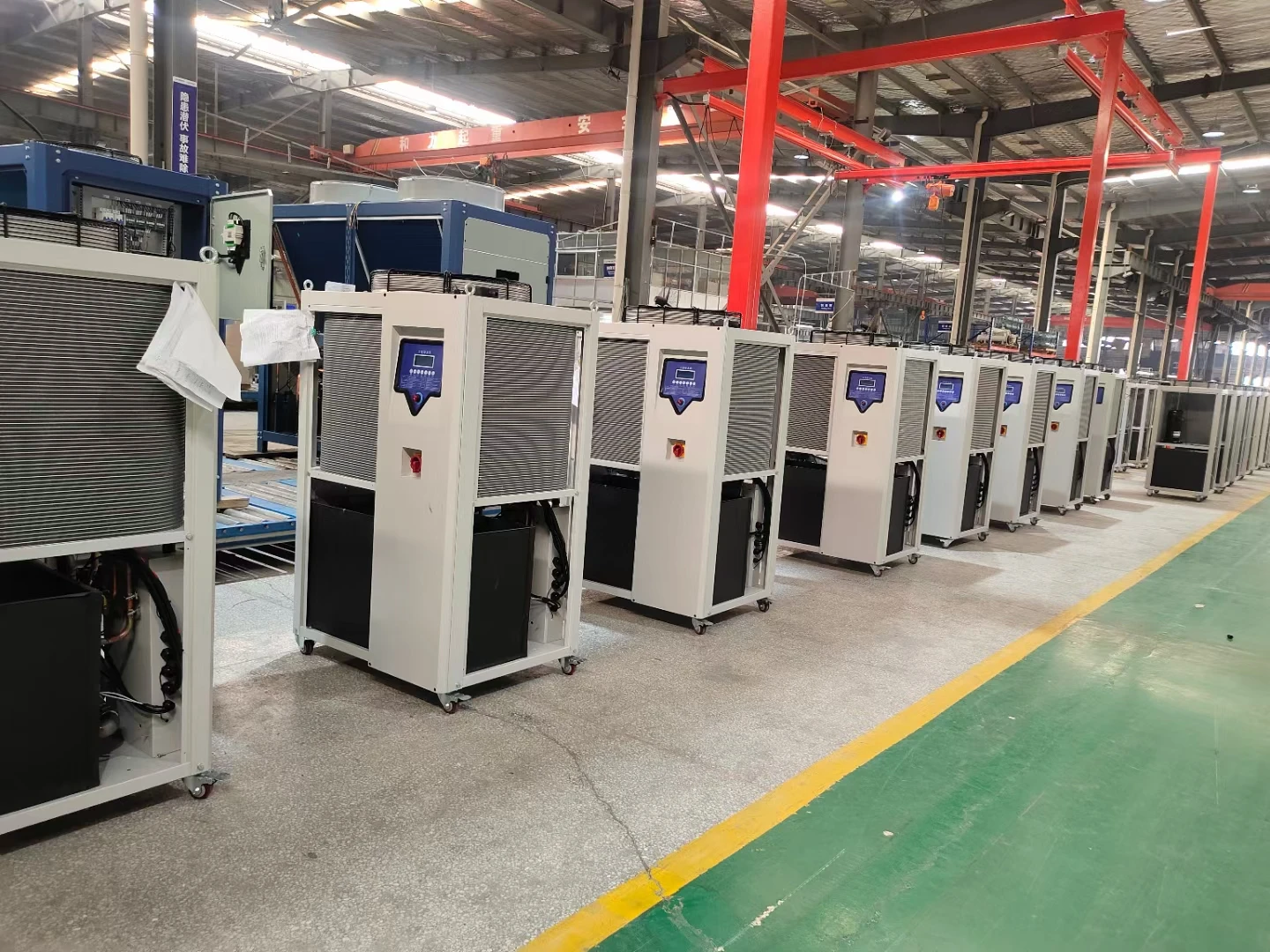

Modern Production Lines:
Certifications
Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
ISO9001, CE Certificate.
Exhibition
Packing & Delivery
Wooden package with Air bubble film, Wrapping Film, Big part will be nude packing in container, steel wire fixed so that it's stable for shipping.
Why Choose US?
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely
without worries about the after-sales service.
