Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier
Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier

Respiratory Medicine ICU Breathing Comfortable HFNC Respiratory Humidifier

Share on (1600349740976):


Price:

Quantity:


Product Overview

Description



Order with Trade Assurance




Product Description




Product Description

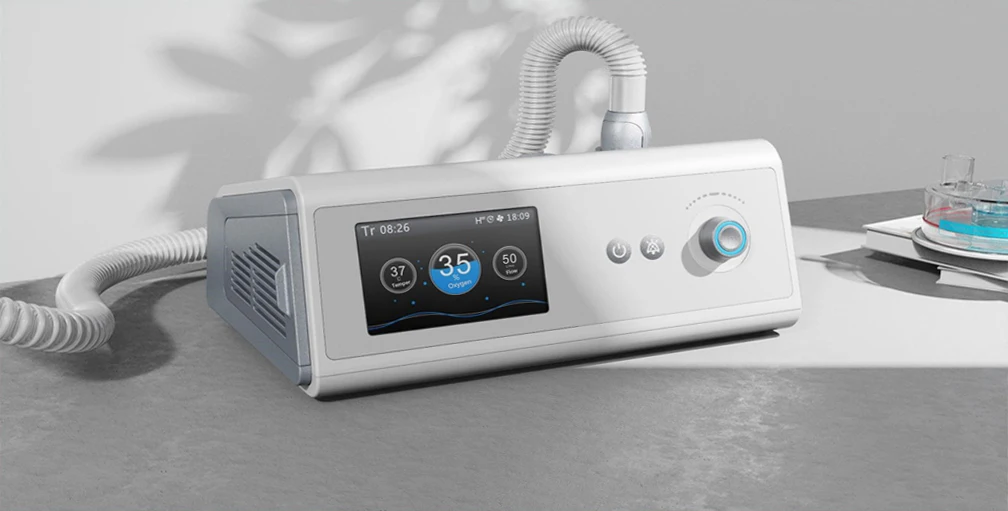

High flow heated respiratory humidifiers is mainly used to provide humidified and heated air-O2 mixed gas to the nasal cavity directly through a nasal congestion catheter without sealing, which is higher than the peak inspiratory flow rate of the patient. The oxygen concentration is accurate and adjustable, which makes the breathing more comfortable. lt is an effective respiratory therapy that is suitable for invasive or non-invasive patients with spontaneous breathing, not for life support.



Applicable Department
Respiratory medicine, ICU, emergency room, neurology, neurosurgery, cardiothoracic surgery, pediatrics(≥3kg), rehabilitation ward, geriatric ward, etc.




Performance Parameters
Model number
RHU-6B
RHU-8B
Oxygen control
Buoy flowmeter control
Automatic
Flow setting
2~60L/min
2~80L/min
Working mode
High flow mode/Low flow mode
Display
5 inch touch screen
O2 concentration
21%~100%
Humidity range
-4~+4, 9 levels
Temperature setting
29°C~37°C, 9 levels
Temperature accuracy
±2°C
Real time monitor
Oxygen concentration, flow, temperature, respiratory rate, oxygen source pressure, SpO2, pulse rate, rox index
Trend review
1, 3, 7, 30 days
Preset single therapy time
0~99h
Alarms
19 alarms
SpO2
Optional
Wifi function
Optional
IP classification
IP22
Dimensions
323*225*136mm
Weight
3.2kgs
Power input
100~240V AC, 50/60Hz

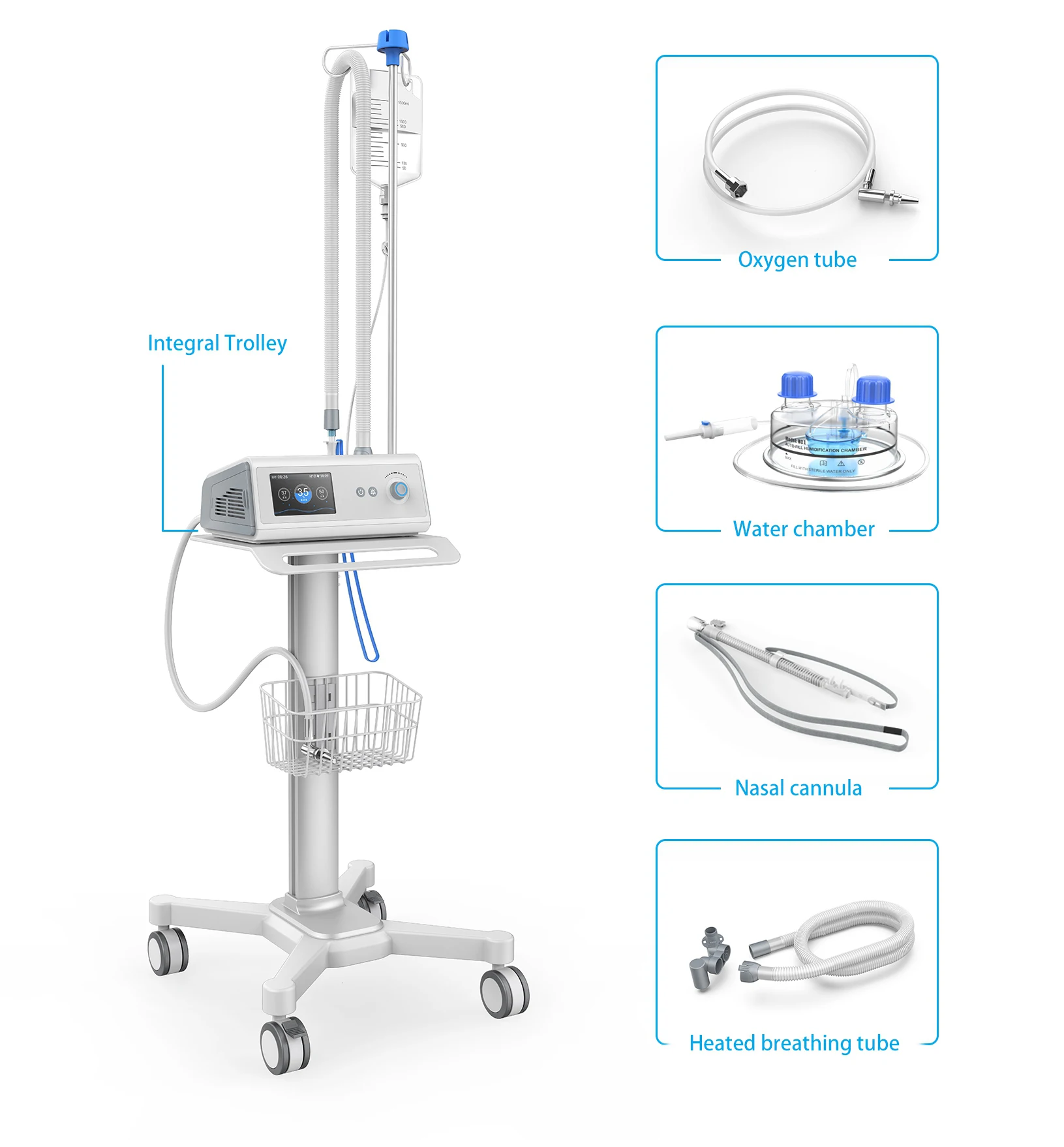

Accessories
Integral trolley, oxygen tube, water chamber, nasal cannula, heated breathing tube




Clinical Characteristics
Acute patients with mild to moderate respiratory failure in ICU or emergency room
lmprove dyspnea, rise oxygenation, reduce intubation rate, and intubation mortality is significantly lower than non-invasive
ventilation and standard oxygen therapy

Endotracheal intubation
Improve oxygenation index, delay onset of hypoxemia

Oxygen therapy after invasive withdrawal
High tolerability and comfort, reducing the rate of reintubation

Acute heart failure and cardiogenic pulmonary edema
Improve dyspnea, especially refractory dyspnea

Postoperative care, to mitigate the risk of respiratory failure
Replace non-invasive ventilator to achieve higher comfort

Chronic airway disease
Improve the upper airway status of patients with obstructive sleep apnoea





Performance Advantages
Precise oxygen concentration control and monitoring

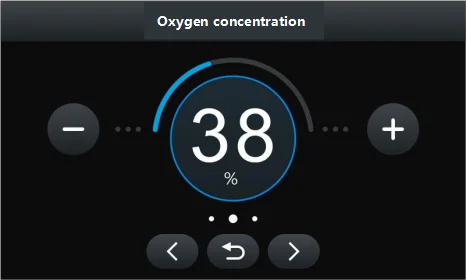

The oxygen concentration setting range is 21% to 100%. Ultra-sensitive oxygen concentration sensor and miniature proportional valve can accurately control the oxygen concentration to ensure that the mixed gas can meet any oxygen concentration requirements of patients. At the same time, the oxygen concentration can be monitored in real time to ensure that the oxygen concentration is accurate and effective.

Precise flow control and monitoring

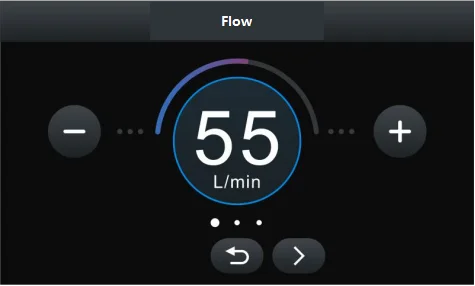

Flow setting range: 2L/min~60L/min, the imported flow sensor can ensure the accuracy of high-flow gas, and at the same time monitor the gas flow in real time to ensure the effective treatment of patients.

Precise temperature control and monitoring
29°C ~37°C, 9 levels adjustable. Applying high-sensitivity sensor and innovative intelligent dynamic control algorithm, which can accurately control the inhalation temperature of the patient side, and monitor it real-timely to ensure that the heating and humidification are safe and effective. The humidity can reach 100% to meet the needs of more patients.

Blood oxygen saturation real-time detection
The blood oxygen module can monitor the patient's blood oxygen saturation and pulse rate in real time, providing more treatment information for patients and medical staff.





Ergonomic Design-Easy to use, safety and comfortable
Exquisite appearance, excellent quality

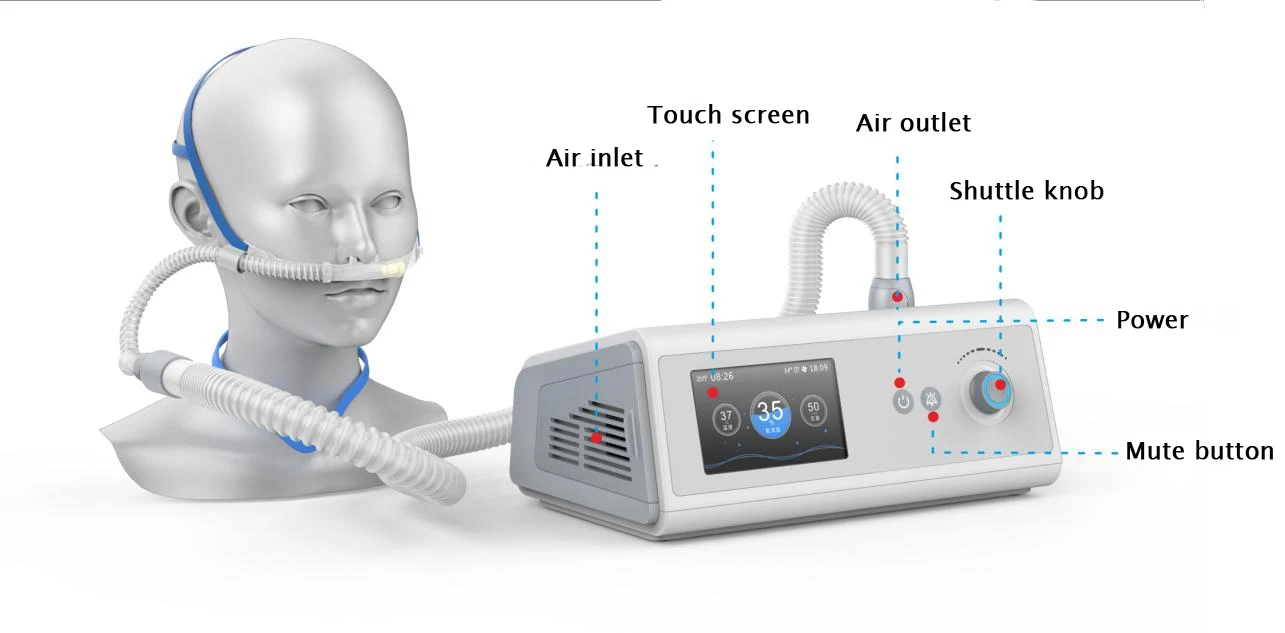

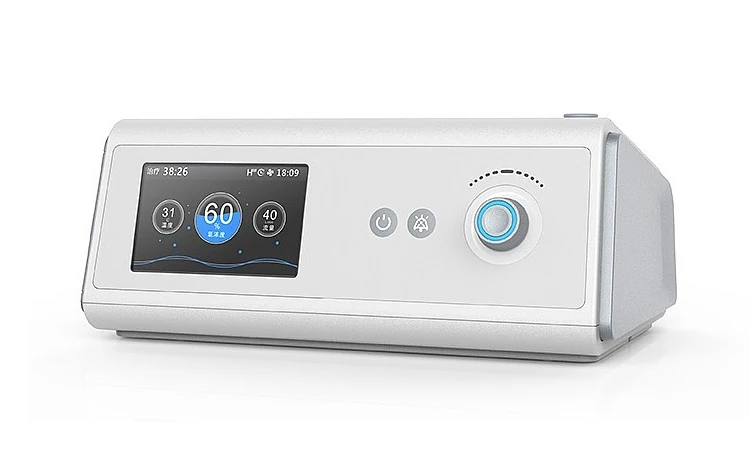

Made of selected materials, with brief and grand appearance, user friendly and good-looking. Applied 5-inch color touch screen, neat user interface design, important information grasped at a glance.

Easy to use and thoughtful design

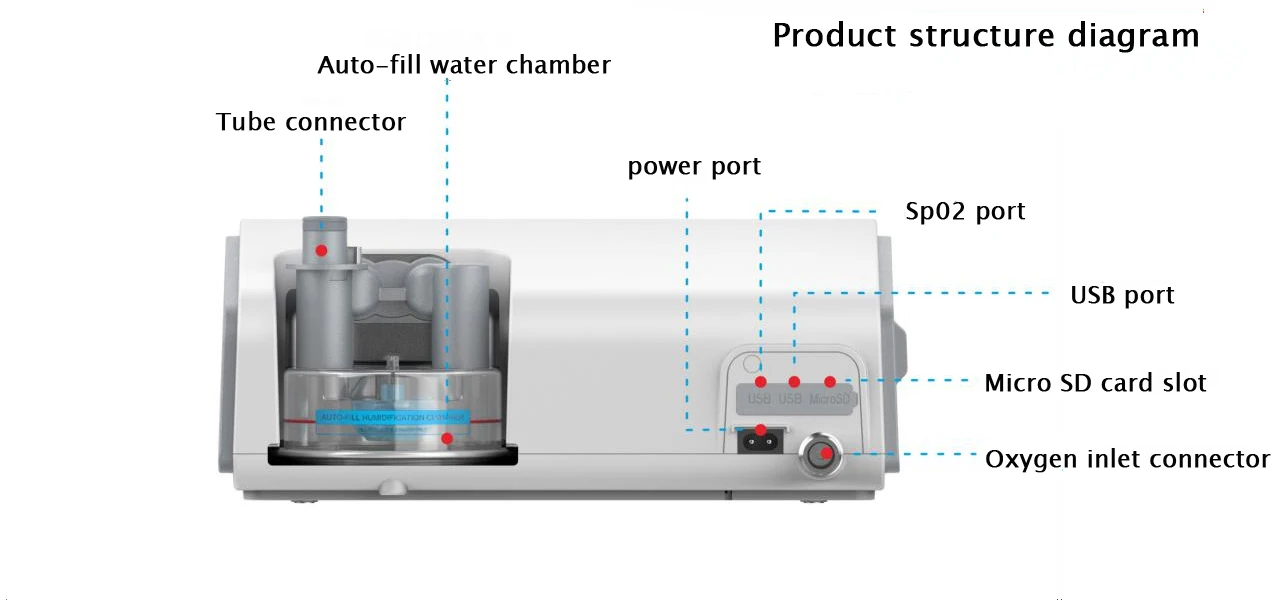

One-key shifting from high flow to low flow mode, fast and convenient. Fully disposable design, the host does not need to be disinfected. Auto-fill water chamber, handy and carefree. Touch screen + shuttle key, dual operation ways, easy to use. The brightness and time range of night mode can be set to improve the comfort of patients. PM2.5 ultra fine air filter makes sure you can enjoy clean air.






Carefully casting, safety promised
Dual color hypnotic lamp: Blue in normal status, and red in alarming status. Convenient to check the status of equipment from a distance.
Multiple alarms: 19 alarms to ensure that use errors are detected in real time and keep the treatment process safe and effective.
History record query: It can record the temperature, flow rate and oxygen concentration for passed 1 day, 3 days, 7 days or 30 days, which is convenient to check the treatment data quickly.
SD memory card: 8G large capacity memory card can store all kinds of data of patients in treatment, providing more referable detailed data for further treatment.
