Price:$118.00 - $122.00

Quantity:


Product Overview

Description

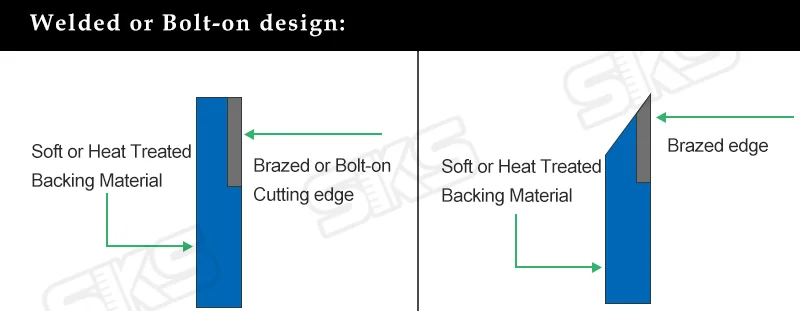

Inlay design technology is matured.




Product Name

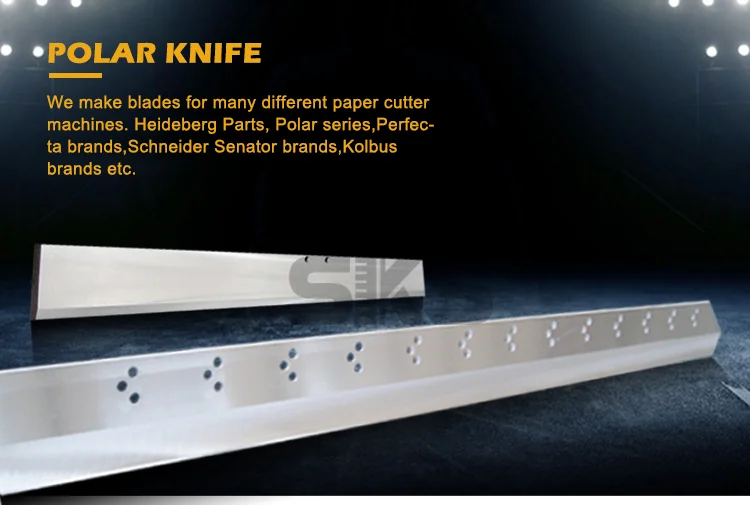

Polar knife
Material
HSS, inlaid high-speed steel, inlaid cemented carbide，Customized
Application
Guillotine Paper Cutter
Size
Cusomized
OEM & ODM
Acceptable


Technical Parameters of HSS Inlay Polar 137 Guillotine Blade
1. Chamfer angle (single-sided blade): 22-24 degrees
2. Tolerance:
(1) Blade straightness accuracy: 0.1mm/1000mm
(2) Blade flatness: ＜ra0.1um
(3) Parallel: 0.02mm


product details

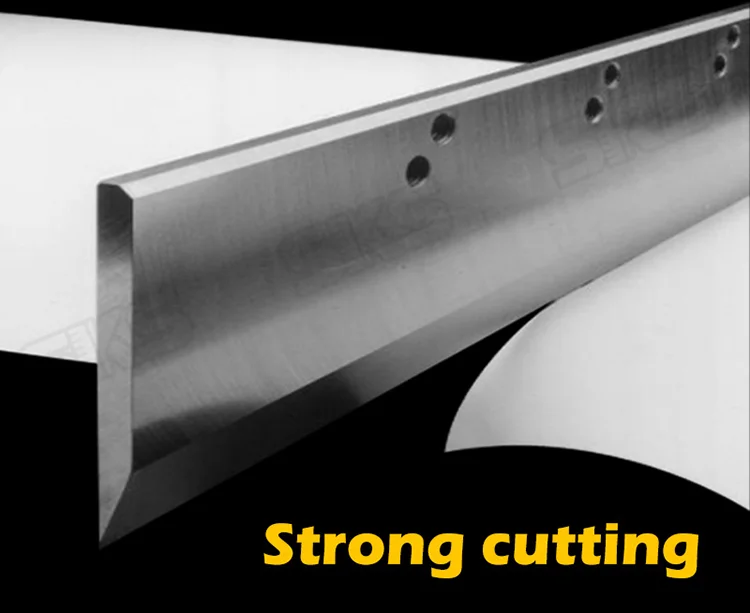

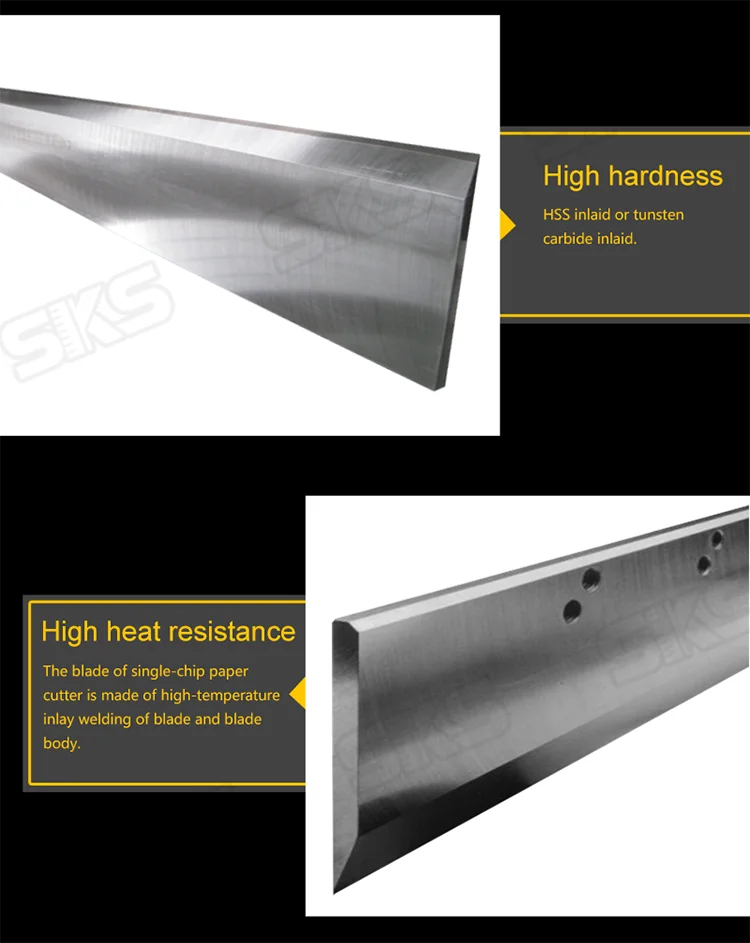

Features of HSS Mosaic Polar 137 Guillotine Blade:
1. Forged steel makes the internal microstructure closer, and the metal grain size becomes smaller to ensure a long working life.
2. Mirror surface finish, minimum friction of polished inclined surface.

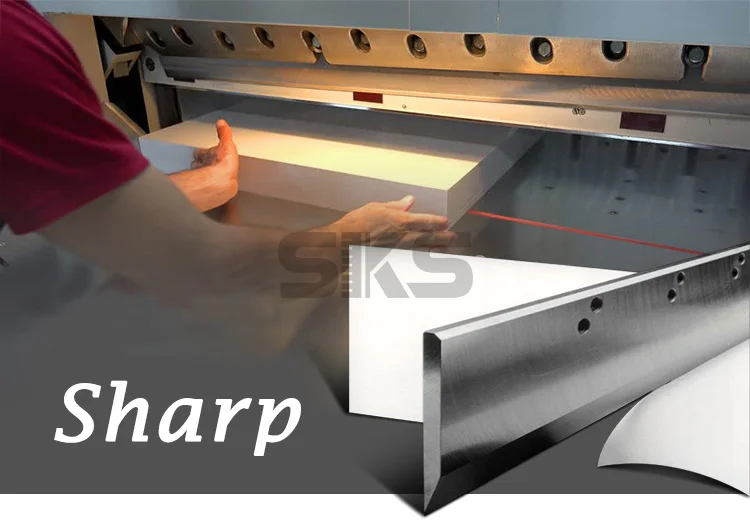

3. The Polar 115 guillotine blade has a sharp cutting edge, higher precision, and excellent cutting effect.
4. The service life between repeated grinding of each knife and a higher number of repeated grinding is longer.




Size could be customized
Machine Models
Size(mm)
Holes
weight（KG）
Polar 55
685*95*9.7
14-M10
5
Polar 58
715*95*9.7
12-M10
5.2
Polar 78
960*107*9.7
6-M10
9.7
Polar 90
1080*115*11.7
11-M10
11.4
Wohlenberg 76GW
900*100*10
12-M12
7.1
Wohlenberg 92/EH120
1090*120*12
22-M12
12.6






Precision stamping 0.01mm tolerance
SKS has 30 years of ingenuity focusing on precision stamping parts, a 6,600 square meter production workshop, hundreds of precision processing and production equipment, scientific management, and a complete team. The products required by customers can reach a tolerance of 0.003mm.


SKS introduces advanced design technology and precision components
SKS introduces advanced design technology and precision components, communicates with designers from tool factories around the world, understands the precision level of foreign parts used, and expands the vision of its own designers, so as to use higher-level accessories to improve the accuracy of SKS blades level.

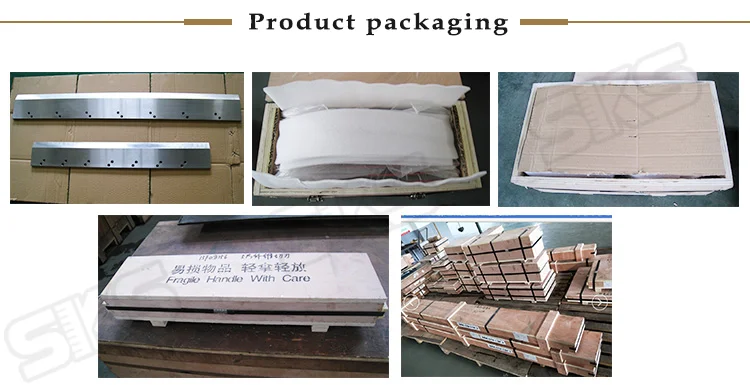

1, PE film or Kraft paper in anti-rust oil - keep air/water/humid away, thus rust-proofing.
2, Bubble film - increases the impact resistance ability.
3, Rubber Slip or Corrugated Angle - gives special care to knife edges.
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or plywood case - provide superior protection and stack-ability




Company Profile

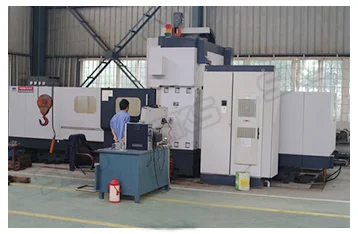

The company occupies an area of ​​6,600 square meters, equipped with various process workshops and production areas. The factory has more than 100 production equipment including CNC machining centers, and has 10 heat treatment and material testing technicians. We have passed ISO9001, CE and SGS certification, and strictly abide by international quality standards.

Our factory has strong non-standard production ability, and we can make tailor-made according to customers' drawings and samples. Products are widely used in steel, paper, wood, plastic, rubber, textile and packaging industries. Since the company exported to the United States in 2008, it has been exported to dozens of countries including Indonesia, India, Japan, the Philippines, Malaysia, the United Kingdom, Italy, Turkey, Russia, and Mauritius. At the same time, the company's customer base includes well-known domestic and foreign companies, domestic and foreign OEM manufacturers, foreign tool dealers and even tool manufacturers.
