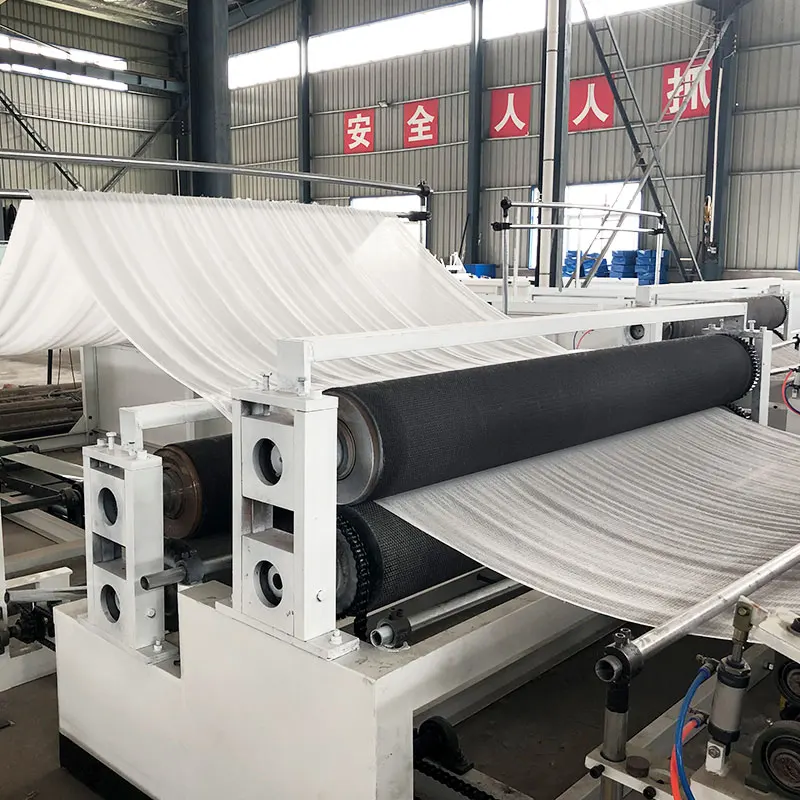

Automatic Tissue Paper Making Machine Paper Toilet Paper Rewinding Machine Toilet Tissue Roll Equipment
- Category: >>>
- Supplier: Henan Young Bamboo Industrial Co. Ltd.
Share on (1600349941806):
Product Overview
Description
Products Description

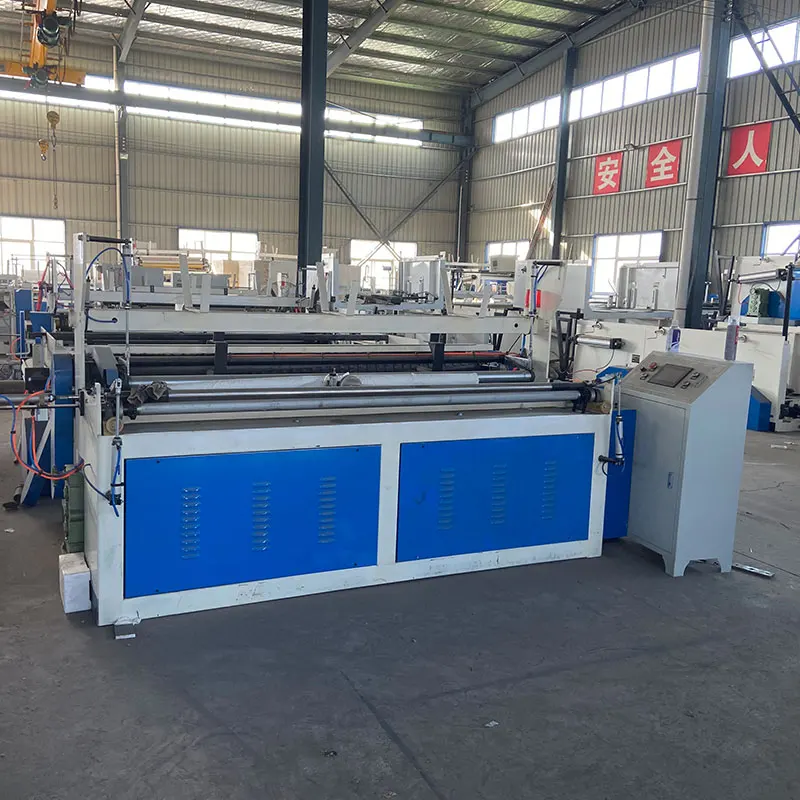

New design automatic toilet paper embossed rewinding machine small toilet tissue paper making machine
This machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding.
Product Paramenters
Machine Model | 1575/1880//2400/3000/S3000 |
Paper Width(mm) | Max 1750mm/2200mm/2400mm/3000mm/3050mm |
Paper Diameter(mm) | φ1150mm(Please Specify) |
Paper Core Inner Diameter | φ76mm(Please Specify) |
Product Diameter | φ50mm-180mm |
Paper Backing | 1-4layer,general chain feed or continuously variable transmission feed paper |
Punch | 2-4 Knife,Spiral Cutter Line |
Hole Pitch | Positioning of Belt and Chain Wheel |
Control System | PLC Control,Variable Frequency Speed Control,Touch Screen Operation |
Product Range | Core Paper,Non Core Roll Paper |
Drop Tube | Manual,Automatic(Optional) |
Non core roll paper | automtic core pulling |
Production Speed | 80-280m/min |
Manufacturing Technique

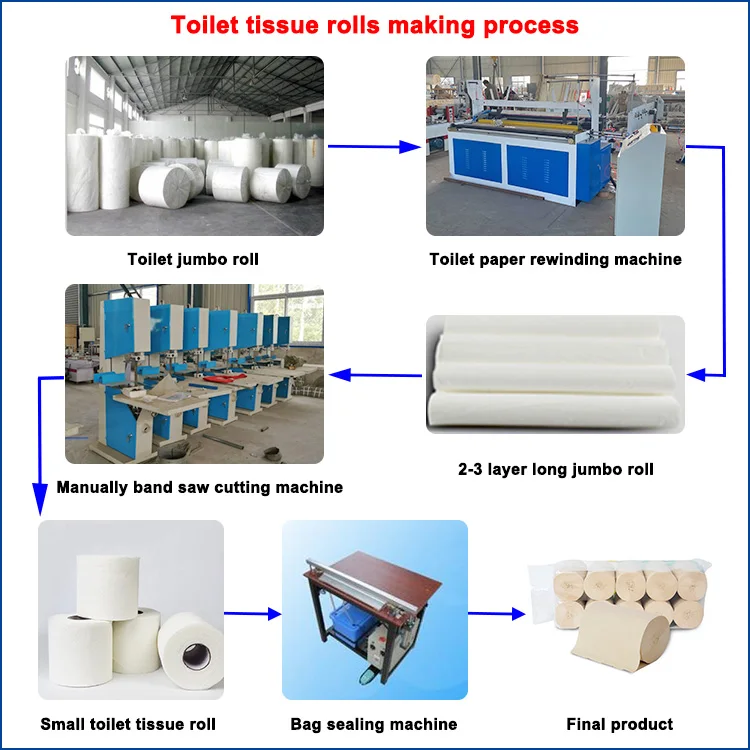

Working Principle
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length
required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length
required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Our Advantages
Related Products

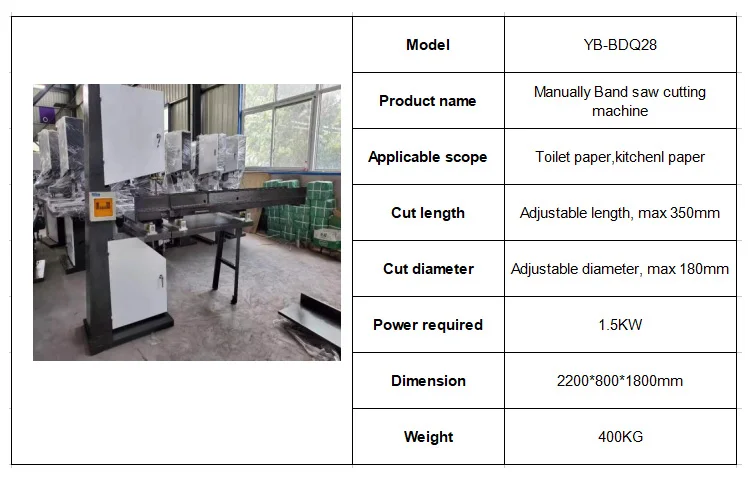

Band saw paper-cutter (toilet tissue cutting saw)
It is used with toilet paper rewinding machine, to cut into needed paper roll product in accordance with required length and width. This machine is equipped with automatic sharpening and traveling table device, maintaining stable operation performance and high production efficiency.This machine uses linear bearings for track sliding technology, to make product more smooth, more lab or-saving, while increasing the production of the new device to operate more secure.

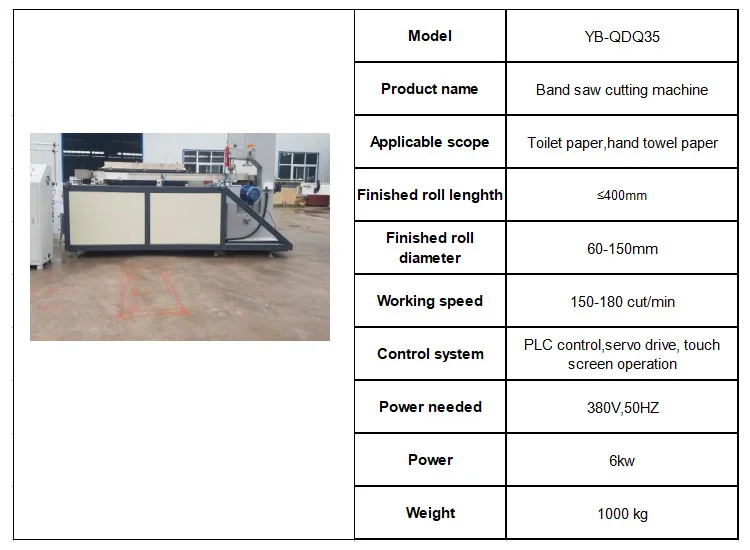

Automatic band saw cutting machine
1. The use of LCD touch screen on the system of user-friendly operation,computer debugging,set simple.
2. Cutting process is very safe,don’t need to use,the operator’s safety index is improved.
3. This machine is suitable for roll paper,tissue paper cutting,the cutting length can be arbitrarily.
4. As long as the set number of cutting and cutting length in the text,can be shown according to cutting,paper cutting effect of partial distortion is not raising no waste.
5. The whole set of advanced,stable performance ,international materials , durable.

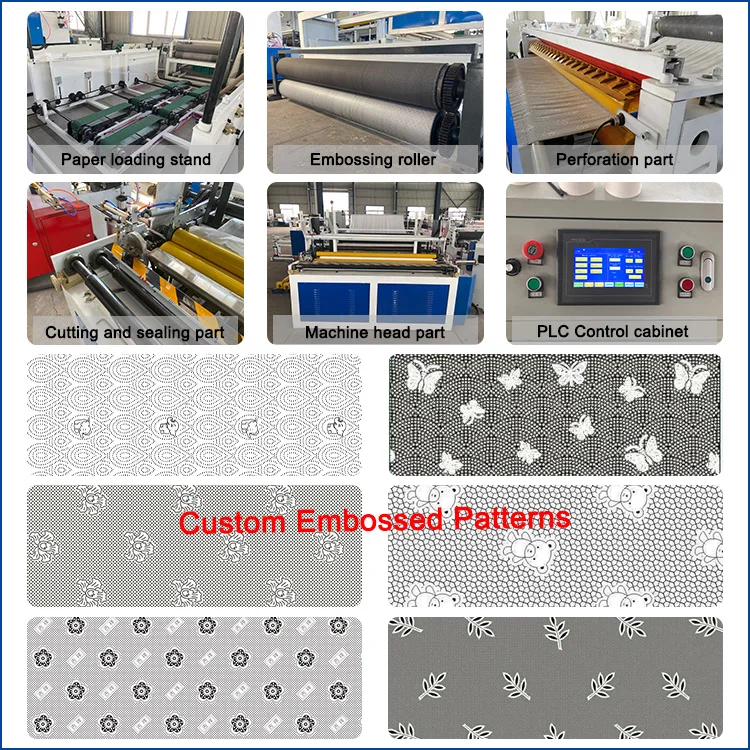

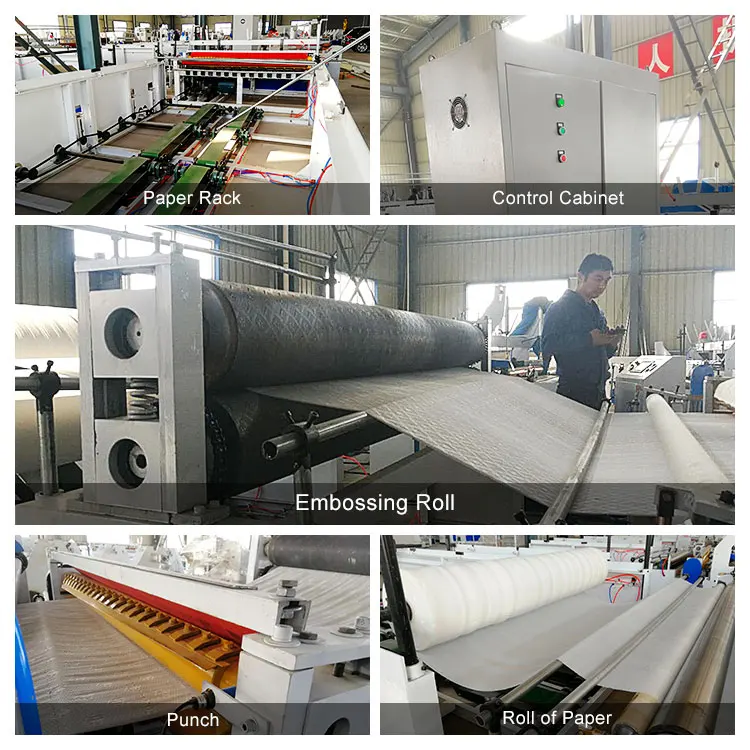

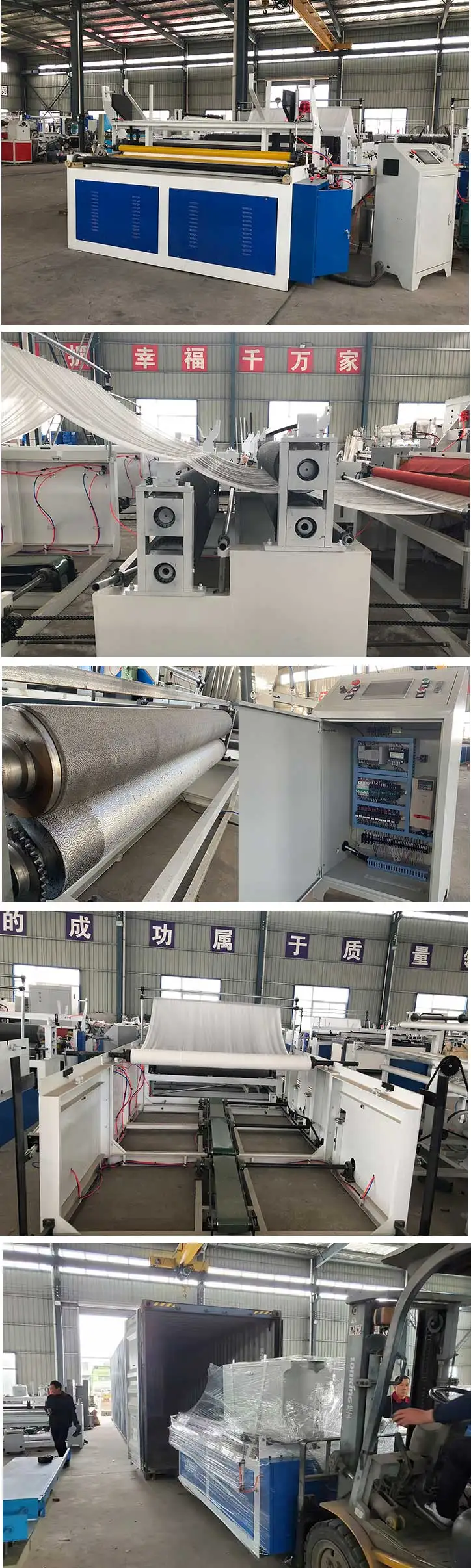

Details Images
Company Profile
specializes in the production of household paper towel machines, toilet paper machines,napkin machines, facial tissue machines, egg tray machines and other paper machines and pulp molding equipment. The company covers an area of 10,000 square meters and has nearly 30 years of experience in R&D and export. We always adhere to the principle of quality first, meet customer needs as the purpose, continue technological innovation and development, and provide customers with the highest quality products, reasonable prices and comprehensive services. We welcome you to visit and cooperate at any time.
Product packaging
