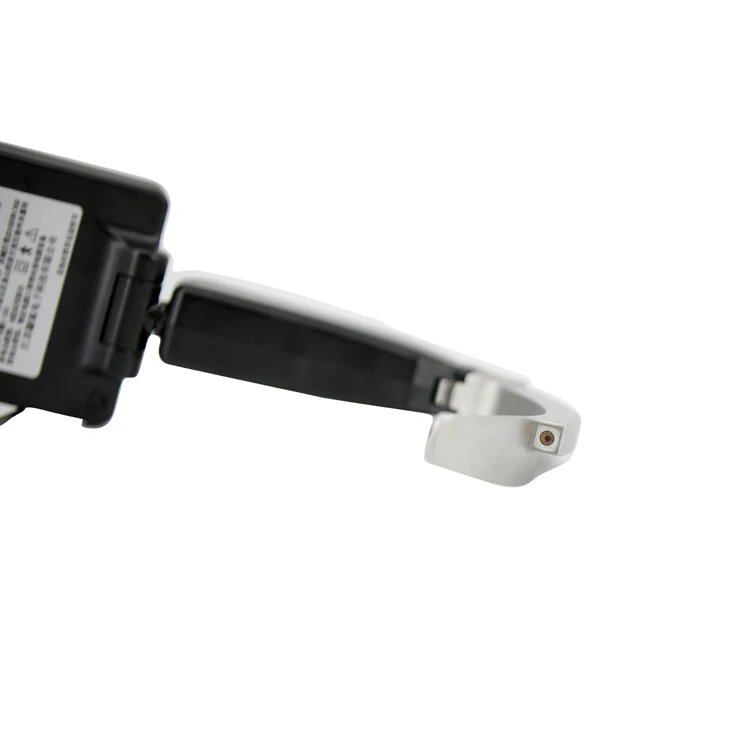

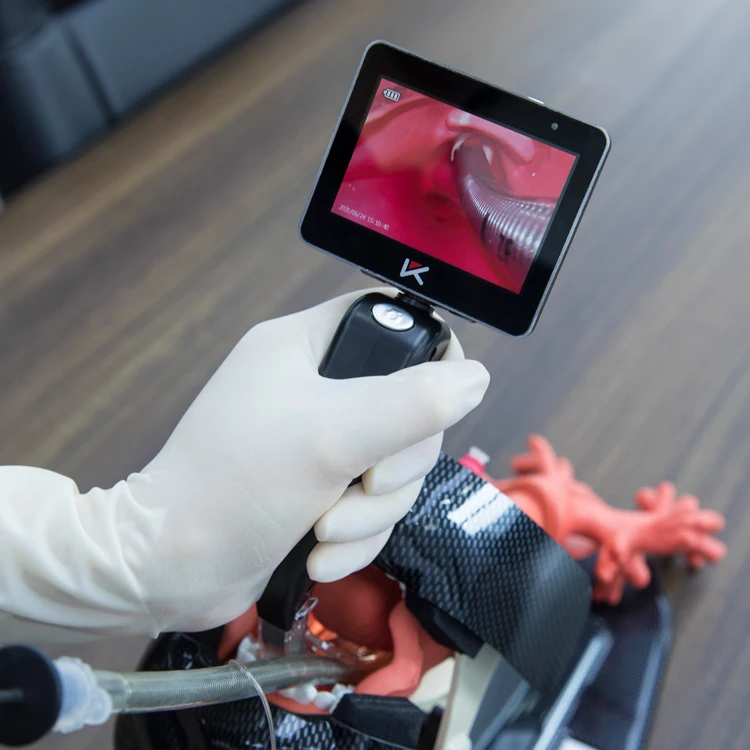

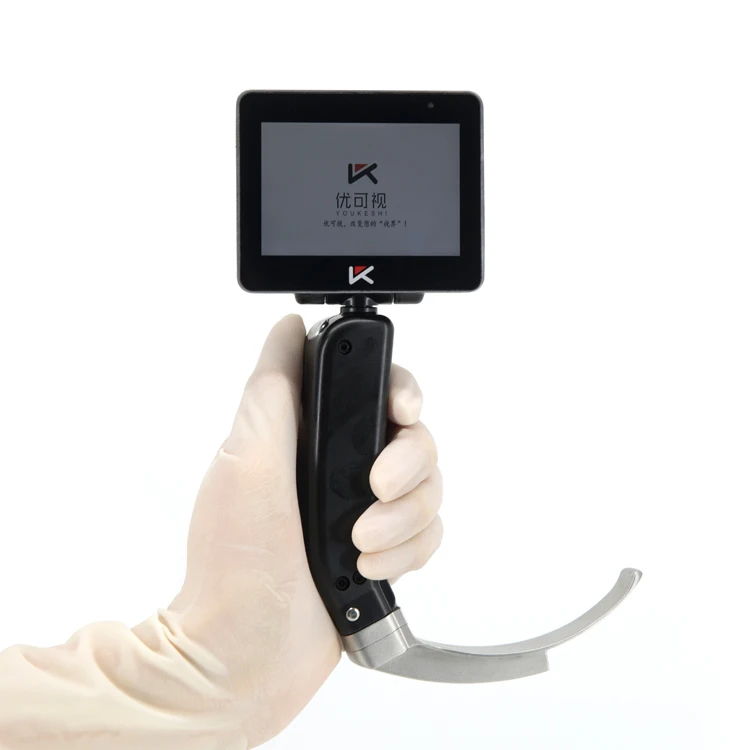

one monitor with 10 blades portable rigid video laryngoscope set with camera reusable video laryngoscope
- Category: >>>
- Supplier: Luoyang Qinzheng Trading Co. Ltd.
Share on (1600350070735):
Product Overview
Description
one monitor with 10 blades portable rigid video laryngoscope set with camera reusable video laryngoscope
Product Description
Features of video laryngoscope
1)It has high precision and full mould manufacturing process, stainless steel reinforcement, not easy to damage and long service life.
2)The machine adopts imported high-capacity lithium battery, and can last more than 300 minutes
3)It has the functions of taking photos, recording and stopping, and can be stored and exported
4)Unique dual anti-fogging function, which is out of the box and can be stored and exported
5)Standard with three cameras of different models, suitable with three different laryngoscope pieces, suitable for different people
6)The leaves are sterilized with one time packaging to prevent cross infection
7)Mature and reliable fully functional electronic scheme and HD digital camera system, with 3” color display, the image restoration effect is good
2)The machine adopts imported high-capacity lithium battery, and can last more than 300 minutes
3)It has the functions of taking photos, recording and stopping, and can be stored and exported
4)Unique dual anti-fogging function, which is out of the box and can be stored and exported
5)Standard with three cameras of different models, suitable with three different laryngoscope pieces, suitable for different people
6)The leaves are sterilized with one time packaging to prevent cross infection
7)Mature and reliable fully functional electronic scheme and HD digital camera system, with 3” color display, the image restoration effect is good
Applications:
Widely Used in Clinical Medicine:
A.Anesthesia Medical
B.Emergency Medical
C.ICU Operation
D.Ambulance Medical Equipment
A.Anesthesia Medical
B.Emergency Medical
C.ICU Operation
D.Ambulance Medical Equipment

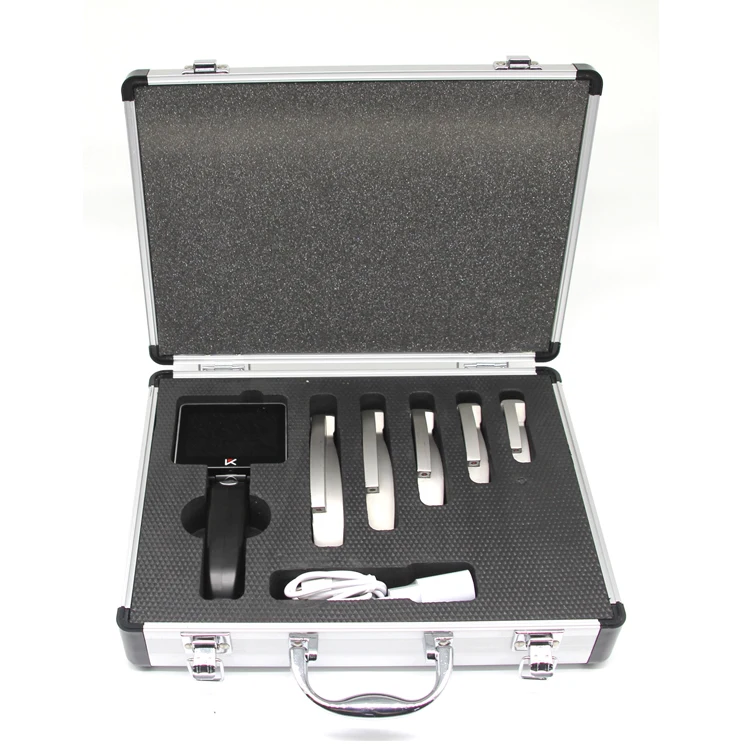

Packing list | ||||||||
name | model | quantity | unit | |||||
1 | suitcase | YS-IR | 1 | set | ||||
2 | main engine | YS-IR | 1 | set | ||||
3 | charger with data cable | 5V1AMicro USB | 1 | piece | ||||
4 | reusable blades | 10 | piece | |||||
5 | IFU | YS-IR | 1 | piece | ||||
6 | certificate of quality | YS-IR | 1 | piece | ||||
Video Laryngoscope | ||||
Range of application: | Aneasthesiology department, ICU, Emergency department, Ambulance, Breathing department, etc. | |||
Classification | Class I | |||
Certificate approval | CE, NMPA, ISO13485 | |||
Model | YS-IL, YS-IS, YS-II | |||
Items | Technical Name | Technical Indicators | ||
Machine Parameters | Display | 3"(OLED) | ||
Camera Resolution | 960*480, 2Mpixels | |||
Illuminace(LUX) | ≥800 | |||
light source | Natural white(LED) | |||
Rotating angles of the monitor in front and rear | 30 º~150 º | |||
Rotating angles of the monitor in right and left | 0 º~270 º | |||
Angle of vision | ≥73º | |||
Discharging time of battery | >4.5h | |||
Power supply | Rechargeable 18650 3.7 lithium battery | |||
Charging times | >500times | |||
Weight of monitor | 200g | |||
IP rating | IPX7 | |||
Card | Media | Class 6 Micro SD flash card | ||
Strorage | 8GB~64GB | |||
File format | JPEG, AVI | |||
Interface | 1 mini USB, 1 SD card slot | |||
Charger | Charger input | 110~220V AC 50Hz | ||
Charger output | 5V, 2600mA | |||
Charging time | <4(hrs) | |||
Temperature | 10℃~40℃ | |||
Working environments | Humidity | 30%-75% | ||
Atmospheric pressure | 700hpa-1060hpa | |||
Temperature | -40℃~55℃ | |||
Transportation storage environments | Humidity | ≤93% | ||
Atmospheric pressure | 700hpa~1060hpa | |||
Shelf life | 5years | |||
Warranty Period | 1year | |||
After-sale service | Return and replacement | |||
Certifications

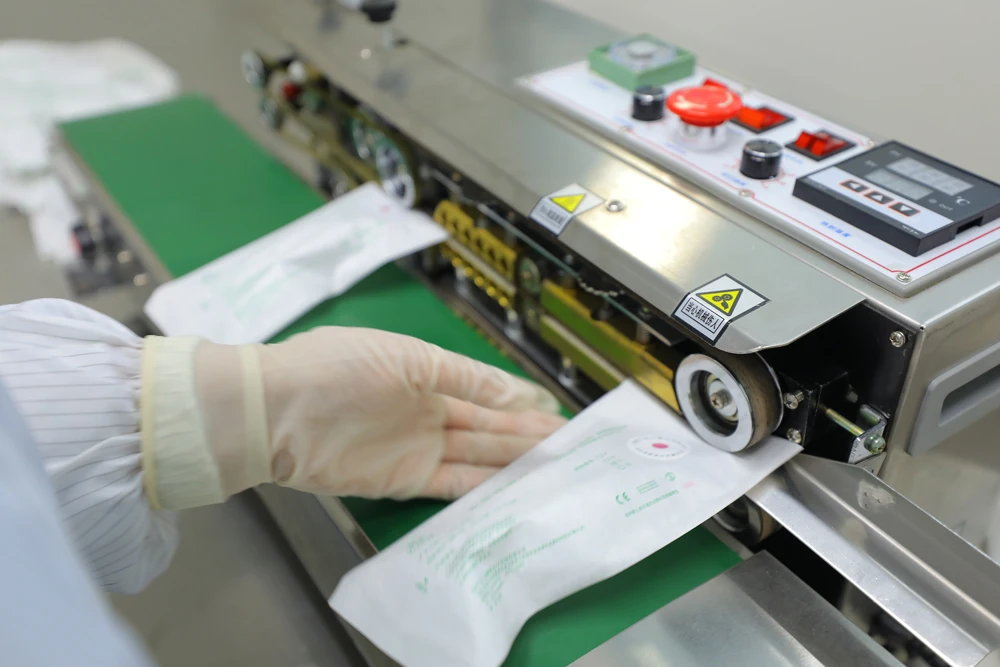

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Specification
item | value |
Place of Origin | China |
Brand Name | QZ |
Model Number | YS-IL |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 1years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | None |
Product name | Video laryngscope |
Application | Surgical |
Function | Auxiliary tracheal intubation |
Screen size | 3.0 Inch OLED |
Warranty | 1 Year |
Feature | Portable |
Certificate | CE ISO |
Advantages | Easy Control |
Keywords | video laryngscope |
MOQ | 1 set |

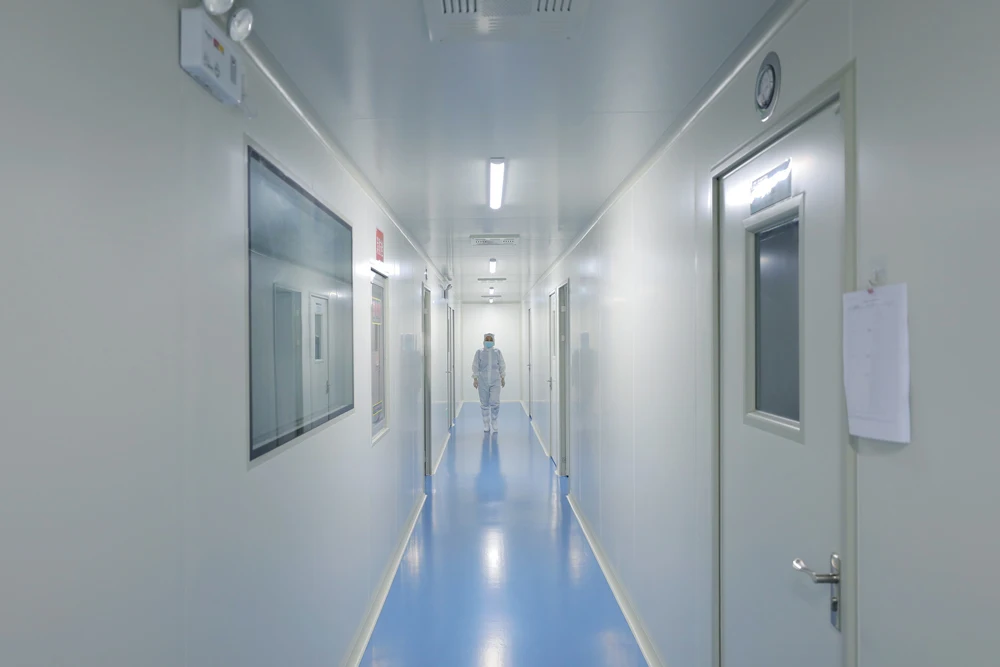

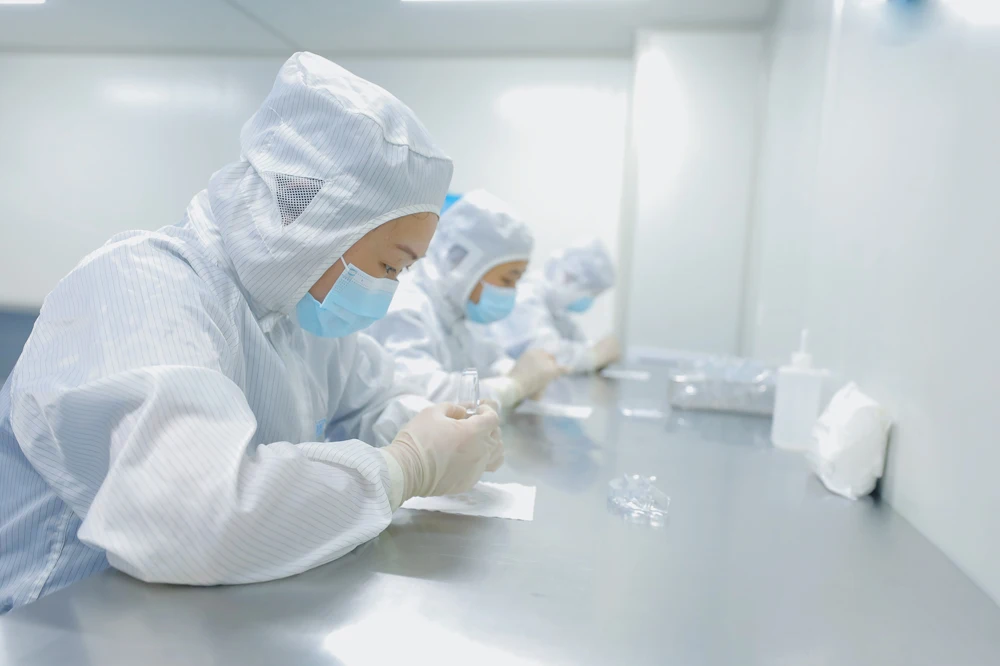

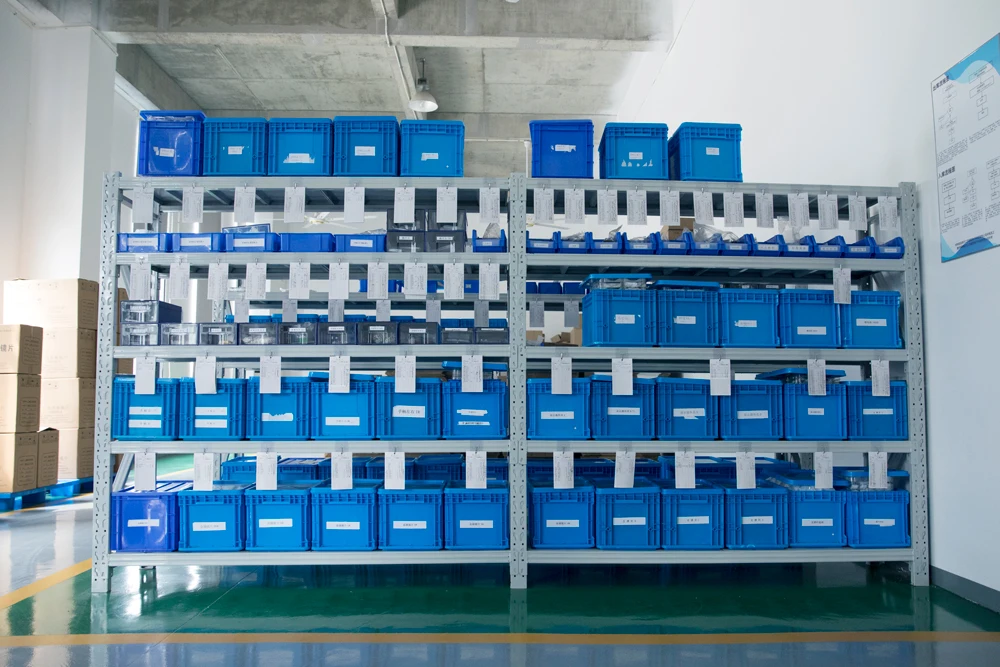

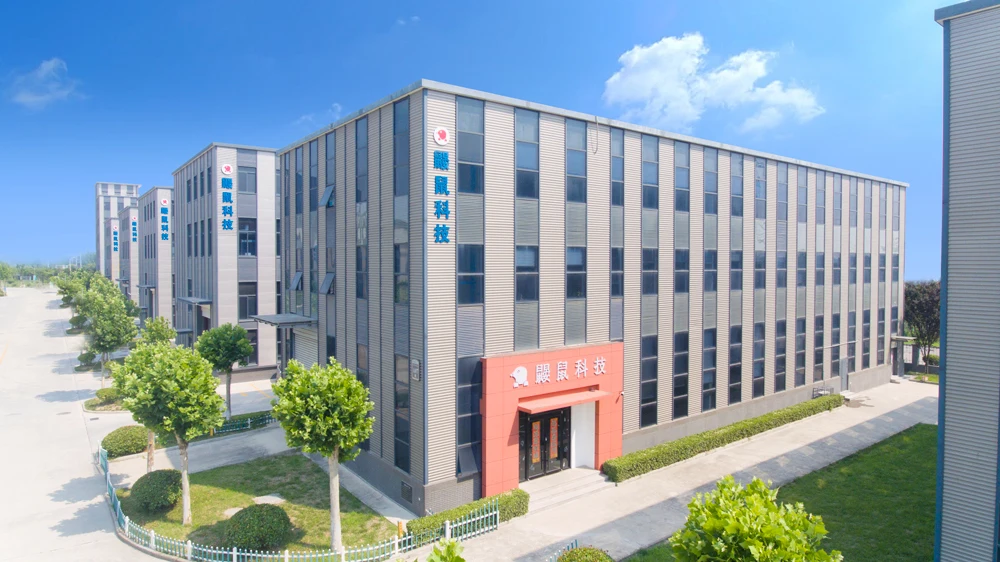

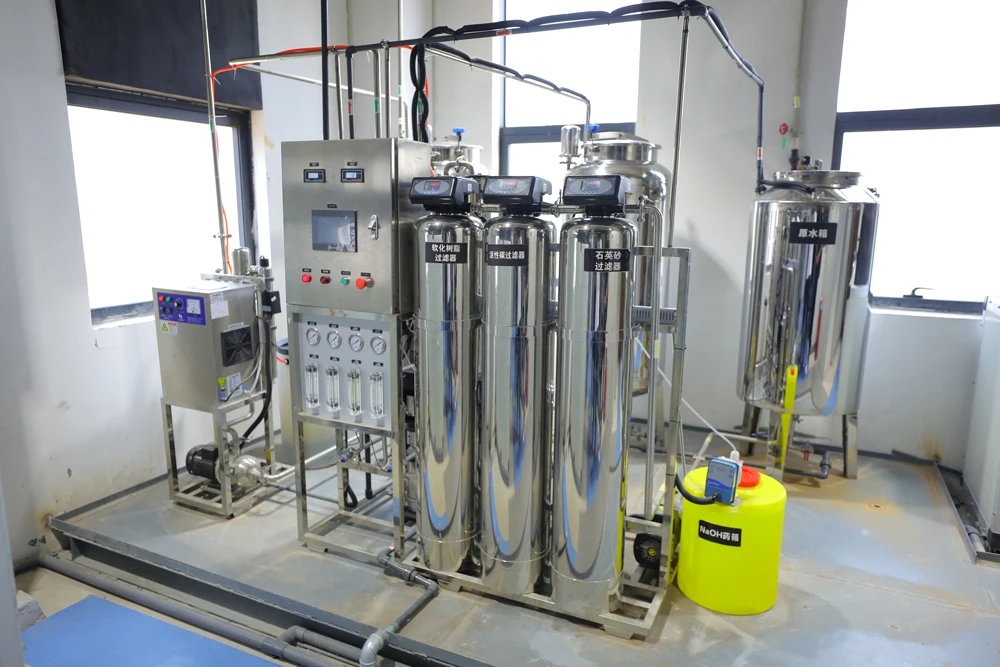

Factory
