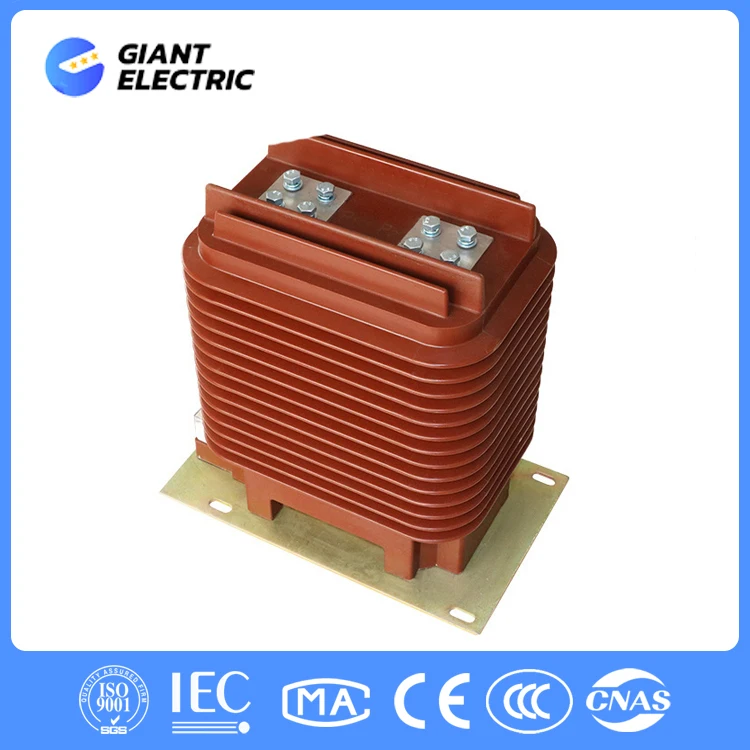

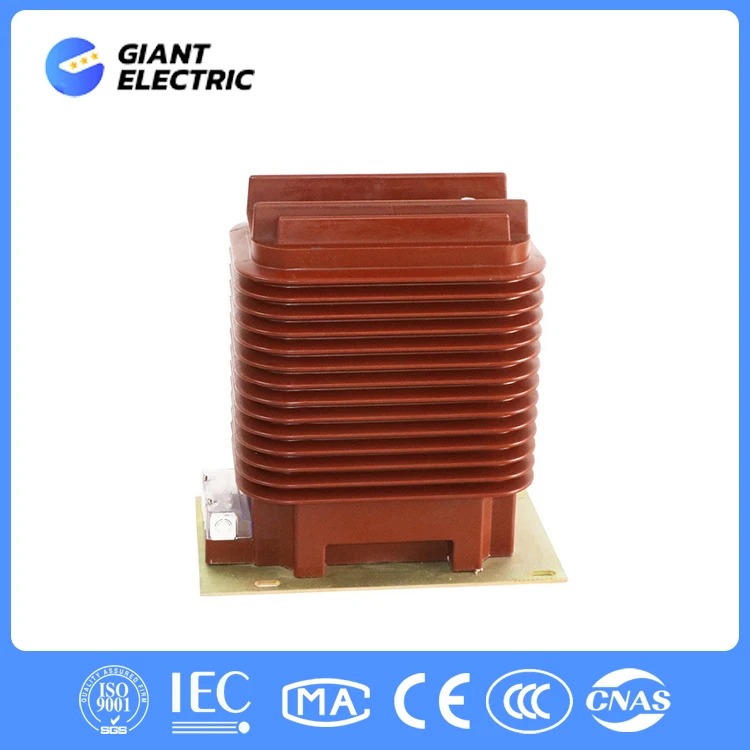

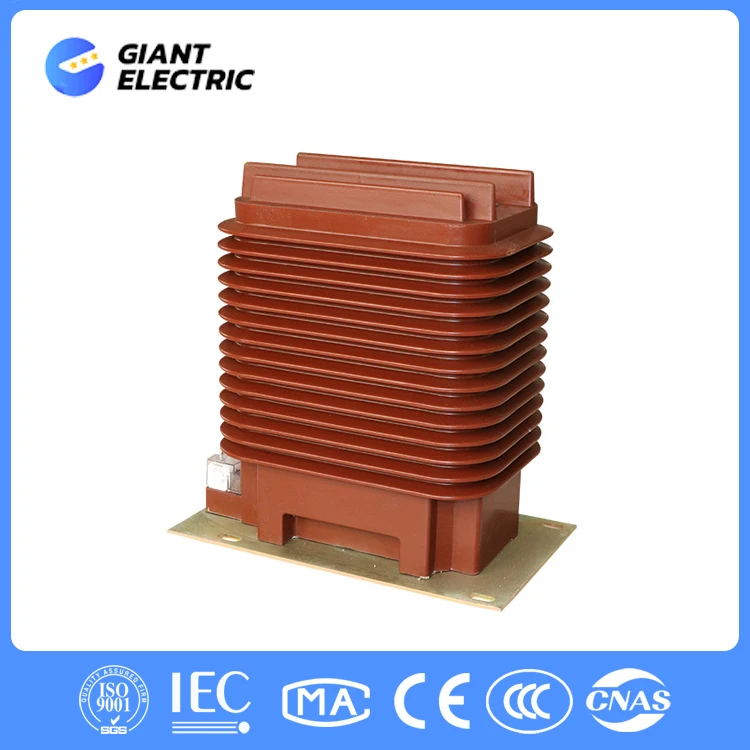

24kV 33kV 35kV High Voltage Fully Enclosed Current Transformer

Share on (1600350141203):


Price:$300.00 - $450.00

Quantity:


Product Overview

Description


Product Description







Customized products can consult online customer service!





Fully Enclosed Current Transformer














Fully Enclosed Current Transformer




LBZZJ9-35 High Voltage Current Transformer

Description:

The current transformer has epoxy resin cast fully enclosed structure. Applies to the rated voltage of 35kV and below. Rated frequency of 50Hz indoor power line and its equipment current. Energy measurement and protection.






Fully Enclosed Current Transformer












Fully Enclosed Current Transformer


































































































Type Rated primary current (A) Accuracy class Rated output (VA) Short-time    thermal current
(kA/S)
(kA) Rated Dynamic current
LZZBJ9-35W1 20~100 0.2S/0.2S
0.2S/0.5
 0.2S/5PI5
0.5/5P20
 0.2S/0.5/5P20
10 15 15 15 90l1n/1s 225l1n
150~200
300~500
600~1250 15 30 20 20 45l1n/4s 110l1n
1500~2000 20 40 30 30
2500 20 40 20 20
LZZBJ9-35W2 20~100 0.2S/0.5/5P20
0.2S/5P15/5P20
 0.5/5P15/5P20
0.2S/0.5/5P20/5P20
10 15 15 15 90l1n/1s 225l1n
150~200
300~500
600~1250 15 30 15 20 45l1n/4s 110l1n
1500~2000 20 40 20 30
2500 20 40 20 20








Fully Enclosed Current Transformer













Company Information

Fully Enclosed Current Transformer


        Zhejiang ZheGui Electric Co., Ltd was established in 2013. We are located in Zhejiang with convenient transportation access and a developed electrical market. We are a group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.
        The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/ box, drawer cabinet, ring network, cabinet, inflatable cabinet, etc.


        We own three CNC bending machines, a CNC shearing machine, a CNC laser cutting machine, and a series of advanced production equipment to further optimize the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items are produced by our own factory, so our advantages are reliable quality and reasonable price. Gather the world’s energy to delight your business. It's honorable for Zhegui to share your progress, brilliance, and success!
