Горячая Распродажа 1000L фабричная поставка Многофункциональность 3 слоя куртка смесительный бак для напитков/сока/экстракт жидкий смешивая завод
- Category: >>>
- Supplier: Shanghai Juyuan Auto-Tech Co. Ltd.
Share on (1600350158741):
Product Overview
Description
Product Overview
Jacket Type Stainless Steel Mixing tank for juice/milk/beverage/herbal extract blending factory
Jacket Stainless steel tanks have the ability to resist atmospheric oxidation-that is, stainless, but also have the ability to resist corrosion in media containing acids, alkalis, salts, etc.-that is, corrosion resistance.
The mixing tank is suitable for mixing and blending ingredients materials. The design structure and configuration can be standardized and humanized according to the requirements of the production process. The mixing tank can realize feeding control, discharging control, mixing control and other manual control during the mixing process.
The mixing tank is suitable for mixing and blending ingredients materials. The design structure and configuration can be standardized and humanized according to the requirements of the production process. The mixing tank can realize feeding control, discharging control, mixing control and other manual control during the mixing process.
FEATURES AT A GLANCE
3 layers Jacket Stainless Steel Mixing Tank
1. Strong corrosion resistance
2. Good air-tightness
3. Scientific water flow design.
4. Cost saving of cleaning and maintance.
5. Lengthening service life of mechanical parts.
2. Good air-tightness
3. Scientific water flow design.
4. Cost saving of cleaning and maintance.
5. Lengthening service life of mechanical parts.
Top Cover Opened Model

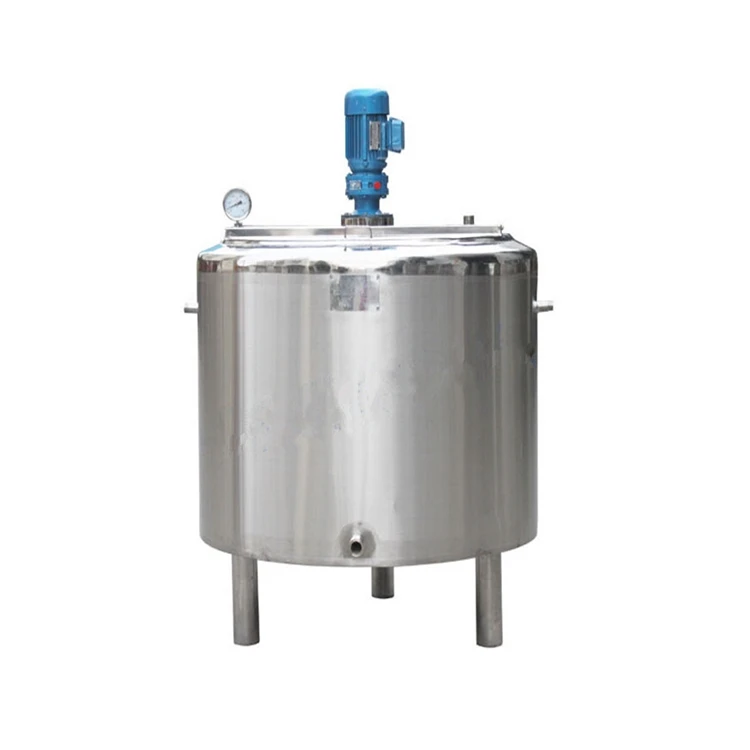

3 Legs Model

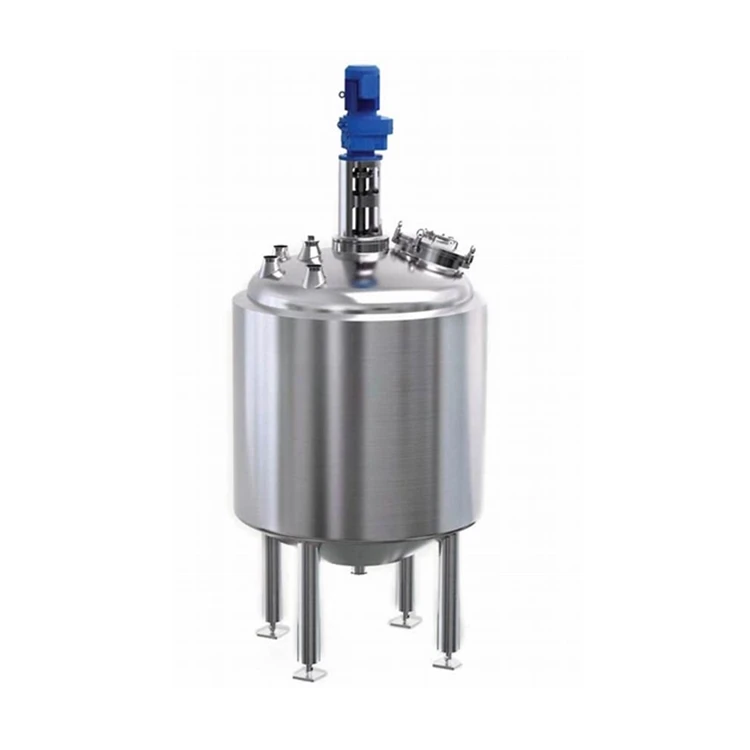

Horizontal Motor Model
Mixing Tank Structure
The mixing tank is composed of a mixing tank body, a mixing tank cover, a stirrer, a support, a transmission device, a shaft
sealing device, etc. The mixing tank body and the mixing tank cover can be connected by flange sealing or welding. The mixing tank body and the mixing tank cover can open the process tube holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation, and safety venting according to the process requirements. The upper part of the mixing tank lid is equipped with a transmission device (motor or reducer), and the agitator in the mixing tank is driven by the transmission shaft. The shaft seal device can adopt various forms such as mechanical seal or packing, labyrinth seal (determined according to user needs). Due to the different production process requirements of the users, the agitator can be equipped with paddle, anchor, frame, spiral and other forms. The structure design is extremely user-friendly and operable.
The transition section of the inner wall of the cylinder adopts arc transition to ensure sanitation without dead angle.
sealing device, etc. The mixing tank body and the mixing tank cover can be connected by flange sealing or welding. The mixing tank body and the mixing tank cover can open the process tube holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation, and safety venting according to the process requirements. The upper part of the mixing tank lid is equipped with a transmission device (motor or reducer), and the agitator in the mixing tank is driven by the transmission shaft. The shaft seal device can adopt various forms such as mechanical seal or packing, labyrinth seal (determined according to user needs). Due to the different production process requirements of the users, the agitator can be equipped with paddle, anchor, frame, spiral and other forms. The structure design is extremely user-friendly and operable.
The transition section of the inner wall of the cylinder adopts arc transition to ensure sanitation without dead angle.
PRODUCT SPECIFICATIONS
Model | JY-JG500 | JY-JG1000 | JY-JG2000 | JY-JG3000 |
Volume | 500L | 1000L | 2000L | 5000L |
Tank Size(D×H)（mm) | 840×1000 | 1060×1220 | 1340×1500 | 1810×2000 |
Total Height (mm) | 2250 | 2550 | 2900 | 3500 |
Tank Material | SUS304 or SUS 316L | SUS304 or SUS 316L | SUS304 or SUS 316L | SUS304 or SUS 316L |
Heat Insulation Layer Thickness | 50mm | 50mm | 60mm | 60mm |
Heat Insulation Material | PU | PU | PU | PU |
Manhole size | 400mm | 400mm | 500mm | 500mm |
Inlet & Outlet Diameter | 38mm | 51mm | 51mm | 51mm |
If the customer proposes special requirements, the sizes can be customized according to user requirements. The total height (H) is the data obtained based on the height of the discharge port 800mm. If the height of the discharge port is changed, the total height (H) is adjusted accordingly.
Mixing Tank Application
1. Food and pharmaceutical stainless steel storage tanks:Stainless steel ingredient storage tank, stainless steel concentrated storage tank, stainless steel rare distribution storage
tank, stainless steel extraction storage tank, stainless steel reaction storage tank, stainless steel liquid storage tank,
stainless steel mixing tank, stainless steel seed storage tank, stainless steel nitric acid storage tank, stainless steel acetic
acid storage Tanks, stainless steel carbon disulfide drums, stainless steel water tower storage tanks.
2. Stainless steel tanks for wine and dairy industry:
Stainless steel wine storage tank, stainless steel liquor storage tank, stainless steel wine storage tank, stainless steel milk
(milk) tank, stainless steel beverage storage tank
3. Chemical stainless steel tank:
Stainless steel oil storage tanks, stainless steel transportation storage tanks, stainless steel cooling storage tanks, stainless
steel insulation storage tanks, stainless steel heat exchange storage tanks, stainless steel buffer tanks, stainless steel outdoor
storage tanks and various levels of stainless steel pressure vessels in the chemical industry.

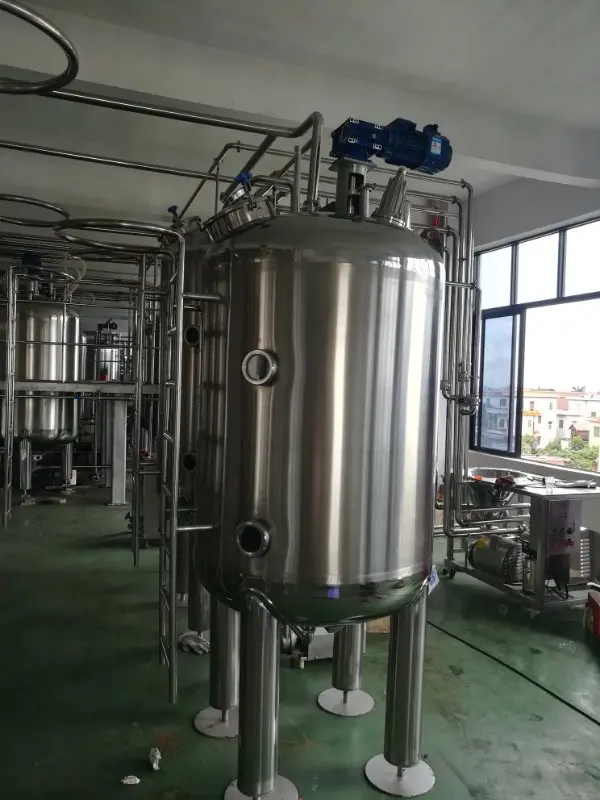

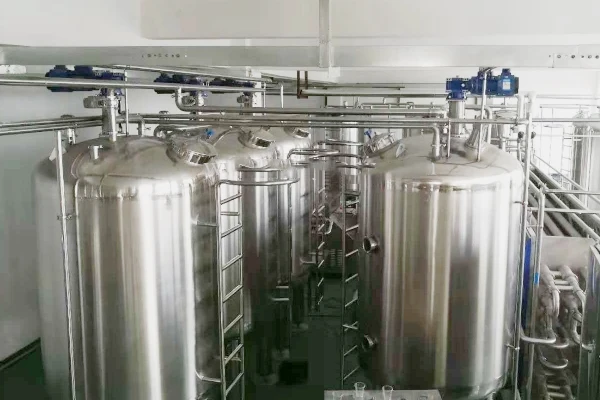

Successful Project
Essential Oil Storage Tank
Pharmaceutical Project
Juice Plant
SALES AND SERVICE NETWORK
Manufacturing Process
1: Machine design；
2: Raw material Cutting and Welding;
3: Assembling;
4: Quality checking;
5: Packing;
6: Deliverying
