operating laryngoscope laryngoscope machine disposable blade laryngoscope
- Category: >>>
- Supplier: Luoyang Qinzheng Trading Co. Ltd.
Share on (1600350180788):
Product Overview
Description
operating laryngoscope laryngoscope machine disposable blade laryngoscope
Product Description
About video laryngscope
It is well established that video laryngoscope improves laryngeal view as compared with direct laryngoscopy in patients with suspected difficult intubation and simulated difficult airway scenarios. … We also point out the important role of video laryngoscope as a tool for teaching and training in airway education.
As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.
1. Clinical endotracheal intubation.
2. Simulation practice.
3. Clinical teaching.
4. Difficult airway intubation.

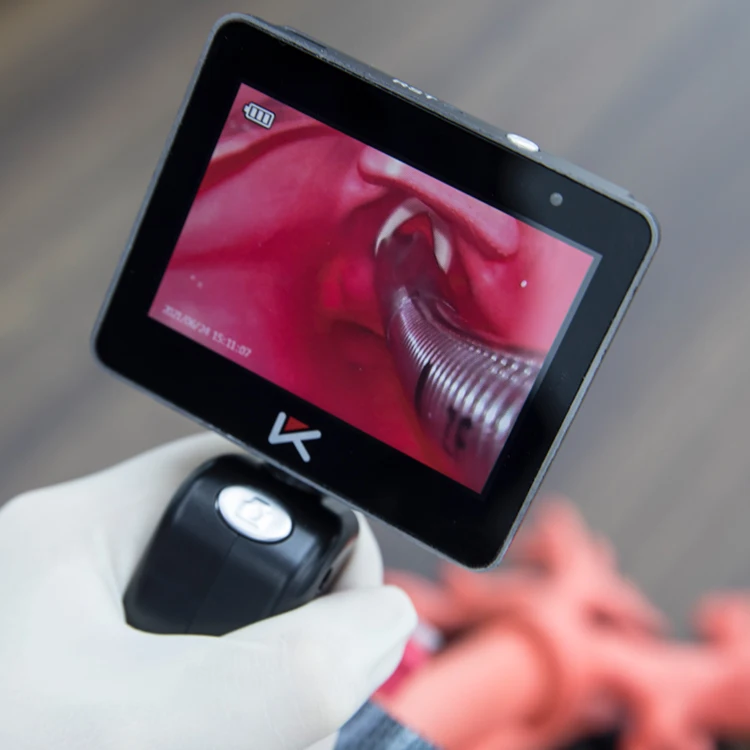

1.Photography, Video Record, USB Built in rechargeable battery, indoor/outdoor mode adjustable, 3 inch Touch screen monitor, fast and simple opteration.
2.Smart Anti - fog Technology. Smart heading chip. ensure instant Anti - fog by temperature control, start and work no need preheating
1. Clinical endotracheal intubation.
2. Simulation practice.
3. Clinical teaching.
4. Difficult airway intubation.
1.Photography, Video Record, USB Built in rechargeable battery, indoor/outdoor mode adjustable, 3 inch Touch screen monitor, fast and simple opteration.
2.Smart Anti - fog Technology. Smart heading chip. ensure instant Anti - fog by temperature control, start and work no need preheating
Packing list | ||||||||
name | model | quantity | unit | |||||

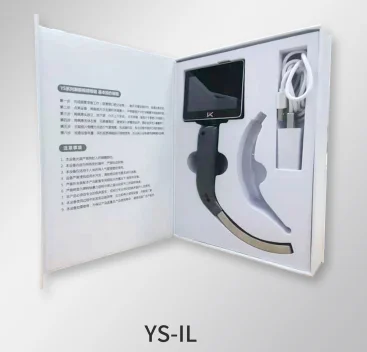

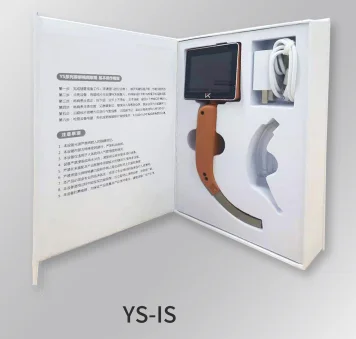

1 | suitcase | YS-IL/IS | 1 | set | ||||
2 | main engine | YS-IL/IS | 1 | set | ||||
3 | charger with data cable | 5V1AMicro USB | 1 | piece | ||||

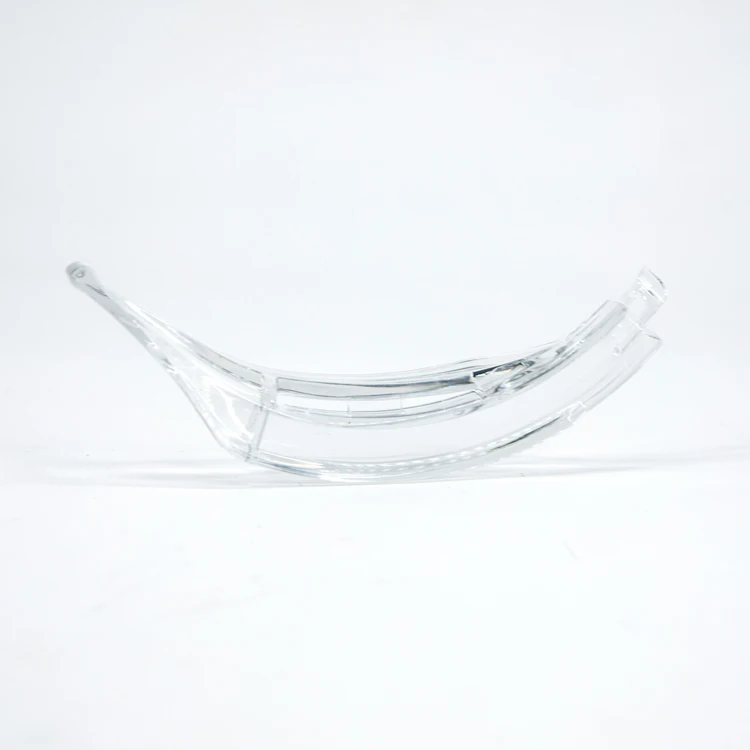

4 | samples of disposable blades | 0/1/2/3 | 1 | piece | ||||
5 | IFU | YS-IL/IS | 1 | piece | ||||
6 | certificate of quality | YS-IL/IS | 1 | piece | ||||
Video Laryngoscope | ||||
Range of application: | Aneasthesiology department, ICU, Emergency department, Ambulance, Breathing department, etc. | |||
Classification | Class I | |||
Certificate approval | CE, NMPA, ISO13485 | |||
Model | YS-IL, YS-IS, YS-II | |||
Items | Technical Name | Technical Indicators | ||
Machine Parameters | Display | 3"(OLED) | ||

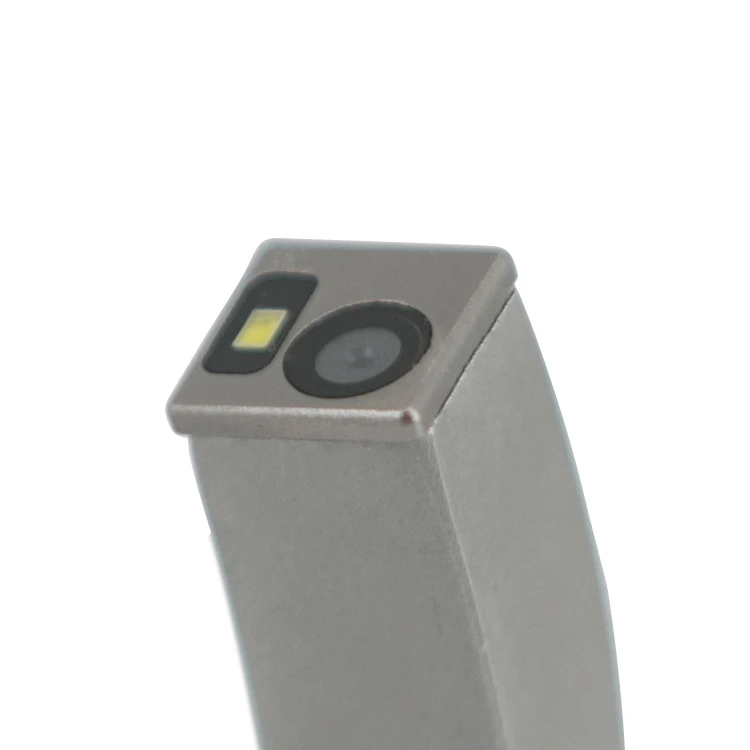

Camera Resolution | 960*480, 2Mpixels | |||
Illuminace(LUX) | 800~1500 | |||
light source | Natural white(LED) | |||
Rotating angles of the monitor in front and rear | 30 º~150 º | |||
Rotating angles of the monitor in right and left | 0 º~270 º | |||
Angle of vision | ≥73º | |||
Discharging time of battery | >4h | |||
Power supply | Rechargeable 18650 3.7 lithium battery | |||
Charging times | >500times | |||
Weight of monitor | 200g | |||
Card | Media | Class 6 Micro SD flash card | ||
Strorage | 8GB~64GB | |||
File format | JPEG, AVI | |||
Interface | 1 mini USB, 1 SD card slot | |||
Charger | Charger input | 110~220V AC 50Hz | ||
Charger output | 5V, 2600mA | |||
Charging time | <4(hrs) | |||
Temperature | 10℃~40℃ | |||
Working environments | Humidity | 10%-90% | ||
Atmospheric pressure | 500hpa-1060hpa | |||
Temperature | -40℃~55℃ | |||
Transportation storage environments | Humidity | ≤93% | ||
Atmospheric pressure | 500hpa~1060hpa | |||
Shelf life | 5years | |||
Warranty Period | 1year | |||
After-sale service | Return and replacement | |||

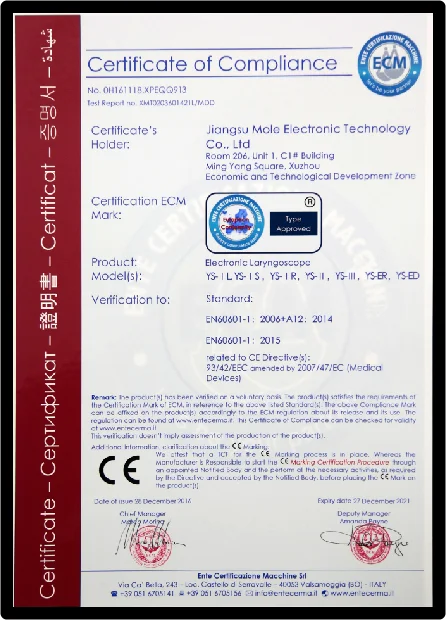

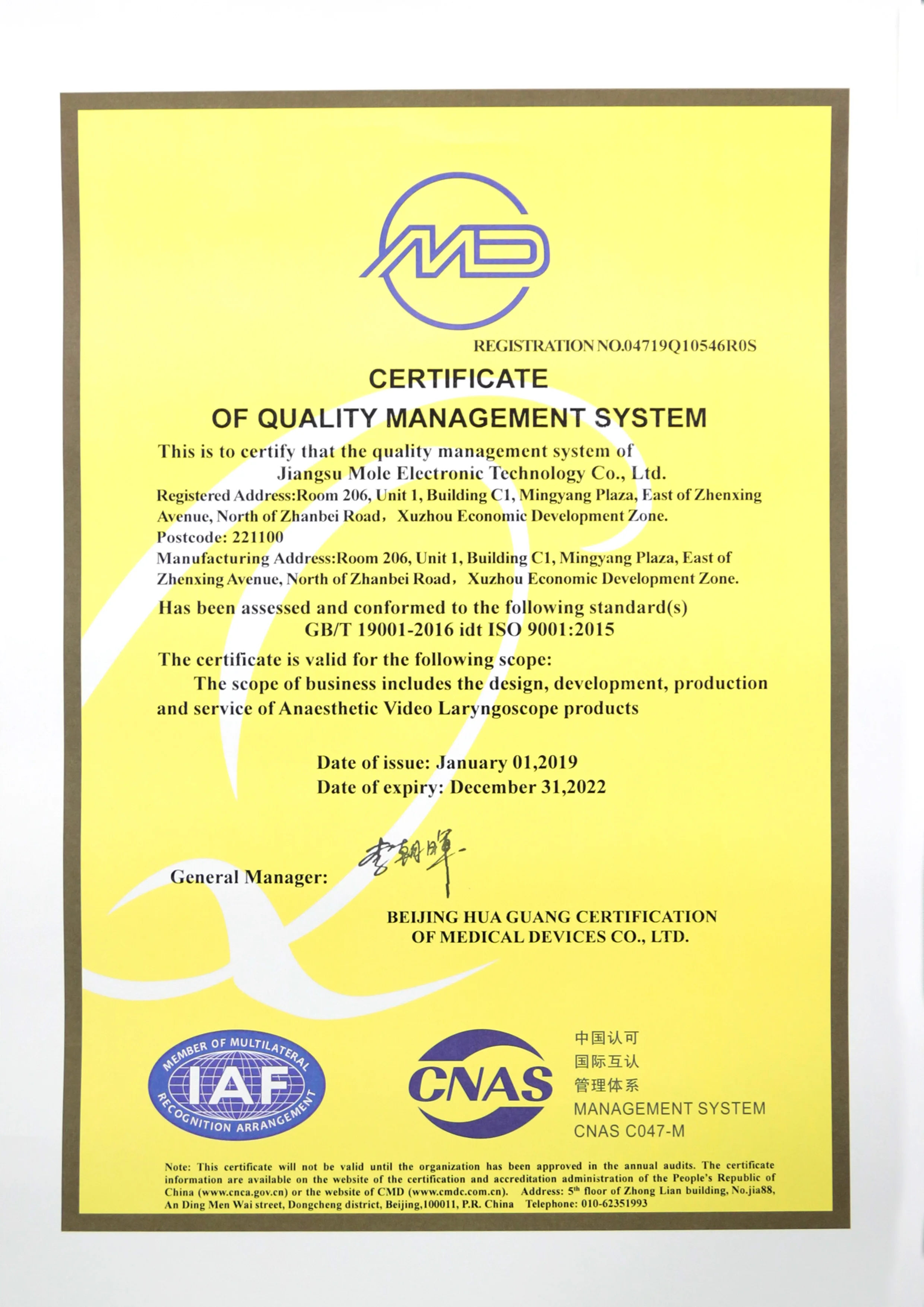

Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Specification
item | value |
Place of Origin | China |
Brand Name | QZ |
Model Number | YS-IL |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 1years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | None |
Product name | Video laryngscope |
Application | Surgical |
Function | Auxiliary tracheal intubation |
Screen size | 3.0 Inch OLED |
Warranty | 1 Year |
Feature | Portable |
Certificate | CE ISO |
Advantages | Easy Control |
Keywords | video laryngscope |
MOQ | 1 set |
