50L 500L Ultrasonic assisted solvent extraction machine for agilawood oud tambac agarwood oil for pharmaceutical use

Product Overview

Description







Model: JY-TQ100

Brief introduction:





Raw material: Agarwood chips/granules

Processing capacity:5-8kg dry Agarwood chips/granules

End product: Agarwood aromatic water and Concentrated Oud Liquid Extract

Extracting Working temperature: below 100 ℃;

Vacuum Concentration temperature:about 60-65degree or design as per need;

Machine size 1800*950*2600mm.

Heating by Electricity, Power consumption is about 28kw.

Extracting agent: steam/water, or solvent, like Ethanol, ether, ethyl acetate, petroleum ether, etc.



Application:

This system can be used for various process operations such as atmospheric extraction, water decoction, warm soaking, vacuum concentration, aromatic oil extraction and organic solvent recovery in the traditional Chinese medicine, food, and chemical industries.

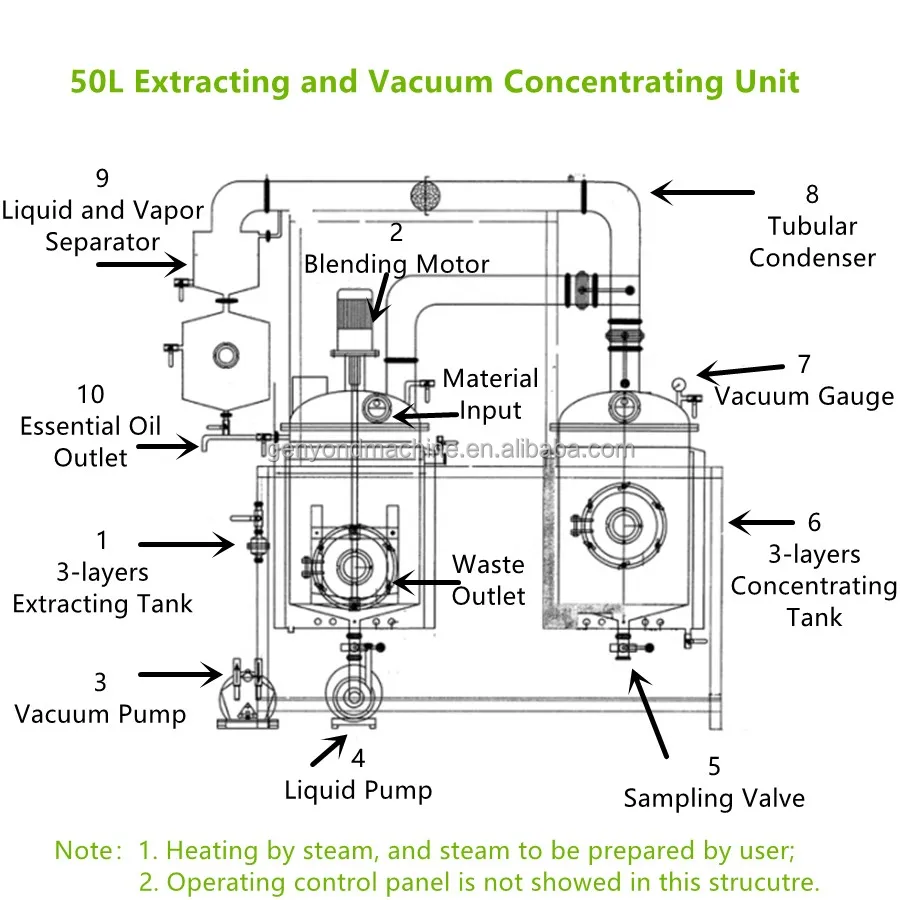

The complete system includes: extraction tank, concentration tank, stirring motor, vacuum pump, heating system, demister, condenser, oil-water separator, filter, slag door, sampling hole and other accessories.







System Features

1.    100L atmospheric pressure extraction tank + 50L vacuum concentration tank, with maximum working volume 40L.

2. This equipment is made of high-quality stainless steel, has good corrosion resistance, is durable, and meets GMP standards;

3. The motor and valve adopt explosion-proof grade, which can be extracted with water vapor or solvents such as ethanol, ether, ethyl acetate, etc.;

4. The system is equipped with a stainless steel operation cabinet, centralized control, easy to operate;

5. The system is equipped with thermometers, vacuum gauges, sampling valves, glass sight glasses and other instruments.

 6. Vacuum pressure working range: -0.05Mpa~-0.085Mpa. Usually working at -0.065~-0.07Mpa (60-65degree).

    7. Water steam/Solvent recycling rate: about 89-92%;

8. Economic extracting and concentrating unit, this equipment investment is less, comparing to CO2 supercritical extraction unit.

9. Essential oil got from this unit is pure natural and healthy, no allergy comparing to CO2 supercritical extraction unit











Technical parameters

Product name	Model	Specification
50L Solvent extracting and Vacuum Concentration System	JY-TQ100R	Equipment material: Good quality stainless steel SUS304 Extraction Tank volume:50L Concentration tank volume:50L; Surface treatment: Mirror polishing on the inner surface and sanding treatment on the outer surface, meeting GMP requirements; Equipment configuration: Pressure gauge; Thermometer; Sight glass; Sight light; Clean ball; control box, etc. Extracting agent: Solvent Explosion-Proof grade Special Configuration:  Explosion-Proof pump, seals, Explosion-Proof motors, Safe and Explosion-Proof control system, whole unit pipeline connection with explosion-proof pipe valve fittings, etc.
