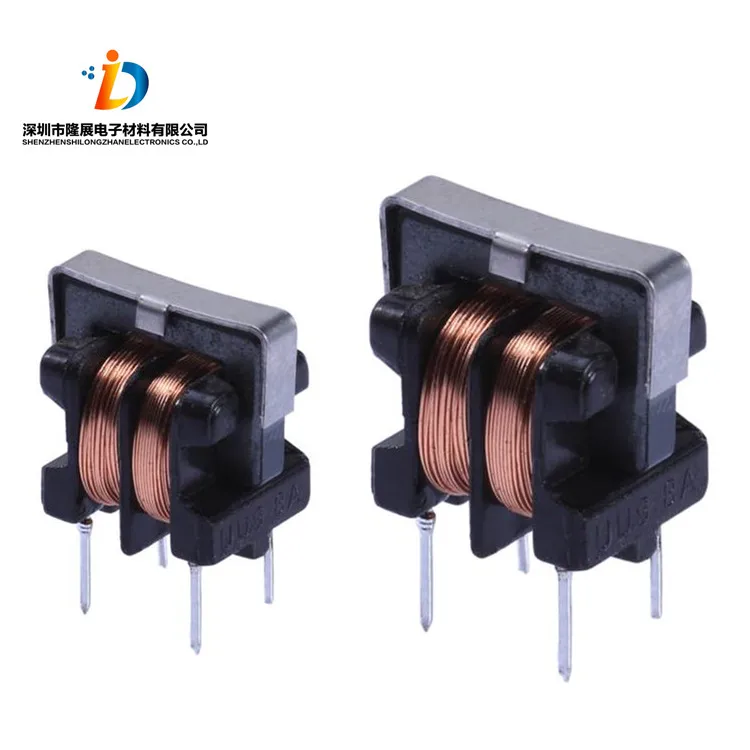

Through Hole Audio Amorphous 10a 4.7mh Vertical Inductor Coil 10mh 20mh Ac Common Mode Choke 15a
- Category: >>>
- Supplier: Shenzhen Longzhan Electronics Materials Co. Ltd.
Share on (1600350229941):
Product Overview
Description
Through Hole Audio Amorphous 10a 4.7mh Vertical Inductor Coil 10mh 20mh Ac Common Mode Choke 15a
Through Hole Audio Amorphous 10a 4.7mh Vertical Inductor Coil 10mh 20mh Ac Common Mode Choke 15a

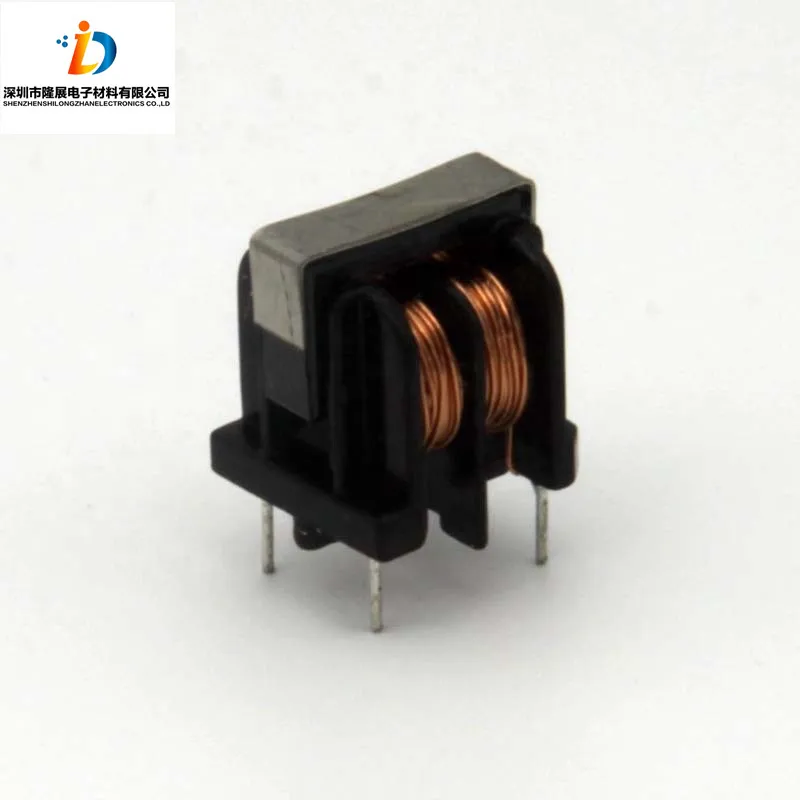

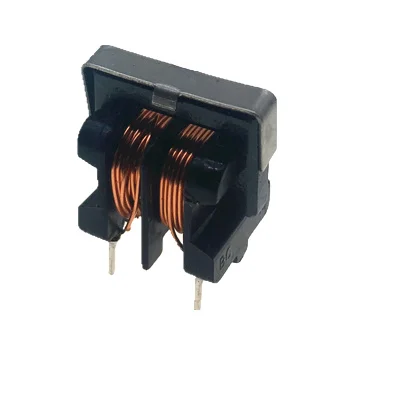

Common Mode Choke UU9.8
Product Description
TECHNICAL INFORMATION:
- Max Opetating voltage:250V at 40℃
- IDC Max:rating AC/DC current A @40℃
- Hi-Pot 2500V AC winding to winding 3S
- Insulation resistance 100MΩ Min DC 500V
- Temperature Rise Max:40℃
- Inductace Testing:10KHz 0.1V HP4284A
- RDC:QuadTech 1880 Milliohmmeter
- Surge current Max 10ms:20X IDC
- Operating temperature:-40℃ to+105℃
- Storage Tempeature:-40℃ to+105℃
- Resistance to soldering heat:260℃ for 10 seconds
- Marking:Part number and data code
Note: All specifications subject to change without notice.

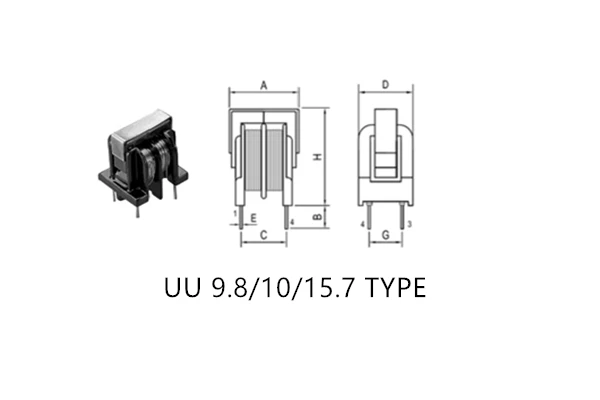

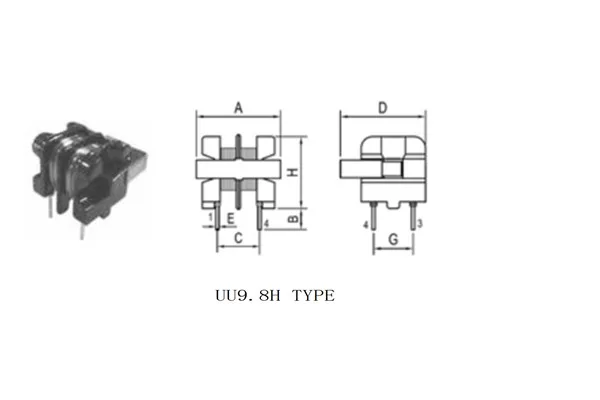

Dimention
Dimention
| P/N | A Max | B±1.0 | C±0.5 | D Max | E±0.05 | G±0.5 | H Max |
| Inductor UU9.8 | 17.0 | 4.0 | 8.0 | 12.0 | 0.6 | 7.0 | 17.0 |
| Inductor UU9.8H | 17.0 | 4.0 | 8.0 | 16.0 | 0.6 | 7.0 | 17.0 |
| Inductor UU10 | 19.0 | 4.0 | 13.0 | 17.0 | 0.7 | 10.0 | 22.0 |
| Inductor UU15.7 | 23.0 | 4.0 | 13.0 | 19.50 | 0.7 | 10.0 | 27.50 |
Related Products
Packing and Shipping
Company Information
FAQ
Q1: What is the Lead / Time?
A1: For product in stock, it takes around 7days after order confirmed and on receipt of the payment.
For the customized product, it depends on the order qty and the order placed date.
Q2: How do you control the product quality?
A2: 100% tested before shipment.
Q3: Do you accept customized product?
A3: Sure, pls kindly contact with us to offer the detail requirments.
If you have any other questions, pls kindly just contact with us without hesitate.
