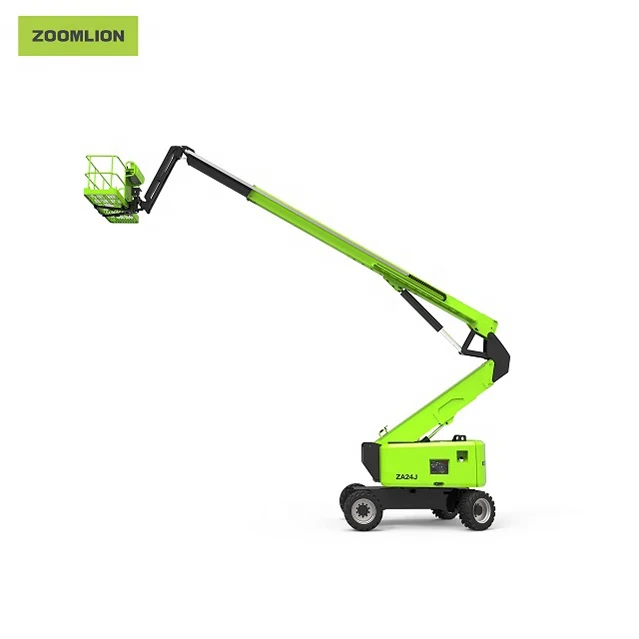

ZOOMLION AWP official hot selling ZA24J 24m hydraulic self propelled cherry picker
- Category: >>>
- Supplier: Zoomlion Heavy Industry Science & Technology Co. Ltd.
Share on (1600350283891):
Product Overview
Description
Product Description
General introduction
ZA24J is a newly developed aerial work platform. This unit features the advantages of articulated boom lifts, and offer greater
vertical height and lift capacity than the similar products in industry. Provide a vertical reach of 24.6 m (80.7ft ) and
horizontal reach of 18.2 m , offer a dual lift capacity of 250 kg (550lb) and 15 safety protection measures, and equip with PLC
control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault
detection and alarm display function offer convenient maintenance.
Standard Features
Horn,Proportional control,All motion alarm,Flashing amber beacon,Self-closing entry gate,Emergency descent system,Emergency
stop,button Auto-leveling system,On-board diagnostic system,Tilt protection system,Oscillating axle,Load sensing system 4.3',Led
display Swing-out engine tray
Performance
ZA24J is a newly developed aerial work platform. This unit features the advantages of articulated boom lifts, and offer greater
vertical height and lift capacity than the similar products in industry. Provide a vertical reach of 24.6 m (80.7ft ) and
horizontal reach of 18.2 m , offer a dual lift capacity of 250 kg (550lb) and 15 safety protection measures, and equip with PLC
control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault
detection and alarm display function offer convenient maintenance.
Standard Features
Horn,Proportional control,All motion alarm,Flashing amber beacon,Self-closing entry gate,Emergency descent system,Emergency
stop,button Auto-leveling system,On-board diagnostic system,Tilt protection system,Oscillating axle,Load sensing system 4.3',Led
display Swing-out engine tray
Performance
Platform Capacity | 250kg/550lb |
Drive Speed | 5.1km/h /3.17mph |
Gradeability | 45% |
Axles Oscillation | 0.1m/4in |
Turning Radius (Inside) | 3.08m/10.1ft |
Turning Radius (Outside) | 6.14m/20.1ft |
Swing | 360° continuous |
Platform Rotation | ±90° |
H-Tail Swing | 0 |
Diesel Engine | Cummins QSF2.8 |

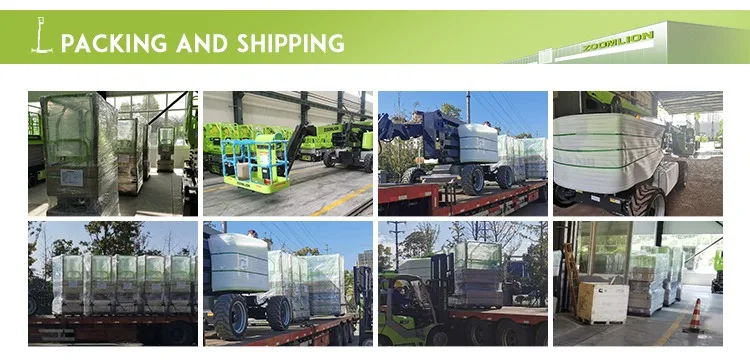

Pakage and Transportation
