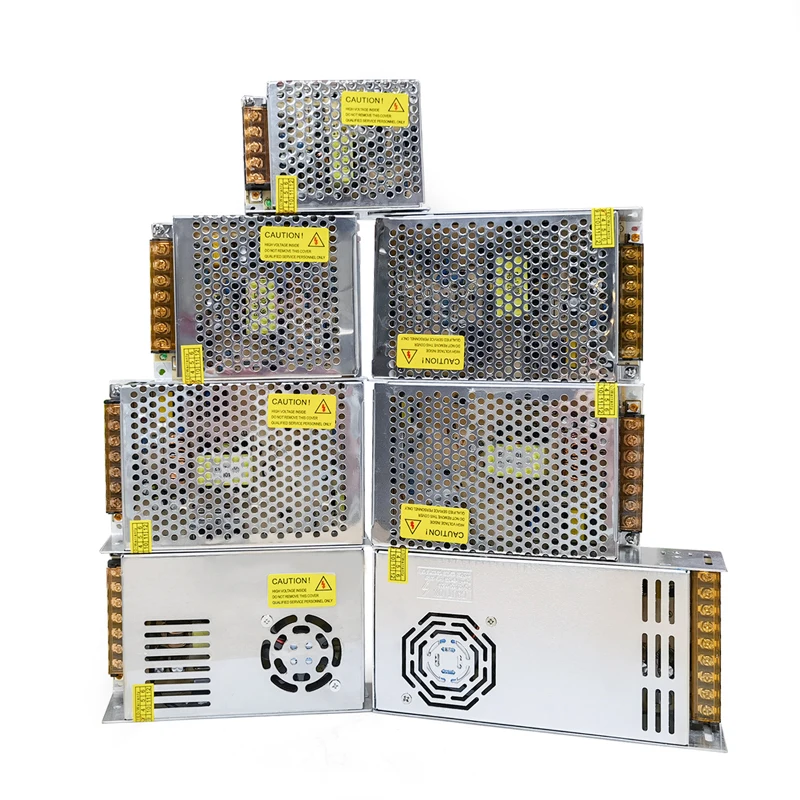

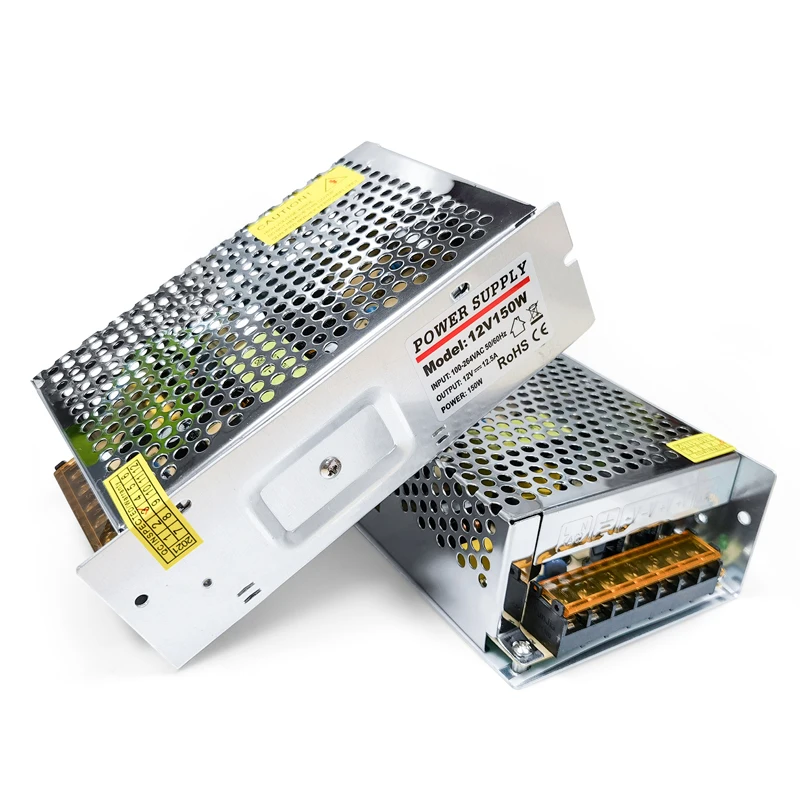

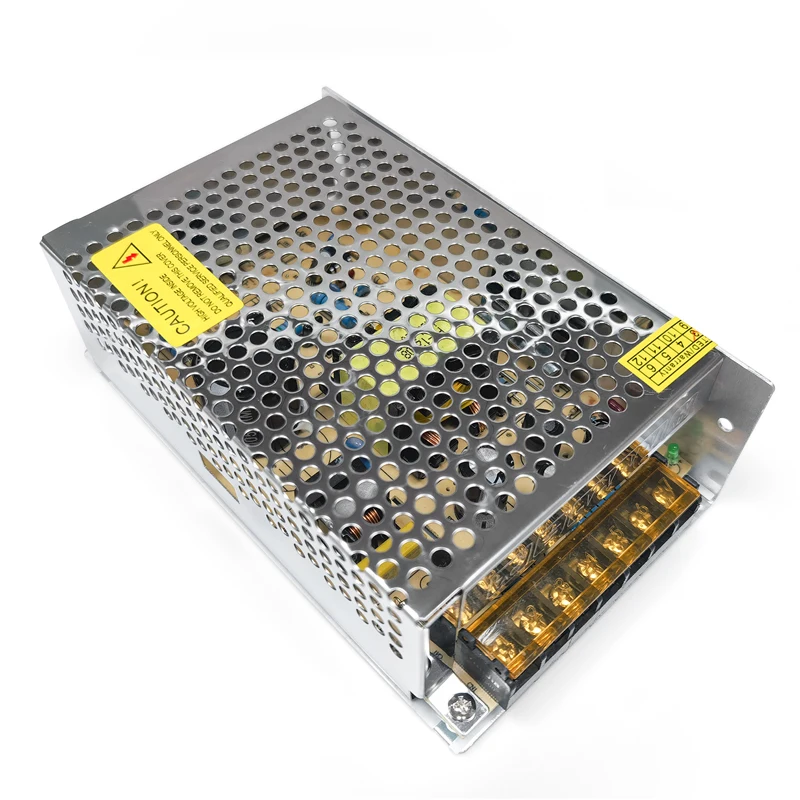

BST 7amp 12amp 13a 15a 110w 130w 140w 150w 220vac 110vac To 12vdc 24volt Power Supply For LED Module
- Category: >>>
- Supplier: Huizhou City Kechuangli Electronics Co. Ltd.
Share on (1600350285778):
Product Overview
Description
7amp 12amp 13a 15a 17a 20a 110w 130w 140w 150w 220vac 110vac To 12vdc 24volt Power Supply For LED Module
Features:
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* Low cost, high reliability
* Fixed switching frequency at 90KHz
* 2 years warranty
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* Low cost, high reliability
* Fixed switching frequency at 90KHz
* 2 years warranty

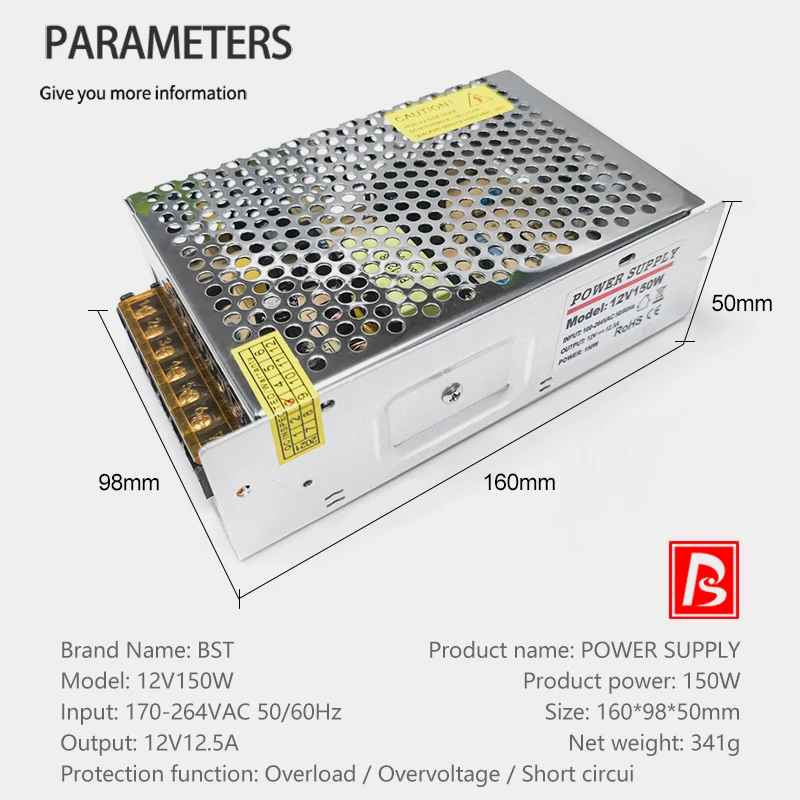

150w Power Supply Specification | ||||||||
Output Power | 150w | OVER VOLTAGE Protection | Yes | |||||
Output Voltage | DC 12V | OVER LOAD Protection | Yes | |||||
Input Voltage | AC 220V±5% | OVER TEMP. Protection | Yes | |||||
Frequency | 47-60Hz | WITHSTAND Voltage | 2KVAC/Min | |||||
Efficiency | ≥80% | ISOLATION RESISTANCE | ≥100m | |||||
RIPPLE&NOISE | ≤1% | Cooling | By Fan | |||||
HOLD UP TIME | 20ms(220VAC) | Working Temp. | -30~50℃ | |||||
SETUP, RISE TIME | 50ms(220VAC) | Warranty | 2 Years | |||||
Providing customer best service and best products is our goal!!!
