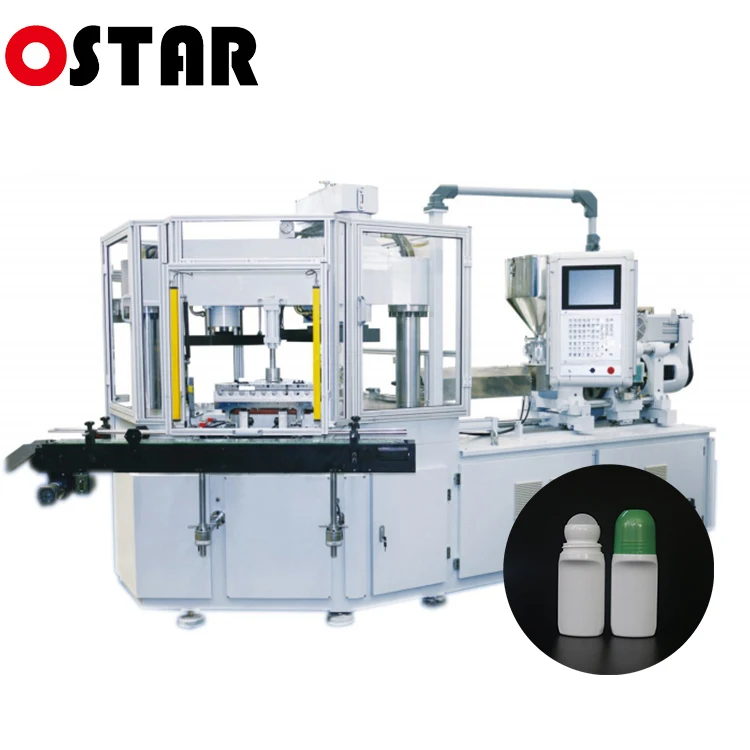

Automatic Pharmaceutical Medicine Plastic Bottle Making Injection Blow Molding Machine
- Category: >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (1600350317587):
Product Overview
Description

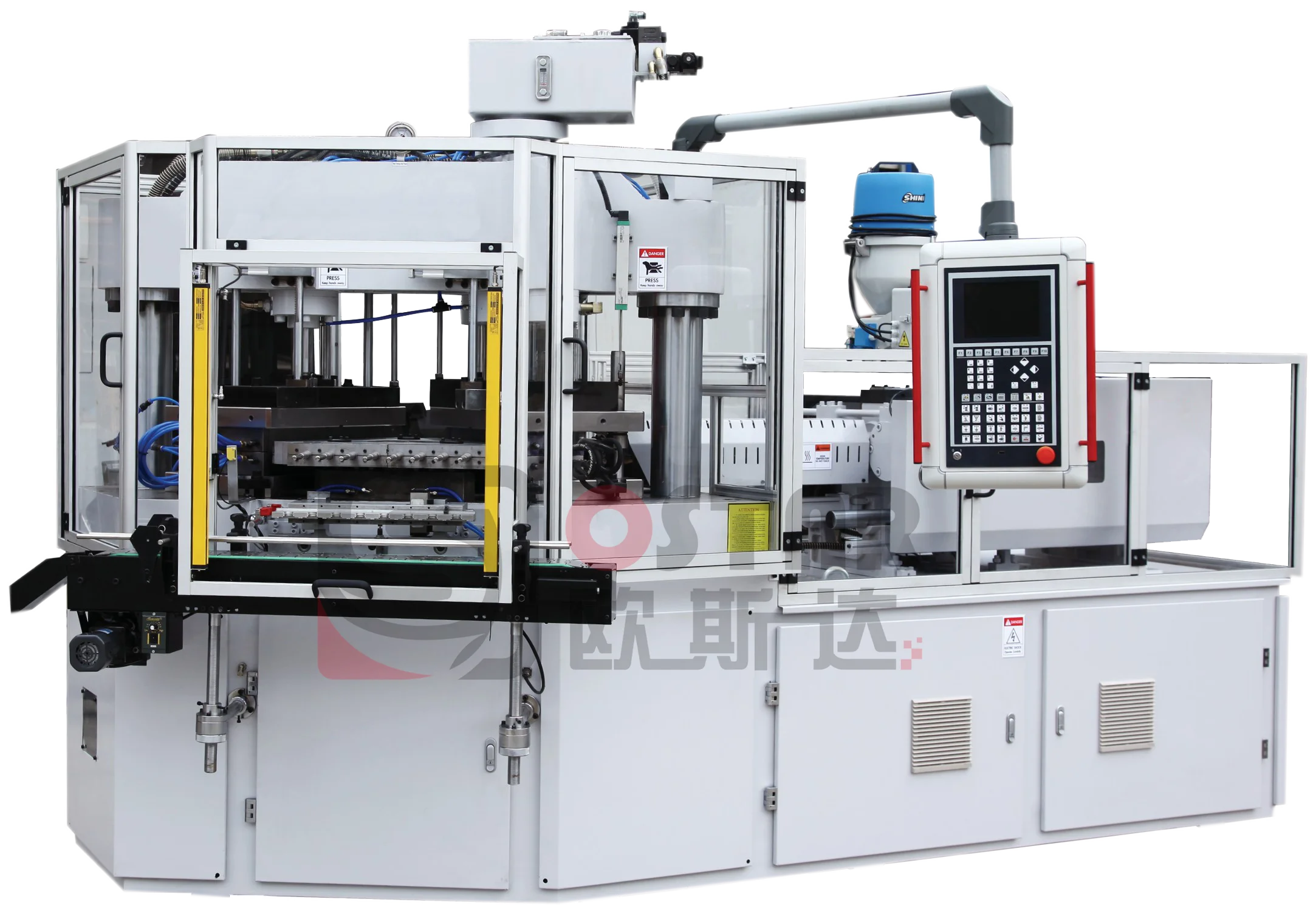

Injection Molding Machine Features:
1) Down-setting the clamping cylinder ensures the product clean. The mold chucking force is kept balance and uniform.
2) Decreasing the machine height ensures the easy operation of settling molds.
3) Particular hydraulic servo system and reasonable layout of the pipeline keep the machine running high efficient and energy-saving.
4) Particular pressure clamping structure increases the clamping force and reduces the energy consumption of system.
5)Servo rotation system or high precision indexing device highly increases the rotation precision and reduces the dry cycle time.
6) Special double cylinder horizontal valve plate superimposed injection system not only makes the injection and storage smoother and faster, but also make it with good appearance. Particular plastic components meet the multi-level injection and pressurized requirement for different products.
7) Optimized internal rack layout keeps the maintenance more convenient.
8) Ejection process adopted with digital sensor detection and added with mandrel rotary detection function, which realizes the goal of full automatic operation.
9) Adopt the function of air pressure detection. When the blowing pressure below the set pressure, the equipment alarm and stop automatic, to reduce the rejection rate in the process of automatic production.
10)The conveyor belt can be connected with the Visual Inspection, Leakage Tester and Labeling equipment, etc…
2) Decreasing the machine height ensures the easy operation of settling molds.
3) Particular hydraulic servo system and reasonable layout of the pipeline keep the machine running high efficient and energy-saving.
4) Particular pressure clamping structure increases the clamping force and reduces the energy consumption of system.
5)Servo rotation system or high precision indexing device highly increases the rotation precision and reduces the dry cycle time.
6) Special double cylinder horizontal valve plate superimposed injection system not only makes the injection and storage smoother and faster, but also make it with good appearance. Particular plastic components meet the multi-level injection and pressurized requirement for different products.
7) Optimized internal rack layout keeps the maintenance more convenient.
8) Ejection process adopted with digital sensor detection and added with mandrel rotary detection function, which realizes the goal of full automatic operation.
9) Adopt the function of air pressure detection. When the blowing pressure below the set pressure, the equipment alarm and stop automatic, to reduce the rejection rate in the process of automatic production.
10)The conveyor belt can be connected with the Visual Inspection, Leakage Tester and Labeling equipment, etc…

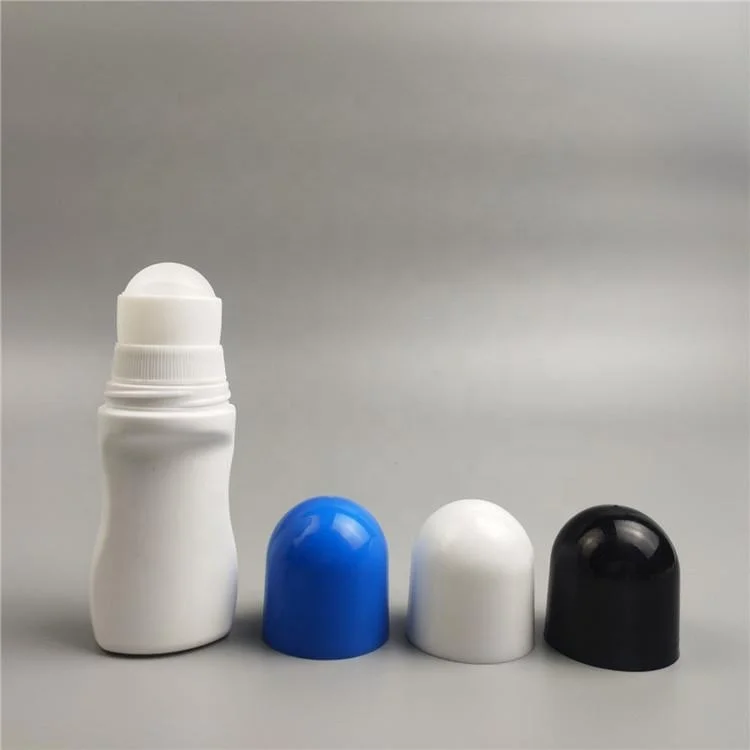

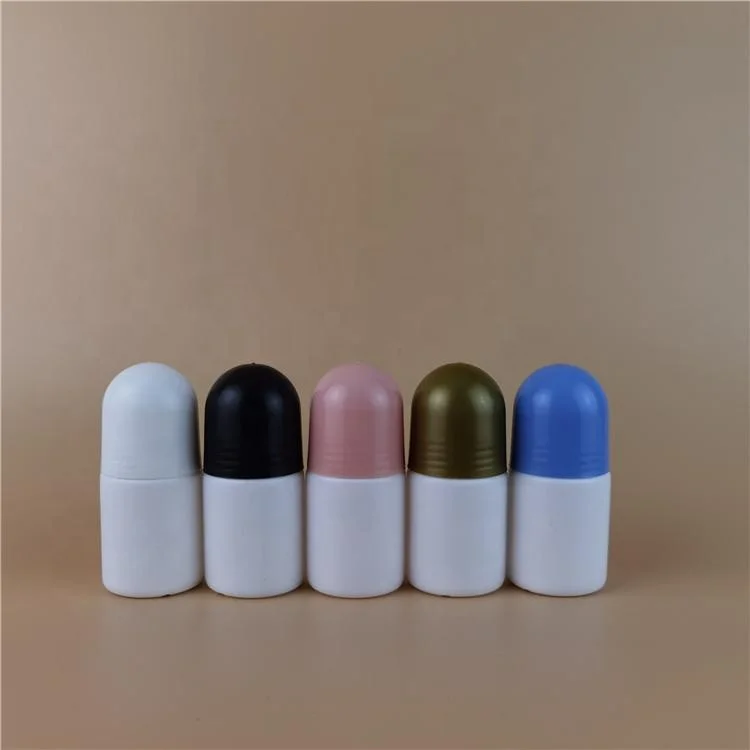

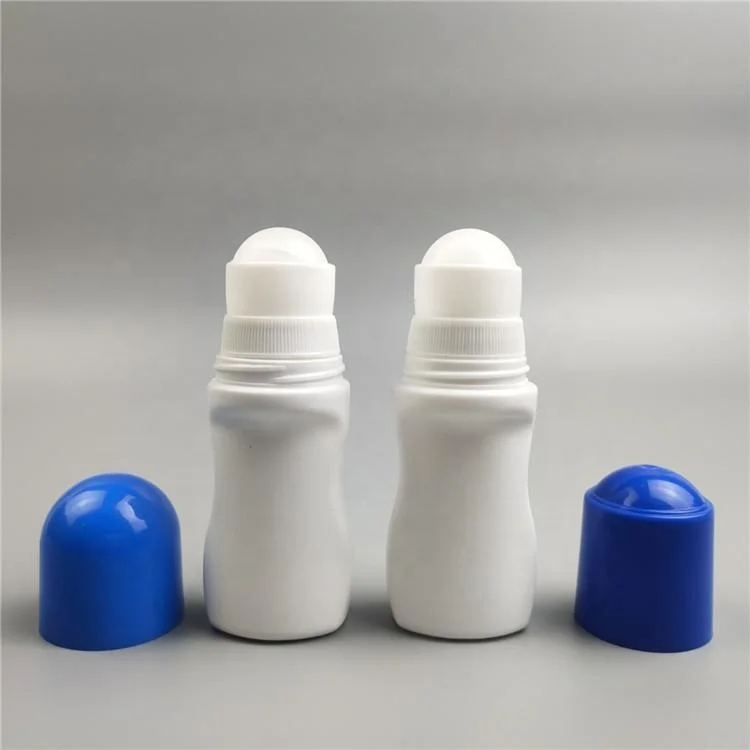

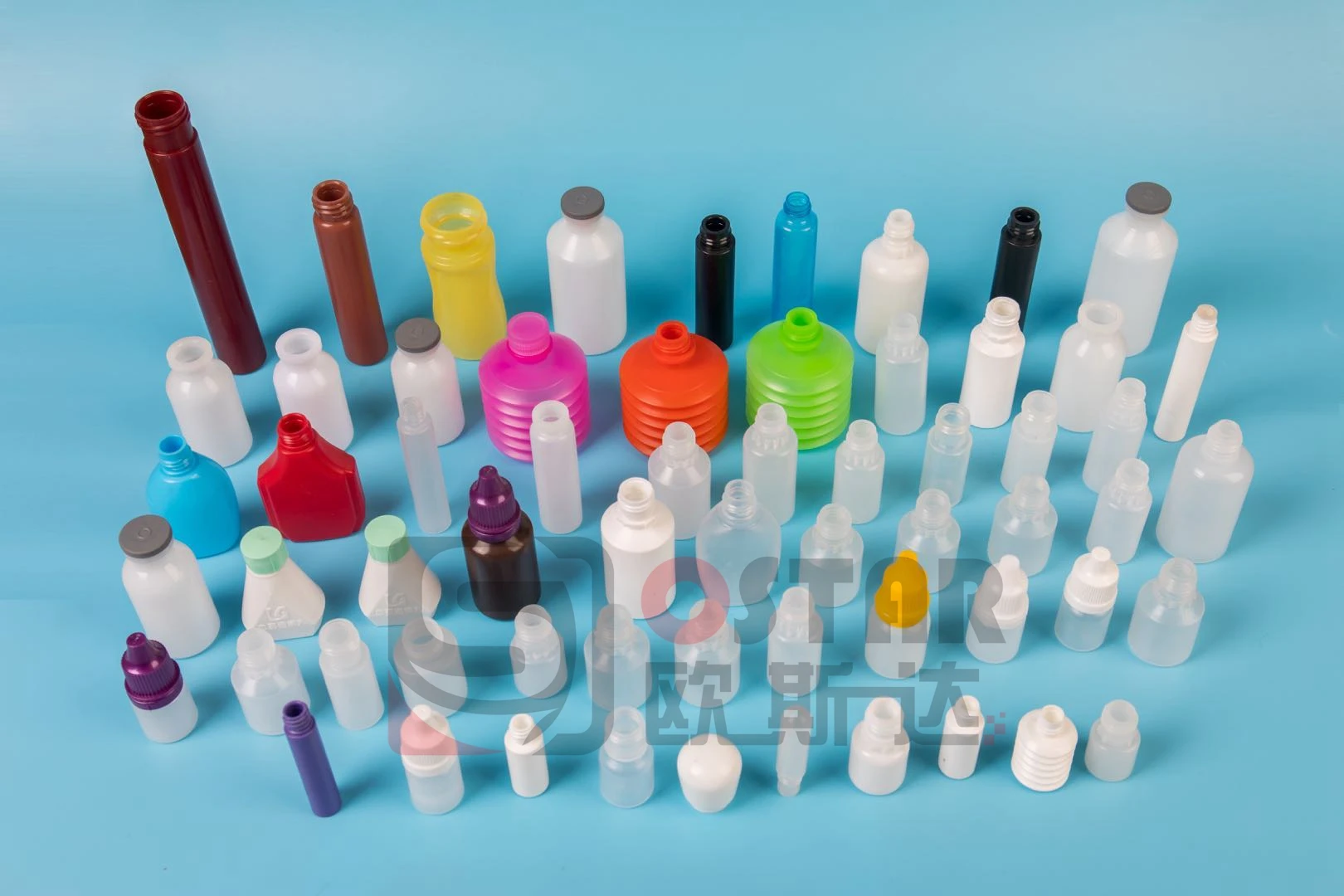

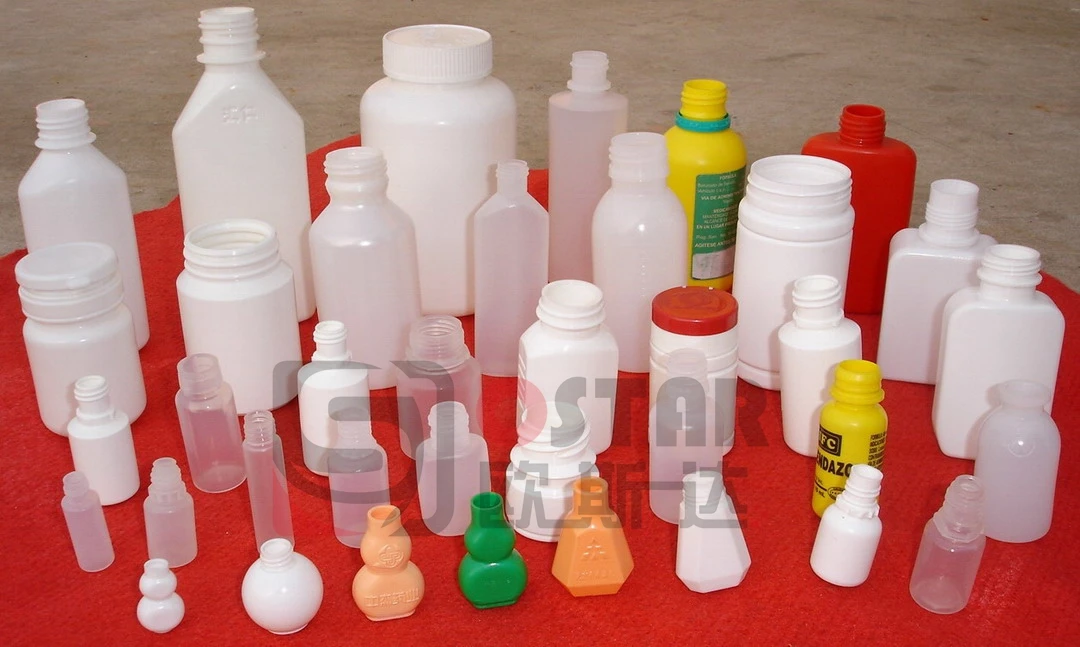

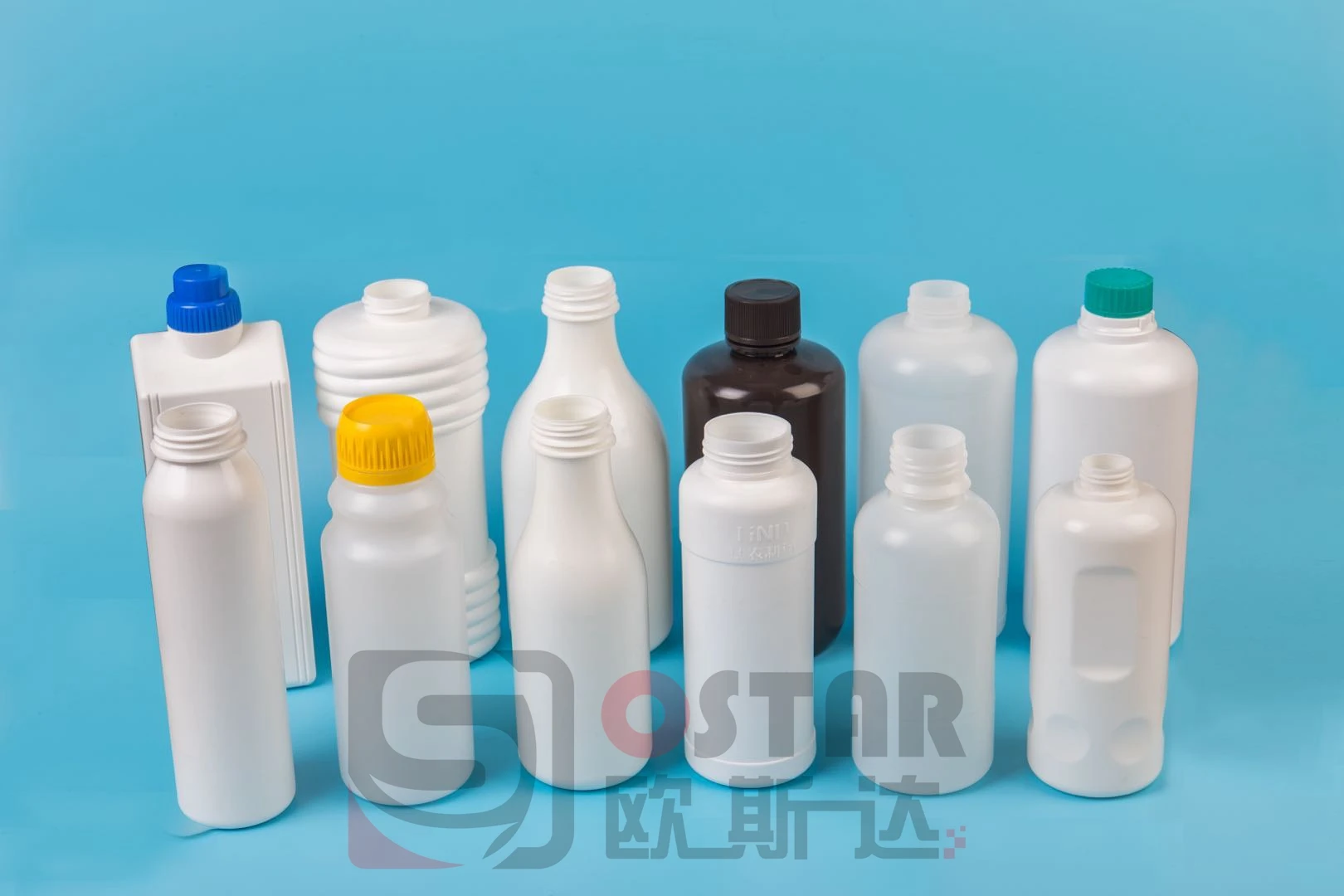

Our machines are widely used to make HDPE/PP/PETG/PVC/PS bottles, size from 3ml to 1000ml, Application below:

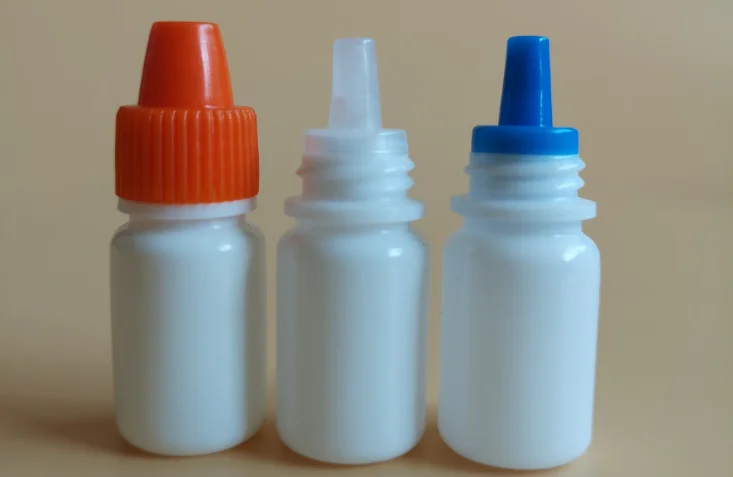

1) Eye dropper bottles
2) Pharmaceutical bottles
3) Reagent bottles
4) Milk&yogurt bottles
5) Cosmetics bottles
6) Food bottles

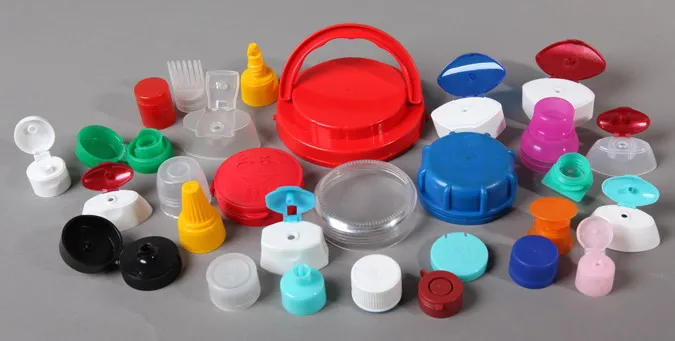

We also provide the cap injection molding machine, cap molds, so our customers could buy the complete production line for both bottles and caps. A-Z solution service for you.
Specification | Unit | IBM35/350 | IBM45/450 | IBM65/650 | IBM75/750 |
Diameter of screw | MM | 40 | 45 | 50 | 50 |
Injection weight | G | 176 | 260 | 314 | 400 |
Heating capacity | KW | 7.2 | 10 | 10 | 12 |
Control area of electric heating | QTY | 3 | 3 | 3 | 5 |
Clamping force of injection | KN | 350 | 450 | 600 | 750 |
Clamping force of blow | KN | 40 | 78 | 89 | 150 |
Opening stroke of mold platen | MM | 120 | 120 | 140 | 140 |
Injector stroke | MM | 220 | 220 | 220 | 220 |
Max. plate size of die(L*W) | MM | 420*340 | 580*390 | 740*390 | 840*460 |
Min. dia. thickness(H) | MM | 180 | 240 | 280 | 280 |
Motor power | KW | 15 | 18.5 | 30 | 30 |
Heating capacity of mould | KW | 2.8 | 4.0 | 5.0 | 6.0 |
Pressure of hydraulics system | MPA | 14 | 14 | 14 | 14 |
Min. pressure of compressed air | MPA | 0.8 | 1.0 | 1.0 | 1.0 |
Discharge rate of compressed air | M3/min | ≥0.7 | ≥0.8 | ≥0.8 | ≥0.8 |
Consumption of cooling water | M3/hr | 3 | 3 | 3 | 3 |
Suitable bottle Range | ML | 3-600 | 5-600 | 5-800 | 5-1000 |
Max. Height of bottle | MM | ≤175 | ≤200 | ≤200 | ≤200 |
Max. dia. of the bottle | MM | ≤75 | ≤80 | ≤80 | ≤100 |
Total power | KW | 25 | 35 | 45 | 50 |
Machine dimension(L*W*H) | M | 3.1*1.2*2.2 | 3.5*1.4*2.3 | 4.0*1.4*2.4 | 4.0*1.7*2.0 |
Machine weight | T | 3.6 | 5.5 | 6.5 | 10 |

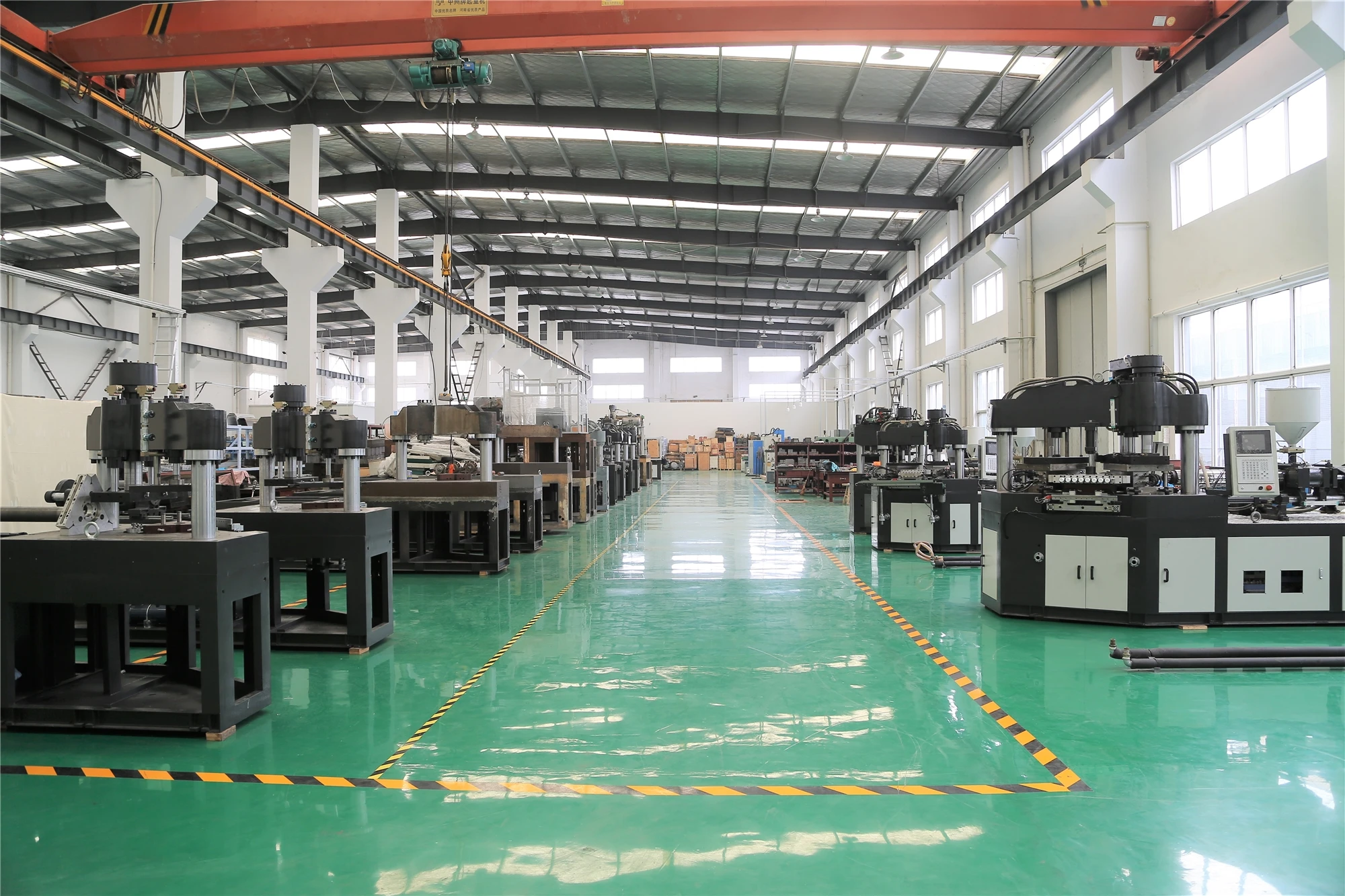

Our machine assembly workshop, 3000m2 space for all size
machines manufacturing and testing
We have own technical department, design and improve our machine, both on machine appearance and performance
Machine operation panel, from Taiwan
brand TECHMATION, big color screen.
20 Multiple language display, English, Spanish, Portugu, French, Arabic.
Eeasy operatiom and maintenance
Machine plasticizing unit, adopt reliable
plasticizing hydraulic motor & durable
screw and barrel, high efficiency heater
ensure plastic raw material with good
melting and color
Machine injection-blowing stations
3 stations continuously running fast.
fast and stabe rotation, provide high output bottle products, different cavity mold based on customer bottle sample
Machine hydraulic system, using famous brand Japanese
YUKEN valve, ensure high speed response of whole machine, and precise control of each machine motion, stable working condition, long machine life.
Machine pneumatic system, adopt imported high quality brand FESTO from Genmany, provide stable and power air
sources for whole machine blowing unit, ensure the bottle blowed with good quality and fast speed.
Machine electrical cabnit, the most important part of our machine, TECHMATION PLC from Taiwan, SCHNEIDER air break and contactor from France, FOTEK SSR from Taiwan.
all of good components make machine prefect working.
Machine main motor from Genmany SIEMENS, and oil pump from Japan Yuken, provide machine with strong power and speed. also we have servo system for option choose, saving
30%-50% electricity consumption, good for long production.
Ready machine workshop
We have a 2000m3 workshop, for all of ready machines, to make final machine inspection and test. every machine need at least 3 time inspection and dry running for at least 72 hours, to make sure every set machine good working without any problem before shipment.quality is our life, we believe and we practice!
Injection-blow mold
Mold is very important for the bottle production, we have experience mold team, we do bottle design drawing, mold component manufacturing, mold assembly, mold test, and we provide bottle sample and test video for customers.
Mold shop
We using top quality mold material, like 2344, S136, 4CR14
durable and anti-rust, inside mold, with optimized structure and cooling channel, to reduce machine cycle time, improve production output, help you do faster than your competitor!

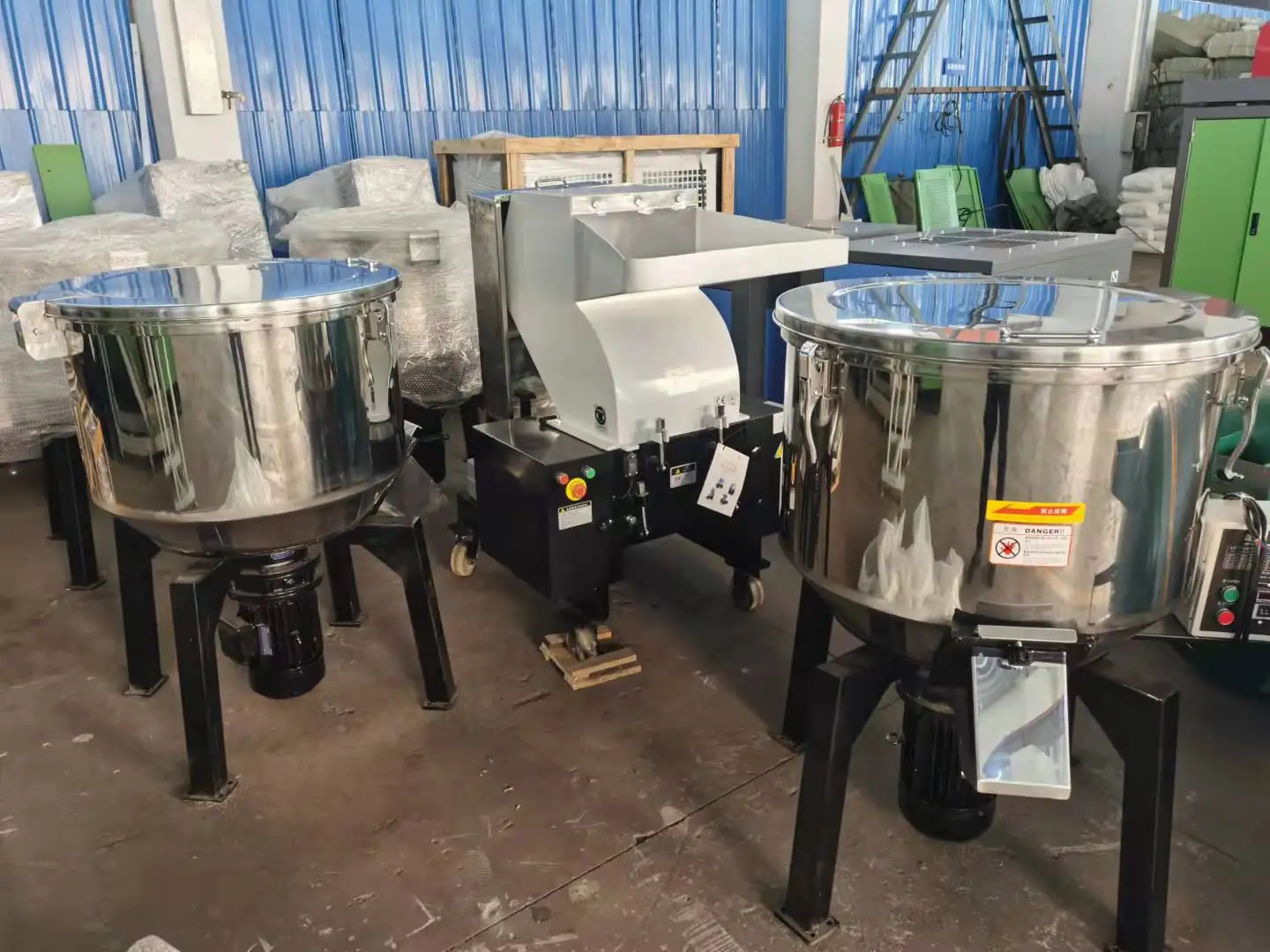

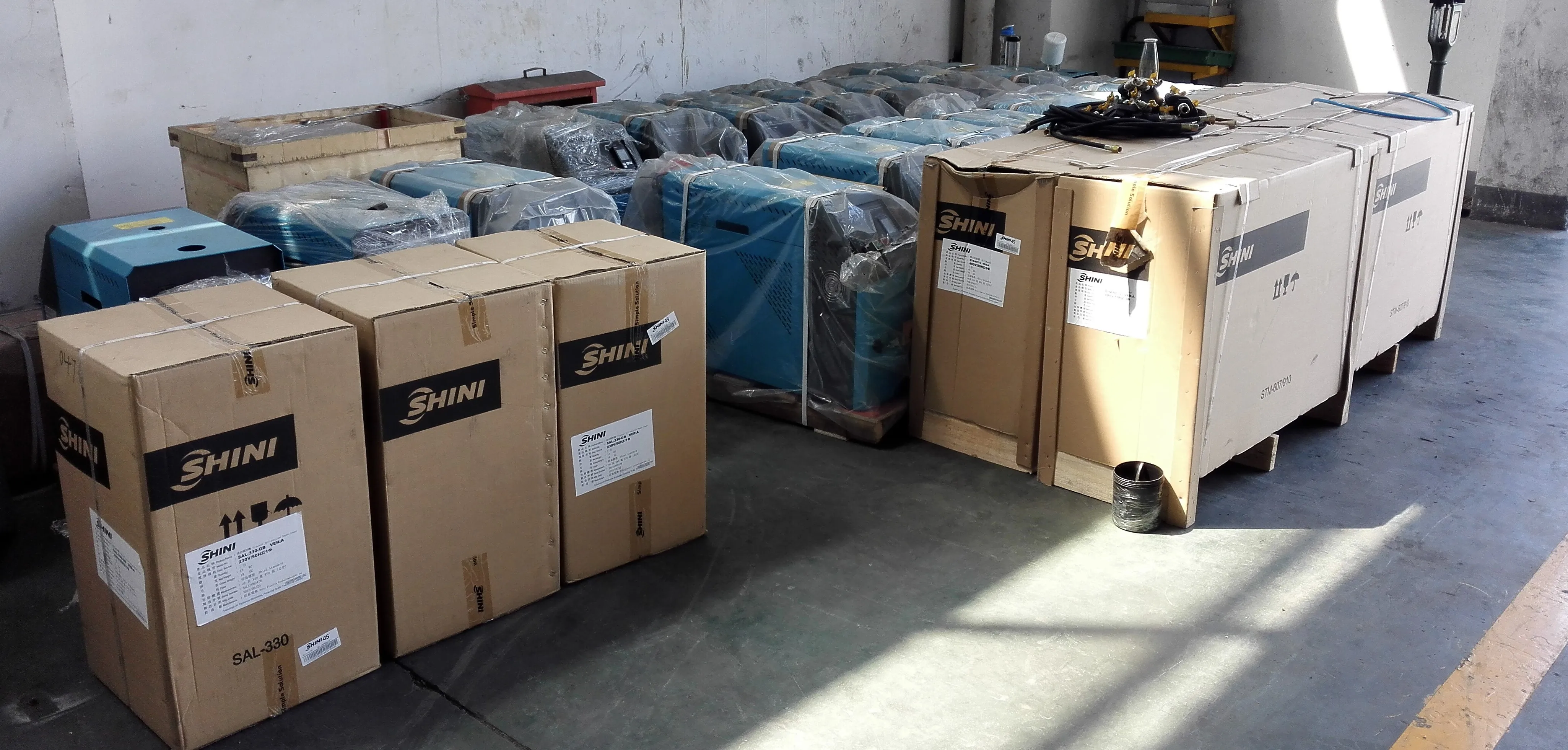

Auxiliary equipments for injection-blow molding machine
We provide auxiliary of machines too, like auto loader, hopper dryer, chiller, color mixer, crusher, screw air compressor, mold temperature controller, in one word, we give A-Z solution to you, one complete production line for our customers!

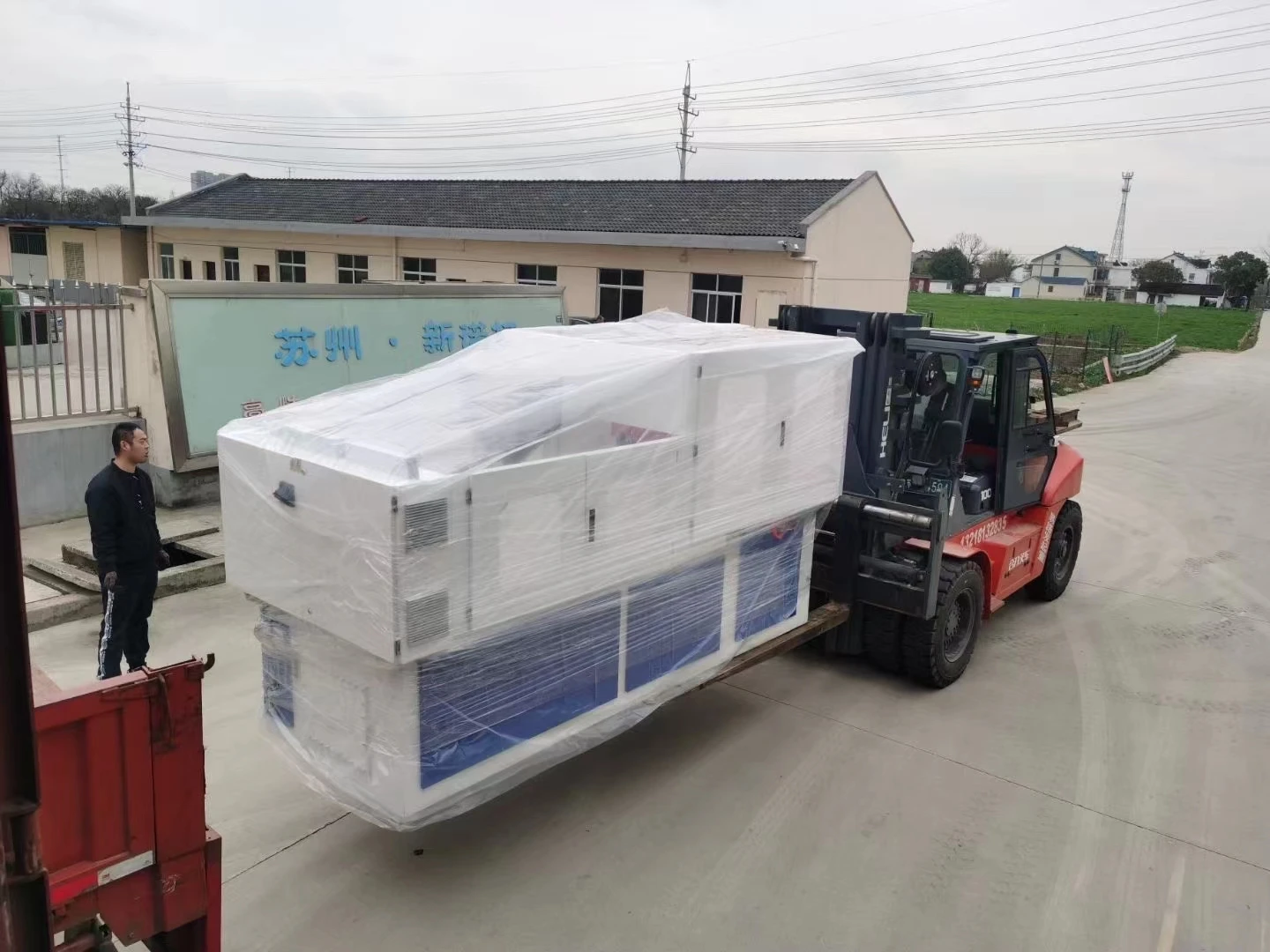

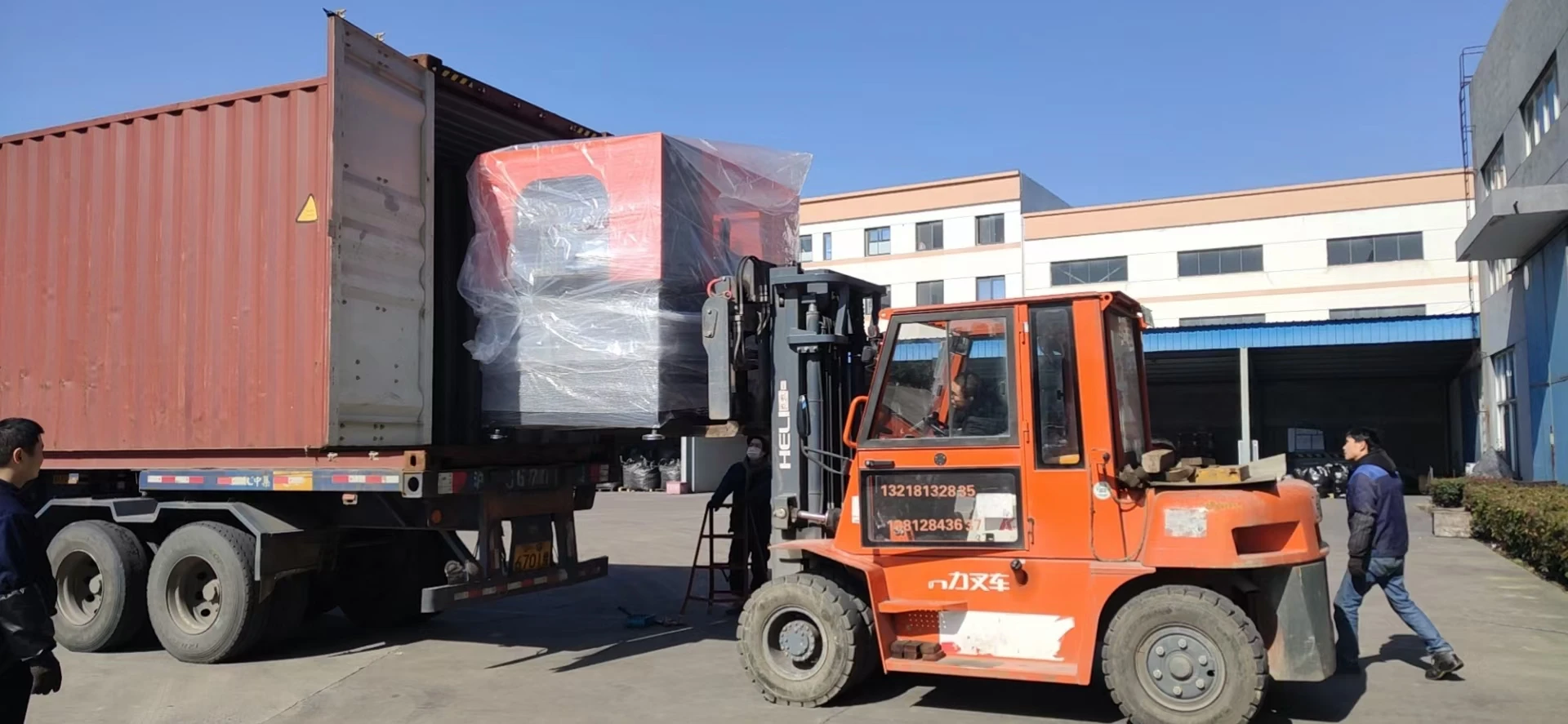

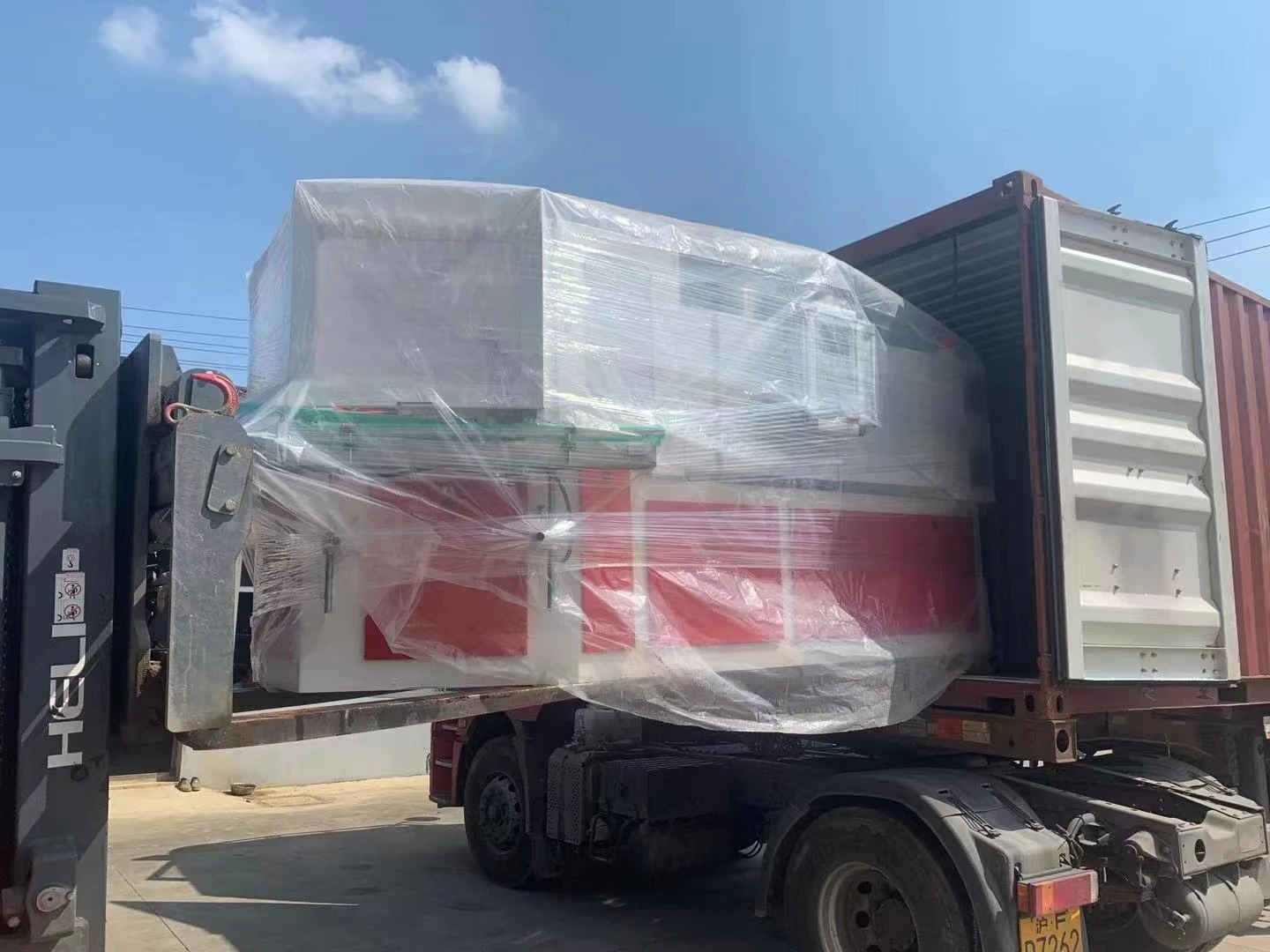

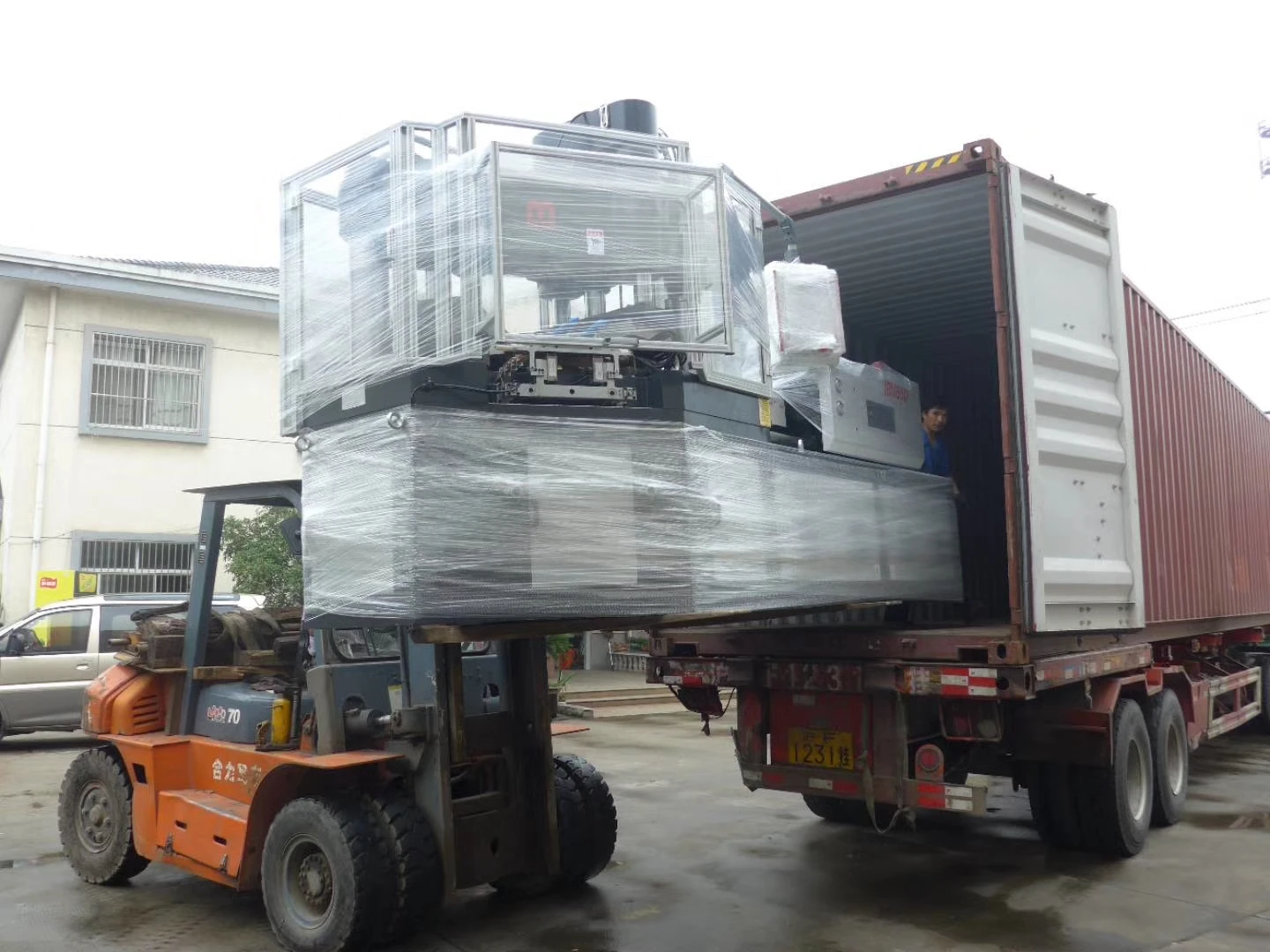

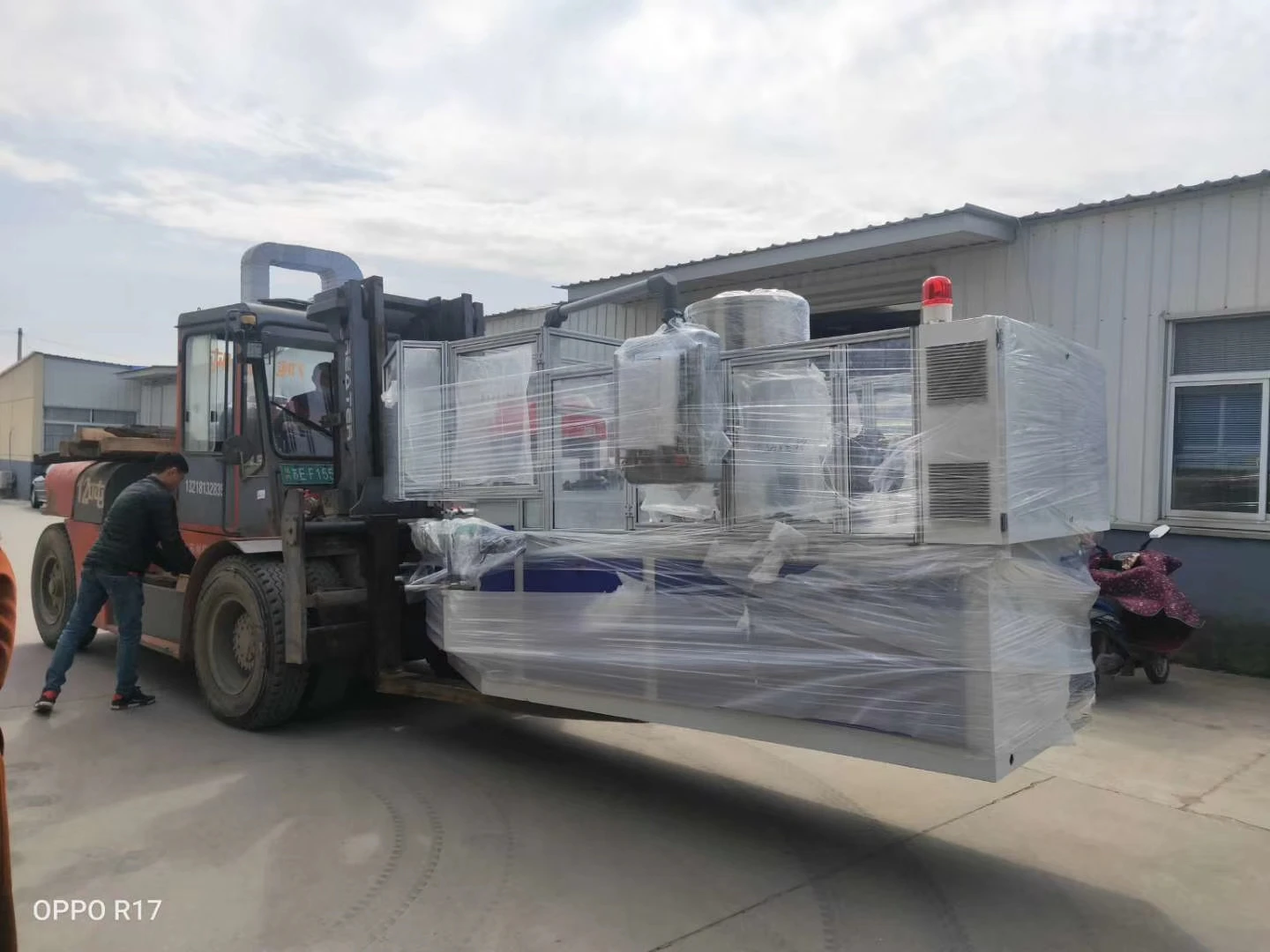

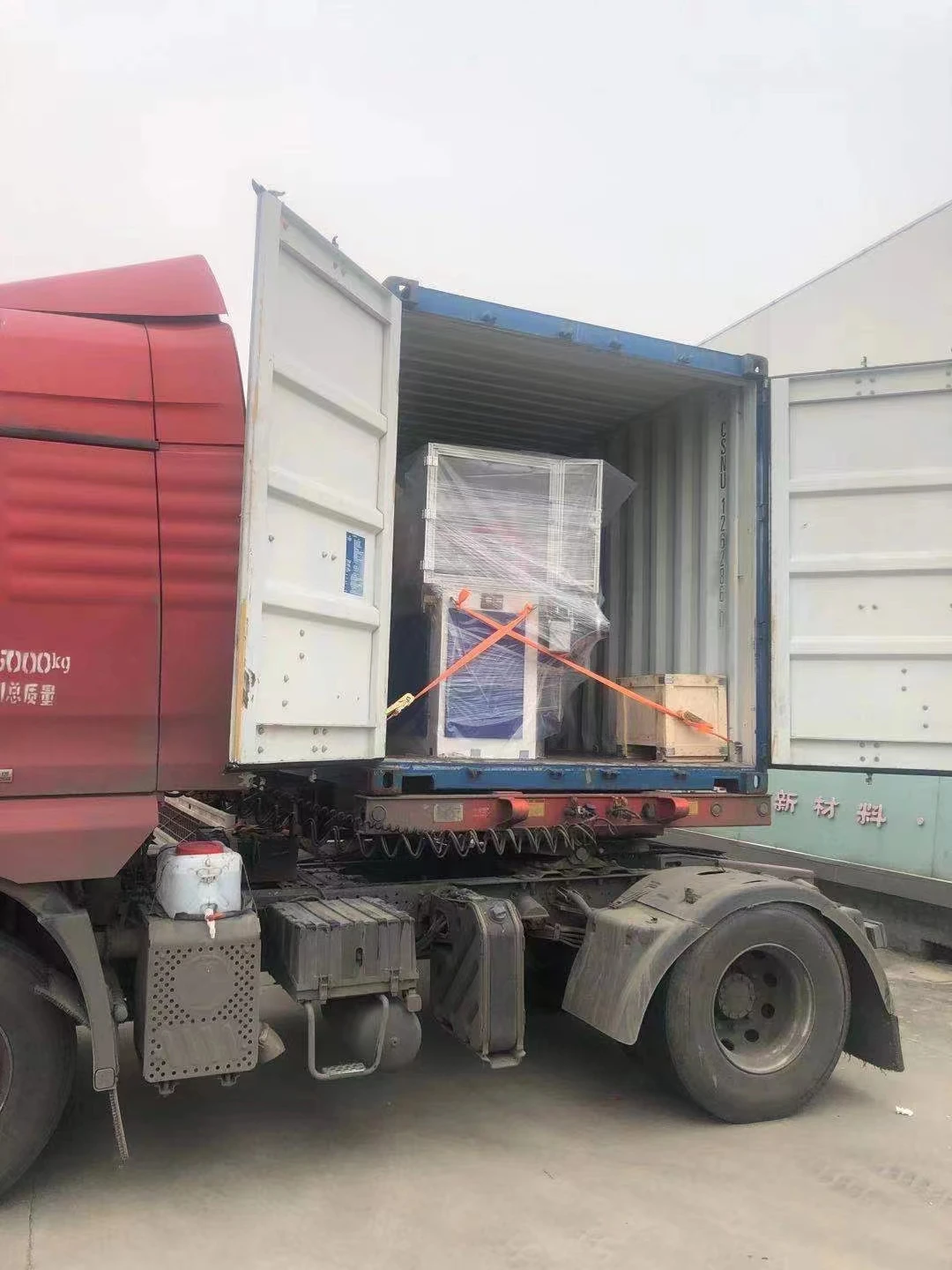

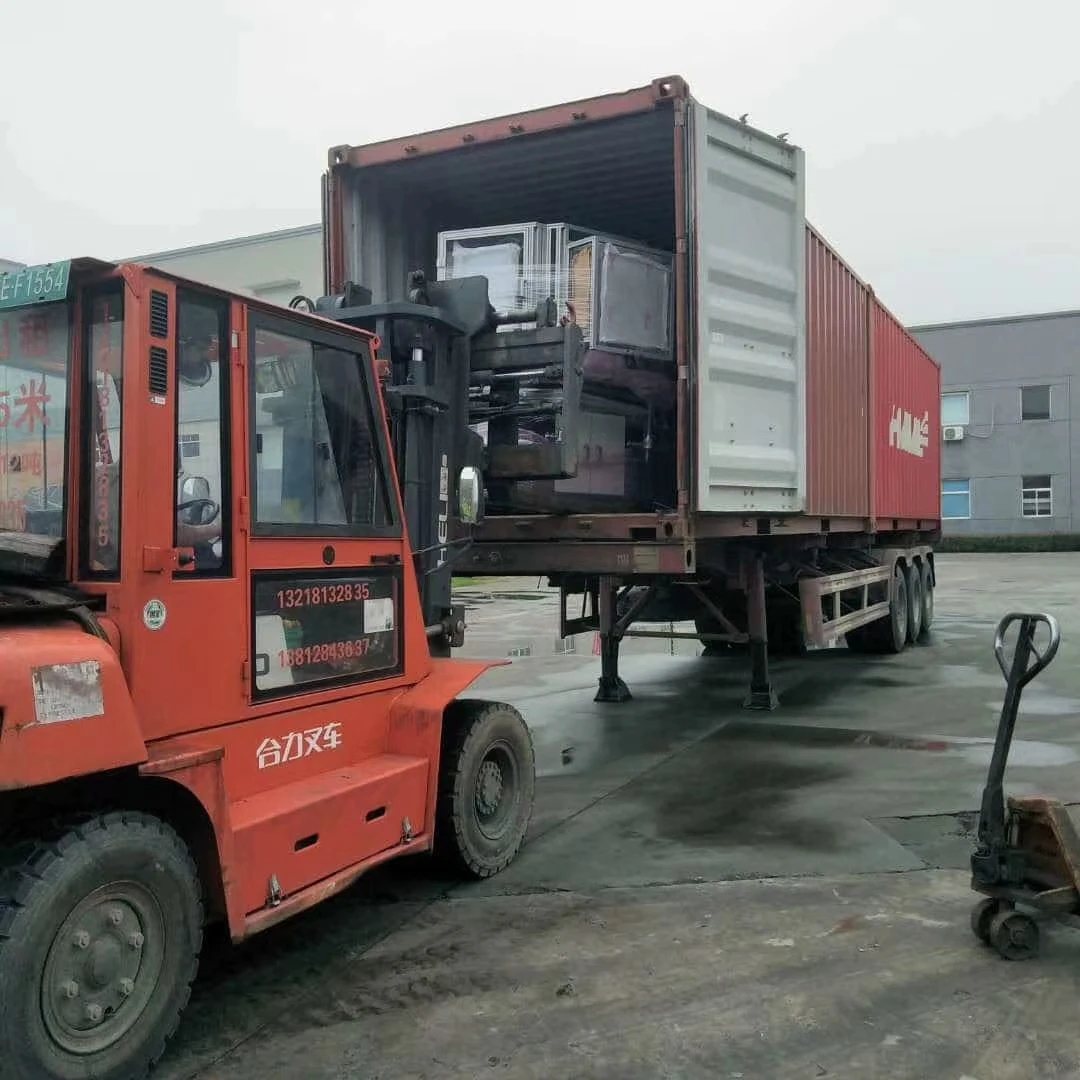

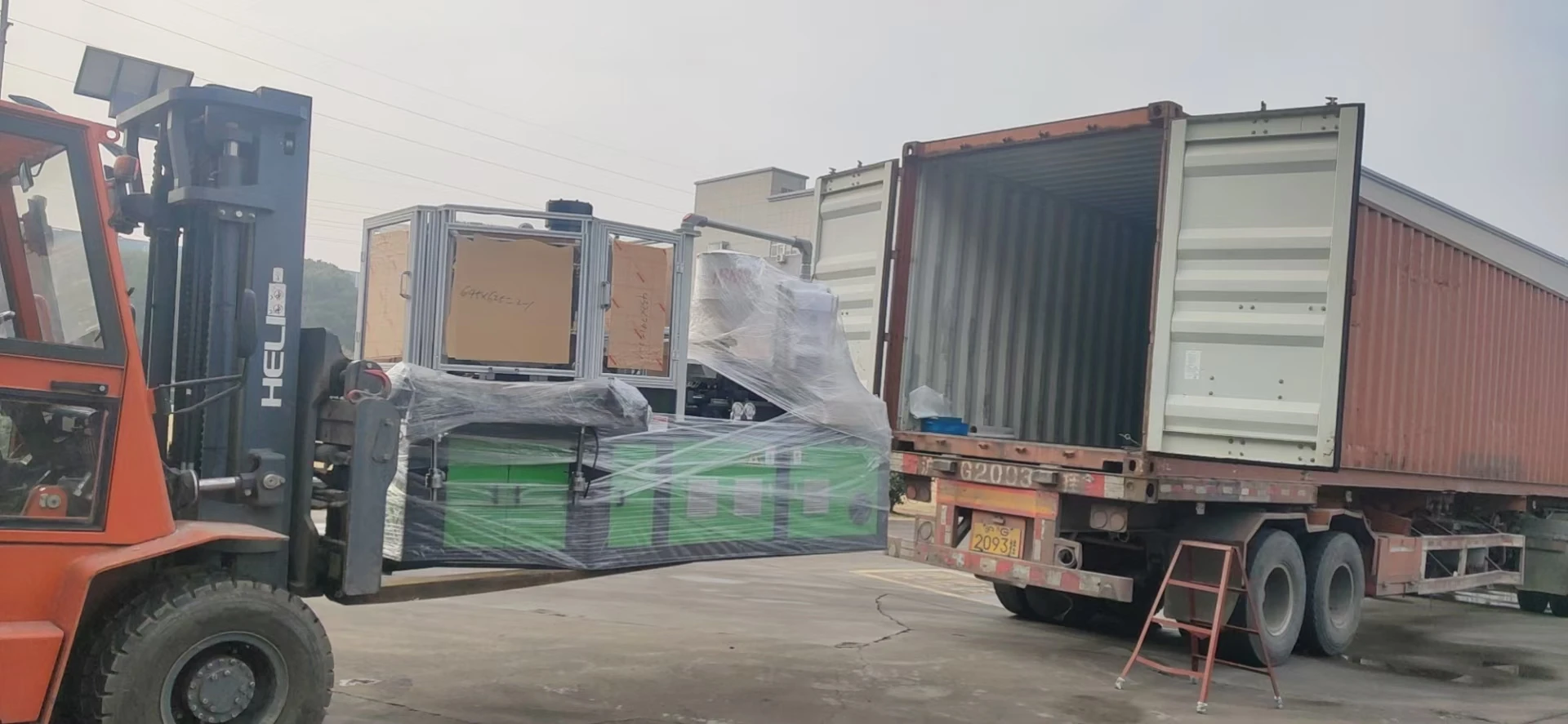

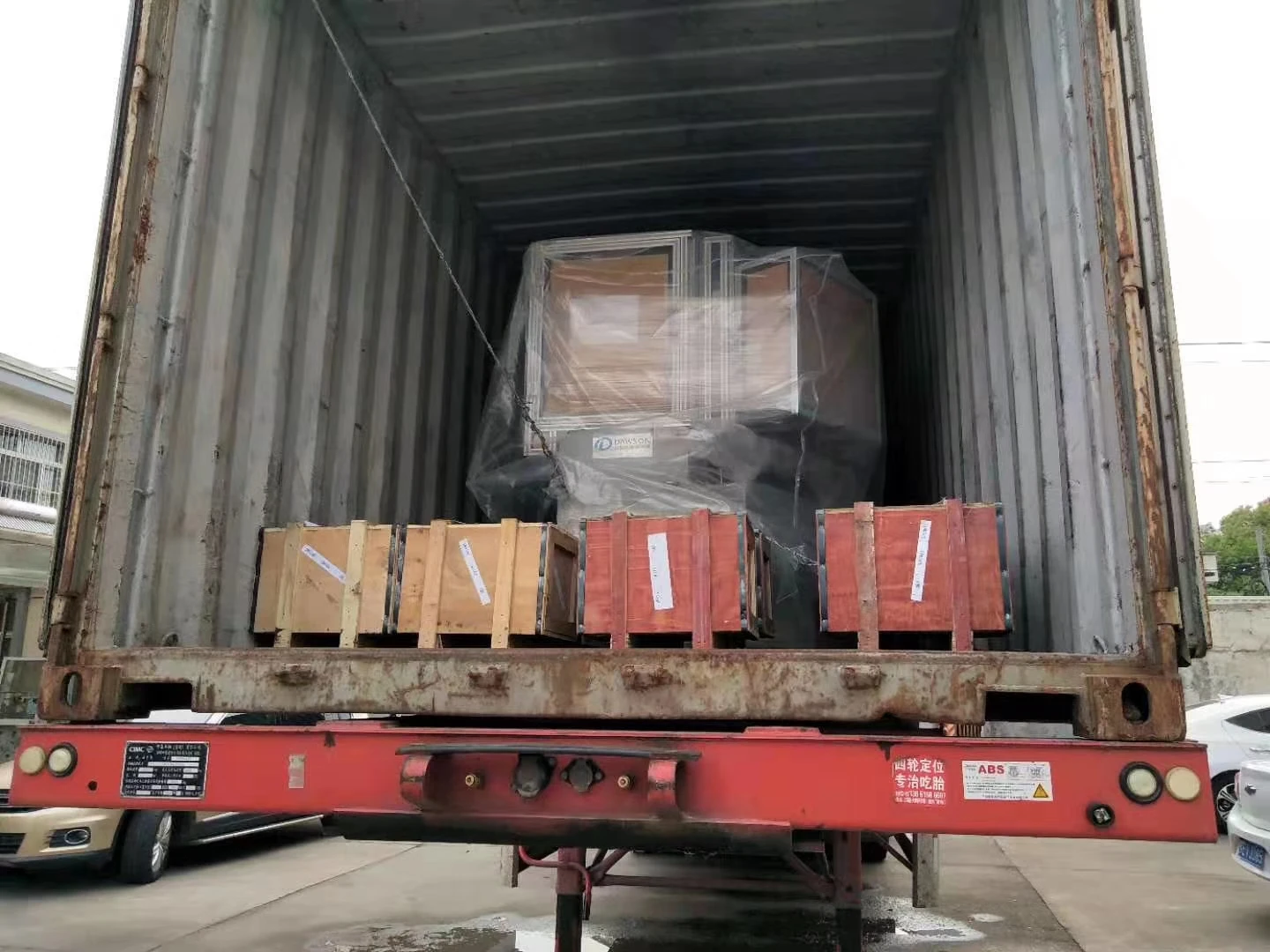

Machine shipment
Our machines have widely exported to over 50 different countries&areas, Ethiopia, Nigeria, India, Tanzania, South Africa, Bangladesh, Russia, USA, Ecuador, Venezuela, Barzil, Mexico, Indonisia, Saudi, Yemen, Poland, Uzbekistan, South Korea, Qatar, UK, Spain etc..., we wish you would be become our next customer and long term partner, with win-win relationship!
We have more machine for you to choose, injection molding machine to make bottle caps and jar, extrusion blow molding machine for bigger jerrycan and drum, PET bottle blowing machines for water&beverages bottles. my friend, welcome to contact us for more details, we would give you best choice with lowest price.
