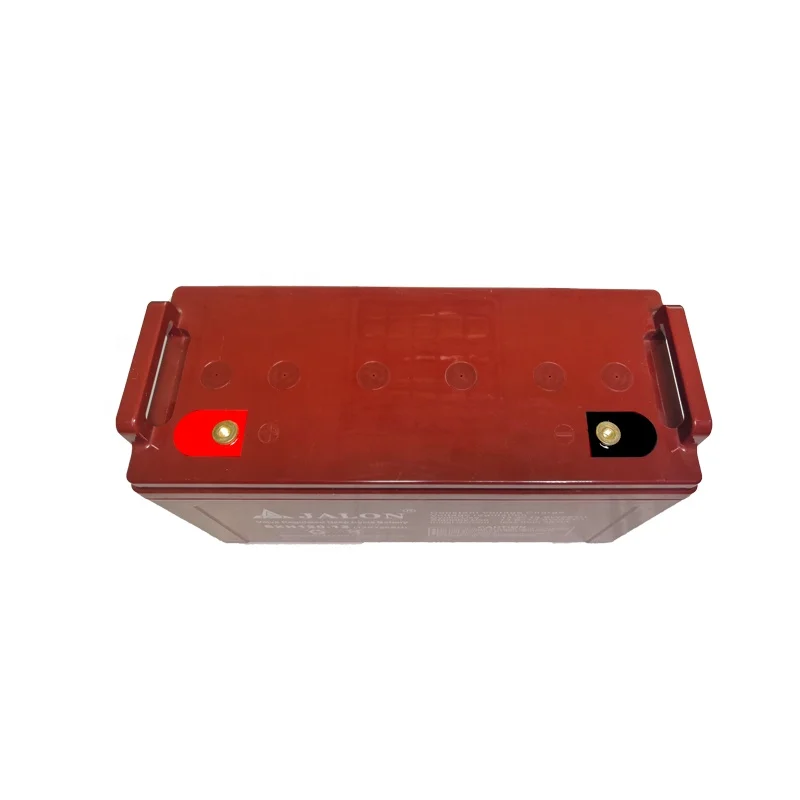

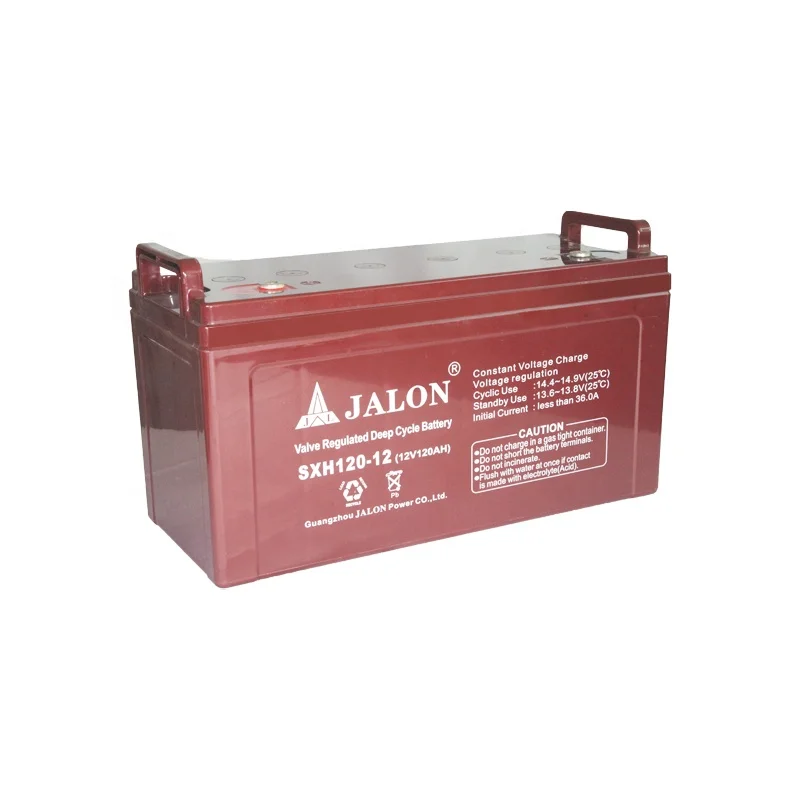

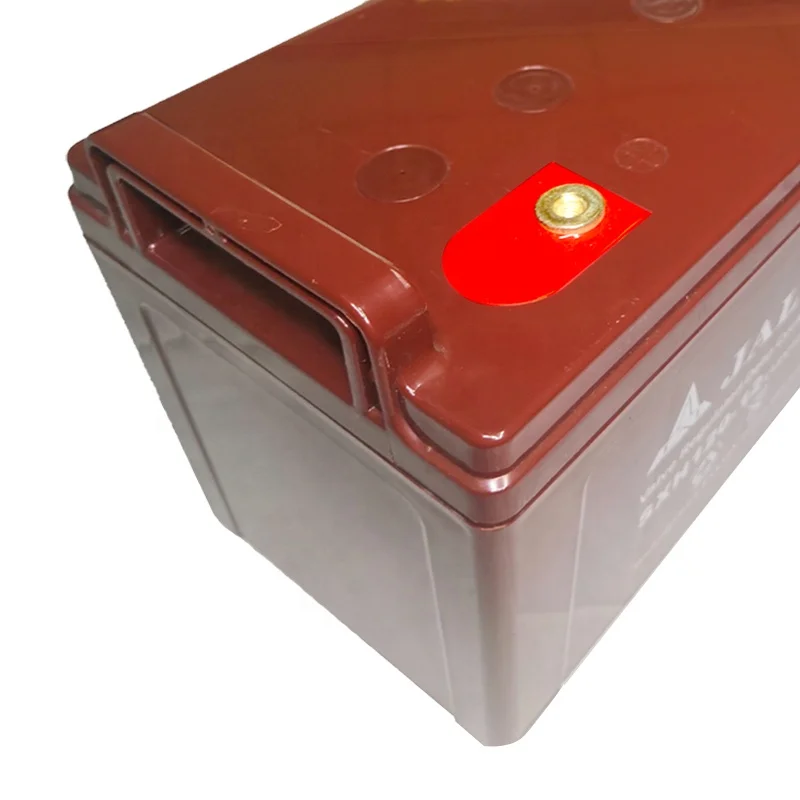

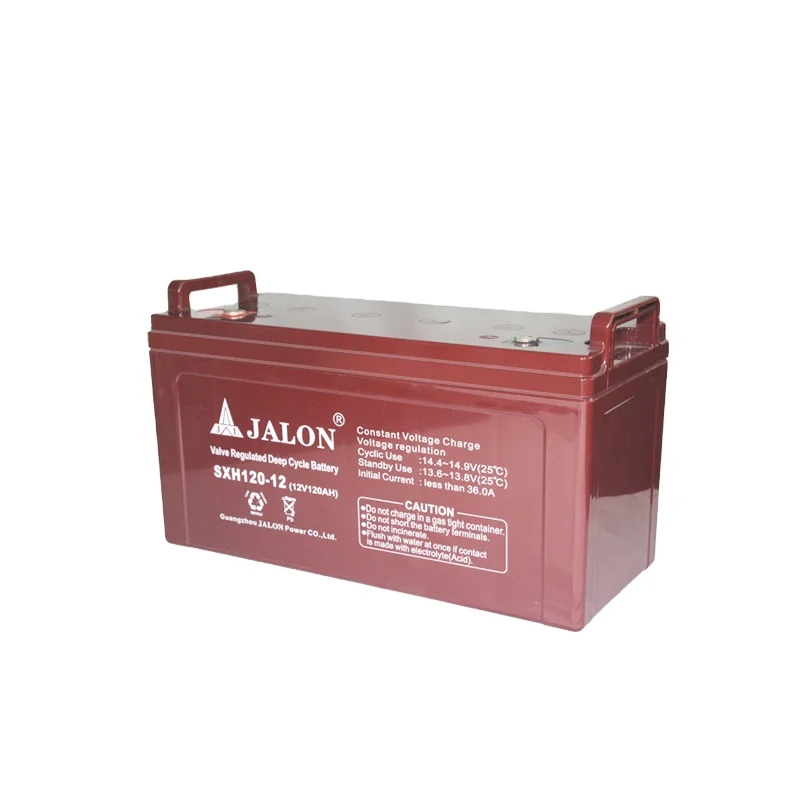

Guangzhou Jalon 12v 120ah Storage Sealed vlra battery deep cycle battery
- Category: >>>
- Supplier: Guangzhou Jalon Power Co. Ltd.
Share on (1600350353076):
Product Overview
Description
Product Description
Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm/Kg[(±5%)]) | Weight(Kg) |
GEL24-12 | 12 | 24/10HR | 165*126*174 | 7.8 |
GEL26-12 | 12 | 26/10HR | 165*175*126 | 8.4 |
GEL33-12 | 12 | 33/10HR | 196*130*155 | 10.1 |
GEL38-12 | 12 | 38/10HR | 197*166*174 | 12.4 |
GEL42-12 | 12 | 42/10HR | 198*166*174 | 13.0 |
GEL50-12 | 12 | 50/10HR | 229*138*212 | 15.9 |
GEL55-12 | 12 | 55/10HR | 229*138*212 | 16.4 |
GEL65-12 | 12 | 65/10HR | 351*167*178 | 24.3 |
GEL70-12 | 12 | 70/10HR | 260*169*215 | 21.8 |
GEL80-12 | 12 | 80/20HR | 260*169*215 | 23.5 |
GEL90-12 | 12 | 90/10HR | 307*169*215 | 26.7 |
GEL100-12 | 12 | 100/10HR | 331*174*219 | 29.2 |
GEL120-12 | 12 | 120/10HR | 407*174*233 | 34.4 |
GEL150-12 | 12 | 150/20HR | 484*171*241 | 43.7 |
GEL160-12 | 12 | 160/10HR | 532*206*222 | 48.5 |
GEL180-12 | 12 | 180/10HR | 532*206*222 | 52.4 |
GEL200-12 | 12 | 200/10HR | 522*240*224 | 58.5 |
GEL220-12 | 12 | 220/10HR | 522*240*224 | 60.8 |
GEL250-12 | 12 | 250/10HR | 520*268*225 | 70.3 |

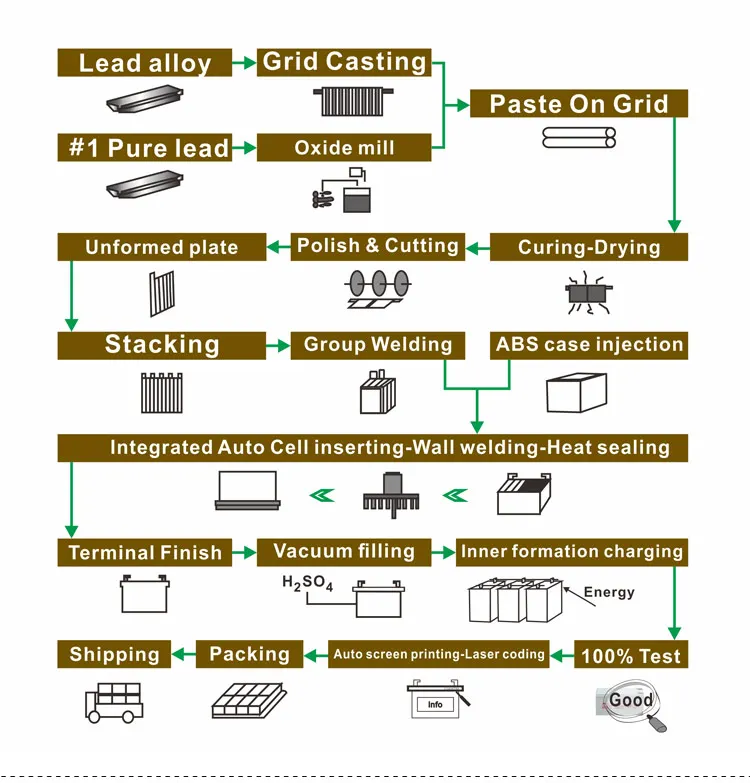

Production Process
Plate---Battery Case---Assemble---Package---Shipment
Application & Product features
Specification
Nominal Voltage | 12V | ||
Nominal Capacity(10HR) | 120AH | ||
Dimension | Length | 406 ±3mm | |
Width | 174 ±2mm | ||
Container Height | 233 ±2mm | ||
Total Height (withTerminal) | 235 ±2mm | ||
Approx Weight | Approx32.9kg | ||
Terminal | T5 | ||
Container Material | ABS | ||
Rated Capacity | 128.0 AH/5.20A | (20hr ,1.80V/cell,25℃/77℉) | |
120.0 AH/10.0A | (10hr,1.80V/cell,25℃/77℉) | ||
Internal Resistance | Approx 4.8mΩ | ||
Operating Temp.Range | Discharge : -15~45℃ | ||
Charge : -10~40℃ | |||
Aircraft signal Storage : -15~40℃ | |||
Nominal Operating Temp. Range | 25 ±3℃ (77 ±5℉ ) | ||
Cycle Use | Initial Charging Current less than 30.0A.Voltage Communication power supply 14.4V~14.9V at 25℃(77℉)Temp. Coefficient -30mV/℃ | ||
Standby Use | No limit on Initial Charging Current Voltage Auto controlsystem 13.6V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃ | ||
Capacity affectedby Temperature | 40℃ (104 ℉)103% | ||
25℃ ( 77 ℉ )100% | |||
0℃ ( 32℉ ) 86% | |||
Self Discharge | Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher | ||
temperatures the time interval will be shorter. | |||
Factory Images
Packaging
Customer Photos
Exhibition
Company Profile
JALON Power Co., Ltd. founded in 2003, is a professional manufacturer of storage battery. We owns two battery brands Jalon and eFOX. Products consists of full series of 12V valve regulated lead-acid battery, gel battery, deep cycle battery, front terminal battery and full series of 2V storage battery. Full specifications, large scale, main series consists of 12V7AH-250AH, 2V100AH-3000AH.
Our company is a big scale high-tech enterprise, specialized in the study, develop, manufacture, and sales of valve regulated lead-acid battery. For many years, our products are constantly exported to different countries, also gained rapid development home. Products are applied in various fields, especially in UPS/EPS, solar power, wind power, communication and so on. Our products have passed ISO9001:2015, CE, Export pass and etc. “Quality first, customer first ” is the operation rules. What we dedicate to provide are best quality high-tech products that are not only suitable our national environment, but also our high effective, best quality and quick service. Customer satisfaction are always our pursuit. First-level company is our goal.
Our company is a big scale high-tech enterprise, specialized in the study, develop, manufacture, and sales of valve regulated lead-acid battery. For many years, our products are constantly exported to different countries, also gained rapid development home. Products are applied in various fields, especially in UPS/EPS, solar power, wind power, communication and so on. Our products have passed ISO9001:2015, CE, Export pass and etc. “Quality first, customer first ” is the operation rules. What we dedicate to provide are best quality high-tech products that are not only suitable our national environment, but also our high effective, best quality and quick service. Customer satisfaction are always our pursuit. First-level company is our goal.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2003,sell to Domestic Market(30.00%),Africa(15.00%),North America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Storage Batteries - Valve Regulated Lead-Acid Battery,GEL Battery,Solar Battery,Deep Cycle Battery and UPS Battery
4. why should you buy from us not from other suppliers?
1. We are AGM/GEL battery factory 2. more than 20 years expeirence on batteries. 3. Raw material was produced by ourself to save the cost. 4. Short lead time. 7-10 days 5. Providing OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
