portable video laryngoscope newborn video laryngoscope rigid
- Category: >>>
- Supplier: Luoyang Qinzheng Trading Co. Ltd.
Share on (1600350447318):
Product Overview
Description
portable video laryngoscope newborn video laryngoscope rigid
Product Description

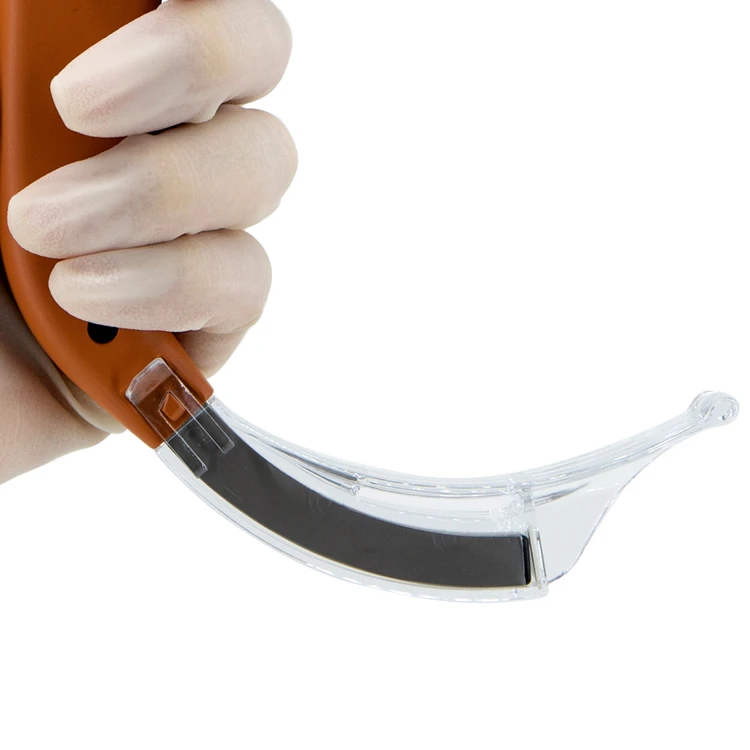

Neonate / Pediatric Video Laryngoscope
70˚ Tilt Screen
When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without
changing your technique.
When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without
changing your technique.
70˚ Tilt Screen
When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without changing your technique.
Plug & Go
Mole Video Laryngoscope has an intuitive interface. Wake the display with one touch of a button. The responsive, text-free display is ready to go.
More Available Space

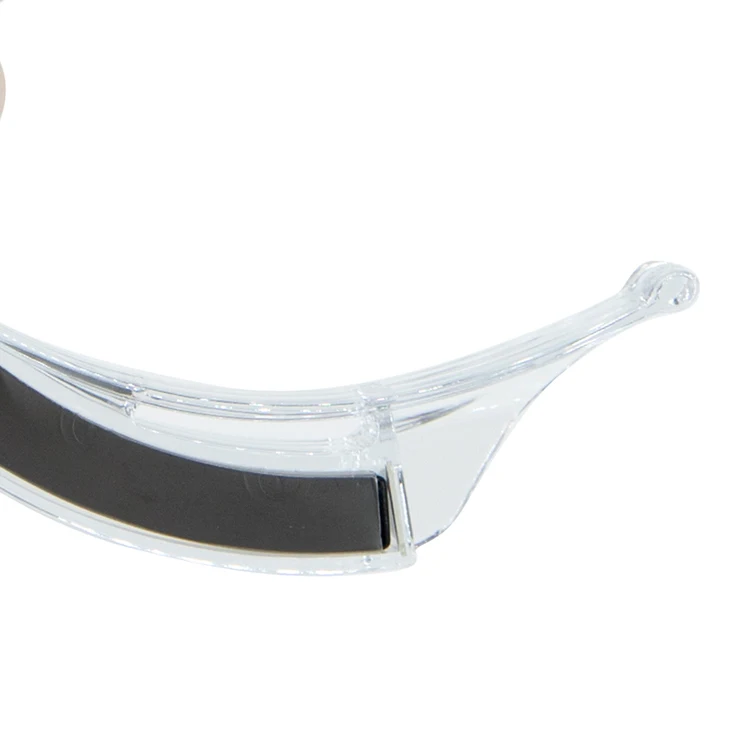

At 12mm height, the Mole Video Laryngoscope blade, improves visualization of the airway, increases maneuverability and working space reducing the risk of dental trauma.
Ultimate Confidence & Control
The Mole single-use handle provides significant grip and comfort, with reduced height to facilitate difficult intubation particularly for situations with limited neck movement and obesity.
When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without changing your technique.
Plug & Go
Mole Video Laryngoscope has an intuitive interface. Wake the display with one touch of a button. The responsive, text-free display is ready to go.
More Available Space
At 12mm height, the Mole Video Laryngoscope blade, improves visualization of the airway, increases maneuverability and working space reducing the risk of dental trauma.
Ultimate Confidence & Control
The Mole single-use handle provides significant grip and comfort, with reduced height to facilitate difficult intubation particularly for situations with limited neck movement and obesity.
Optimal View
Achieve the optimal screen viewing angle for you and the team, improving efficiency and decision making.
Single-use safety
The handle and blade of Mole Video Laryngoscope is a single-use device, reducing the risk of cross-infection, reprocessing costs, time and storage.
100% All Metal Blade
Specially engineered metal blade provides the confidence needed for direct and video laryngoscopy.
Anti-Fog Design
The internally mounted Anti-Fog design reduces the need for warm up time and allows users to intubate quickly with a clear view.
Achieve the optimal screen viewing angle for you and the team, improving efficiency and decision making.
Single-use safety
The handle and blade of Mole Video Laryngoscope is a single-use device, reducing the risk of cross-infection, reprocessing costs, time and storage.
100% All Metal Blade
Specially engineered metal blade provides the confidence needed for direct and video laryngoscopy.
Anti-Fog Design
The internally mounted Anti-Fog design reduces the need for warm up time and allows users to intubate quickly with a clear view.
Packing list | ||||||||
name | model | quantity | unit | |||||
1 | suitcase | YS-IL/IS | 1 | set | ||||
2 | main engine | YS-IL/IS | 1 | set | ||||
3 | charger with data cable | 5V1AMicro USB | 1 | piece | ||||
4 | samples of disposable blades | 0/1/2/3 | 1 | piece | ||||
5 | IFU | YS-IL/IS | 1 | piece | ||||
6 | certificate of quality | YS-IL/IS | 1 | piece | ||||
Video Laryngoscope | ||||
Range of application: | Aneasthesiology department, ICU, Emergency department, Ambulance, Breathing department, etc. | |||
Classification | Class I | |||
Certificate approval | CE, NMPA, ISO13485 | |||
Model | YS-IL, YS-IS, YS-II | |||
Items | Technical Name | Technical Indicators | ||
Machine Parameters | Display | 3"(OLED) | ||
Camera Resolution | 960*480, 2Mpixels | |||
Illuminace(LUX) | 800~1500 | |||
light source | Natural white(LED) | |||
Rotating angles of the monitor in front and rear | 30 º~150 º | |||
Rotating angles of the monitor in right and left | 0 º~270 º | |||
Angle of vision | ≥73º | |||
Discharging time of battery | >4h | |||
Power supply | Rechargeable 18650 3.7 lithium battery | |||
Charging times | >500times | |||
Weight of monitor | 200g | |||
Card | Media | Class 6 Micro SD flash card | ||
Strorage | 8GB~64GB | |||
File format | JPEG, AVI | |||
Interface | 1 mini USB, 1 SD card slot | |||
Charger | Charger input | 110~220V AC 50Hz | ||
Charger output | 5V, 2600mA | |||
Charging time | <4(hrs) | |||
Temperature | 10℃~40℃ | |||
Working environments | Humidity | 10%-90% | ||
Atmospheric pressure | 500hpa-1060hpa | |||
Temperature | -40℃~55℃ | |||
Transportation storage environments | Humidity | ≤93% | ||
Atmospheric pressure | 500hpa~1060hpa | |||
Shelf life | 5years | |||
Warranty Period | 1year | |||
After-sale service | Return and replacement | |||
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Specification
item | value |
Place of Origin | China |
Brand Name | QZ |
Model Number | YS-IL |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 1years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | None |
Product name | Video laryngscope |
Application | Surgical |
Function | Auxiliary tracheal intubation |
Screen size | 3.0 Inch OLED |
Warranty | 1 Year |
Feature | Portable |
Certificate | CE ISO |
Advantages | Easy Control |
Keywords | video laryngscope |
MOQ | 1 set |
